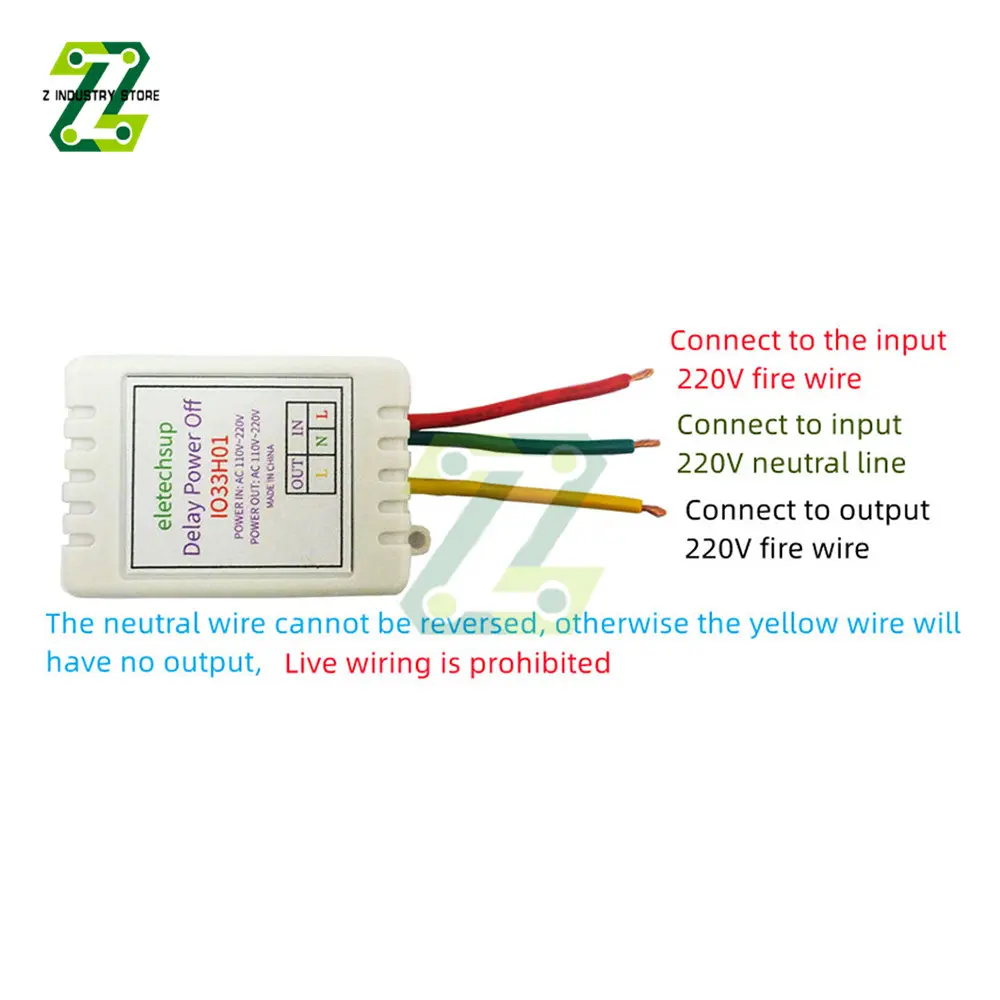

<p><kse:widget data-widget-type="customText" id="1005000000542054" type="relation"></kse:widget></p><p><span style="font-size:20px"><strong>1-480Min Timer Adjustable Disconnect Delay Controller AC 110V 220V Power ON Delay OFF Relay Switch 10A</strong></span></p><p><br/></p><p><span style="font-size:18px"><strong>Features:</strong></span></p><p><span style="font-size:18px">1: Small size</span></p><p><span style="font-size:18px">2: Simple to use, wiring according to the detailed diagram</span></p><p><span style="font-size:18px">3: stable performance</span></p><p><span style="font-size:18px">4: Optional with shell without shell</span></p><p><span style="font-size:18px">5: Output voltage: AC110-220V Power supply voltage: AC 110-220V</span></p><p><br/></p><p><span style="font-size:18px"><strong>Product parameters;</strong></span></p><p><span style="font-size:18px">AC 110V 220V On Delay Relay Switch AC 220V 7A Voltage Output Max 180Min Timer Adjustable Off Delay Controller</span></p><p><span style="font-size:18px">1. Output current: 7A (MAX 10A)</span></p><p><span style="font-size:18px">2. Working power consumption: 43mA</span></p><p><span style="font-size:18px">3. Output voltage: AC110-220V</span></p><p><span style="font-size:18px">4. Power supply voltage: AC 110-220V</span></p><p><span style="font-size:18px">5. Weight with shell: 29 grams</span></p><p><span style="font-size:18px">6. Dimensions with shell: 57×35×20mm</span></p><p><span style="font-size:18px">7. Weight without shell: 19.1 grams</span></p><p><span style="font-size:18px">8. Dimensions without housing: 44×28×16mm</span></p><p><span style="font-size:18px">10. Unified line length: 50mm</span></p><p><span style="font-size:18px">11. Maximum standby power consumption: 12mA</span></p><p><span style="font-size:18px">12. Number of control channels: 1 output</span></p><p><span style="font-size:18px">13. Working temperature: -25℃~85℃</span></p><p><span style="font-size:18px">14. Working humidity: 5%~95%RH</span></p><p><span style="font-size:18px">15. Shell: high quality shell, dustproof and flame retardant</span></p><p><span style="font-size:18px">16. Function: Delay for a period of time to stop power supply</span></p><p><span style="font-size:18px">17. Control power: 1400W (max) incandescent lamp, energy saving lamp 300W (max)</span></p><p><span style="font-size:18px">18. With LED indicator to show the working status (constant light means working, flashing means the delay is over)</span></p><p><span style="font-size:18px">19. Applicable scene: living room, kitchen, bathroom, bedroom, corridor, stairs, etc.</span></p><p><span style="font-size:18px">20. Wide range of uses: such as exhaust fans, motors, air coolers, cooling fans, germicidal lamps, humidifiers, heaters, etc.</span></p><p><span style="font-size:18px">21. 16 delay modes to choose from (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes minutes, 300 minutes, 480 minutes)</span></p><p><br/><br/></p><p><span style="font-size:18px">Module function: This module is a delayed shutdown module. When the set delay time expires, the power supply is stopped.</span></p><p><br/></p><p><span style="font-size:18px">Working status: After power on, the indicator light (PWR) is always on; after the delay is over, the indicator light (PWR) will continue to flash.</span></p><p><br/></p><p><span style="font-size:18px"><strong>Instructions:</strong></span></p><p><span style="font-size:18px">①: Set the time that needs to be delayed (live setting is not allowed);</span></p><p><span style="font-size:18px">②: After checking that the wiring is correct, power on. After power-on, the module starts to work (the indicator light is always on), and when the time is up, the module stops power supply (the indicator light flashes).</span></p><p><span style="font-size:18px">1. If you need to shut down in advance during use, you can directly disconnect the main power supply of the module.</span></p><p><span style="font-size:18px">2. Start the second time delay: power on again.</span></p><p><br/></p><p><span style="font-size:18px"><strong>Delay time selection method:</strong></span></p><p><span style="font-size:18px">①: Refer to the delay mode table to select the time to be delayed;</span></p><p><span style="font-size:18px">②: Toggle the DIP switch (red) according to the delay mode table;</span></p><p><span style="font-size:18px">③: After setting, check the wiring, and then power on.</span></p><p><span style="font-size:18px"> Note: When a new delay mode needs to be set, in order to ensure personal safety, it must be set to power-off mode, and live operation is prohibited.</span></p><p><br/></p><p><span style="font-size:18px"><strong>List;</strong></span></p><p><span style="font-size:18px">1*AC110-220V timer adjustable off-delay controller only board/with shell optional</span></p><p></p>
