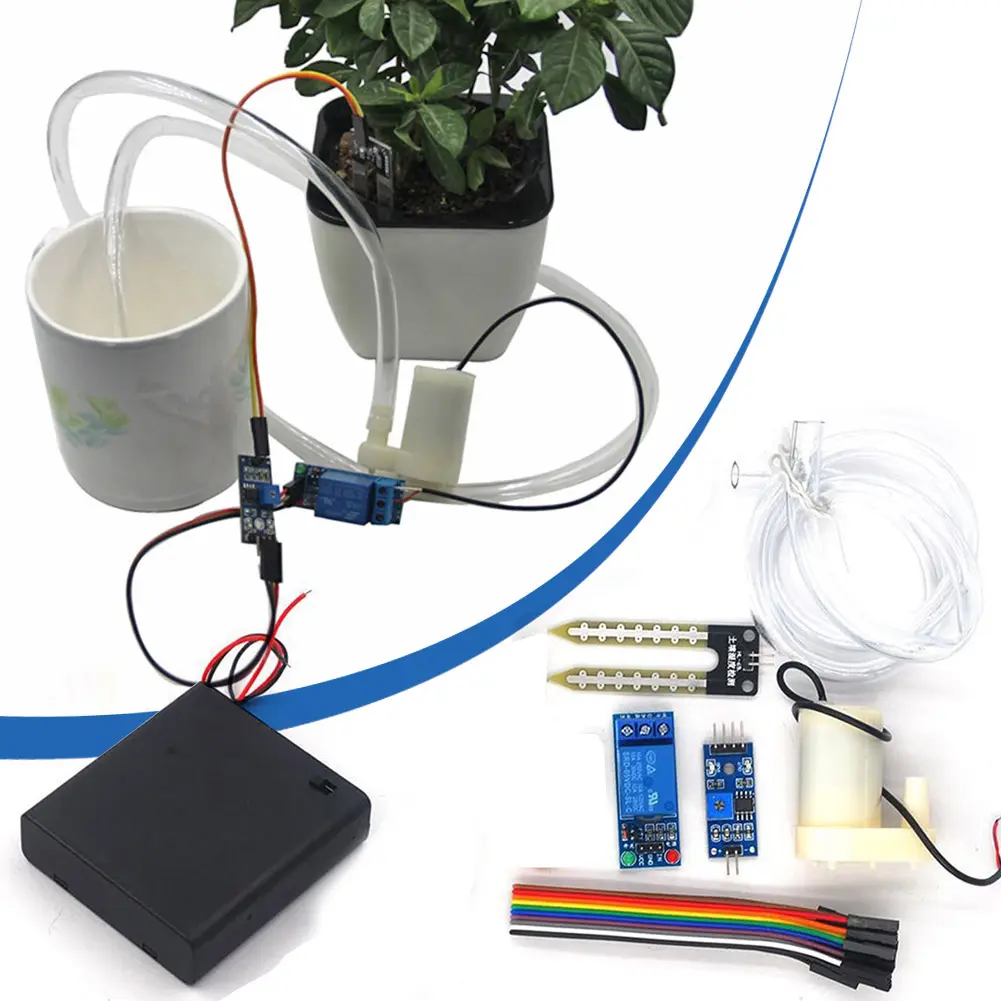

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <br /> <div style="padding:15px;border:1px solid #AEAEAE;"> About each part of the test:<br /> 1. Test the relay module: connect the relay module VCC to 5V, GND to ground, IN to GND, the relay jumps, and when IN is suspended, the relay recovers, so you can hear the relay "Kaka" sound repeatedly;<br /> 2. Test the soil moisture sensor module: connect the fork probe and transmitter module with two DuPont lines, the transmitter module VCC is connected to 5V, GND is grounded, just after power-on, the red power light is always on, green (blue) color indication The lamp flashes faintly once; the fork probe is directly inserted into the water, and the green (blue) light is on;<br /> 3. Connect the red line of the pump to 5V, the black line is grounded, the pump works, pay attention to the test for 1 second, and it is not allowed to work in the air for a long time;<br /> <br /> note:<br /> 1, this baby can be free of welding, but you need to peel the wire, twist the copper wire together, and protect it with black tape;<br /> 2. The pump cannot be operated in the air for a long time;<br /> <p> 3, the system is connected, power on, the pump has been working, it is correct, because in the air, the probe can not detect the humidity, so the pump has been working, there is no problem in the correct installation into the pot. </p> <p> <br /> </p> <p> This baby does not provide power, you can use the charging treasure (5V DC) as the power supply, or use 4 5th battery box and load 4 batteries </p> &nbsp;<br /> Note that water should not be poured directly on the probe. Many people don't know that the humidity of the water will be rusted and destroyed soon.<br /> &nbsp;<br /> </div> <br /> <div> <br /> </div> <div style="padding:15px;border:1px solid #AEAEAE;"> 1* relay module<br /> 1* soil moisture probe + comparison module<br /> 1* small water pump<br /> 1* battery case<br /> 1*USB power cord<br /> 10 *20CM DuPont Line (F-F)<br /> 50CM* silicone water pipe (please purchase if you need to lengthen)<br /> &nbsp;<br /> </div> <p> <br /> </p> <p> </p> <div style="text-align:center;"> <div> <span> </span> </div> <div> <br /> </div> </div> <br /> <br /> <p> </p> <p> </p> <p> </p> </td> </tr> </tbody> </table> <br /></div></div>
