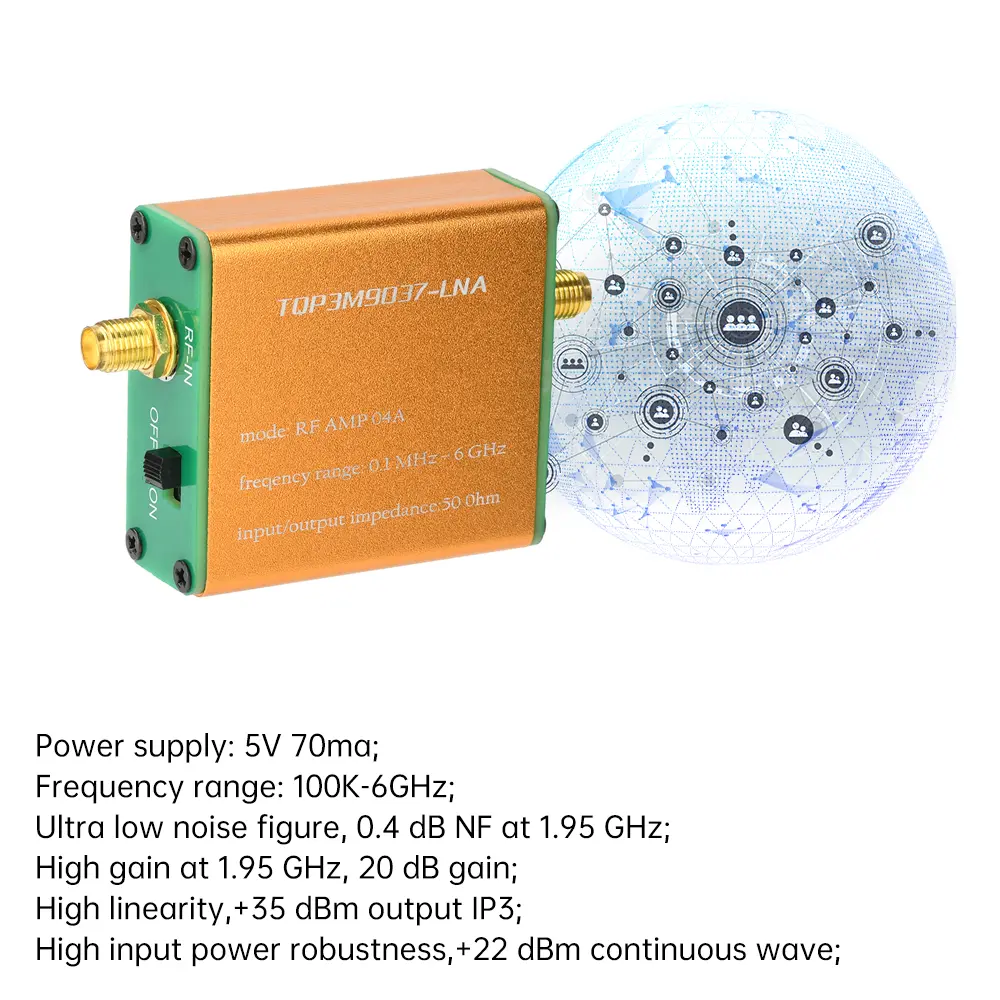

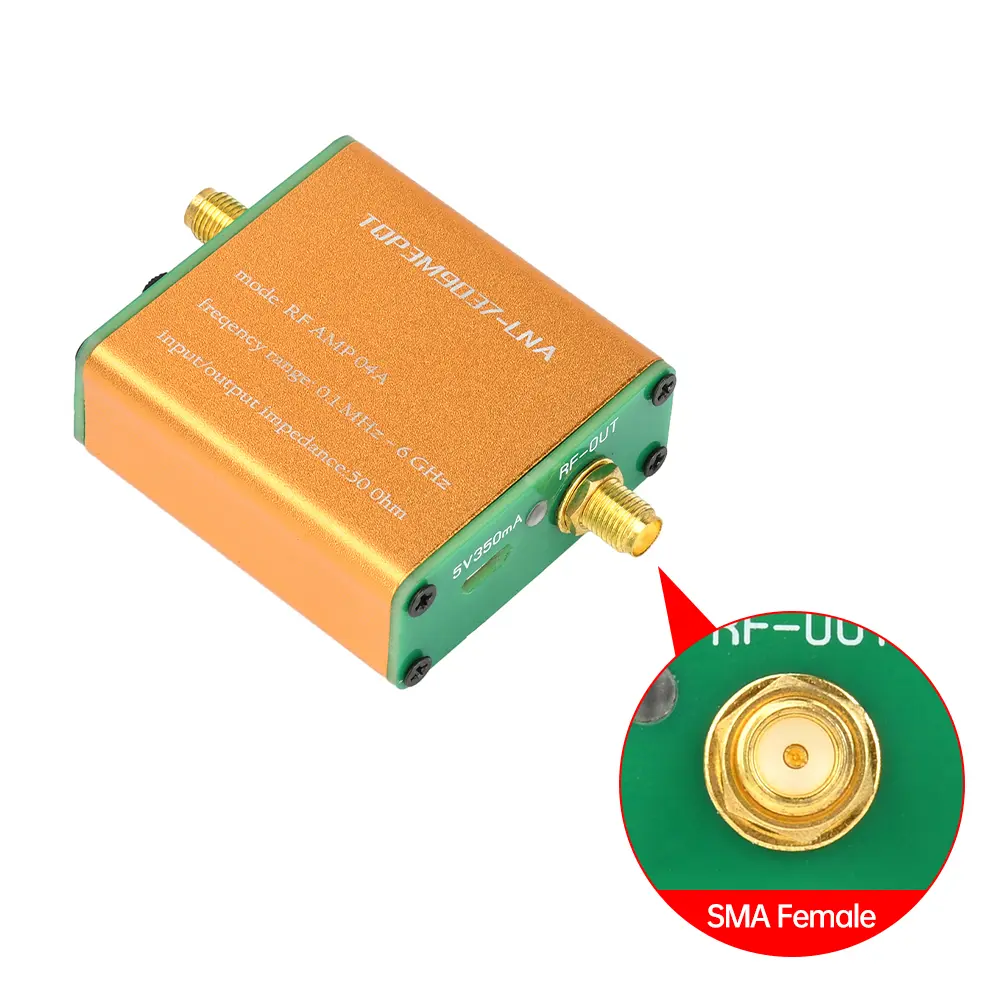

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. Ultra wideband coverage: Supports the full frequency range of 100kHz-6GHz, suitable for various wireless communication and signal enhancement scenarios. <br/>2. Excellent noise performance: The noise figure is only 0.4dB at 1.95GHz, ensuring high-sensitivity signal reception. <br/>3. High gain and linearity: Provides 20dB gain and outputs IP3 up to+35dBm, ensuring signal quality and strength. <br/>4. Low power design: Only 5V 70mA power supply is required, suitable for signal testing and analysis in various RF experiments, teaching, and scientific research projects. <br/>5. Compact and durable structure: Small size, 50 ohm matching impedance, SMA female interface, easy to integrate and use.</p><p>Parameter: <br/>Power supply: 5V 70ma <br/>Frequency range: 100K-6GHz <br/>Ultra low noise figure, 0.4 dB NF at 1.95 GHz; <br/>High gain at 1.95 GHz, 20 dB gain; <br/>High linearity+ 35 dBm output IP3; <br/>High input power robustness+ 22 dBm continuous wave; <br/>Stable performance; <br/>Input/Output: 50 ohms <br/>Connector: SMA Female Head <br/>Size: 48 * 43 * 18.5mm (excluding joints); <br/>The battery free model can be equipped with a 3.7V 200mAh battery <br/>Attention: The battery free version requires Bias Tee bias power supply. Some devices come with bias power supply functions such as sdrplay 1A, HACKRF ONE, etc.</p><p>Package Include: <br/>1 * Amplifier <br/>1 * Power cord<br/><br/></p></div></div><p><br/></p>
