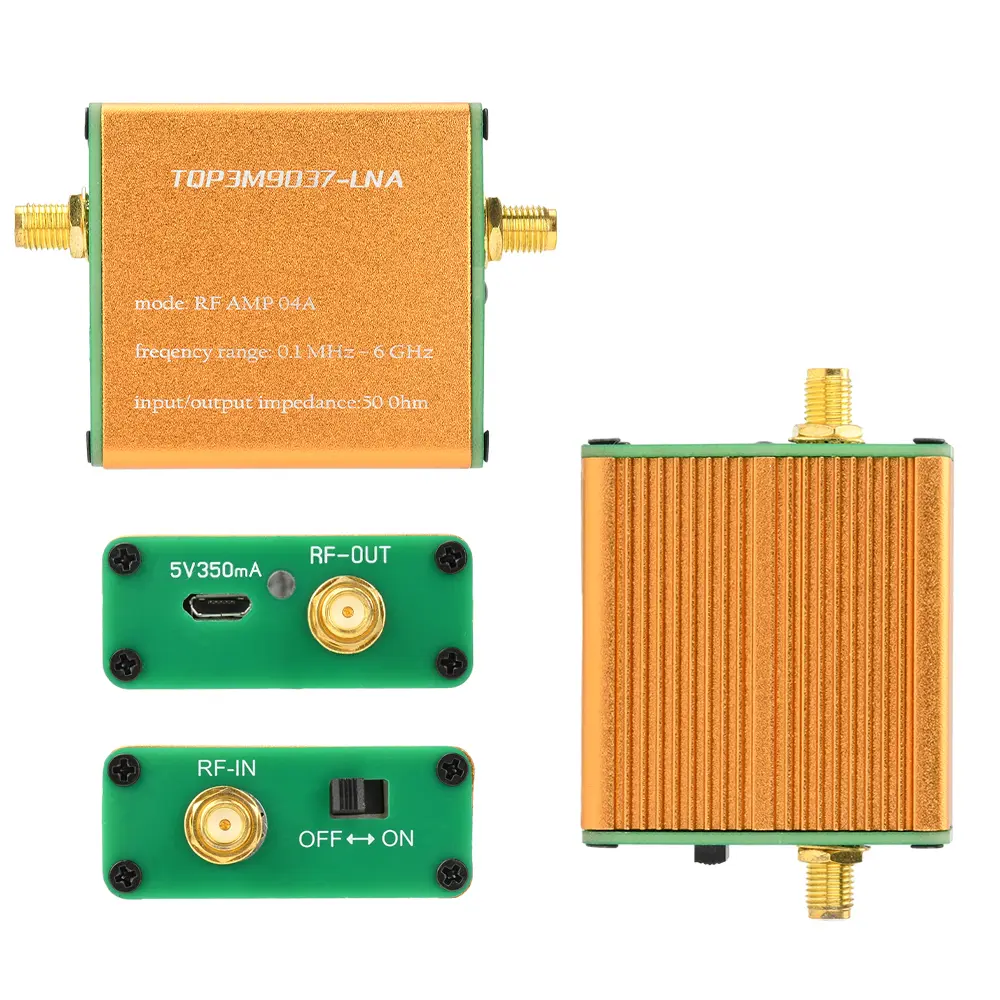

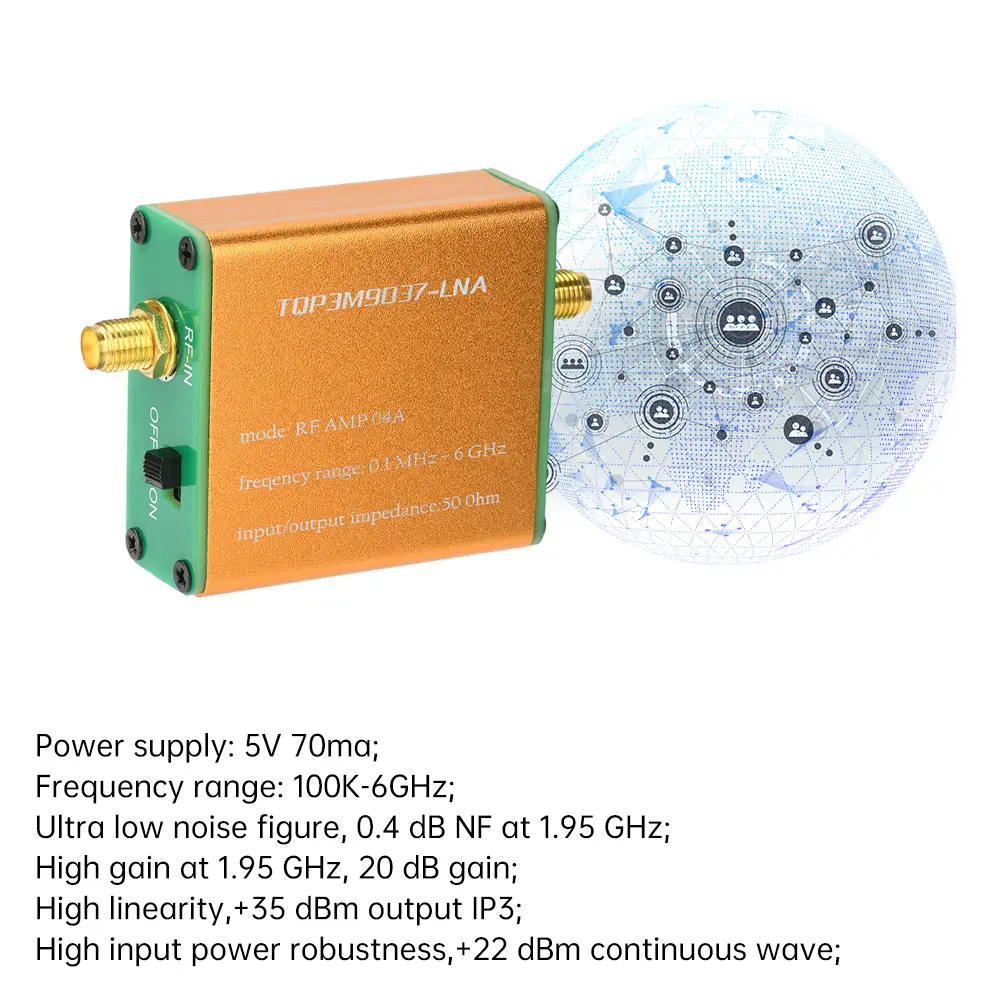

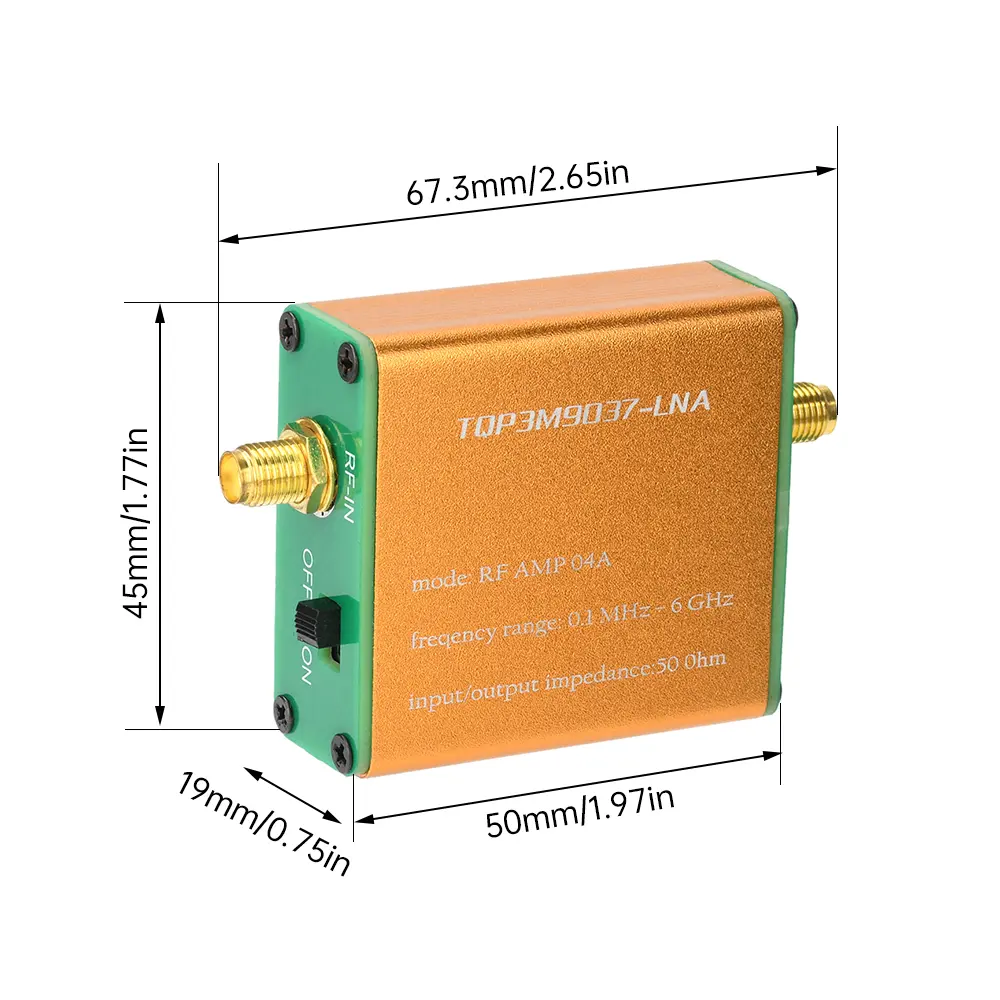

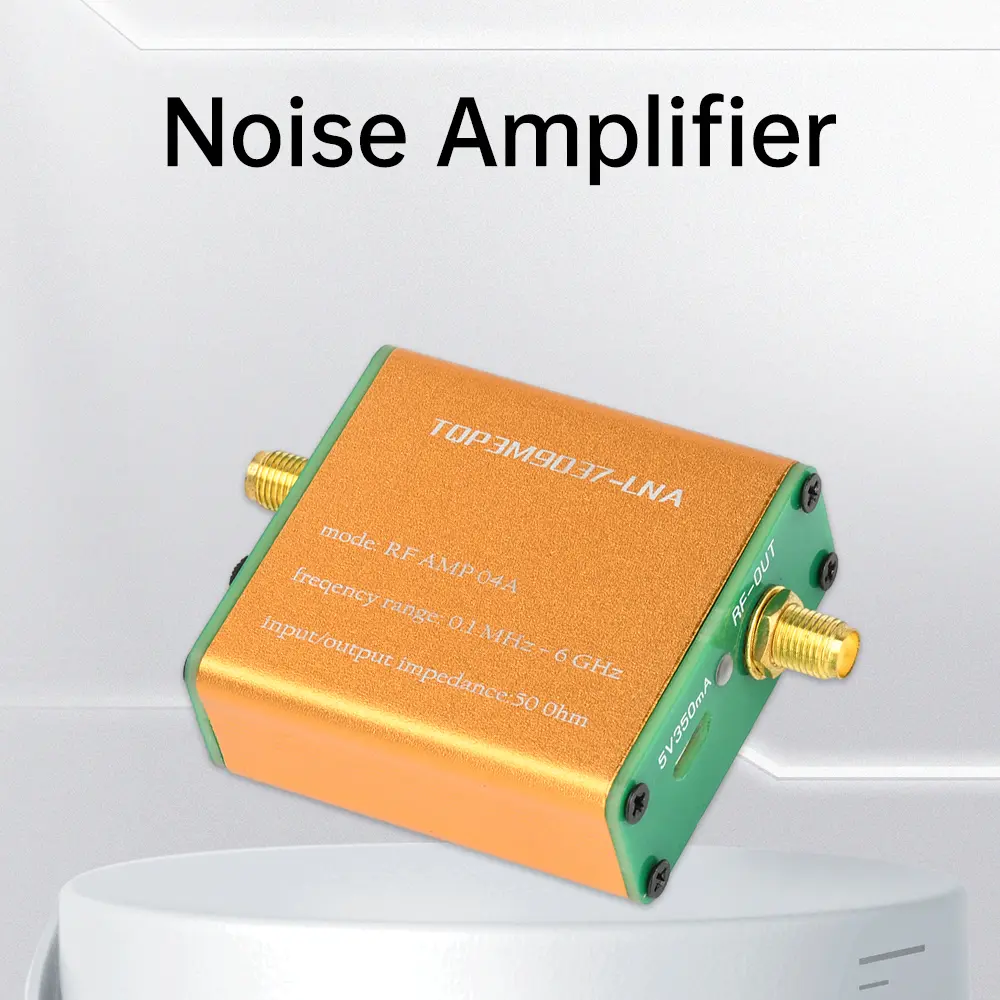

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><span style="font-size: 20px; color: #ff0000; background-color: #ffff00;">Shipping without batteries</span><br /><br />Features: <br />1. Ultra wideband coverage: Supports the full frequency range of 100kHz-6GHz, suitable for various wireless communication and signal enhancement scenarios. <br />2. Excellent noise performance: The noise figure is only 0.4dB at 1.95GHz, ensuring high-sensitivity signal reception. <br />3. High gain and linearity: Provides 20dB gain and outputs IP3 up to+35dBm, ensuring signal quality and strength. <br />4. Low power design: Only 5V 70mA power supply is required, suitable for signal testing and analysis in various RF experiments, teaching, and scientific research projects. <br />5. Compact and durable structure: Small size, 50 ohm matching impedance, SMA female interface, easy to integrate and use.</p> <p>Parameter: <br />Power supply: 5V 70ma <br />Frequency range: 100K-6GHz <br />Ultra low noise figure, 0.4 dB NF at 1.95 GHz; <br />High gain at 1.95 GHz, 20 dB gain; <br />High linearity+ 35 dBm output IP3; <br />High input power robustness+ 22 dBm continuous wave; <br />Stable performance; <br />Input/Output: 50 ohms <br />Connector: SMA Female Head <br />Size: 48 * 43 * 18.5mm (excluding joints); <br />The battery free model can be equipped with a 3.7V 200mAh battery <br />Attention: The battery free version requires Bias Tee bias power supply. Some devices come with bias power supply functions such as sdrplay 1A, HACKRF ONE, etc.</p> <p>Package Include: <br />1 * Amplifier <br />1 * Power cord<br /></p></div></div>
