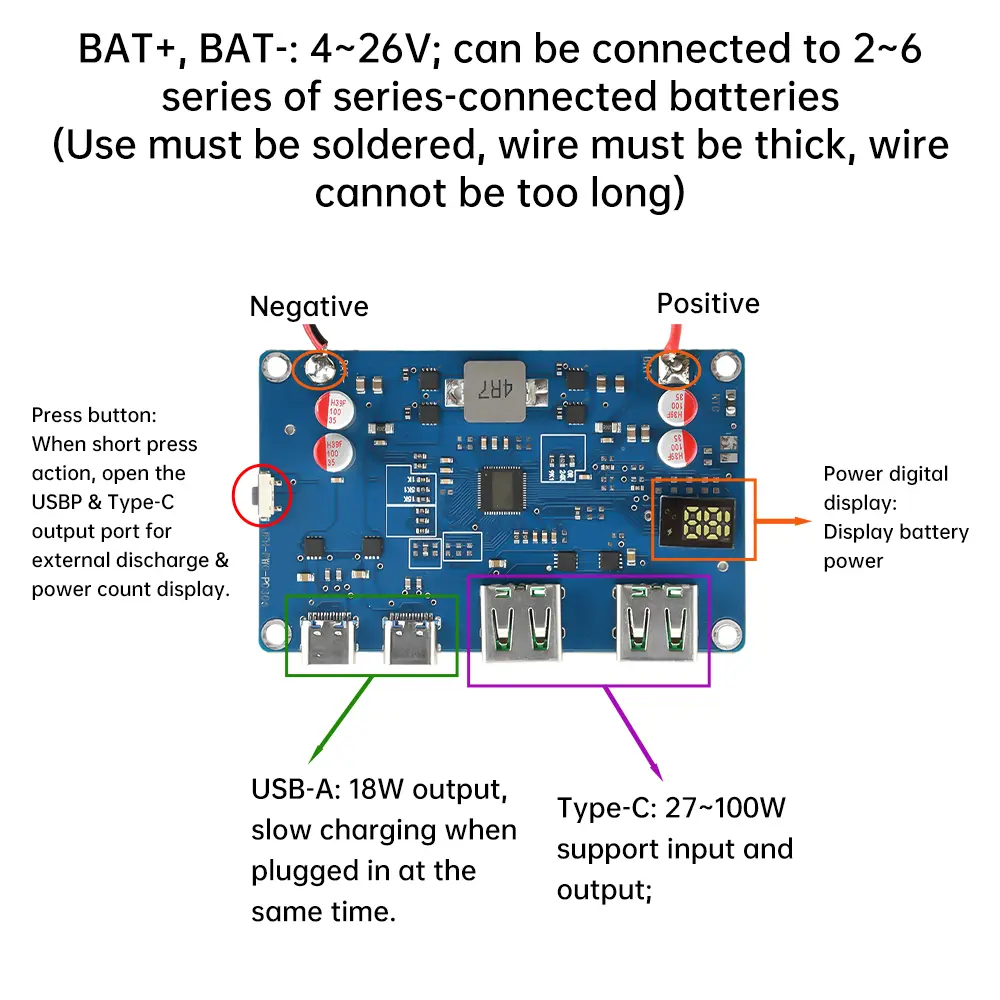

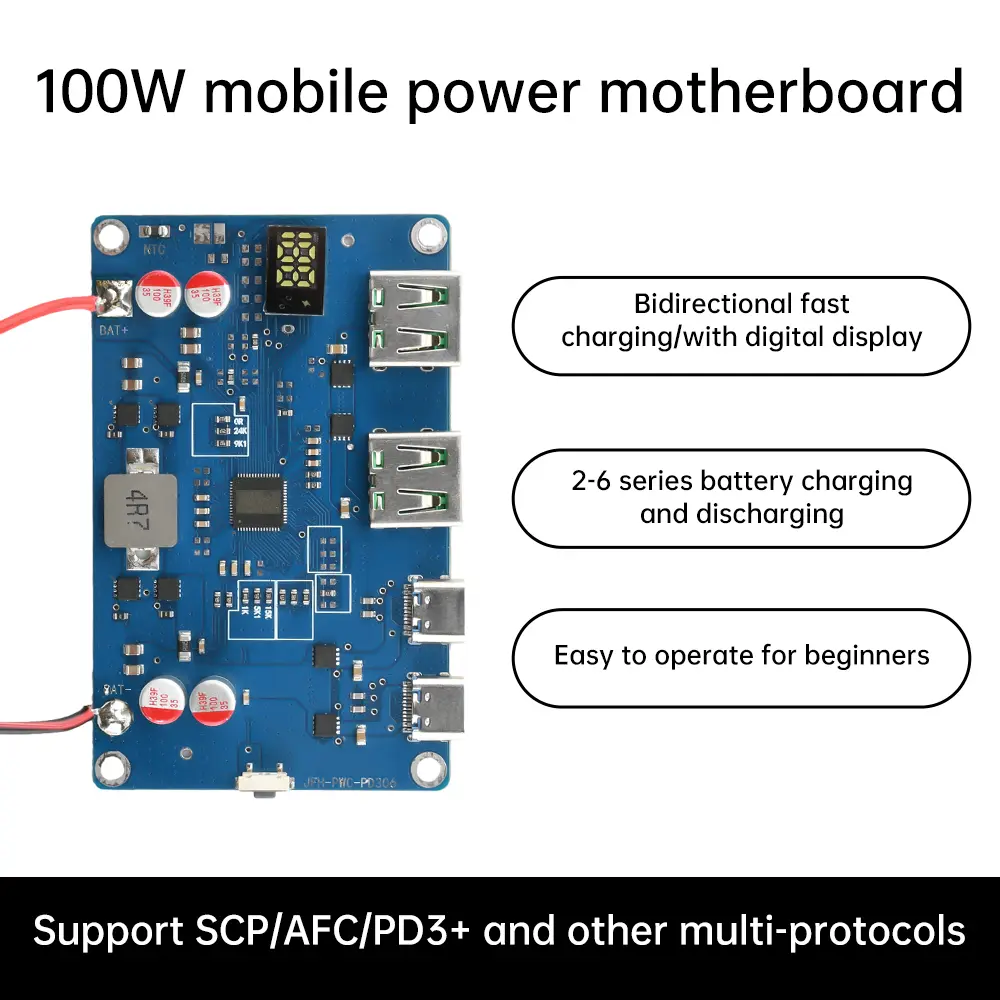

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1.MPPT solar charging: intelligent tracking of the maximum power point, highly efficient conversion of solar energy, improve charging efficiency <br/>2.Intelligent lift voltage switching: automatically adjust the voltage, to prevent damage to the device from over-charging, PWM/PSM dual-mode efficient operation <br/>3.Multiple Safety protection: over-current, over-voltage, short-circuit, over-temperature comprehensive protection, the use of safe and worry-free <br/>4. PD bidirectional fast charging: support for rapid charging and discharging, significantly shorten the self-charging time, the use of more convenient <br/>5. Low-ripple and stable output: solid capacitor filtering, the output ripple is less than 9mV, effective protection of electronic equipment</p><p>Parameter: <br/>Soldering input: 4-26V; can be connected to the 2-6S series connection battery <br/>USB-A: 18W output USB-A: 18W output; can be connected to 2-6S serial batteries; meanwhile, plugging is slow charging <br/>Type-C: 27-100W support input and output <br/>Product Ripple: &lt;9MV <br/>Module applicable: 4.2V/4.3V/4.35V/4.5V various specifications of the battery <br/>such as: 4.2V 18650/polymer/triple Li-ion batteries/Li-FePo batteries <br/>Support AFC fast-charging protocol <br/>Support FCP/SCP protocol, Huawei can be fast-charging or super-fast-charging <br/>support PD3.1 input and output fast charging protocol <br/>support millet fast charging can also be charged to the tablet PC <br/>integrated QC2.0/QC3.0/C3.0 + output fast charging protocol <br/>other devices need to support the QC protocol can be fast-charging, otherwise it can not be</p><p>Precautions: <br/>1. The motherboard external battery line must be able to pass the 10A current, at least with more than 1 square of copper wire, the ordinary line should be used 1.5 squares. Too thin will have security risks. Because the battery side of the current is very large, recommended 16AWG specification line.<br/>2. The motherboard comes with a protection chip, the battery can not be added to the protection board, if any, please remove the protection board, directly with our motherboard connected to the core. (Because the self-contained generally can not be too high current, a large output power on the protection) <br/>3. Because the battery side of the current is too large, you must use a thick wire to weld on the battery to test, you can not use crocodile clips to clip the pads to test the charge and discharge.<br/>4. Selection of batteries can use 4.15V/4.2V/4.35V/4.4V 18650, polymer, ternary lithium batteries can be used in a large single, a single string of batteries with a capacity of no more than 25,000mAh, more than the amount of power display will not be allowed. Support 3.65V lithium iron phosphate, does not support disposable dry batteries, nickel-metal hydride, nickel-chromium, lead-acid batteries and so on. Battery at least 2S, maximum 6S, the total voltage can not exceed 23V single string of batteries at least need to be able to charge and discharge current up to 10A or more, up to the power down please use.<br/>5. The motherboard must be preset battery capacity, please see the details inside the introduction <br/>6. Support Huawei super fast charging, different protocols have different power, 65W, 100W are said to be the power of the PD protocol, the SCP is 22.5W. Please confirm the demand and then shoot, do not accept the return of the phone can not be fast-charging not to support you. Welded are not supported returns (unsupported phones because the phone&#x27;s own protocol is not public, the third party can not use) <br/>7. This motherboard connected to the battery must meet the requirements and to be connected in series.</p><p>Package include: <br/>module*1<br/><br/></p></div></div><p><br/></p>
