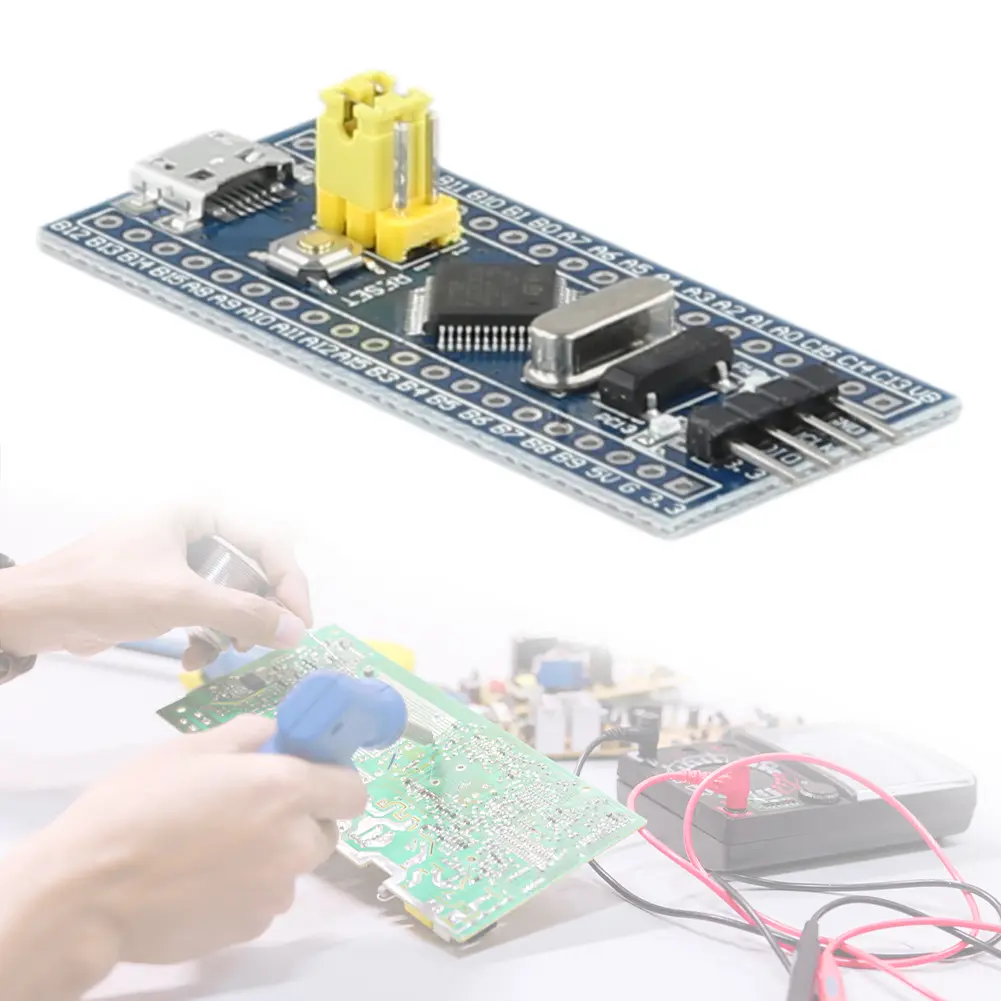

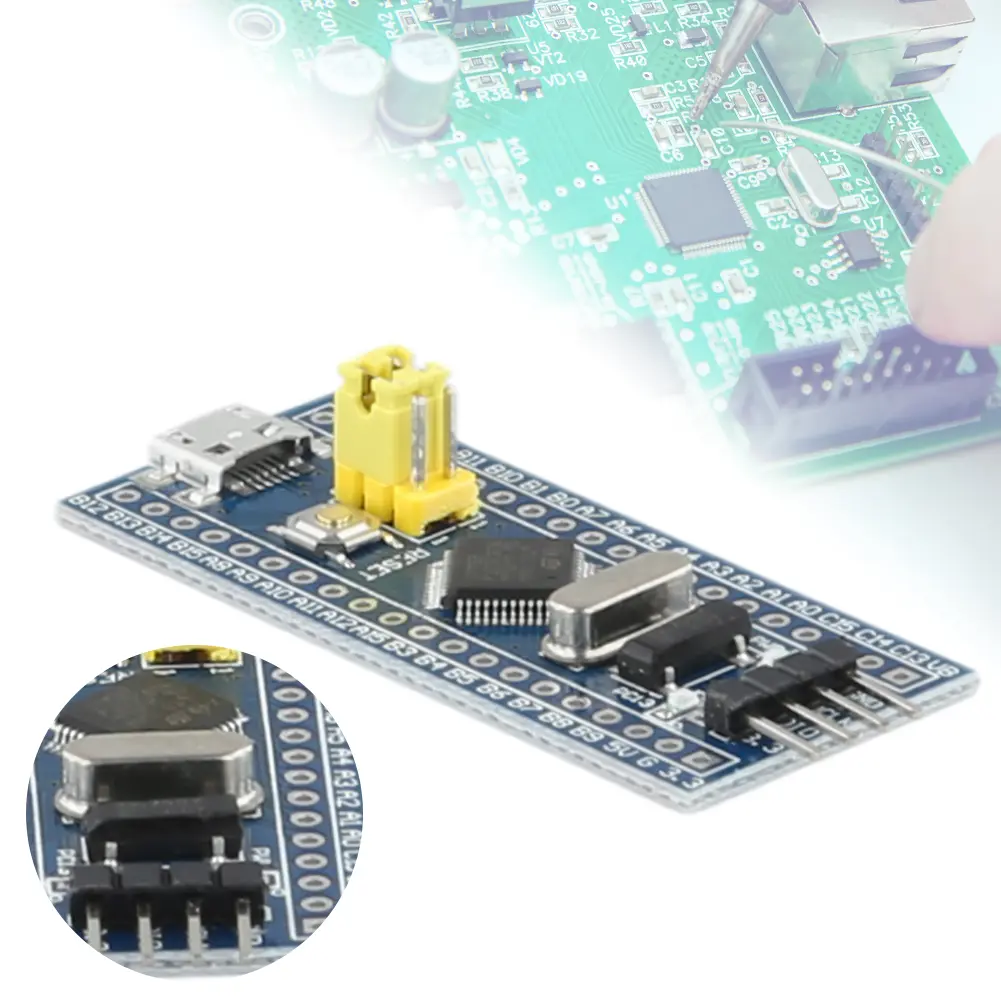

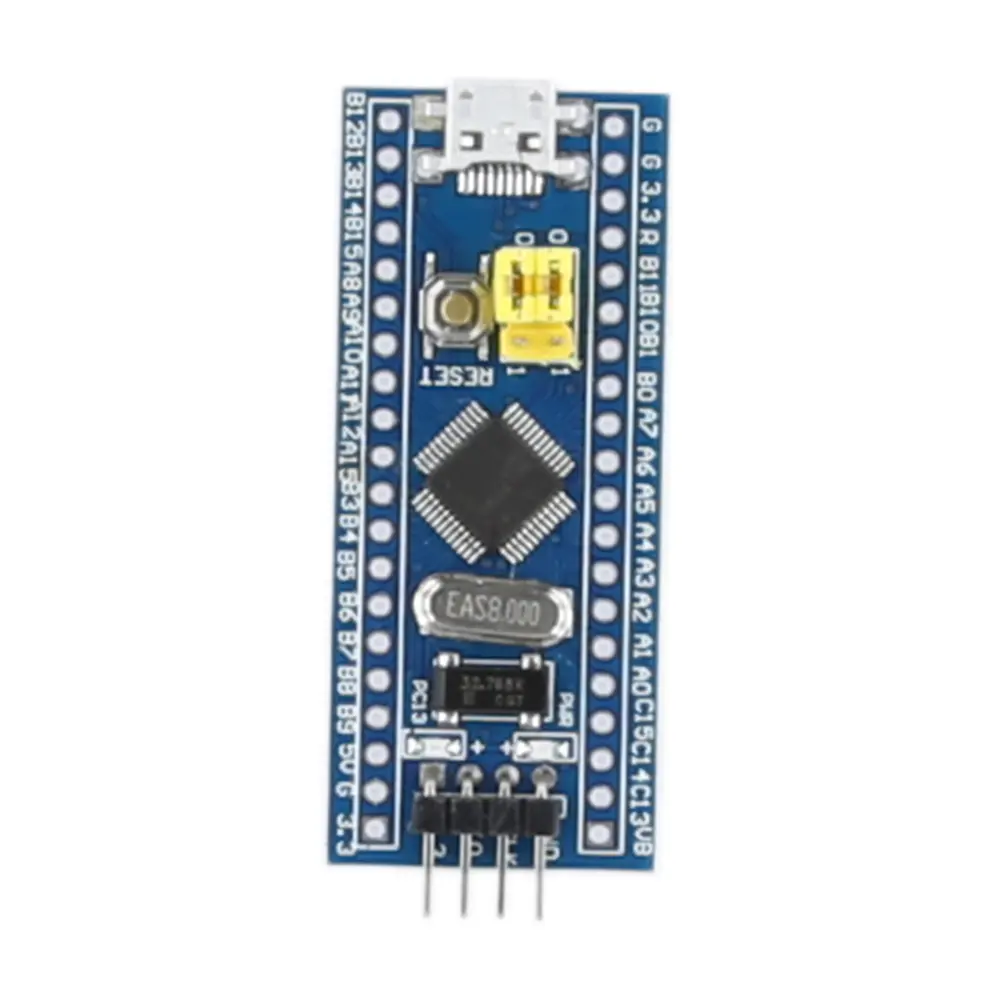

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <p> <span style="color:#111F2C;font-family:&quot;font-size:14px;background-color:#FFFFFF;"><br /> </span> </p> <p> <span style="color:#111F2C;font-family:&quot;font-size:14px;background-color:#FFFFFF;"></span> </p> <p> <span style="color:#111F2C;font-family:&quot;font-size:14px;background-color:#FFFFFF;"><br /> </span> </p> <br /> <div style="padding:15px;border:1px solid #AEAEAE;"> <p> <span style="color:black;font-family:inherit;font-size:12px;">STM32F103C8T6/C6T6 Minimum System Development Board Module ARM STM32 Microcontroller Development Board Module for Arduino<br /> <strong>Features:</strong><br /> <strong>1. Advanced Core Performance:</strong> Our minimum system development board module is built around a powerful STM32 chip with a 64K Byte Flash and 20KByte SRAM, encapsulated in an LQFP package with 48 pins, ensuring swift and efficient operations for complex tasks and applications.<br /> <strong>2. Versatile Connectivity Options:</strong> Featuring 2x SPI, 3x USART, 2x I2C, and 1x CAN for flexible connectivity, along with 37x I/O ports, this minimum core learning board provides a wide range of options for connecting to various devices, making it ideal for intricate electronic projects and system developments.<br /> <strong>3. Precision Debugging and Programming:</strong> The microcontroller core board supports JTAG/SWD interface for debugging, programming, and IAP with ease, complemented by a Micro USB interface for power and communication, and a USART1 interface, providing users with a hassle-free and speedy setup for their development needs.<br /> <strong>4. Enhanced Power Management:</strong> With a RT9193 3.3V regulator ensuring a stable output of up to 300mA and power supply interfaces for both 5V and 3.3V, the ARM system board processor also features a power LED (PWR) and a user LED (PC13) for straightforward power status and operation indication, enhancing the reliability and user-friendliness of the device.<br /> <strong>5. Customizable Physical Configuration:</strong> The ARM development module comes with un-soldered pin headers, allowing users to choose the soldering direction that best fits their specific use case. This customizable approach ensures that the board can easily adapt to a variety of setups and projects, from educational environments to advanced engineering applications.<br /> </span> </p><br/><br/><span><strong>Specification:</strong></span><br /> <span>Origin: Mainland China</span><br /> <span>Type: Module</span><br /> <span>Condition: New</span><br /> Chip Description:<br /> Package Type: LQFP<br /> Number of Pins: 48<br /> Core: Cortex-M3<br /> Operating Frequency: 72MHz<br /> Storage Resources: 64K Byte Flash, 20KByte SRAM<br /> Interface Resources: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I/O ports<br /> Analog-to-Digital Conversion: 2x ADC (12-bit/16-channel)<br /> Timers: 3 general-purpose timers and 1 advanced timer<br /> Debug Download: Support JTAG/SWD debug interface download, support IAP<br /> RT9193: 3.3V voltage regulator chip, maximum output 300mA<br /> Product Size: 54.00x23.00x12.00mm/2.11*0.9*0.47in<br /> &nbsp;Interface Description:<br /> 1. SWD interface: support simulation, download and debugging.<br /> 2. Mirco USB interface: power supply and USB communication, does not support download.<br /> 3. USART1 interface: you can use USART1 to download the program, or use USART1 for communication.<br /> 4. MCU pin interface: Pin out all I/O port pins, convenient to connect with peripherals.<br /> 5. 5V and 3.3V power input/output interface: commonly used for external power supply, or common ground processing with other modules.<br /> Other Device Description:<br /> 1. Power LED (PWR): power indicator status, can determine whether the power supply is stable.<br /> 2. User LED (PC13): convenient for I/O output testing or indicating program operation.<br /> 3. Start jump to select programming mode: (1, user flash memory 2, SRAM 3, system memory).<br /> 4. Reset button: used to reset the user program of the chip.<br /> 5. 8M crystal oscillator: can set the frequency so that the system main frequency is 72MHz.<br /> 6. 32.768KHz crystal: can be used for built-in RTC, or for calibration.<br /> <br /> <p> <strong>Note:</strong><br /> Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!<br /> Please allow 1-2cm measuring deviation due to manual measurement. </p> <br />&nbsp;<br /> </div> <br /> <div> <br /> </div> <p> <br /> </p> <p> </p> <p> <span id="__kindeditor_bookmark_start_65__"></span> </p> <p> 1*Minimum System Development Board&nbsp; </p> <p> <br /> </p> <br /> <div style="text-align:center;"> <br /> </div> <br /> <p> </p> <p> </p> </td> </tr> </tbody> </table></div></div>
