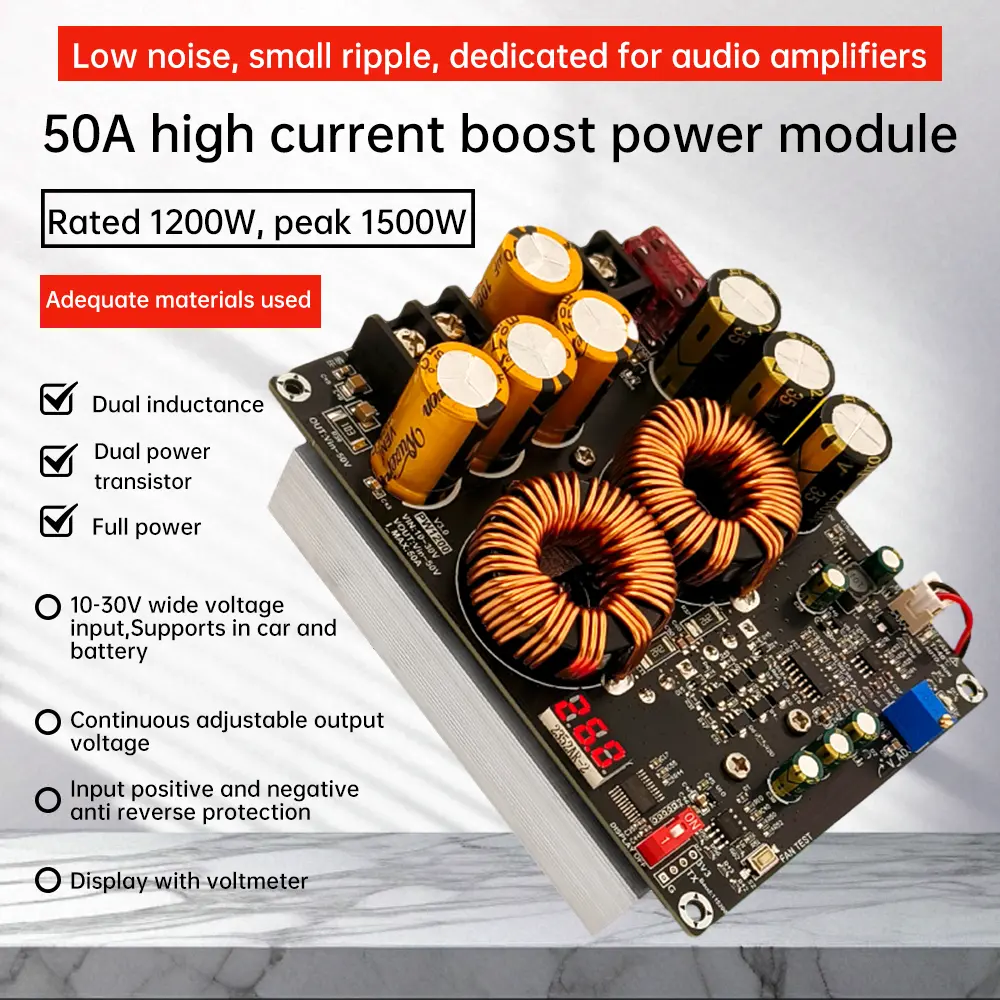

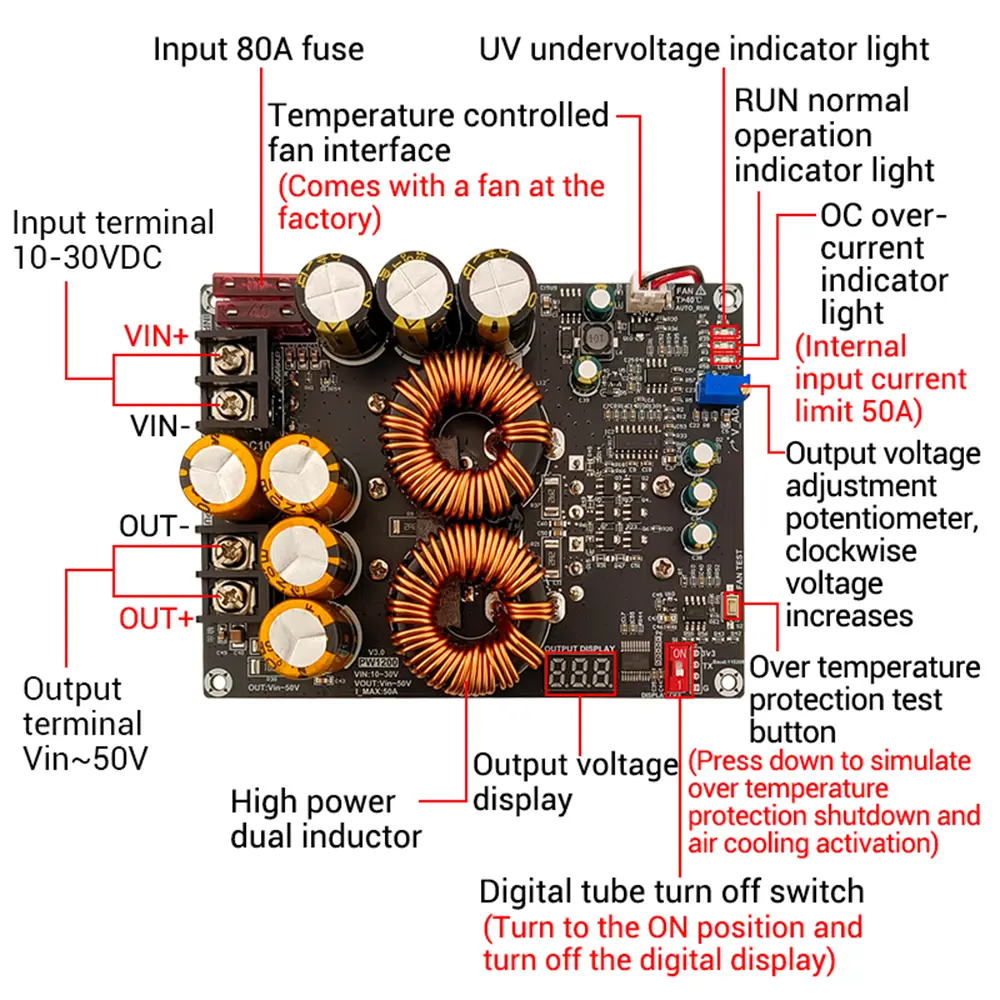

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Dual inductor design, to ensure full power output, stable support for 1200W high-power applications<br/>2. Extremely low ripple output, optimized for high-fidelity audio amplifier equipment sound quality performance<br/>3. Maximum support for 50A high current, to meet the demanding needs of high-performance equipment on the current<br/>4. Products with input anti-reverse connection protection, over-current protection, under-voltage protection<br/>5. On-board voltage display, output voltage at a glance</p><p>Parameter:<br/>Product name: 50A high current boost module (non-isolated)<br/>Supply voltage: DC10-30V, below 9V undervoltage protection, higher than 32V will be damaged<br/>Output voltage: Vin~50V, continuously adjustable<br/>Output power: 1200W, peak 1500W<br/>Input current: Maximum 50A, current-limited protection<br/>Static operating current: 70mA@(Vin=20V Vout=48V) the higher the output voltage, the higher the static current<br/>Conversion efficiency: 92%-95<br/>Input anti-reverse protection: Yes, 290A, 1.2mOhm, T0247 package large MOS tube<br/>Undervoltage protection: Yes, 9V<br/>Over-current protection: Yes, 50A<br/>Over-temperature protection: Yes, the substrate temperature exceeds 100 ℃.<br/>Heat dissipation: 60mm * 60mm fan air-cooled, increase the thickened 100 * 92 * 20mm heat sinks<br/>Output voltage display: Yes, precision 0.1V, can be controlled off the display<br/>Temperature control fan rotation conditions: substrate temperature over 40 ℃ C fan start<br/>Output ripple: no load ± 30mV, full load ± 600mV</p><p>Package include:<br/>Power supply module *1<br/><br/></p></div></div><p><br/></p>
