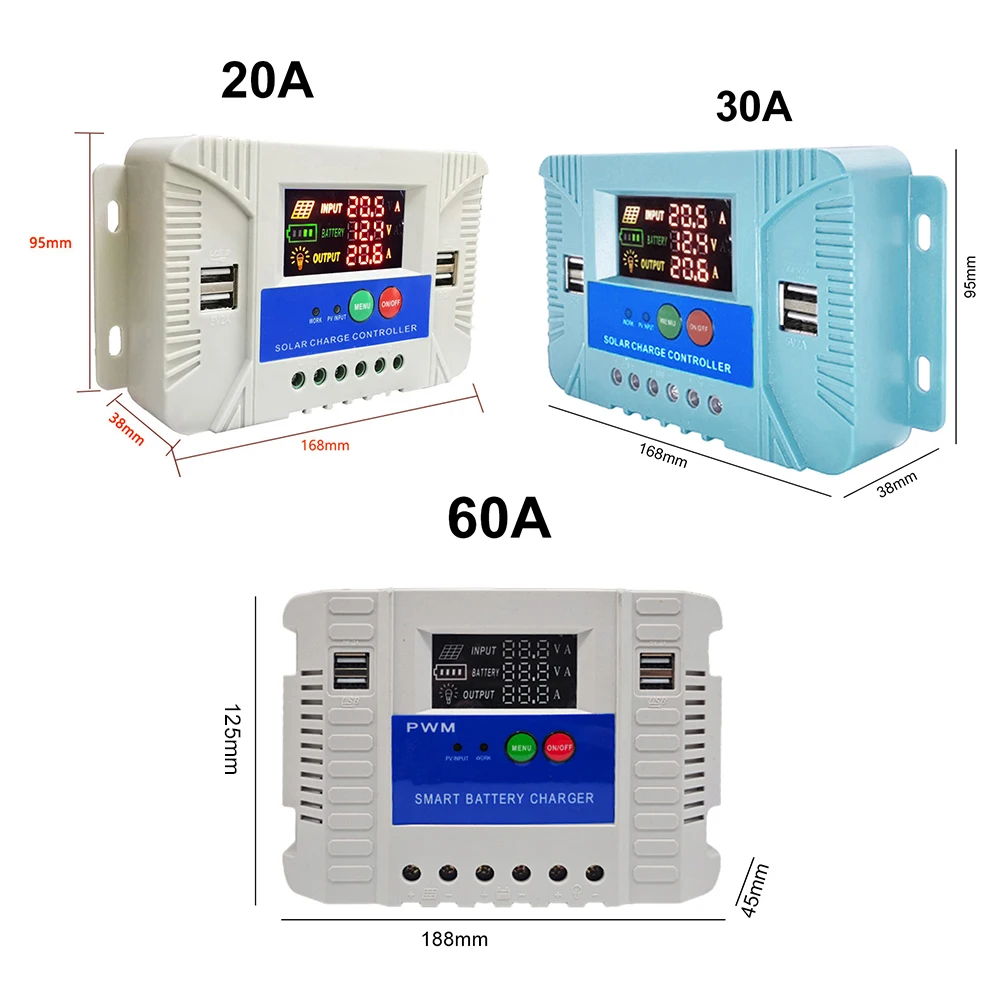

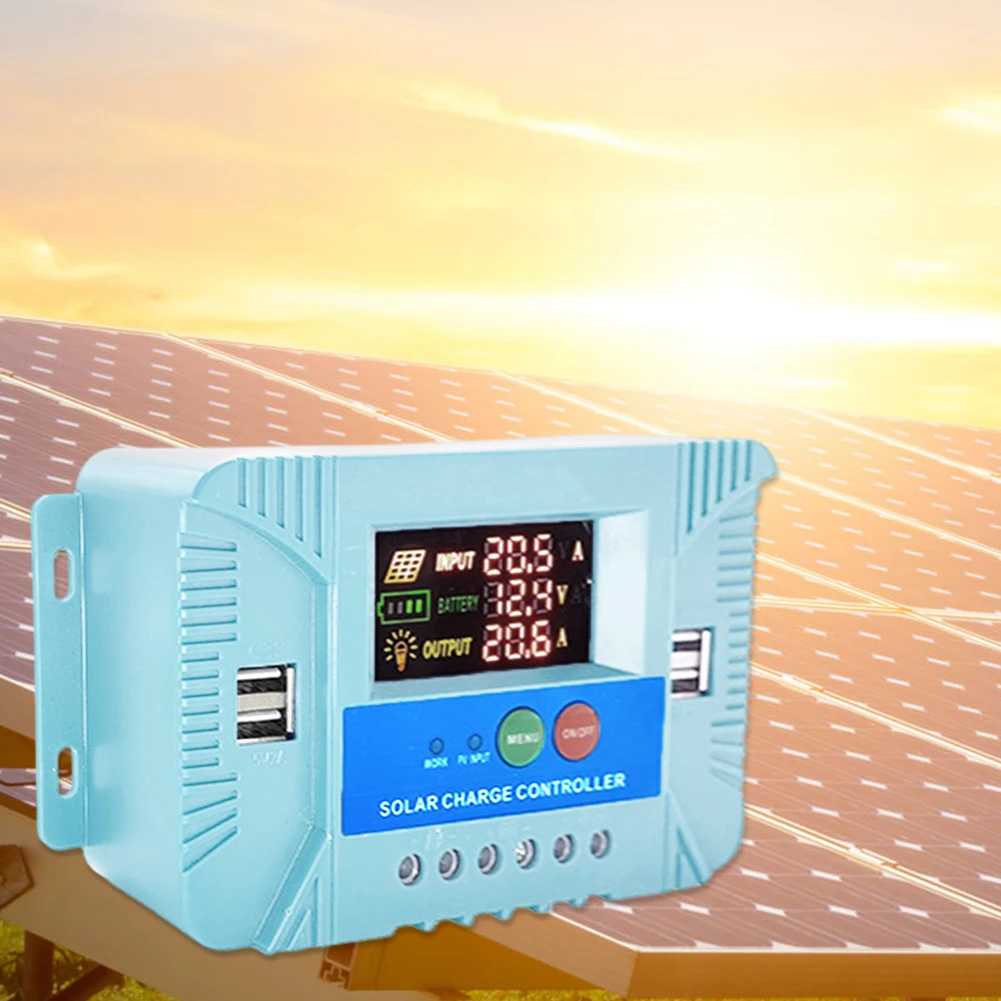

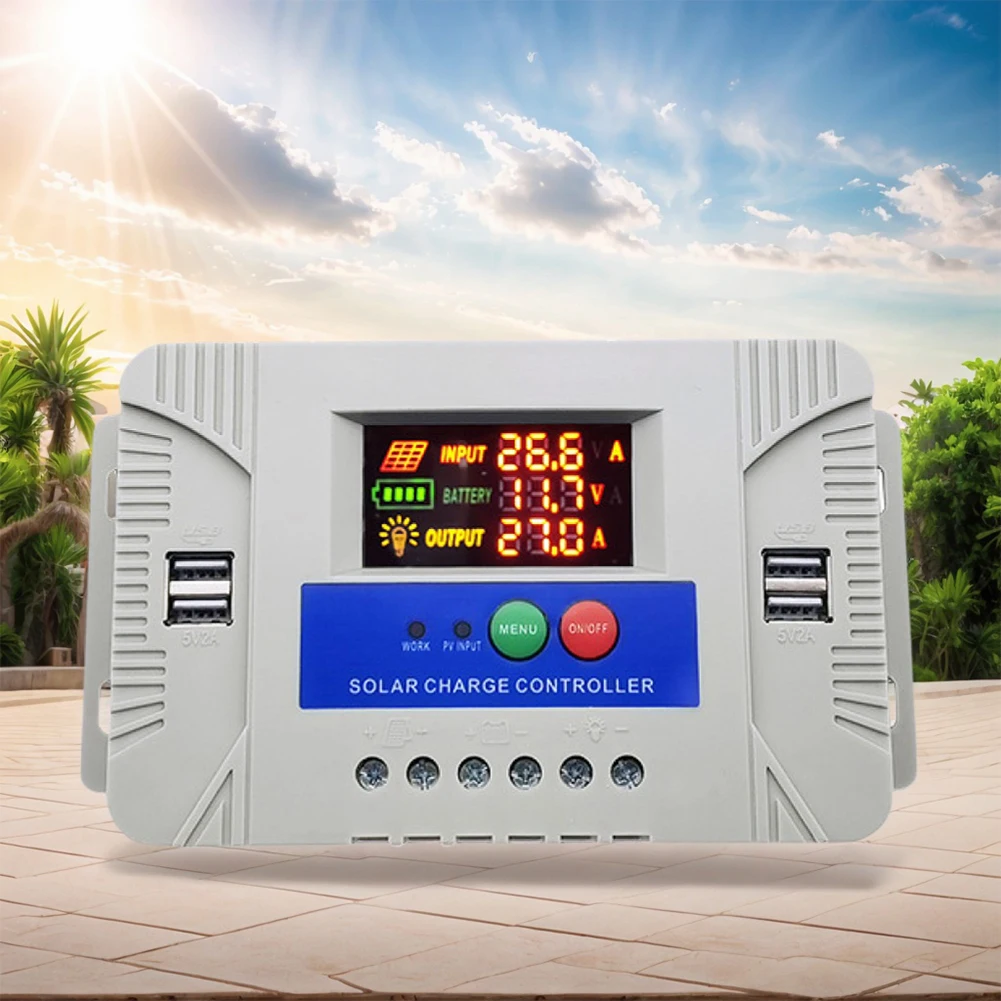

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p> <span> </span> </p> <p> <br /> </p> <h2> <span style="font-size:14px;font-family:Arial;"></span> </h2> <table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <br /> <div style="padding:15px;border:1px solid #AEAEAE;"> <p> <table border="0" cellpadding="0" cellspacing="0" style="border: 1px solid #c1c7d0;border-collapse:collapse;"><tr><td style="font-size: 14px;color: orange;font-weight: bold;border: 1px solid #c1c7d0;">(White 20A/White 30A/White 60A)--Solar Charge Controller</td></tr><tr><td style="border: 1px solid #c1c7d0;">12V 24V Solar Charge Controller Lithium Battery Charge Controller LED Display Solar Controller for Home and Outdoor Energy Solution<br /> <b>Features:</b><br /> <b>1.Three-Stage PWM Charging:</b> Utilizing a direct, boost and float charging method, the solar charge controller enables fast and intelligent charging while extending battery life.<br /> <b>2.LED LCD Display:</b> Featuring a high-definition display, this auto solar regulator provides clear system status at a glance, displaying input/output current and voltage, battery status, solar panel controller mode, and load output conditions.<br /> <b>3.Alloy Heat Dissipation:</b> With enhanced MOS silicon gel heat pipes closely attached to the thickened heat dissipation backplate, the solar power controller ensures optimal performance even in 60° environments.<br /> <b>4.Enlarged Terminal for 6MM Wire:</b> The lithium battery charge controller includes large terminal ports supporting 6MM wires with 95MM spacing, ensuring enhanced insulation, reduced voltage drop, and installation reliability.<br /> <b>5.ABS Engineering Plastic Shell:</b> Crafted from ABS engineering plastic, the external casing of the solar charge controller offers high impact resistance, superior ignition point, corrosion resistance, ensuring longevity and security.<br /><br/><br/><span><strong>Specification:</strong></span><br /> <span>Origin: Mainland China</span><br /> <span>Product Size:<br /> 20A/30A: 168x95x38mm, 234g<br /> 60A: 188x125x45mm, 640g<br /> Product Material: ABS Engineering Plastic + Alloy Heat Dissipation Backplane<br /> Cooling Method: Heat Sink Self-Cooling<br /> Operating Environment Temperature: 0~40 Degrees Celsius<br /> Storage Environment Temperature: -15~50 Degrees Celsius<br /> Operating/Storage Environment Temperature: 0~90% Without Condensation<br /> Photovoltaic Panel Input Voltage Range (Vdc): 15v-23v Photovoltaic Panel For 12v Battery 30v-45v For 24v Battery<br /> Protection Function: Prevent Overcharge/Overvoltage/Dc Output Low Voltage/High Voltage Protection/Reverse Connection Protection, etc.<br /> System Connection:<br /> 1. Connect the positive and negative poles of the battery to the controller as shown in the figure, and the controller will automatically detect the battery voltage.<br /> 2. Connect the positive and negative poles of the load to the controller as shown in the figure, and be careful not to reverse.<br /> 3. Connect the solar panel to the controller as shown in the figure.<br /> Note: Please connect strictly in the above order, otherwise the controller may be damaged.<br /> The disassembly order is opposite to the wiring order.<br /> </span><br /> <p> <strong>Note:</strong><br /> Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!<br /> Please allow a 1-2 cm difference in measurements due to manual measuring. </p> <br /></td></tr></table>&nbsp; </p> </div> <br /> <div> <br /> </div> <div style="padding:15px;border:1px solid #AEAEAE;"> <table border="0" cellpadding="0" cellspacing="0" style="border: 1px solid #c1c7d0;border-collapse:collapse;"><tr><td style="border-right: 1px solid #c1c7d0;">Product</td><td>Included</td></tr><td style="border: 1px solid #c1c7d0;">White 20A：</td><td style="border: 1px solid #c1c7d0;">1 x&nbsp;Solar Charge Controller</td></tr><td style="border: 1px solid #c1c7d0;">White 30A：</td><td style="border: 1px solid #c1c7d0;">1 x&nbsp;Solar Charge Controller</td></tr><td style="border: 1px solid #c1c7d0;">White 60A：</td><td style="border: 1px solid #c1c7d0;">1 x&nbsp;Solar Charge Controller</td></tr></table>&nbsp;<br /> </div> <br /> <div style="text-align:center;"> </div> <br /> <div> <br /> </div> <div style="padding:15px;border:1px solid #AEAEAE;"> [relateproductdetail/] </div> <br /> <p> <br /> </p> <p> </p> </td> </tr> </tbody> </table> <p> <br /> </p></div></div>
