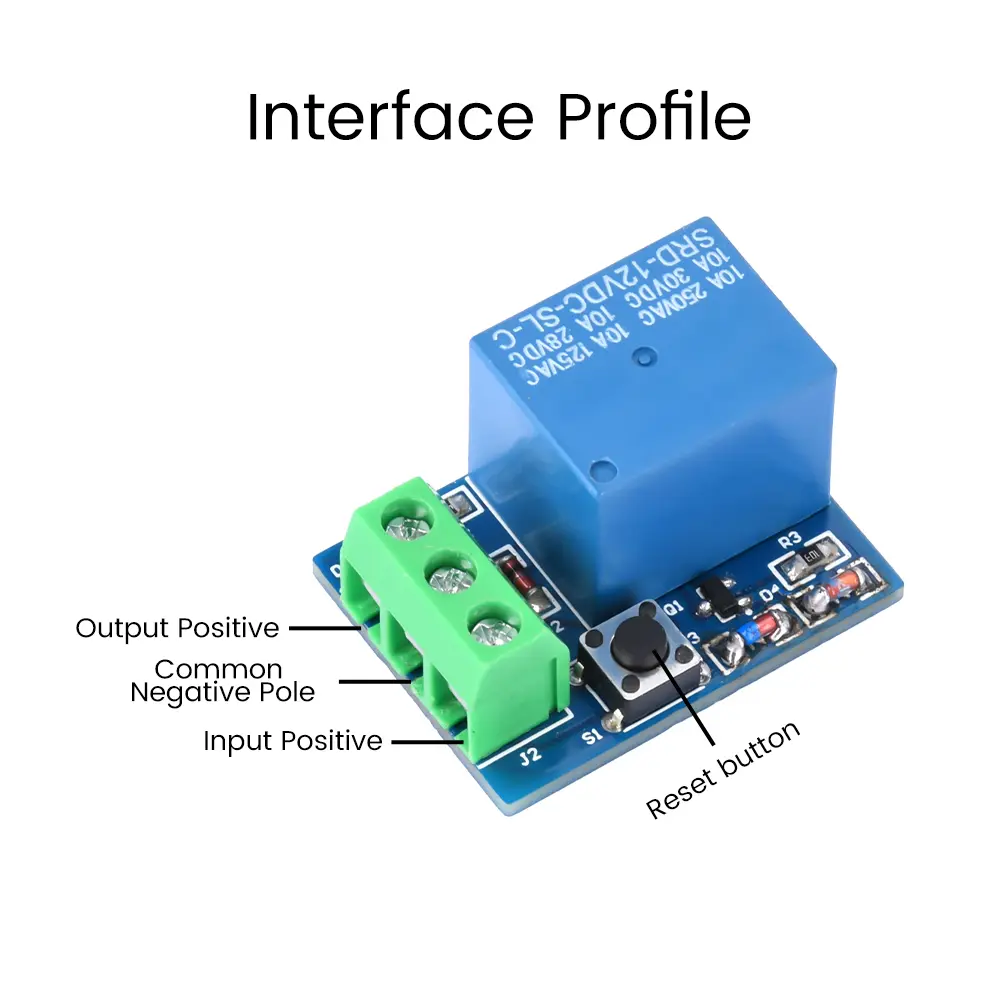

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004119628" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/><strong><span style="font-size:20px">Features:</span></strong><br/>1. Using high quality materials, quality is guaranteed<br/>2. Exquisite appearance, beautiful arrangement of components<br/>3. Discharge to the protection voltage automatically cut off all the power supply, to avoid over-discharge, to protect the battery life<br/>4. Simple circuit, stable and reliable trigger voltage.<br/>5. Wide range of applications, suitable for a variety of industrial DIY occasions</div><div><br/></div><p><strong><span style="font-size:20px">Parameter:</span></strong><br/>Working voltage: applicable to any capacity 12V battery/storage battery<br/>Protection / termination voltage: 10.7 due to differences in components, there may be a maximum error of ± 0.15V<br/>Maximum controllable current: 10A<br/>Arc length: 1-5CM</p><p><strong><span style="font-size:20px">Interface description:</span></strong><br/>IN+:Input positive (connected to the positive terminal of the battery)<br/>GND: public negative (connected to the load and battery negative)<br/>OUT+: output positive (connected to the load positive)</p><p><strong><span style="font-size:20px">Instructions for use:</span></strong><br/>1. After connecting the battery and load with the protection board, when the battery voltage is normal, press the trigger button, the relay conducts, the LED lights up, and the protection board starts to work.<br/>2. When the battery voltage is lower than the protection voltage, the relay disconnect LED off, automatically cut off the output, the battery disconnect load and protector power supply<br/>3. When the battery voltage is restored to above the protection voltage, you can press the trigger button again to make the monitoring and protection work continue.</p><p><strong><span style="font-size:20px">Package include:</span></strong><br/>Protection module *1<br/></p></div></div><p><br/></p>
