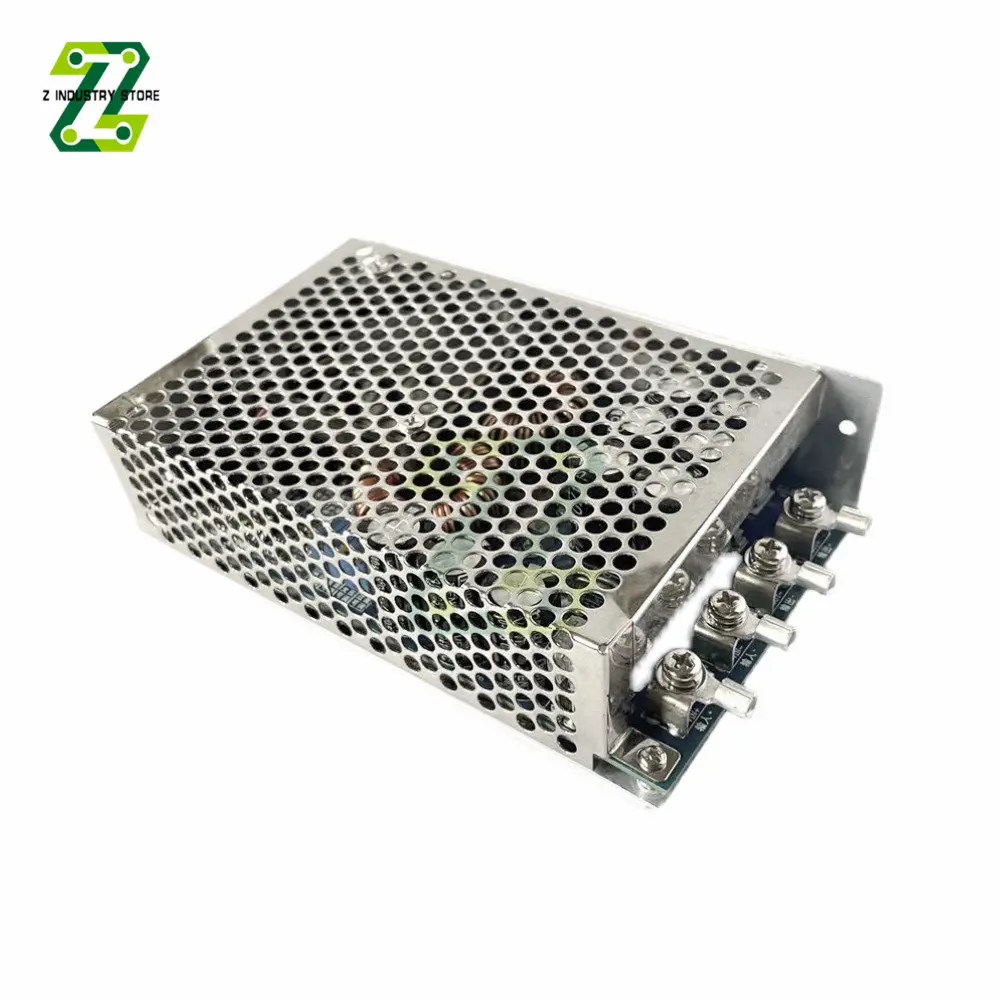

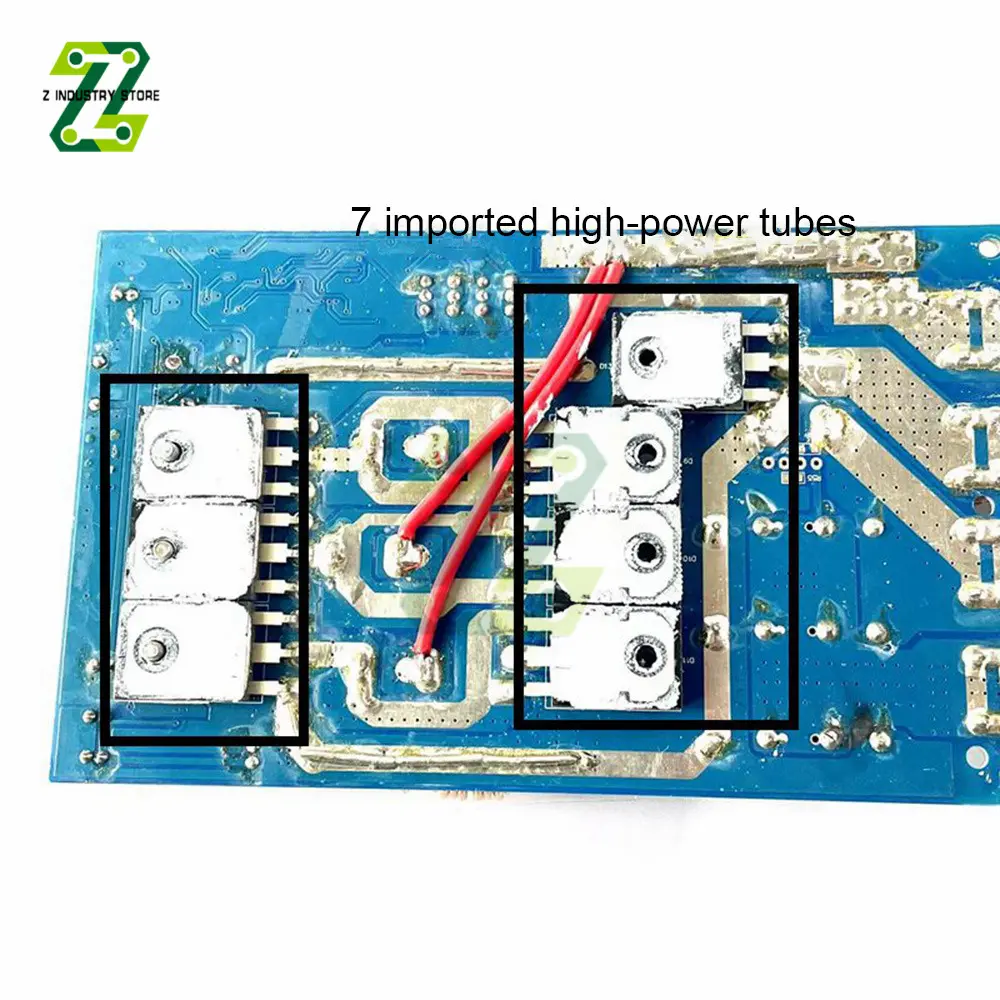

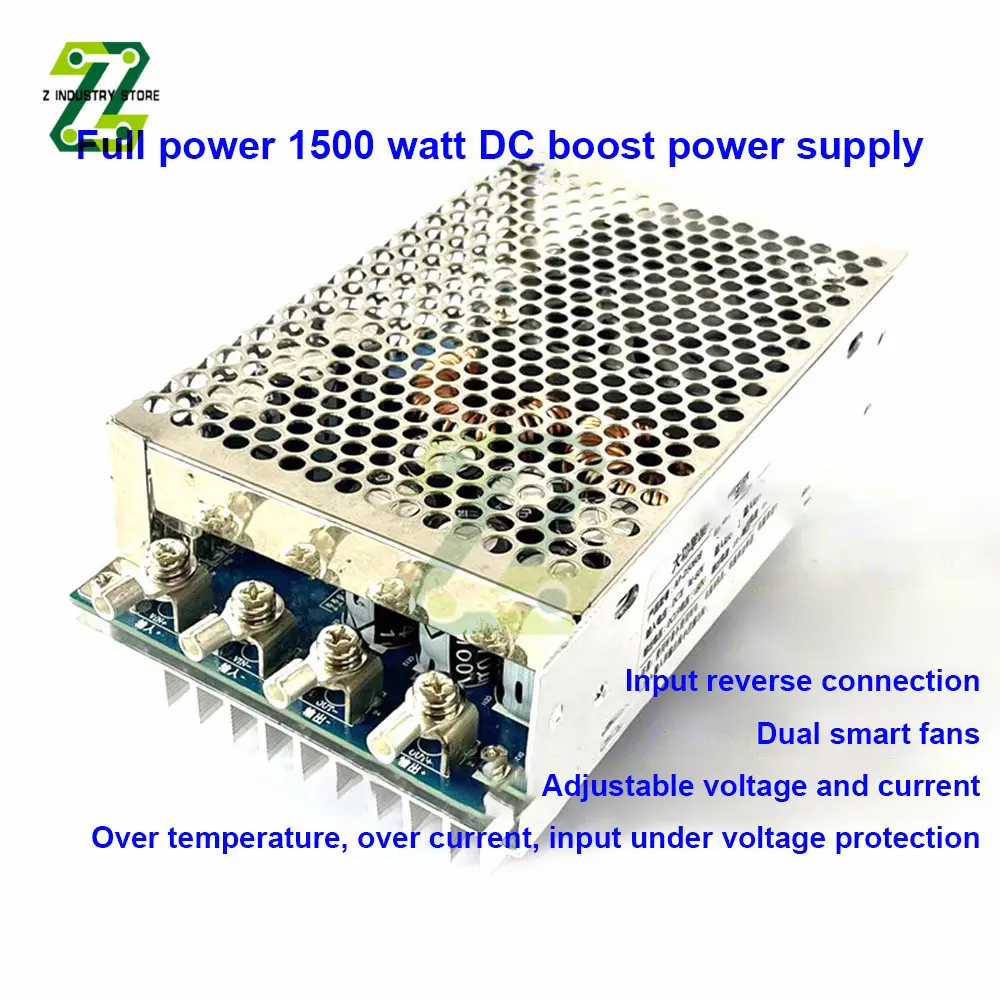

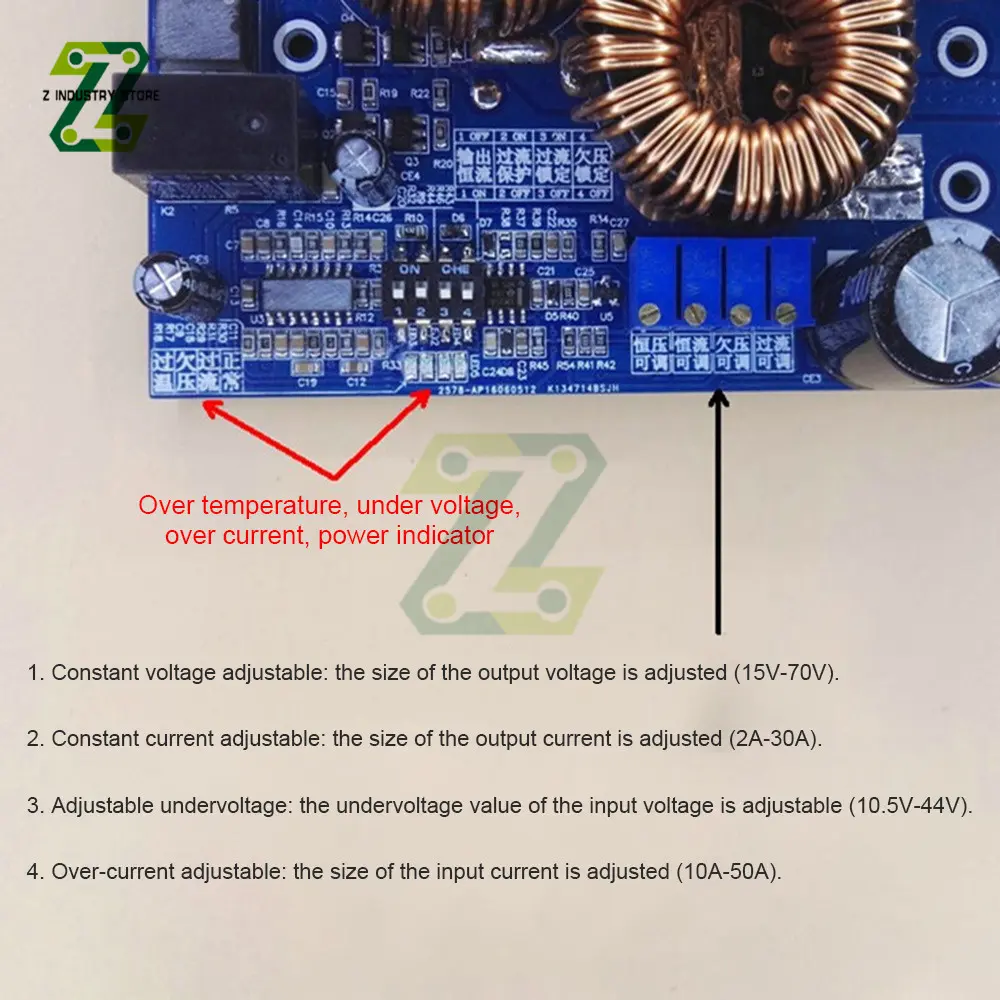

<p><span style="font-size:20px"><strong></strong></span><kse:widget data-widget-type="customText" id="1005000000806197" type="relation"></kse:widget><span style="font-size:20px"><strong></strong></span></p><p><span style="font-size:20px"><strong>1500W DC Converter Step-up Power Supply Module DC-DC 12V-48V To 24V-70V Boost Constant Current Charging Speed-up Module </strong></span></p><br/><p><span style="font-size:18px"><strong>Features</strong></span></p><p><span style="font-size:18px">1. High conversion efficiency.</span></p><p><span style="font-size:18px">2. High-power original components.</span></p><p><span style="font-size:18px">3. High-power and high-current iron-silicon-aluminum magnetic ring.</span></p><p><span style="font-size:18px">4. Increase and thicken the radiator.</span></p><p><span style="font-size:18px">5. With intelligent temperature control electronic fan for heat dissipation.</span></p><p><span style="font-size:18px">6. Anti-reverse connection of the input MOS tube (the input is not afraid of connecting to the board).</span></p><p><span style="font-size:18px">7. Input under-voltage protection (with LED indicator light, adjustable voltage).</span></p><p><span style="font-size:18px">8. Input over-current protection (with LED light indication, adjustable over-current point).</span></p><p><span style="font-size:18px">9. There is over-temperature protection (with LED light indication).</span></p><p><span style="font-size:18px">10. The output constant voltage and constant current are continuously adjustable.</span></p><p><span style="font-size:18px">11. High reliability and stable work.</span></p><br/><p><span style="font-size:18px"><strong>The main parameters:</strong></span></p><p><span style="font-size:18px">1. Product name: High-power DC boost module power supply.</span></p><p><span style="font-size:18px">2. Product model: AP-D5060B</span></p><p><span style="font-size:18px">3. Input voltage: DC10.5V-60V.</span></p><p><span style="font-size:18px">4. Input current: 50A max.</span></p><p><span style="font-size:18px">5. Input power: 1500W max.</span></p><p><span style="font-size:18px">6. Output voltage: DC15V-70V.</span></p><p><span style="font-size:18px">7. Output current: 30A max.</span></p><p><span style="font-size:18px">8. Output power: 1360W maximum.</span></p><p><span style="font-size:18px">9. Conversion efficiency: 93-96% (efficiency is related to input and output voltage and current).</span></p><p><span style="font-size:18px">10. Working temperature: -20~50.</span></p><p><span style="font-size:18px">11. Product weight: 850G</span></p><br/><p><span style="font-size:18px"><strong>Main uses:</strong></span></p><p><span style="font-size:18px">1. High-power solar street lamp driver.</span></p><p><span style="font-size:18px">2. Power supply for large electromechanical equipment.</span></p><p><span style="font-size:18px">3. Various motors, such as two-wheel electric vehicles, three-wheel electric vehicles, etc.</span></p><p><span style="font-size:18px">4. Power supply for vehicles and various mobile devices.</span></p><p><span style="font-size:18px">5. DIY adjustable constant voltage and constant current power supply.</span></p><p><span style="font-size:18px">6. Solar and wind power charging.</span></p><p><span style="font-size:18px">7. Charge various batteries.</span></p><br/><p><span style="font-size:18px"><strong>Instructions for use:</strong></span></p><p><span style="font-size:18px">1. Input + is the positive pole of the power supply, and input-is the negative pole of the power supply.</span></p><p><span style="font-size:18px">2. Output + is the positive pole of the power supply, and output-is the negative pole of the power supply.</span></p><p><span style="font-size:18px">3. Undervoltage adjustable range: DC10.5V-44V (clockwise to decrease, counterclockwise to increase), first adjust the undervoltage to the minimum, then adjust the input voltage to the undervoltage protection value you need, and then reverse Slowly adjust the hour hand to increase, when it is adjusted to the under-voltage indicator light is on, call back one more circle, and then re-energize.</span></p><p><span style="font-size:18px">4. Constant voltage adjustable range: DC15-70V (clockwise decrease, counterclockwise increase), please adjust the voltage to the voltage you need when the output is no-load, and then connect the load (constant voltage power supply should be constant The flow is adjusted to the maximum,).</span></p><p><span style="font-size:18px">5. Constant current adjustable range: 2A-30A (turn down clockwise, turn up counterclockwise), first adjust the output voltage to the voltage required by the load at no-load (the no-load voltage should be 2-3V higher than the load voltage when the current is constant) , Adjust the current to the minimum, connect an ammeter in series with the output, and then slowly adjust the current to the current required by the load.</span></p><p><span style="font-size:18px">8. This power supply has input over-current protection function (the over-current point is adjustable), and the red light is on during over-current protection.</span></p><p><span style="font-size:18px">9. This power supply is equipped with an intelligent temperature-controlled fan. When the temperature of the power supply reaches about 60 degrees, the fan is automatically turned on, and when the temperature of the power supply drops to about 50 degrees, the fan is automatically turned off.</span></p><p><span style="font-size:18px">10. The input voltage cannot be lower than 10.5V or exceed 60V (please reduce the load appropriately when the input voltage is lower than 12V).</span></p><p><span style="font-size:18px">11. The maximum input current cannot exceed 50A, and the power cannot exceed 1500W.</span></p><p><span style="font-size:18px">12. When using, it must be ensured that the input voltage is lower than the output voltage by more than 2V.</span></p><p><span style="font-size:18px">13. When using a switching power supply or other secondary power supply, please make sure that the power of the power supply should be more than twice the power of this module.</span></p><p><span style="font-size:18px">14. When the power supply is over-current or under-voltage protection, the output still has a voltage close to the input value, and the protection is only that the power supply does not boost.</span></p><p><span style="font-size:18px">15. The output indicator will light up only when the power supply has a boost.</span></p><br/><p><span style="font-size:18px"><strong>Important note:</strong></span></p><p><span style="font-size:18px">1. The parameters marked on this power supply are all maximum values, and must not exceed the maximum value when used</span></p><p><span style="font-size:18px">2. The maximum value measured by this power supply is measured by pure resistance load. When using capacitive and inductive loads with large starting current, please pay attention to appropriately lighten the load.</span></p><p><span style="font-size:18px">3. The electric vehicle can be driven directly when the battery is input</span></p><br/><p><span style="font-size:18px"> 12V input (can drive electric vehicles below 400W)</span></p><br/><p><span style="font-size:18px"> 24V input (can drive electric vehicles below 600W)</span></p><br/><p><span style="font-size:18px"> 36V input (can drive electric vehicles below 800W)</span></p><br/><p><span style="font-size:18px"> 48V input (can drive electric vehicles below 900W)</span></p><br/><p><span style="font-size:18px">4. Load capacity at different input voltages (pure resistive load)</span></p><br/><p><span style="font-size:18px"> At 12V input, the output can carry a load below 560W</span></p><br/><p><span style="font-size:18px"> At 24V input, the output can carry a load below 1100W</span></p><br/><p><span style="font-size:18px"> At 36V input, the output can carry a load below 1360W</span></p><br/><p><span style="font-size:18px"><strong>Precautions:</strong></span></p><p><span style="font-size:18px">1. When the output voltage is higher than 36V (safety voltage for the human body), please do not touch it with electricity to avoid electric shock to the human body.</span></p><p><span style="font-size:18px">2. The input and output cannot be reversed,</span></p><p><span style="font-size:18px">3. When inputting a large current, the terminal should be tightened, and the input line should be 4 square meters or more.</span></p><p><span style="font-size:18px">4. The output cannot be short-circuited. A short-circuit can easily damage the power supply, because it is difficult for the boost power supply to achieve output short-circuit protection.</span></p><p><span style="font-size:18px">5. When working, the input and output voltage and current can not exceed the maximum value, so as not to damage the power supply.</span></p><p><span style="font-size:18px">6. Pay attention to ventilation and heat dissipation when working with full load for a long time to extend the service life of the power supply.</span></p><p><span style="font-size:18px">7. Pay attention to dust and moisture.</span></p><br/><p><span style="font-size:18px"><strong>Checklist</strong></span></p><p><span style="font-size:18px">1*Boost module</span></p><br/><p><span style="font-size:18px">16. Important note: Please try not to use input below 20V, and output above 60V with full load. When the input and output pressure difference is large, the output power should be appropriately reduced. The greater the pressure difference, the lower the power supply efficiency.</span></p><br/><p><span style="font-size:18px">17. Output with load description: When inputting 12V (input current 50A, output below 60V, output can carry a load of about 550W), when inputting 24V (input current is 50A, output can carry a load of about 1100W), when inputting 36V (input current 41.6A, the output can carry a load of about 1360W), when the input is 48V (input current is 31A, the output can carry a load of about 1360W), </span></p><p><span style="font-size:18px"></span><span style="font-size:18px"></span><span style="font-size:18px"></span><span style="font-size:18px"></span><span style="font-size:18px"></span><span style="font-size:18px"></span><span style="font-size:18px"></span><span style="font-size:18px"></span><span style="font-size:18px"></span><span style="font-size:18px"></span><span style="font-size:18px"></span><span style="font-size:18px"></span><span style="font-size:18px"></span></p>
