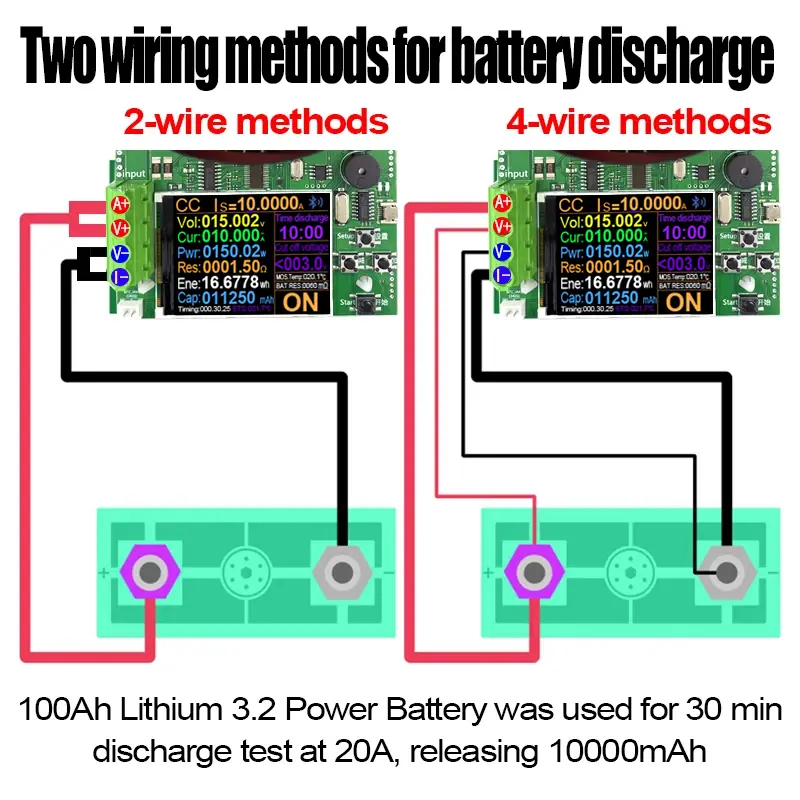

<div class="detailmodule_image"></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">When upgrading this product, there may be hardware component changes, but it does not affect the functionality. Please refer to the actual product received. Thank you!</p></div><div class="detailmodule_image"></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">【Product Features】</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">This product supports 2~200V, 0~20A within the maximum 150W load<br/>Over-voltage, over-current, over-power, over-temperature protection and reverse connection protection below 100V<br/>Support timing shutdown and specified voltage shutdown<br/>Four-wire wiring system for more accurate capacity measurement</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">【Parameters】</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">Load voltage-U: DC2V~200V <br/>Load current-I: 0~20A<br/>Load power-W:U×I≤150W(max)<br/>Capacity metering range:0~999999mAh<br/>Energy measurement range:0~999999mWh<br/>Applicable power supply: DC12V 1A or QC/PD voltage trigger power supply (must have a QC/PD charger) <br/>Wiring mode: four-wire system A+ V+ V- A-<br/>Display mode: 2.4 inch TFT color screen<br/>Control operation: 4 button control<br/>Heat dissipation mode: This product&#x27;s fan is intelligently controlled to operate. When powered on, the fan will work. When the set standby time is reached, the fan will stop. When the discharge (ON) state is reached, the fan will also work!<br/>Over-voltage protection: support<br/>Overcurrent protection: support<br/>Over power protection: Support<br/>Over-temperature protection: the core temperature exceeds 100 ℃ to stop the load （Not-adjustable)<br/>Time limit discharge: Support<br/>Cut OFF voltage shutdown: Support</p></div><div class="detailmodule_image"></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">【4 test modes】</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">1. Constant current mode (CC): Supported<br/>2. Constant resistance mode (CR): Supported<br/>3. Constant Power Mode (CP): Supported<br/>4. Constant voltage mode (CV): Supported</p></div><div class="detailmodule_image"></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Attention:</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">The power supply specification we provide is DC12V US US standard power supply, and we will also be equipped with a US to EU EU adapter. If your country cannot use this power supply, it is recommended not to purchase it to avoid disputes!<br/>Thank you for your support!</p></div><div class="detailmodule_text-image"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">【Product power supply method】Three power supply methods</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">1.DC5.5-12V power supply（(Insert device DC5.5x2.1mm interface）<br/>2.USB-5V/2A charger power supply(Insert into device CC port)<br/>3.QC/PD protocol 12Vcharger power supply(Insert into device CC port)</p><div></div></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">【Test external temperature】: supported</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">Supports external temperature detection, and the thin film temperature probe can detect battery temperature!</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">【Restore factory settings】</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">①Device power ON<br/>②Long press the Start button to enter the device background<br/>③Select Factory reset<br/>④.Long press the Start button to Return to the main testing interface</p></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">【Capacity(mAh) and energy(Wh) reset zero】</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">Please press and hold the “Setup”&#x27;and&#x27; “Start” keys buttons simultaneously to reset zero the capacity(mAh) and energy(Wh) data!</p></div><div class="detailmodule_image"></div><div class="detailmodule_image"></div><div class="detailmodule_image"></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">【Online PC view】: Supported</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">By using a USB-C data cable (not included), you can connect to a computer ， You can view curve data and export data such as time, voltage, current, and power<br/>Software address download， please download this latest software<br/>http://en.atorch.cn/upload/file/20241217/6387004514765584411262215.zip</p></div><div class="detailmodule_text"><p style="font-size:24px;color:rgb(255, 18, 18)">Only supports WIN7 WI10 system, not supports other computer systems<br/>If the computer system download cannot be used, please do not purchase, thank you!</p></div><div class="detailmodule_image"></div><div class="detailmodule_text-image"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Product Size</p><div></div></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Product List 1</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">1.150W CNC electronic load x1<br/>2.4 interface adapter X1<br/>(This package does not include temperature probes, DC12V power supplies, and PD chargers<br/>You can use your own PD charger (purchased with a voltage of 12V))</p></div><div class="detailmodule_image"></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Product List 2</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">1.150W CNC electronic load x1<br/>2.4 interface adapter X1<br/>3.Temperature probe x1<br/>4.1M PC computer online line x1<br/>5.DC12V 1A power supply x1<br/>6.US to EU adapter x1</p></div><div class="detailmodule_image"></div><div class="detailmodule_text"><p style="font-family:OpenSans;font-size:20px;font-weight:900;line-height:28px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-title">Product List 3</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">1.150W CNC electronic load x1<br/>2.18650.26650.14505.14340.14250 battery teste box X1<br/>3.Temperature probe x1<br/>4.1M PC computer online line x1<br/>5.DC12V 1A power supply x1<br/>6.US to EU adapter x1<br/>7.4 interface adapter X1</p></div><div class="detailmodule_image"></div><div class="detailmodule_image"></div><div class="detailmodule_text"><p style="font-size:16px;font-weight:bold;text-align:left;color:rgb(255, 0, 0);display:block;width:100%" align="left">About SOFTWARE QUESTIONS:</p><p style="font-family:OpenSans;font-size:14px;font-weight:300;line-height:20px;white-space:pre-wrap;color:rgb(0, 0, 0);margin-bottom:12px" class="detail-desc-decorate-content">1. The APP crashes on my PC, what is the problem ?<br/>A: For PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can place order, or else do not buying. If you don&#x27;t test the PC software and APP function before buying and find that the products works fine except the PC software, we refuse to refund.For PC software, it only support win 7 and Win 10 above for now. <br/><br/>2. Why are there _BLE and _SPP modes and which one to choose?<br/>A：Our APP adopts the latest connection technology, please do not pair in Bluetooth mode, directly click on the E-test (Android APP name) APP provided by us, click the Bluetooth symbol, E_test (Apple APP) select the _BLE Bluetooth name to proceed connect, that&#x27;s it ok!<br/>_BLE:is connected in mobile mode<br/>_SPP:is connected in PC computer mode<br/><br/>3.What is the computer pairing password?<br/>A：Password is &quot;0000&quot; or &quot;1234&quot;<br/><br/>4.Does it support WIFI mode?<br/>A：No support, connected via wireless bluetooth mode！</p></div><p><br/></p>
