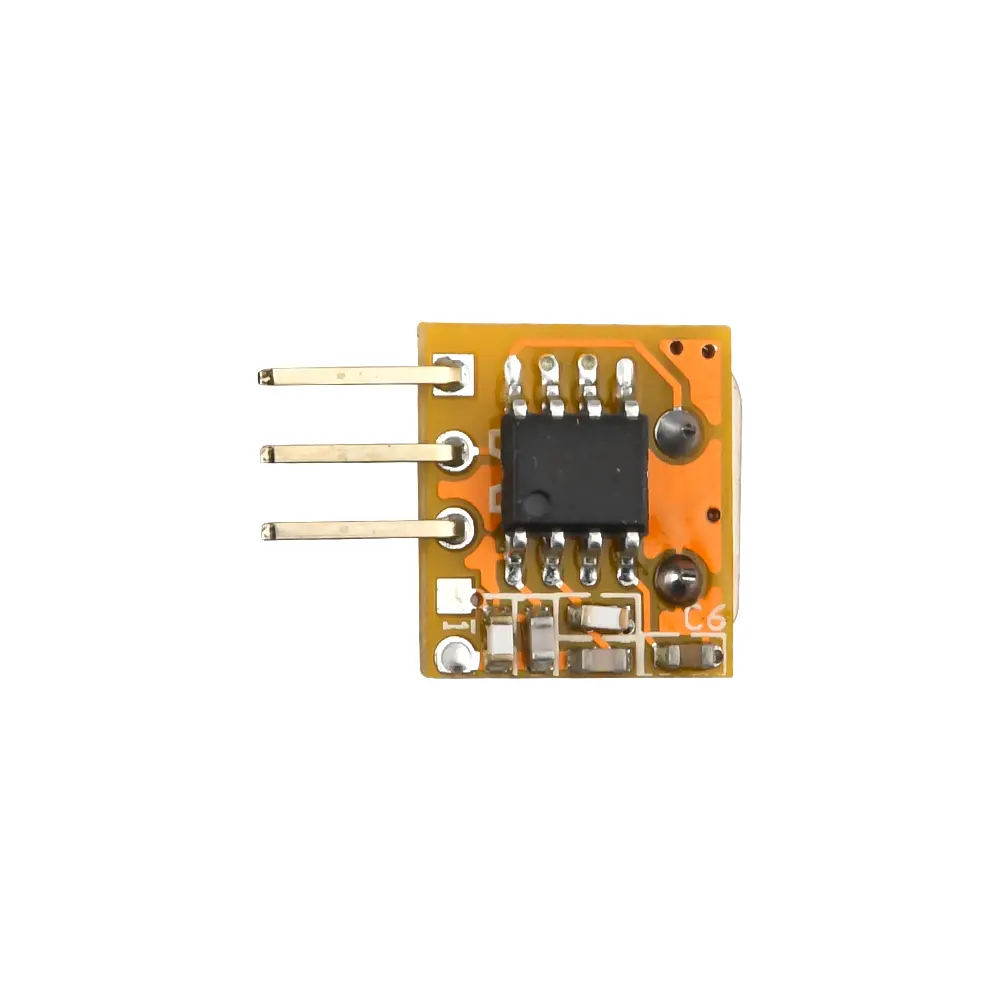

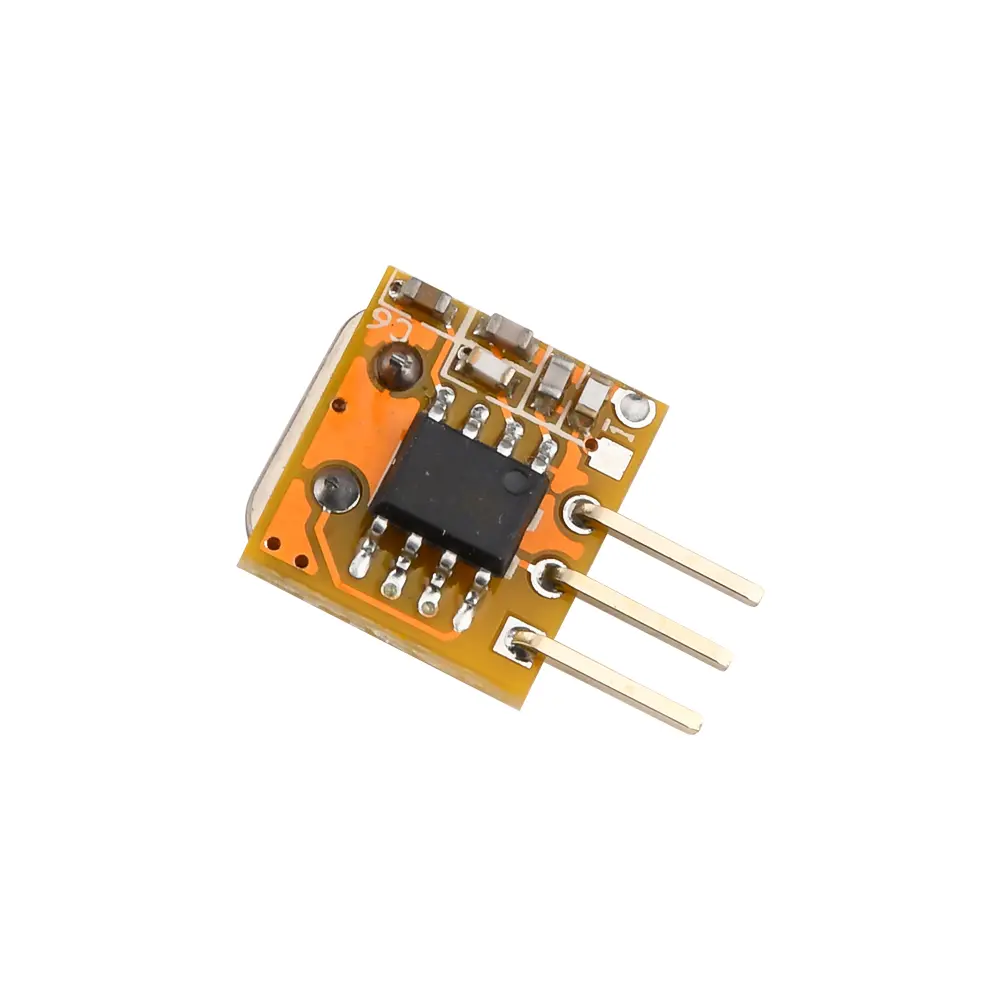

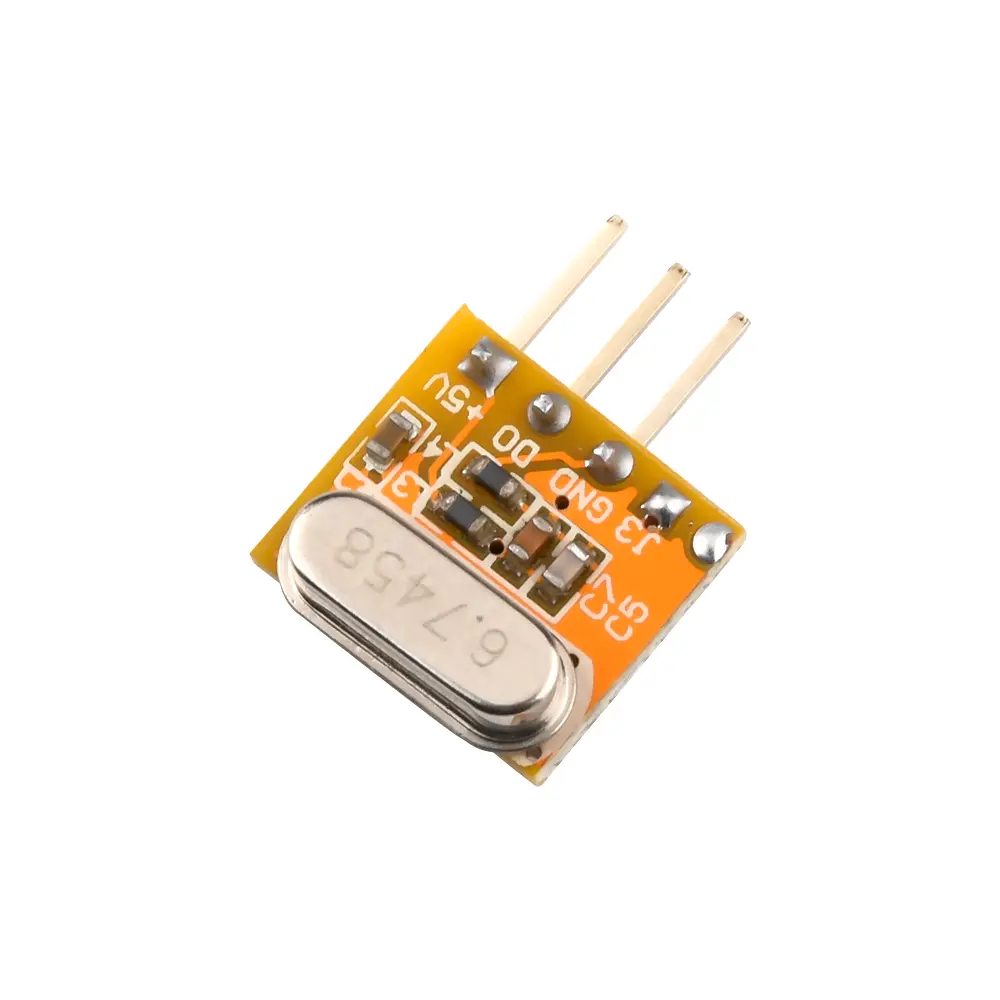

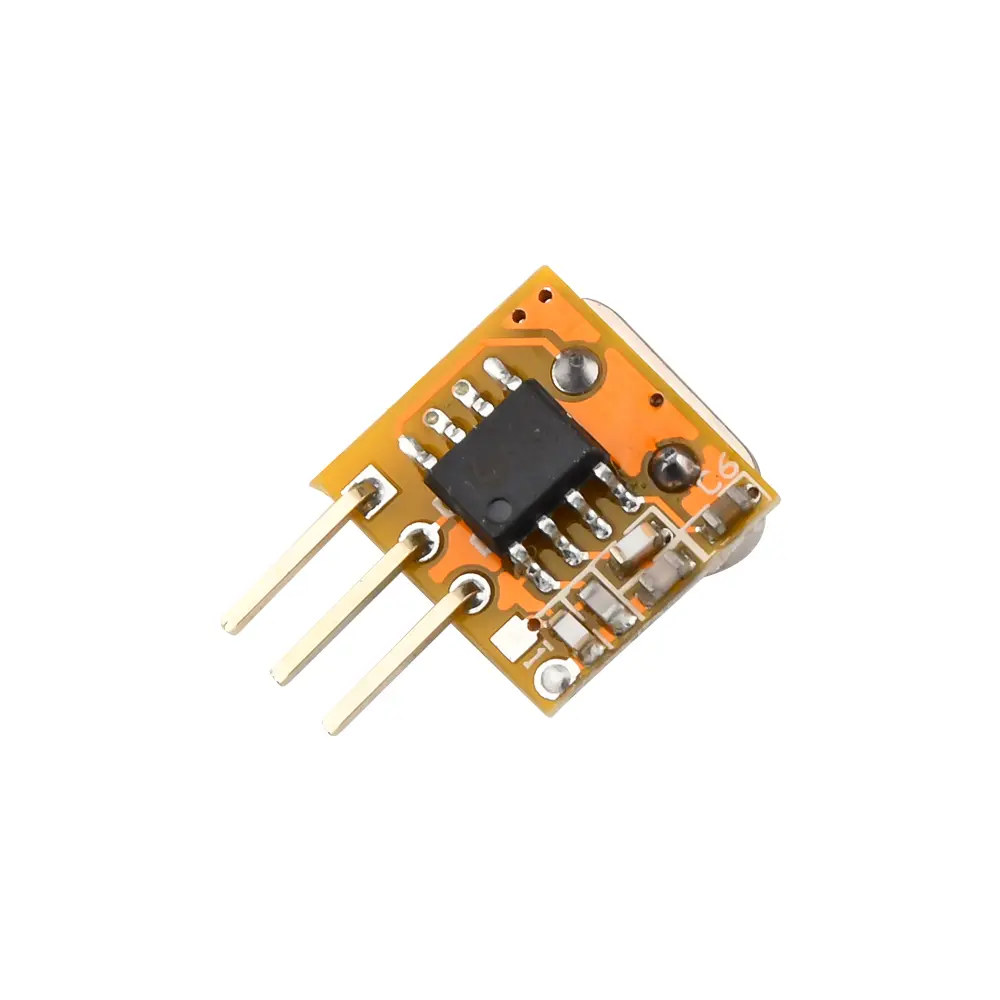

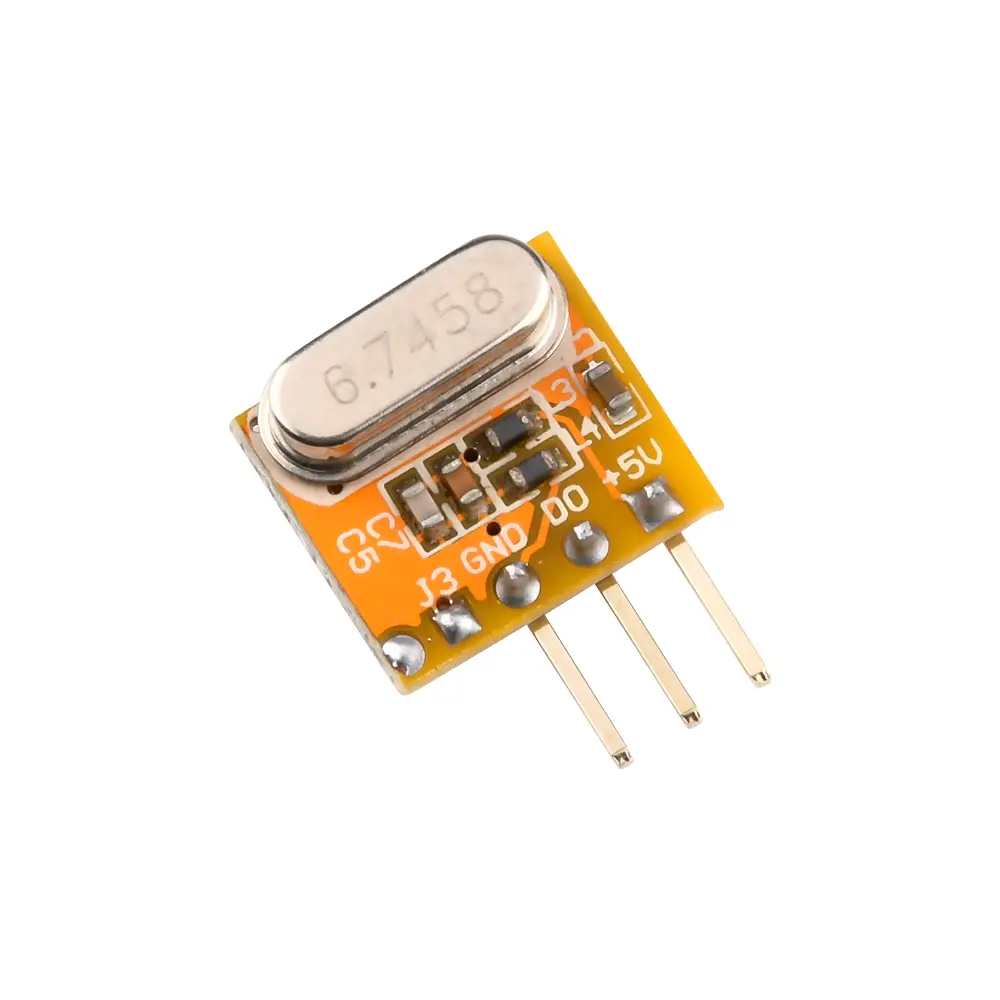

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004076430" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1.The RXB14 ASK superheterodyne wireless receiving module, which adopts imported wireless receiving chips, is an ASK receiving module with high cost performance in ISM radio band.<br/>2.It has high reception sensitivity and low price.<br/>3.It can be widely used in low-end products to replace ultra regenerative modules, improve the stability and reliability of low-end wireless products, and strengthen product competitiveness.<br/>4.The data port can be directly connected to the I/O port of the microcontroller or the data signal input end of the wireless decoding chip, which can directly achieve the function of wireless signal to data reception.<br/>5.Make the development and production process of wireless products simpler and faster.</div><br/><p>Parameters:<br/>(1)Receiving sensitivity reaches -115dBm;<br/>(2)Working frequency: 3433.92MHz;<br/>(3)Power supply voltage input range: 3.3V-5.5V;<br/>(4)Low power consumption, 5.0V @ 433.92MHz, 3.8-4.1mA; 5.0V@315MHz 2.5-2.8mA; 2.4K of continuous data transmission rate (Manchester code)<br/>(5)Good selectivity and stray radiation suppression ability, easy to pass CE/FCC international certification;<br/>(6)Good local oscillator radiation suppression ability, multiple receiving modules working together (i.e. exceeding single receiving) without mutual interference, and using them together does not affect the receiving distance.<br/>(7)Temperature range: -30-85 ℃ even when working in harsh environments;<br/>(8)12 * 10.5 * 5.00 (millimeters).</p><p>Application:<br/>(1) Vehicle remote door switch (RKE);<br/>(2) Remote control door opening;<br/>(3) Wireless security alarm;<br/>(4) Wireless doorbell;<br/>(5) Wireless controller;<br/>(6) Wireless data transmission for.</p><p>Package include:<br/>1X module<br/>5*Module<br/></p></div></div><br/>
