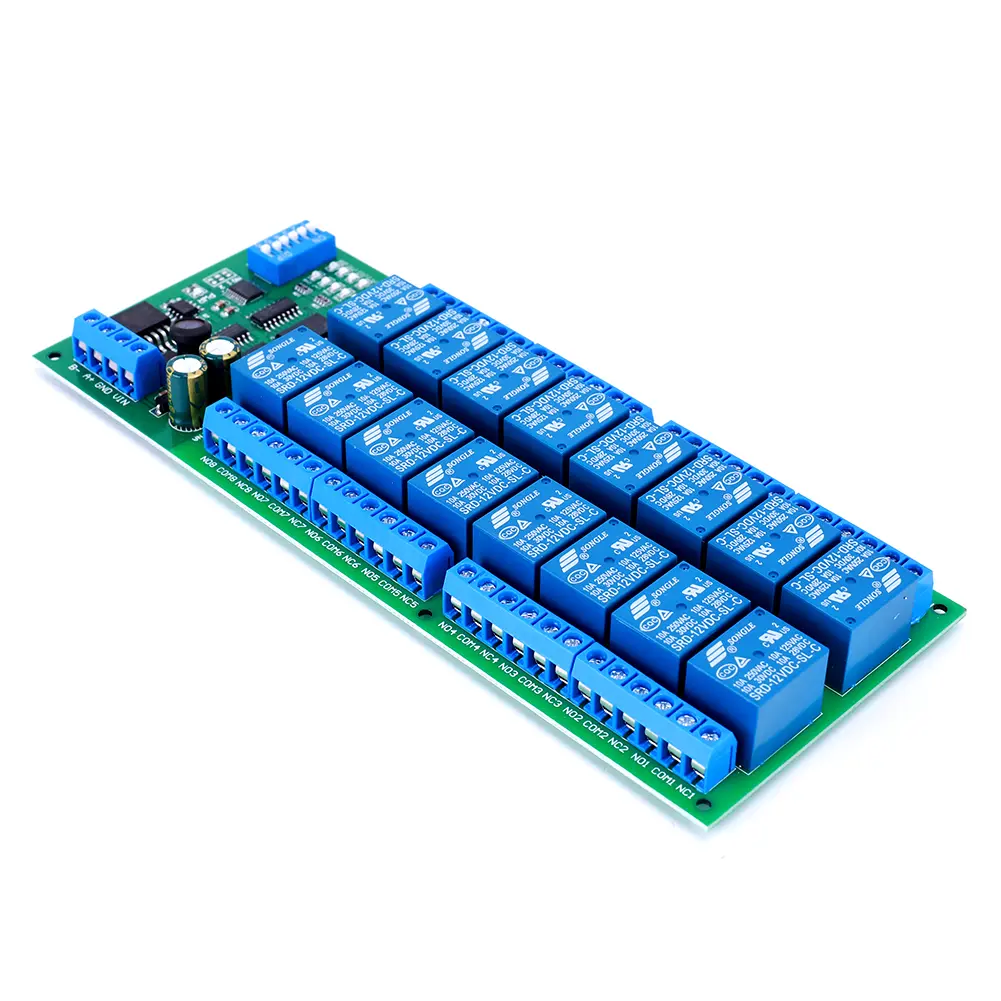

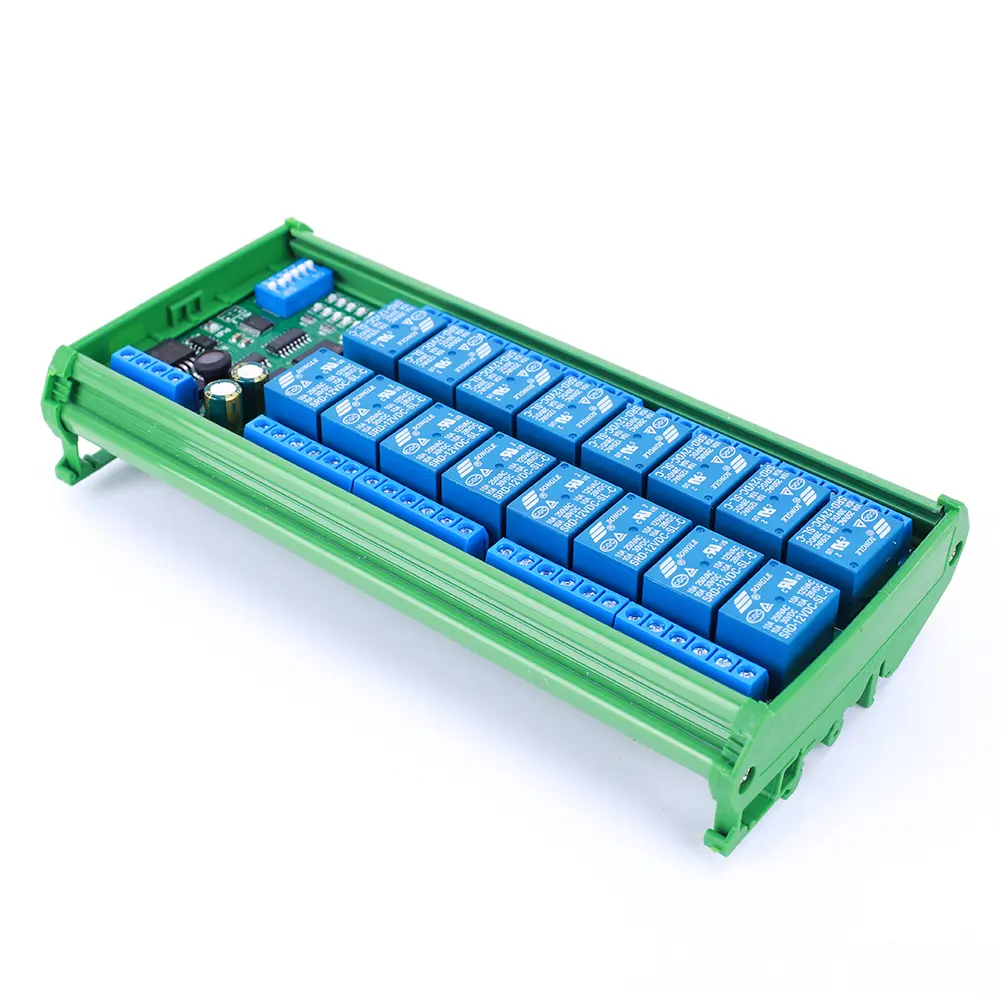

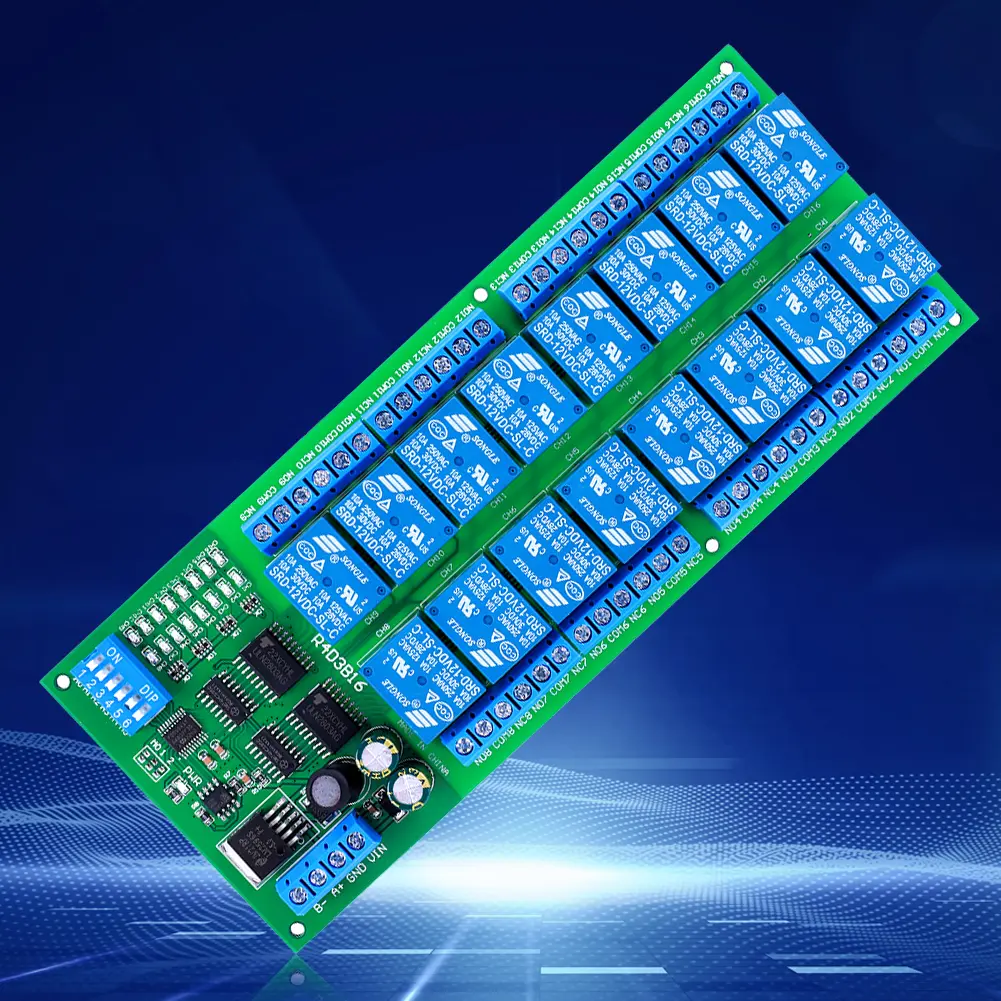

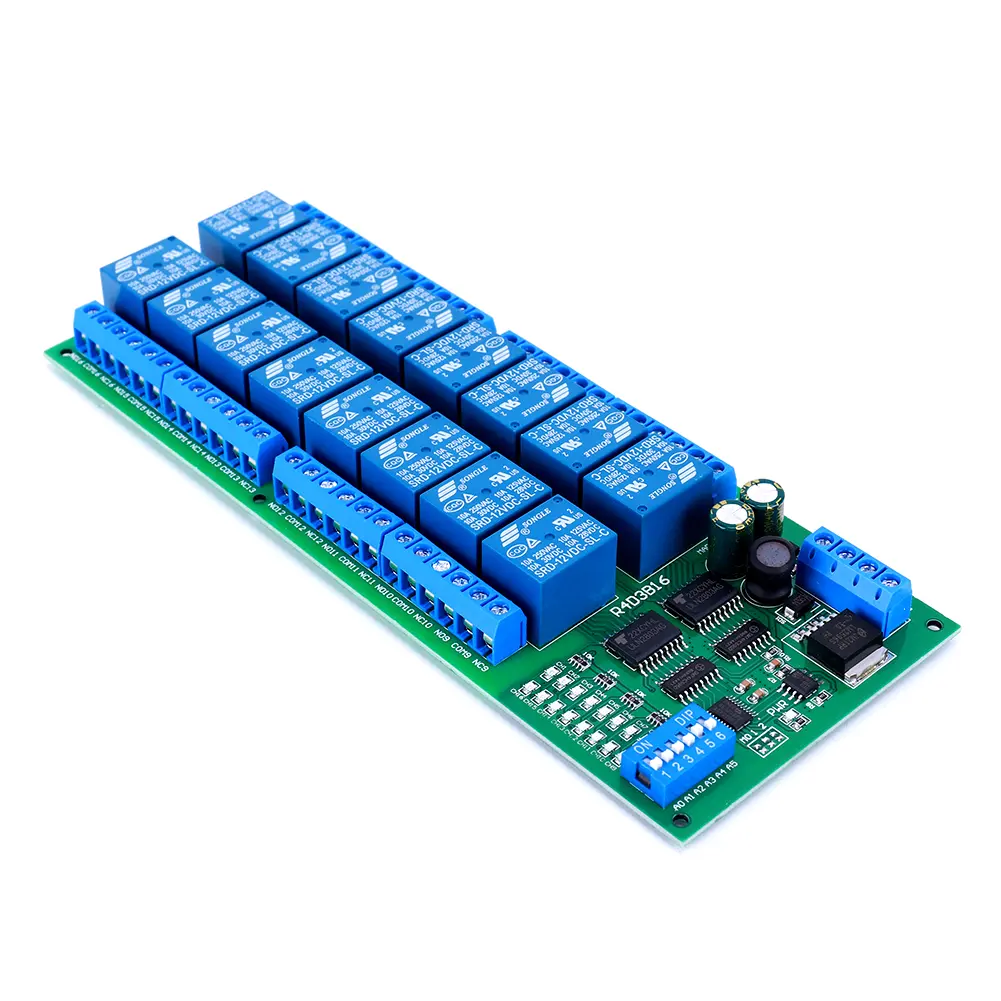

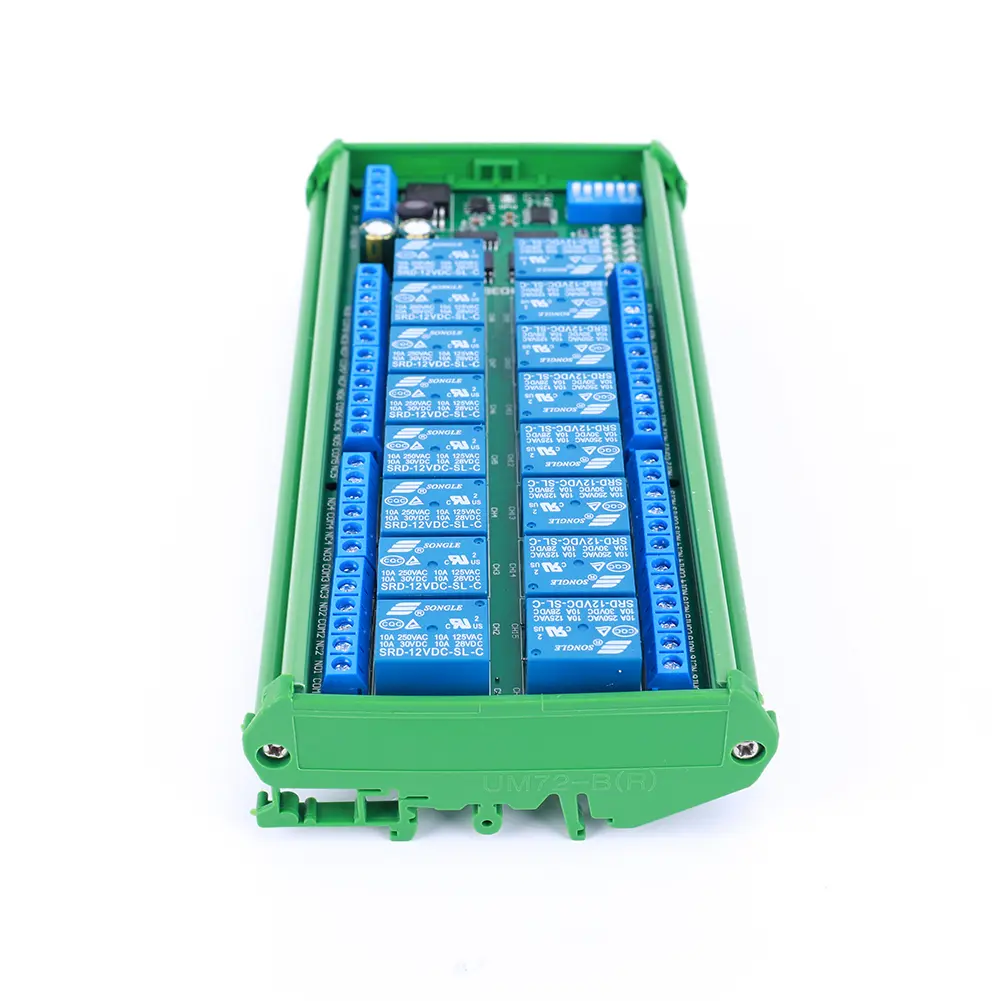

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <div> <div> <p> <br /> </p> <p> </p> <p> <br /> </p> <p> <p> <span style="color:black;font-family:inherit;font-size:12px;">16 Channel Modbus RTU Switch Module DC 12V RS485 Relay Module Modbus RTU UART Control Switch Board for PLC PTZ Camera Motor LED<br /> <strong>Features:</strong><br /> <strong>1. Multi-Channel Control:</strong> The RS485 relay board features 16 independent relay channels, enabling simultaneous control of multiple devices or execution of various actions for robust automation.<br /> <strong>2. RS485 Communication:</strong> Equipped with an RS485 interface, the PLC controller serial port switch module boasts extensive communication range and superior anti-interference capabilities, ensuring reliable remote interactions.<br /> <strong>3. 12V DC Supply:</strong> Operating on a 12V DC power supply, the RS485 relay module is conveniently compatible with low voltage systems, making it versatile for a wide range of applications.<br /> <strong>4. Reliable Relay Operation:</strong> Each channel of the relay switch module is designed for dependable performance, providing stable control for the switching of electrical equipment.<br /> <strong>5. Easy Installation/Use:</strong> With a straightforward design, this RS485 relay module is user-friendly, ensuring hassle-free installation and operation, even for those with minimal technical expertise.</span> </p><br/><br/><span><strong>Specification:</strong></span><br /> <span>Origin: Mainland China</span><br /> Product Description:<br /> 1. 12V DC power supply<br /> 2. Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA, 4 relays open 122MA, 5 relays open 148MA, 6 relays open 174MA, 7 relays open 198MA, 8 relays open 225MA. ETC<br /> 3. "On", "Off", "instantaneous", "self-lock", "Interlock" and "delay" 6 instructions<br /> 4. Two command control modes: MODBUS RTU command and AT command<br /> 5. In the Delay command, the maximum delay is 255 seconds.<br /> The maximum delay under the AT command is 9999 seconds<br /> 6. Run the MODBUS command through the serial port hyperterminal (serial port Assistant) or Modbus Poll. The AT command can be entered through the serial port hyperterminal (serial port assistant).<br /> 7. In MODBUS command mode, a maximum of 64 devices can be connected in parallel<br /> 8. The default baud rate is 9600BPS. Baud rate can be selected by jumper: 2400 4800 9600 19200BPS<br /> 9. Size: 180*72*20mm/7.09*2.83*0.67inch (PCB board only); 184*88*42mm/7.18*3.43*1.64in (with Din rail box)<br /> 10. Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC<br /> <br /> <p> <strong>Note:</strong><br /> Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!<br /> Please allow 1-2cm measuring deviation due to manual measurement. </p> <br /> <br /> </p> <p> </p> <p> 1*<span>RS485</span> Relay Module (Without Rail Box)<br /> 1*<span>RS485</span> Relay Module (With Rail Box)<br /> <br /> </p> <p> </p> <p> </p> <p> </p> <p> <span style="color:#171A1D;font-family:&quot;font-size:14px;font-style:normal;font-weight:400;background-color:#FFFFFF;"></span> </p> <p> </p> <p> </p> <table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> </table> </div> </div> </td> </tr> </tbody> </table></div></div>
$51.245
$26.615

Colors

Sizes

-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> <tbody> <tr> <td> <div> <div> <p> <br /> </p> <p> </p> <p> <br /> </p> <p> <p> <span style="color:black;font-family:inherit;font-size:12px;">16 Channel Modbus RTU Switch Module DC 12V RS485 Relay Module Modbus RTU UART Control Switch Board for PLC PTZ Camera Motor LED<br /> <strong>Features:</strong><br /> <strong>1. Multi-Channel Control:</strong> The RS485 relay board features 16 independent relay channels, enabling simultaneous control of multiple devices or execution of various actions for robust automation.<br /> <strong>2. RS485 Communication:</strong> Equipped with an RS485 interface, the PLC controller serial port switch module boasts extensive communication range and superior anti-interference capabilities, ensuring reliable remote interactions.<br /> <strong>3. 12V DC Supply:</strong> Operating on a 12V DC power supply, the RS485 relay module is conveniently compatible with low voltage systems, making it versatile for a wide range of applications.<br /> <strong>4. Reliable Relay Operation:</strong> Each channel of the relay switch module is designed for dependable performance, providing stable control for the switching of electrical equipment.<br /> <strong>5. Easy Installation/Use:</strong> With a straightforward design, this RS485 relay module is user-friendly, ensuring hassle-free installation and operation, even for those with minimal technical expertise.</span> </p><br/><br/><span><strong>Specification:</strong></span><br /> <span>Origin: Mainland China</span><br /> Product Description:<br /> 1. 12V DC power supply<br /> 2. Standby current (all relays closed) 13MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA, 4 relays open 122MA, 5 relays open 148MA, 6 relays open 174MA, 7 relays open 198MA, 8 relays open 225MA. ETC<br /> 3. "On", "Off", "instantaneous", "self-lock", "Interlock" and "delay" 6 instructions<br /> 4. Two command control modes: MODBUS RTU command and AT command<br /> 5. In the Delay command, the maximum delay is 255 seconds.<br /> The maximum delay under the AT command is 9999 seconds<br /> 6. Run the MODBUS command through the serial port hyperterminal (serial port Assistant) or Modbus Poll. The AT command can be entered through the serial port hyperterminal (serial port assistant).<br /> 7. In MODBUS command mode, a maximum of 64 devices can be connected in parallel<br /> 8. The default baud rate is 9600BPS. Baud rate can be selected by jumper: 2400 4800 9600 19200BPS<br /> 9. Size: 180*72*20mm/7.09*2.83*0.67inch (PCB board only); 184*88*42mm/7.18*3.43*1.64in (with Din rail box)<br /> 10. Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC<br /> <br /> <p> <strong>Note:</strong><br /> Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!<br /> Please allow 1-2cm measuring deviation due to manual measurement. </p> <br /> <br /> </p> <p> </p> <p> 1*<span>RS485</span> Relay Module (Without Rail Box)<br /> 1*<span>RS485</span> Relay Module (With Rail Box)<br /> <br /> </p> <p> </p> <p> </p> <p> </p> <p> <span style="color:#171A1D;font-family:&quot;font-size:14px;font-style:normal;font-weight:400;background-color:#FFFFFF;"></span> </p> <p> </p> <p> </p> <table class="ke-zeroborder" width="100%" cellspacing="0" cellpadding="0" border="0"> </table> </div> </div> </td> </tr> </tbody> </table></div></div>
