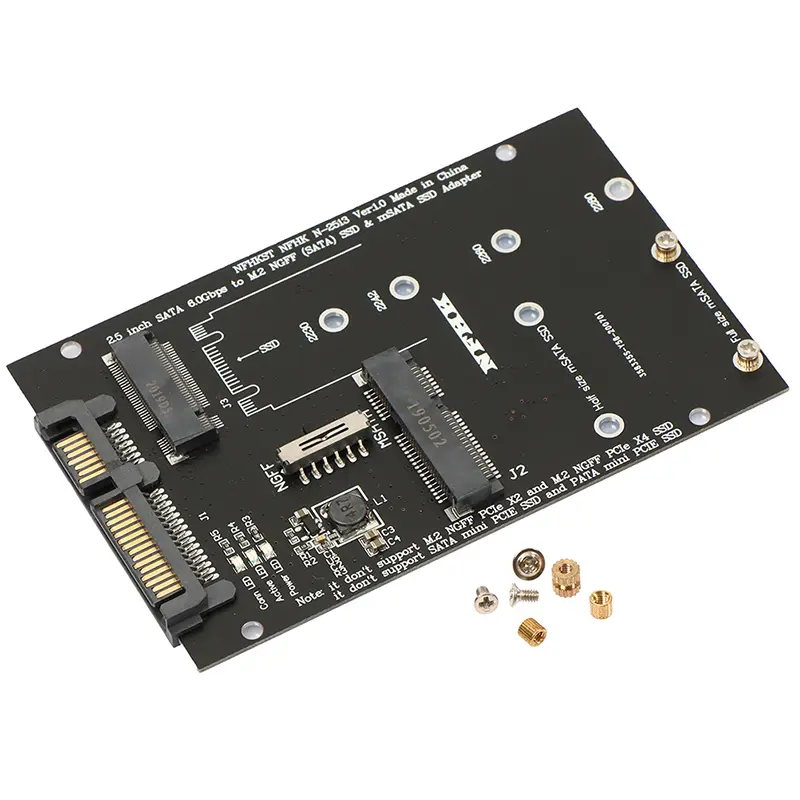

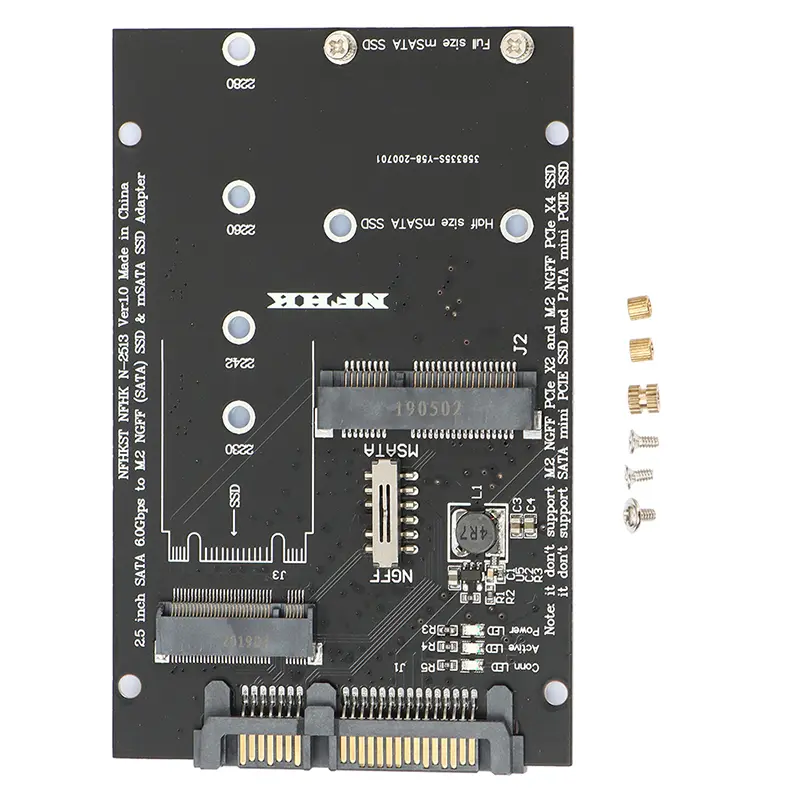

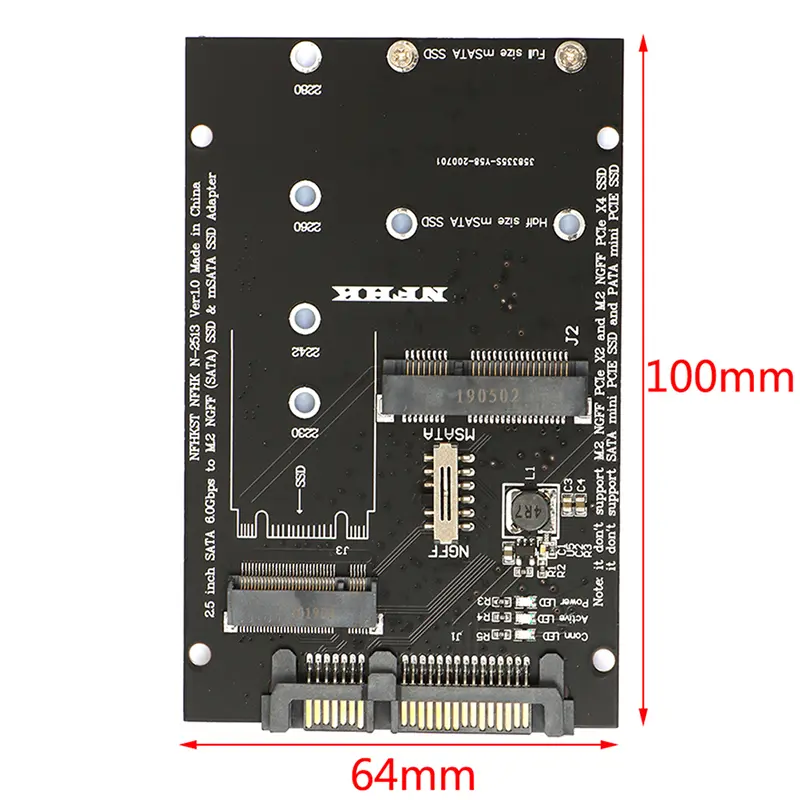

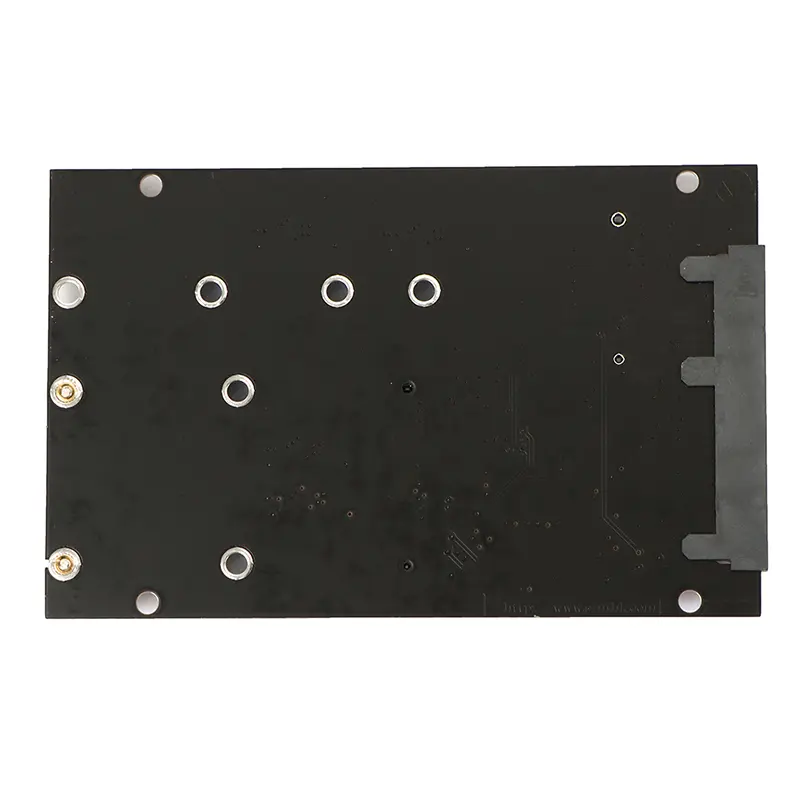

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><span style="font-size:18px;">Matters needing attention:</span><br><span style="font-size:18px;">1: This product supports the SSD defined by msata interface in mini pci-e. msata is not equal to 1.8-inch micro SATA. At the same time, this product also supports the conversion of solid-state hard disk with m.2 ngff SATA protocol to 2.5-inch SATA interface. However, the two kinds of hard disks cannot be used at the same time. If you insert two kinds of hard disks at the same time, you can only read one of them</span><br><span style="font-size:18px;">2: There are three pin definitions for the mini PCI-E interface SSD. One is called msata, which is often found on Lenovo and thinpad machines, and can also be called Intel defined interface; the other is called SATA Mini PCI-E, which is commonly seen in ASUS EPC and some tablet computers, also known as ASUS defined interface; and the other is defined by PATA, which is an IDE interface in essence, which is commonly seen in Dell Mini 9. Wait for the machine. The three interface definitions look exactly the same and cannot be distinguished by the naked eye, so be sure to distinguish the interface definitions of your SSD!</span><br><span style="font-size:18px;">3: The m.2 ngff SSD has three protocols: SATA protocol, nvme PCIe x2 protocol and nvme PCIe X4 protocol. This adapter card only supports the SATA protocol.</span></p><p><span style="font-size:18px;">Specifications:</span><br><span style="font-size:18px;">M.2 (NGFF) &amp; mSATA to SATA III Adapter card</span><br><span style="font-size:18px;">Support SATA Reversion 3.1</span><br><span style="font-size:18px;">Fully compatible with SATA 3.1 standard</span><br><span style="font-size:18px;">Compatible with PCI Express M.2 protocol</span><br><span style="font-size:18px;">MSATA Upports full-height and half-height MSATA SSDs</span><br><span style="font-size:18px;">M.2(NGFF)Support M.2 SATA SSD(2230 2242 2260 2280)</span></p><p><span style="font-size:18px;">Please note:</span><br><span style="font-size:18px;">This adapter card supports msata and SATA protocol m.2 ngffssd, but can not use both hard disks at the same time! Switch to ngff to read m.2 ngff SSD, switch to msata to read msata SSD. The adapter card only converts the interface form and does not change any performance</span></p><p><span style="font-size:18px;">Package contain:</span><br><span style="font-size:18px;">1pc SATA III Board Adapter</span></p><p>&nbsp;</p><span style="font-size:18px;"> <p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p><p></p></span> <p>&nbsp;</p><p>&nbsp;</p></div></div>
