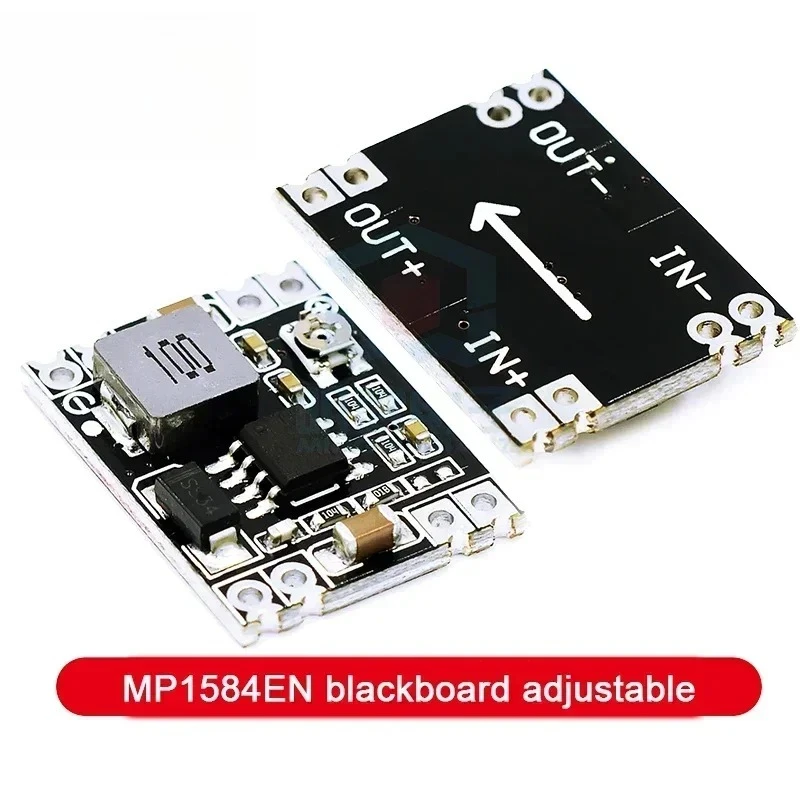

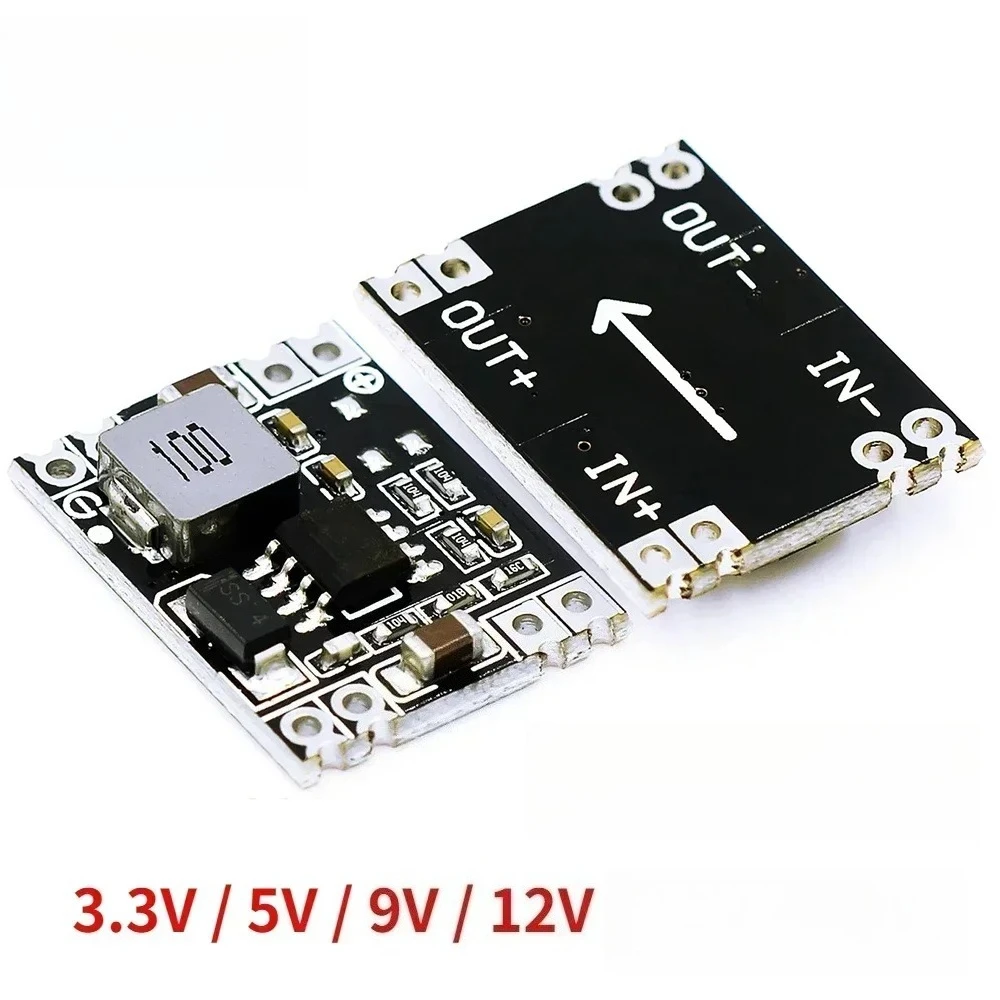

1PCS DC-DC 3A Buck Step-down Power Supply Module MP1584EN 24V 12V 9Vto 3.3V5V Adjustable Output Converter for Voltage Regulation
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><h1><span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong></strong></span></span><br />
<span style="font-size:24px;"><span style="color:#e74c3c;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong>2-20V(adjustable):</strong></span></span></span></h1>
<span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><br />
<strong>Product Description:</strong><br />
Output current:3A(peak)<br />
Conversion efficiency:96%(peak)(Vin-Vout>2V)The smaller it is, the higher the efficiency.<br />
Output Voltage:3.3-12V<br />
Operating Temperature:-40°C~+85°C<br />
Output Ripple:<30mV<br />
Module size:22.3mm*17mm<br />
Weight:3g"</span></span>
<h1><span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong></strong></span></span><br />
<br />

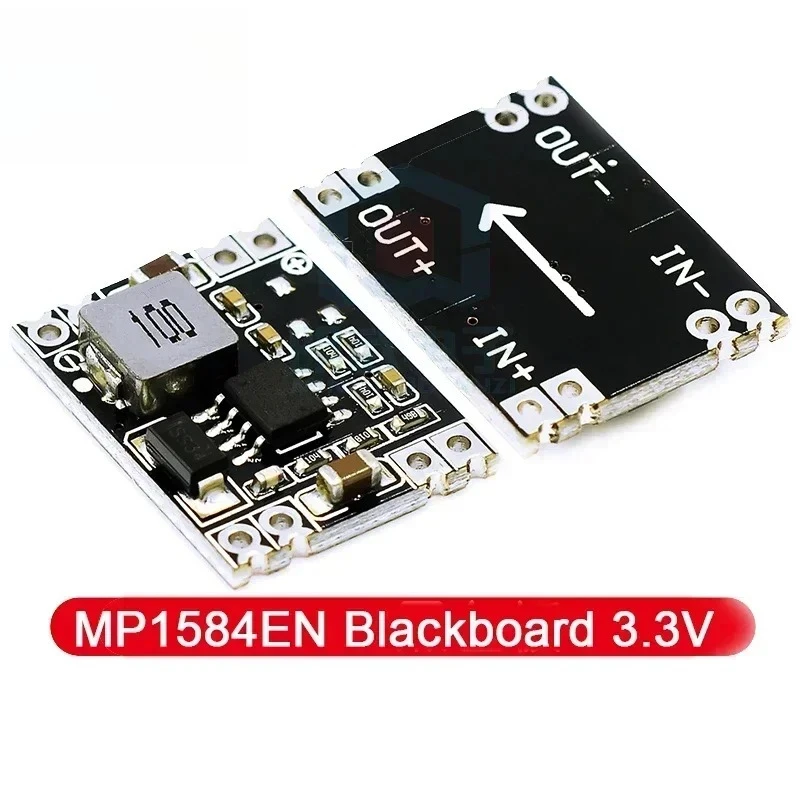

<span style="color:#e74c3c;"><span style="font-size:26px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong>3.3V:</strong></span></span></span><span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong></strong></span></span></h1>
<span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><br />
"Product Description:<br />
Output current:3A(peak) long time working control within 1.8A<br />
Conversion Efficiency:96%(peak)(Vin-Vout>2V) The smaller it is, the higher the efficiency.<br />
Input voltage: 5.3V-26V<br />
Output Voltage:3.3V<br />
Output Ripple:<30mV<br />
Operating Temperature:-40°C~+85°C<br />
Module size:22.3mm*17mm<br />
Weight:3g"</span></span>
<h1><span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong></strong></span></span><br />
<span style="color:#e74c3c;"><span style="font-size:26px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong><br />
5V:</strong></span></span></span></h1>
<span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><br />
"Product Description:<br />
Output current:3A(peak) long time working control within 1.6A<br />
Conversion efficiency:96%(peak)(Vin-Vout>2V)The smaller the rate, the higher the rate.<br />
Input voltage: 7V-26V<br />
Output Voltage:5V<br />
Output ripple:<30mV<br />
Operating Temperature:-40°C~+85°C<br />
Module size:22.3mm*17mm<br />
Weight:3g"</span></span>
<h1><span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong></strong></span></span><br />

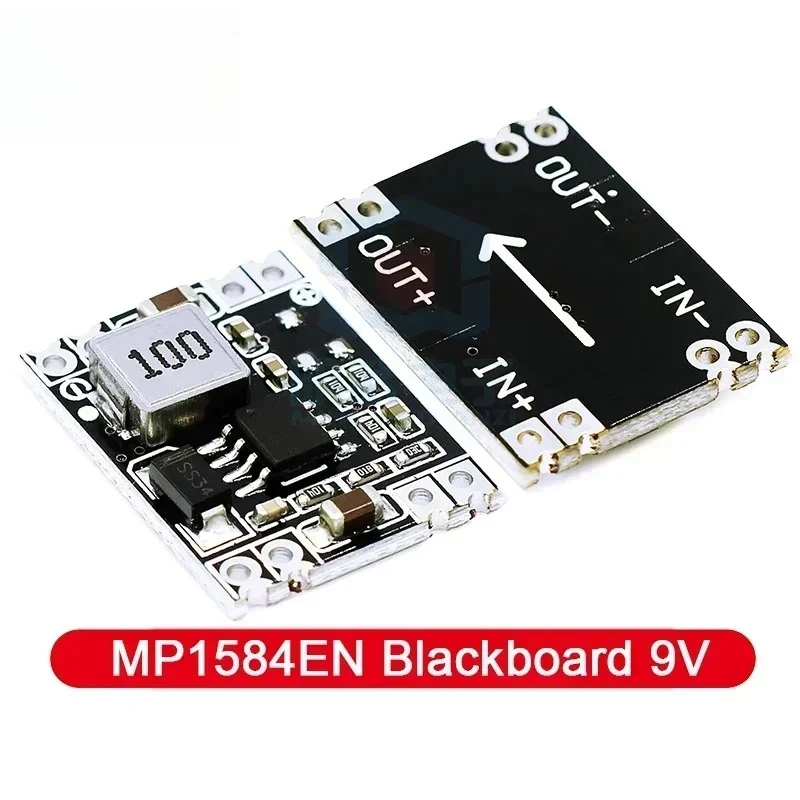

<span style="font-size:26px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong><span style="color:#e74c3c;">9V:</span></strong></span></span><span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong></strong></span></span></h1>
<span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;">"Product Description:<br />
Output current:3A(peak) long time work control within 1.1A<br />
Conversion efficiency:96%(peak)(Vin-Vout>2V)The smaller, the higher the efficiency.<br />
Input voltage:11V-26V<br />
Output Voltage:9V<br />
Output Ripple:<30mV<br />
Operating Temperature:-40°C~+85°C<br />
Module size:22.3mm*17mm<br />
Weight:3g"</span></span>
<h1><span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong></strong></span></span><br />

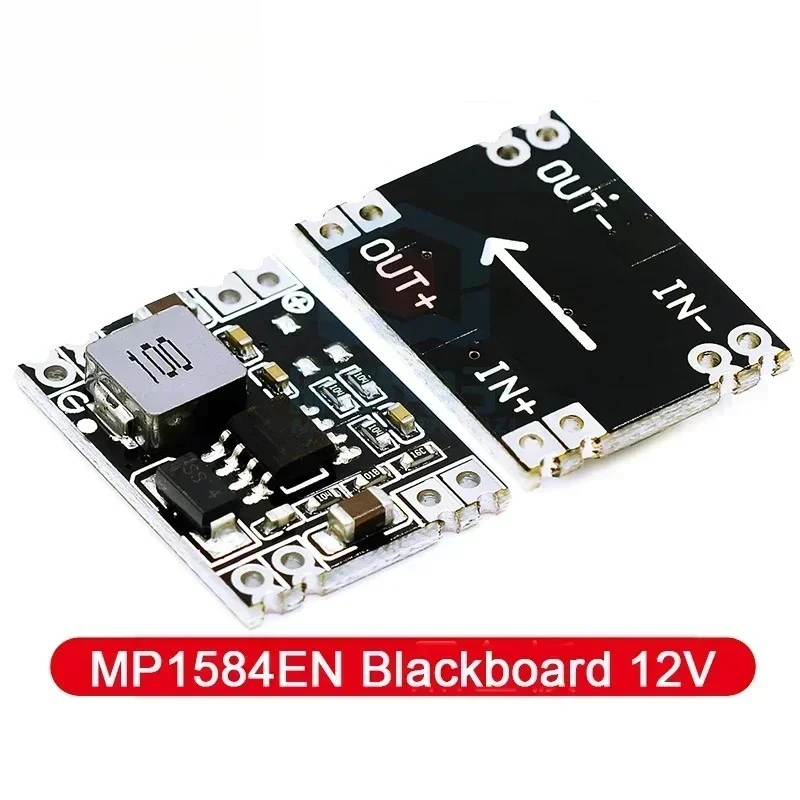

<span style="color:#e74c3c;"><span style="font-size:26px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong>12V:</strong></span></span></span><span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><strong></strong></span></span></h1>
<span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"> "Product Description:<br />
Output current:3A(peak) long time working control within 0.8A<br />
Conversion efficiency:96%(peak)(Vin-Vout>2V)The smaller it is, the higher the efficiency.<br />
Input voltage:14V-26V<br />
Output Voltage:12V<br />
Operating Temperature:-40°C~+85°C<br />
Output Ripple:<30mV<br />
Module size:22.3mm*17mm<br />
Weight:3g"</span></span><br />
<p style="margin:0;display: block;width: 100%;"><span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"><br />
</span></span></p>
<span style="font-size:18px;"><span style="font-family:Arial,Helvetica,sans-serif;"></span></span></div></div>
