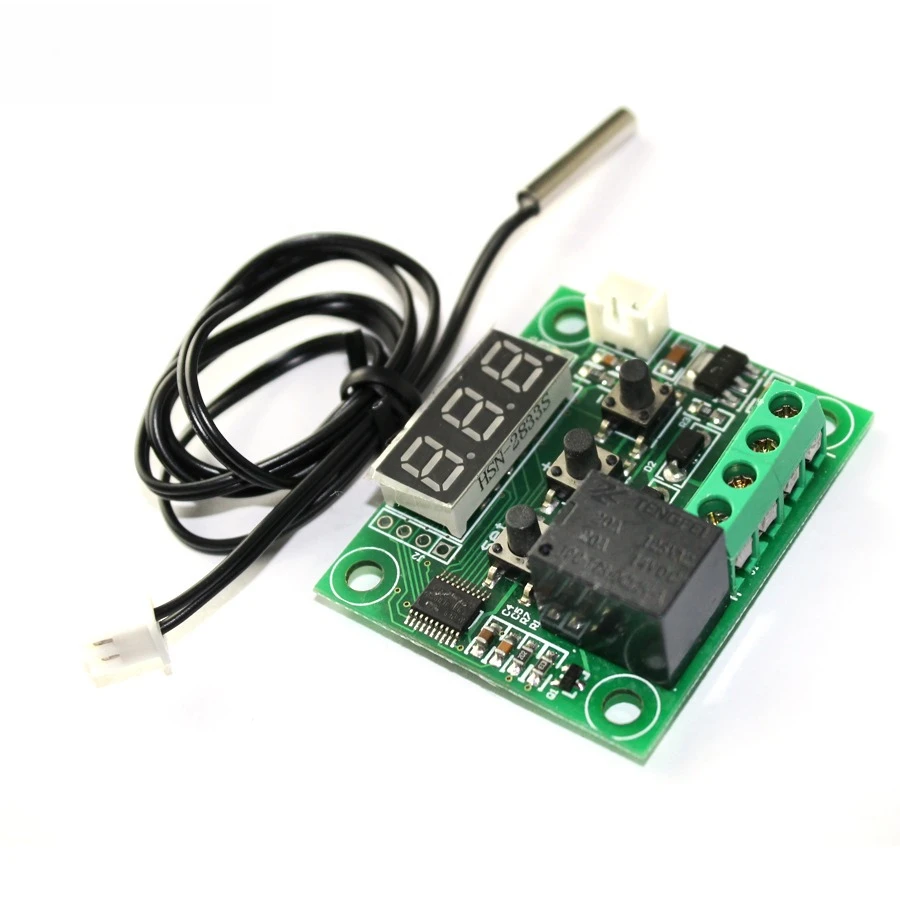

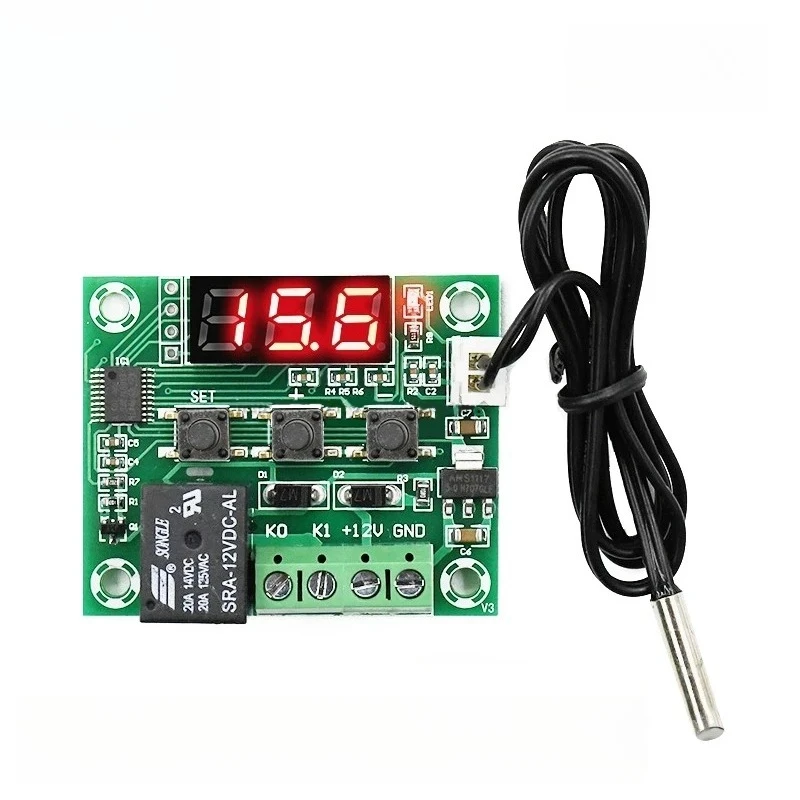

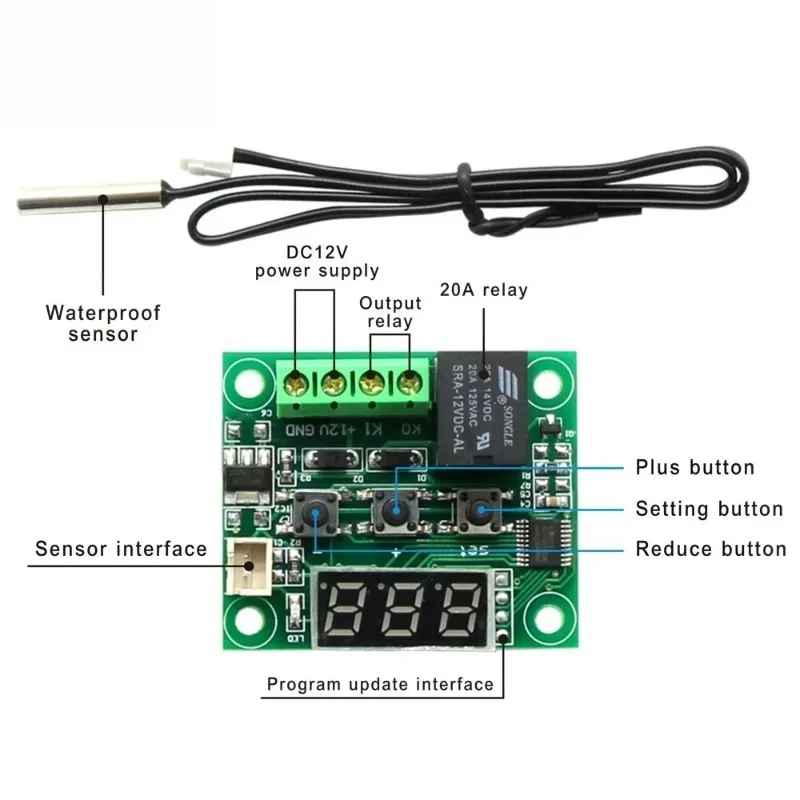

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><strong><span style="font-family:Times New Roman,Times,serif;"><span style="font-size:20px;"><br /> New XH-W1209 digital display high precision temperature controller</span></span></strong></p> <div><span style="font-family:Times New Roman,Times,serif;"><span style="font-size:20px;"><strong>Description:</strong><br /> 100% brand new and high quality<br /> Quantity:1pcs<br /> Temperature control range: -50 ~ 110 &deg; C<br /> Resolution: -9.9 to 99.9 is 0.1&deg; C , 1 &deg; C temperature ranges other<br /> Measurement Accuracy: 0.1 &deg; C<br /> Control accuracy: 0.1 &deg; C<br /> Hysteresis accuracy: 0.1 &deg; C<br /> Refresh rate: 0.5 S<br /> Input Power: DC12V<br /> Measuring inputs: NTC (10K 0.5%) Waterproof sensor 0.5M<br /> Output: 1 Channel relay output, capacity = 10A<br /> Environmental requirements: -10 ~ 60 degree Humidity 20% -85%<br /> Size: 48 (L) * 40 (W) * 14 (D) mm<br /> Power consumption: Static current:&lt;=35MA, Attract current:&lt;=65MA<br /> <br /> <strong>How to use:&nbsp;</strong><br /> <span style="color:rgb(211, 84, 0)">Connect the power supply and the load, you can supply to the controller,&nbsp;<br /> Is displayed as a measured temperature,&nbsp;<br /> Press the SET button, the display flashes the temperature,&nbsp;<br /> Press - to set the desired temperature,&nbsp;<br /> After setting press SET to confirm return,&nbsp;<br /> The controller automatically performs the relay by setting off!&nbsp;</span><br /> <strong><br /> Lights, LED status descriptions:&nbsp;</strong> <span style="color:rgb(211, 84, 0)"></span><br /> <span style="color:rgb(211, 84, 0)"><strong>Indicator:</strong></span> <span style="color:rgb(211, 84, 0)"> Off The relay is switched off, Always indicate the relay is closed.&nbsp;</span><br /> <span style="color:rgb(211, 84, 0)"><strong>LED:</strong></span> <span style="color:rgb(211, 84, 0)"> Shows LL is the sensor open, showing ?HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.</span></span></span></div> <p style="margin:0px;margin-bottom:0px;margin-top:0px;margin-left:0px;margin-right:0px;display:block;width:100%"><span style="font-family:Times New Roman,Times,serif;"></span></p> <p style="margin:0px;margin-bottom:0px;margin-top:0px;margin-left:0px;margin-right:0px;display:block;width:100%"><span style="font-family:Times New Roman,Times,serif;"><br /> </span></p> </div></div>
