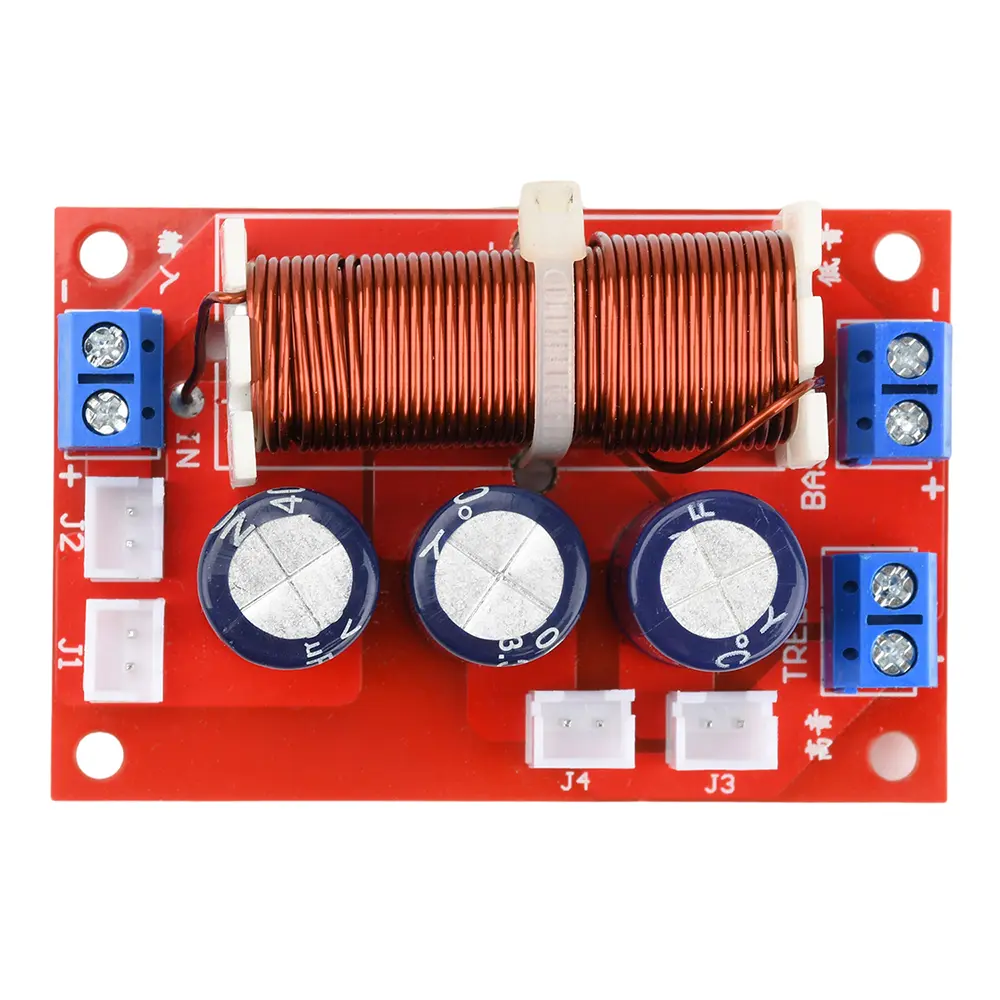

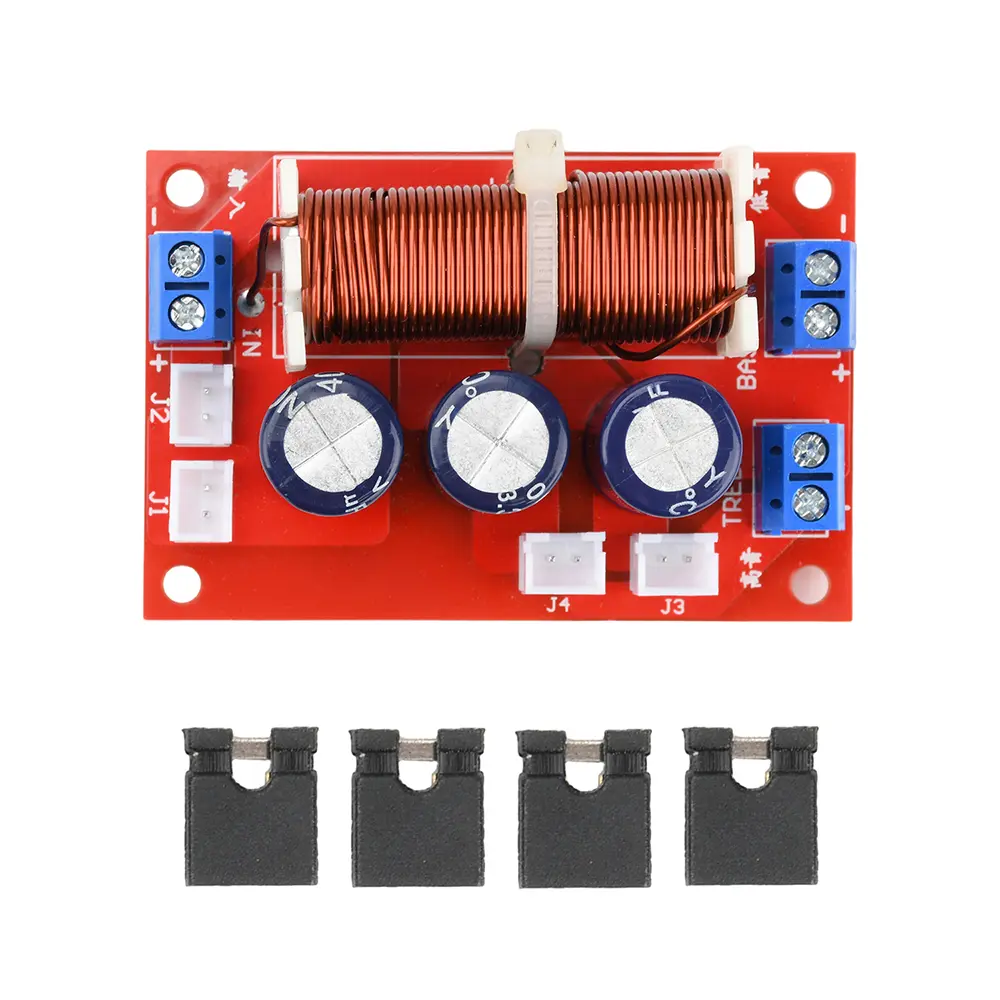

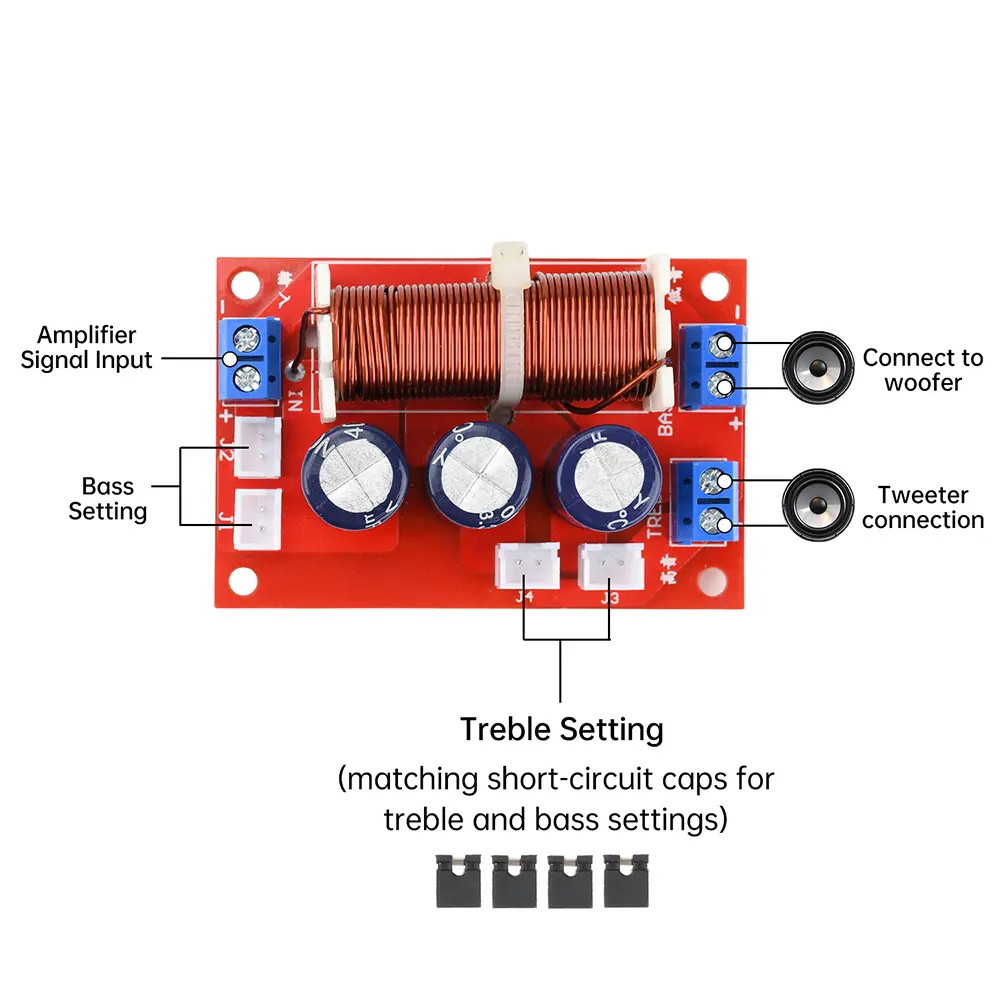

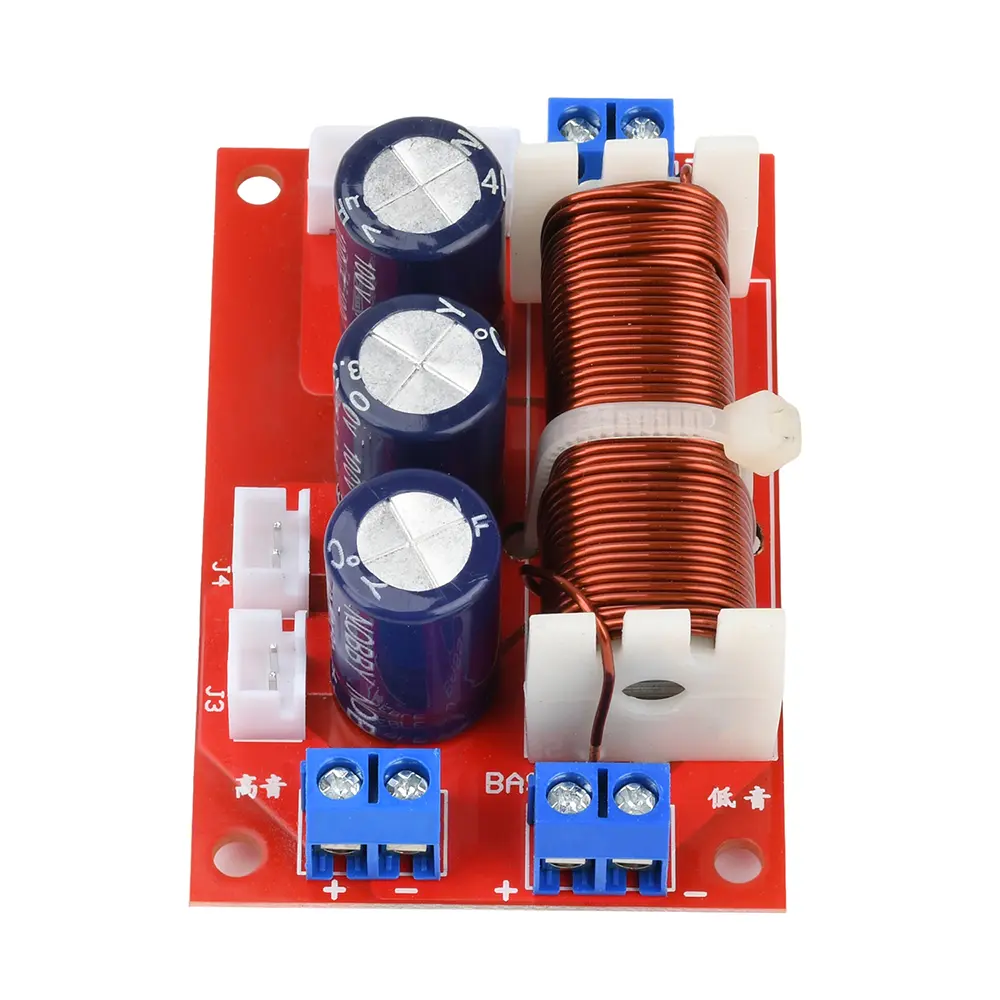

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1. The low-frequency inductor is made of pure copper wire winding, effectively improving the sound quality. <br/>2. Wide frequency adjustable range, supporting 100Hz-10KHz adjustment. <br/>3. Designed with high and low enhancement effect jumpers, which can be flexibly set according to needs. <br/>4. Suitable for speakers below 400W, meeting different power requirements. <br/>5. Widely compatible and adaptable to various scenarios, it can be used with multiple models of speakers and audio equipment, as well as low/heavy bass speakers for home and car audio systems.</p><p>Parameter: <br/>The speaker&#x27;s two-way divider board uses pure copper wire winding for the low-frequency inductance (wire diameter 0.8mm, wound 150 times on a 43 * 19 * 21 skeleton, with iron core, inductance of about 630UH). It is designed with high and low enhancement effect jumpers (J1, J2 set bass, J3, J4 set treble) that can be set according to needs. <br/>Product parameters: <br/>Applicable speakers: 4-8 Ω <br/>Adjustable frequency range: 100Hz-10KHz <br/>The frequency divider is suitable for speakers below 400w <br/>PCB board size: 68mm * 45 * 22mm (length, width, height)</p><p>Package Include: <br/>Finished frequency divider board * 1 <br/>High and low frequency short-circuit caps * 4<br/><br/></p></div></div><p><br/></p>
