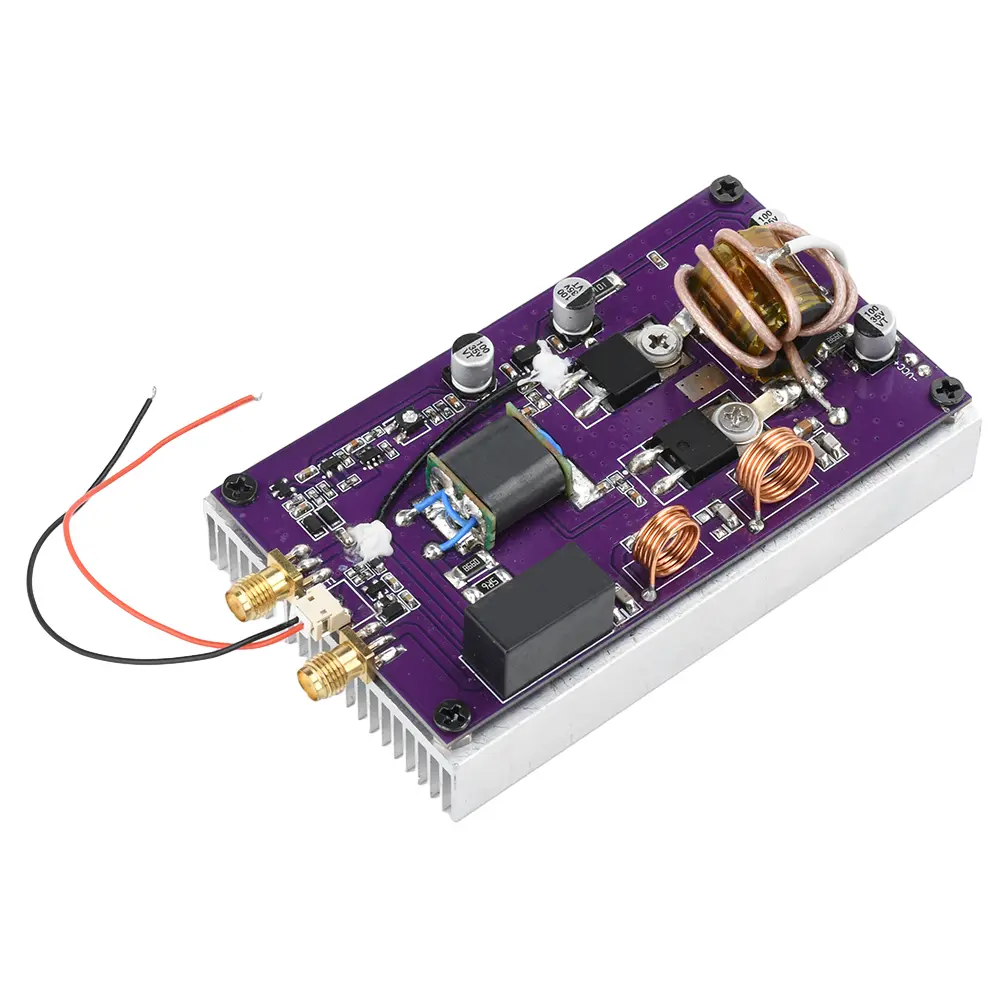

20W Shortwave Power Amplifier Board 2MHz-30MHz Automatic Transceiver With Low Pass Filter AMP Module
<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004074434" title="" type="relation"></kse:widget></div>

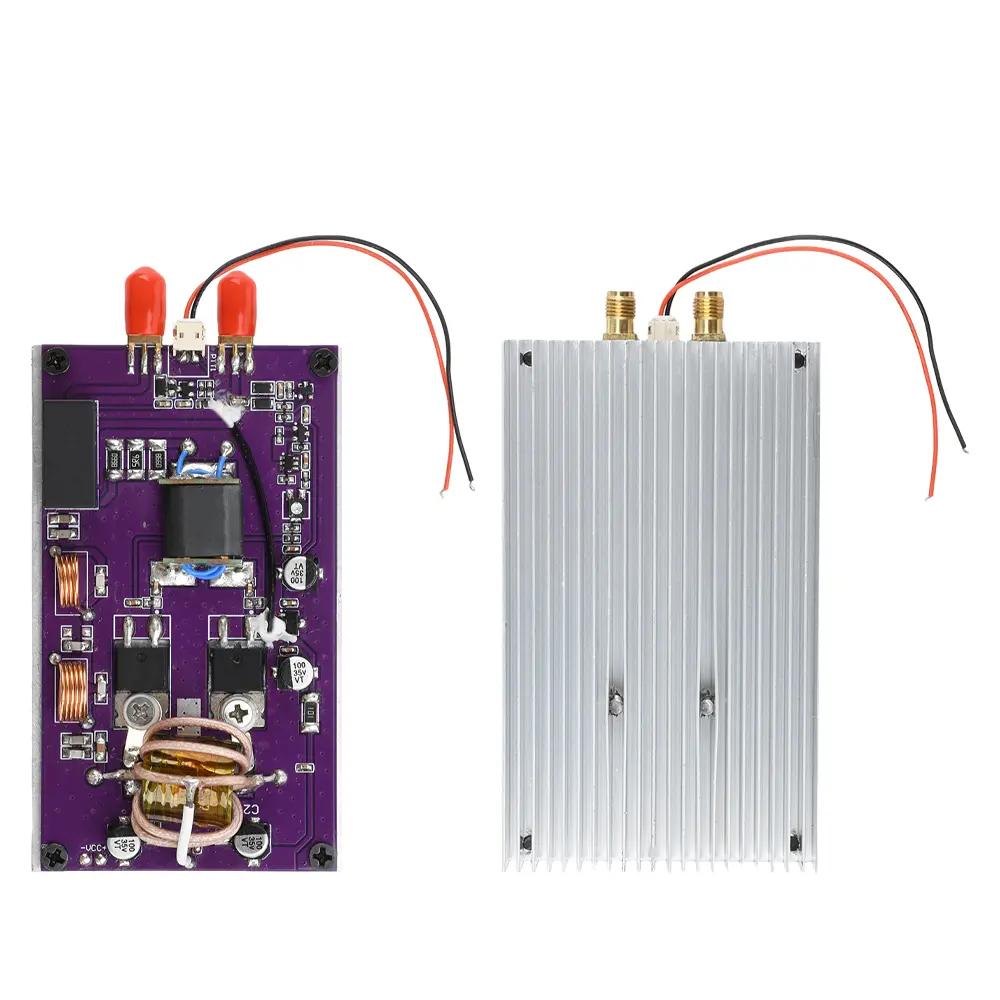

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features: <br />1. Broadband coverage: Supports a frequency range of 2MHz-30MHz to meet various communication needs. <br />2. High efficiency power amplifier: 15-25W output power, ensuring stable and reliable signal transmission. <br />3. Easy to use: Equipped with an internal 30MHz low-pass filter and an internal 30MHz low-pass filter. <br />4. Automatic conversion: Intelligent transmission and reception with automatic switching, easy operation, and improved user experience. <br />5. Portable and lightweight: Compact design, easy to carry, comes with a small heat sink, and long-term work should pay attention to strengthening heat dissipation.</p>

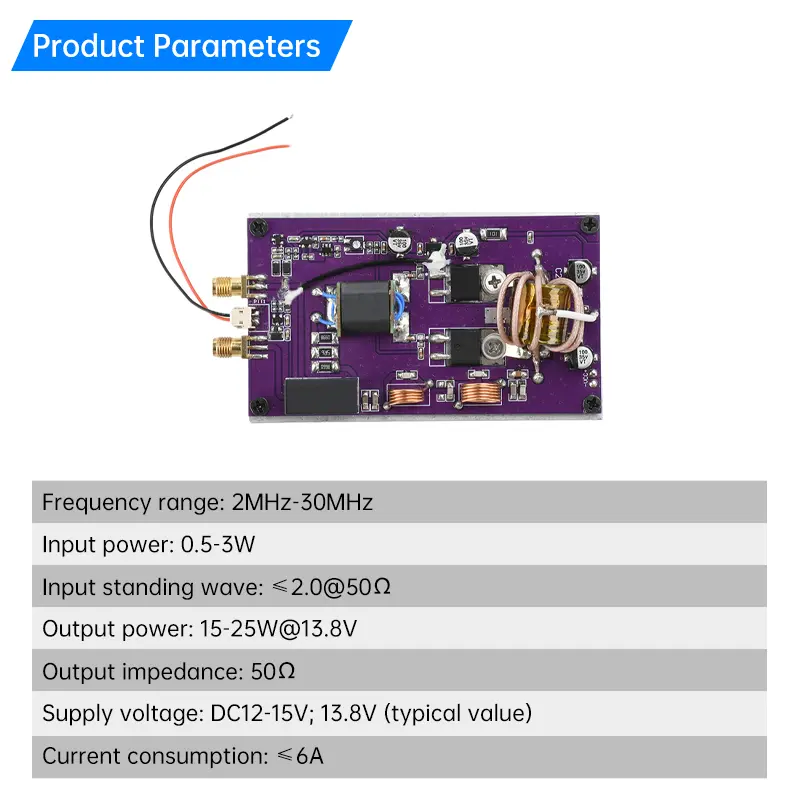

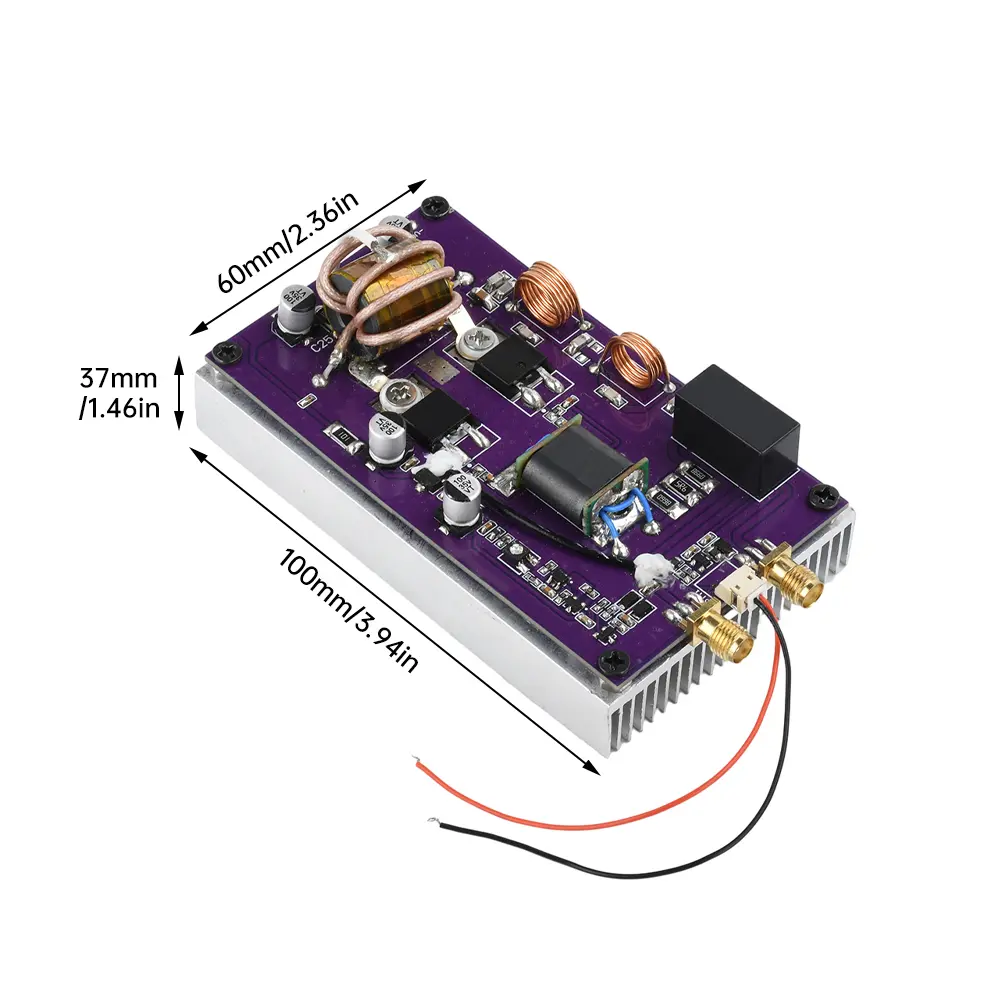

<p>Parameter: <br />Frequency range: 2MHz-30MHz <br />Input power: 0.5-3W <br />Input standing wave: ≤ 2.0@50 Ω <br />Output power: 15-25W@13.8V <br />Output impedance: 50 Ω <br />Supply voltage: DC12-15V； 13.8V (typical value) <br />Current consumption: ≤ 6A <br />PCB board size: 10cm * 6cm</p>
<p>Package Include: <br />1X module<br /></p></div></div>
$107.075
$50.33
- Category : Consumer Electronics
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
