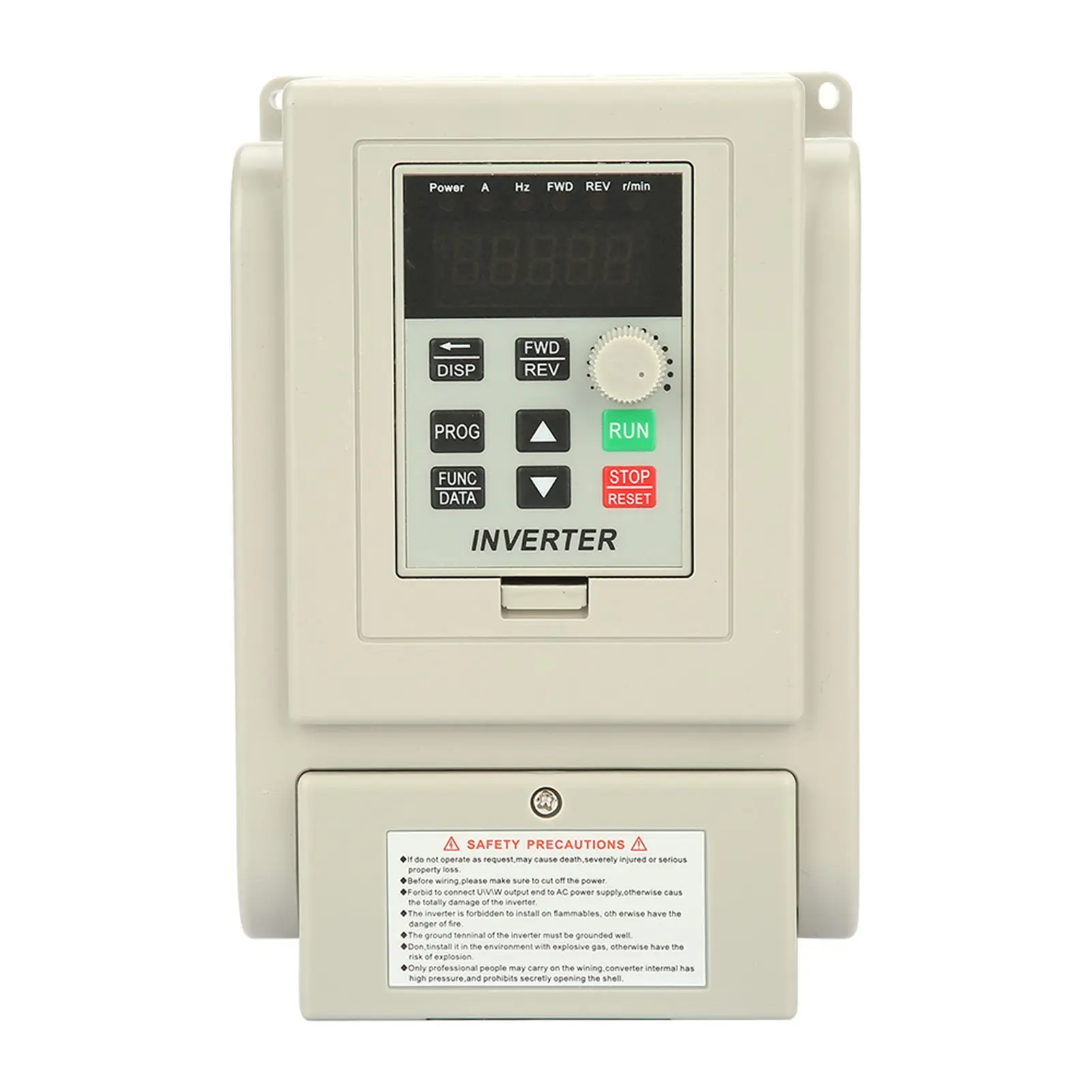

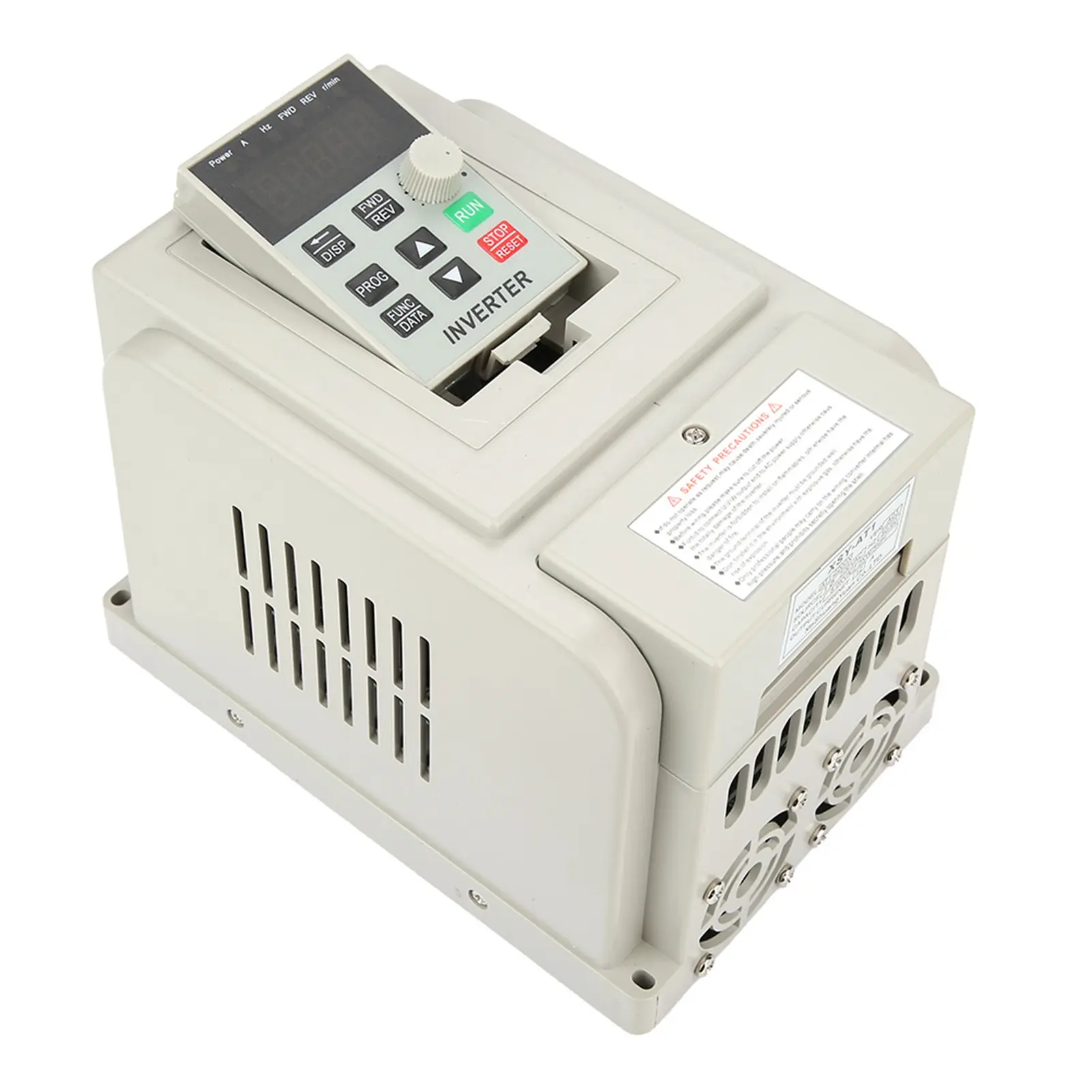

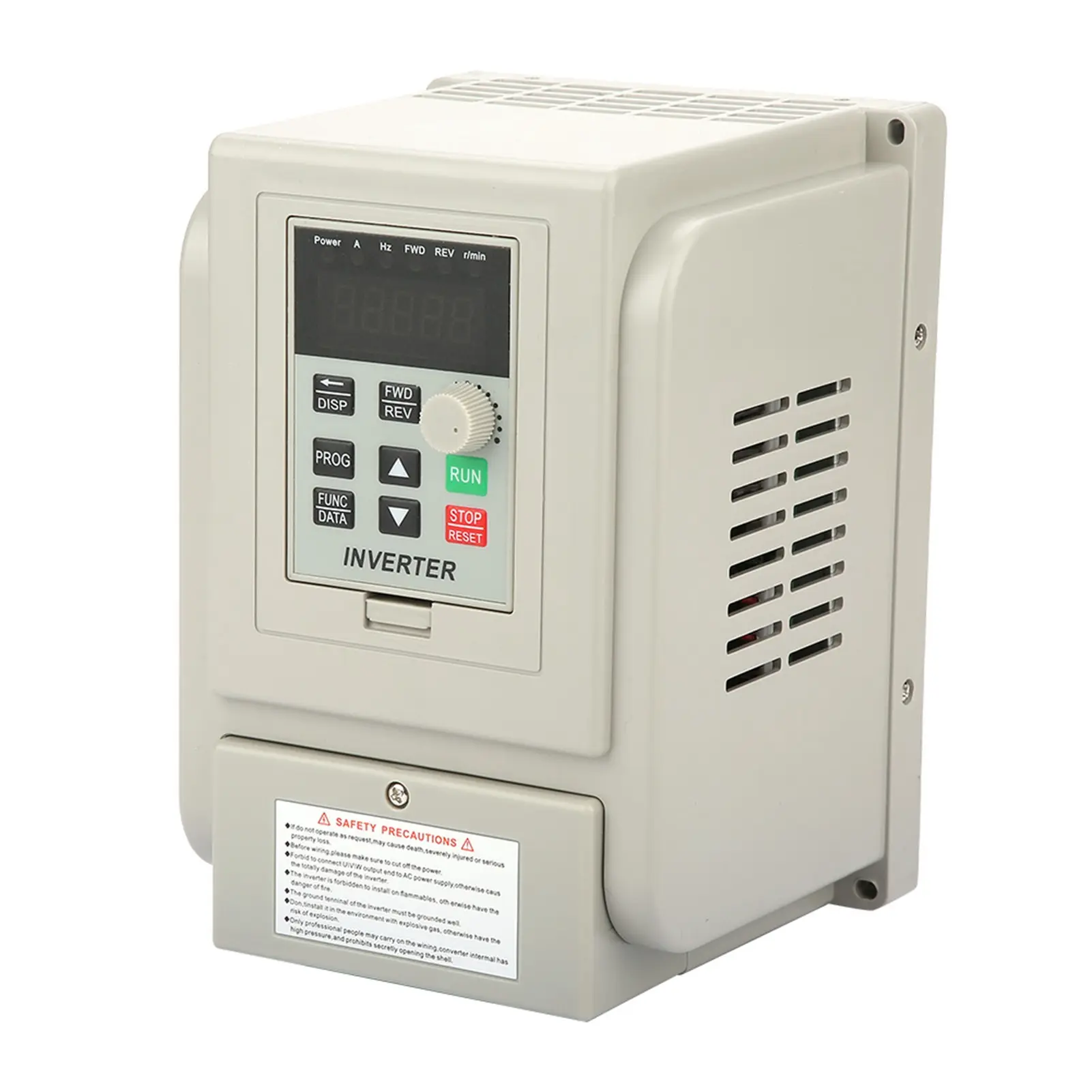

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p data-we-empty-p="" style="text-align:center;"><b>220VAC Single Phase Variable Frequency Drive VFD Speed Controller for 3 Phase 2.2kW AC Motor</b><br/></p><div style="font:Arial;font-size:16px;"><p><b>Specification:</b></p>Features: <br/>This VFD uses unique control method to realize high moment of force, high accuracy and wide speed regulating range driving, with high performance. <br/>It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability. <br/>By optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference. <br/>Simple to operate and wire, connect to wires by screw terminals which are more convenient.<br/>Designed with large heat sink for better heat dissipation.<br/><br/></div><div style="font:Arial;font-size:16px;">Specifications: <br/>Model: AT1-2200X <br/>Power Source Phase: Single-phase <br/>Rated Voltage: single-phase/3-phase AC220V <br/>Power Supply Voltage: Low voltage <br/>Suitable Motor Power: 2.2kW <br/>Filter: Built-in filter <br/>DC Power Supply Type: Voltage type<br/>Control Method: V/F closed loop<br/>Output Voltage Adjusting Method: PWM control <br/>Rated Current: 12A <br/>Protection: Over-current, over-voltage, over-heat, under-voltage, short circuit protection <br/>Max. Output Frequency: 400Hz <br/>Size: 125 x180 x 125mm/4.9 x 7.1 x 4.9in <br/>Weight: 1.3kg(approx.)<br/>Terminal Instruction:<br/>Terminal Function Details <br/>15V/24V 15V/24V power input 200mA15V/24V power supply output <br/>X6 Input terminal 6 (wire control CW/CCW switch) X6 connects to COM, input signal is effective <br/>X5 Input terminal 5 (wire control CCW) X5 connects to COM, input signal is effective <br/>X4 Input terminal 5 (wire control CW) X4 connects to COM, input signal is effective <br/>X3 Input terminal 3 (speed range 3) X3 connects to COM, input signal is effective <br/>X2 Input terminal 2 (speed range 2) X2 connects to COM, input signal is effective <br/>X1 Input terminal 3 (speed range 3) X1 connects to COM, input signal is effective<br/>SP1 Open collector output 1 <br/>SP2 Open collector output 2 <br/>5V/10V 5V/10V 20mA power supply output <br/>TC Relay output 250VAC 5A/30VDC 3A TA & TB are NC, TA & TC are NO <br/>TB Relay output <br/>TA Relay output<br/><br/></div><div style="font:Arial;font-size:16px;">Note: <br/>When adjusting parameter, the VFD must stop working, otherwise it will not be able to save parameter setting. <br/>Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.<br/><br/></div><div style="font:Arial;font-size:16px;"><p><br/></p><p><b>Package List:</b></p>1 x Variable Frequency Drive</div><br/><p><br/><br/><br/><br/><br/><br/><br/><br/><br/><br/></p></div></div></div>
