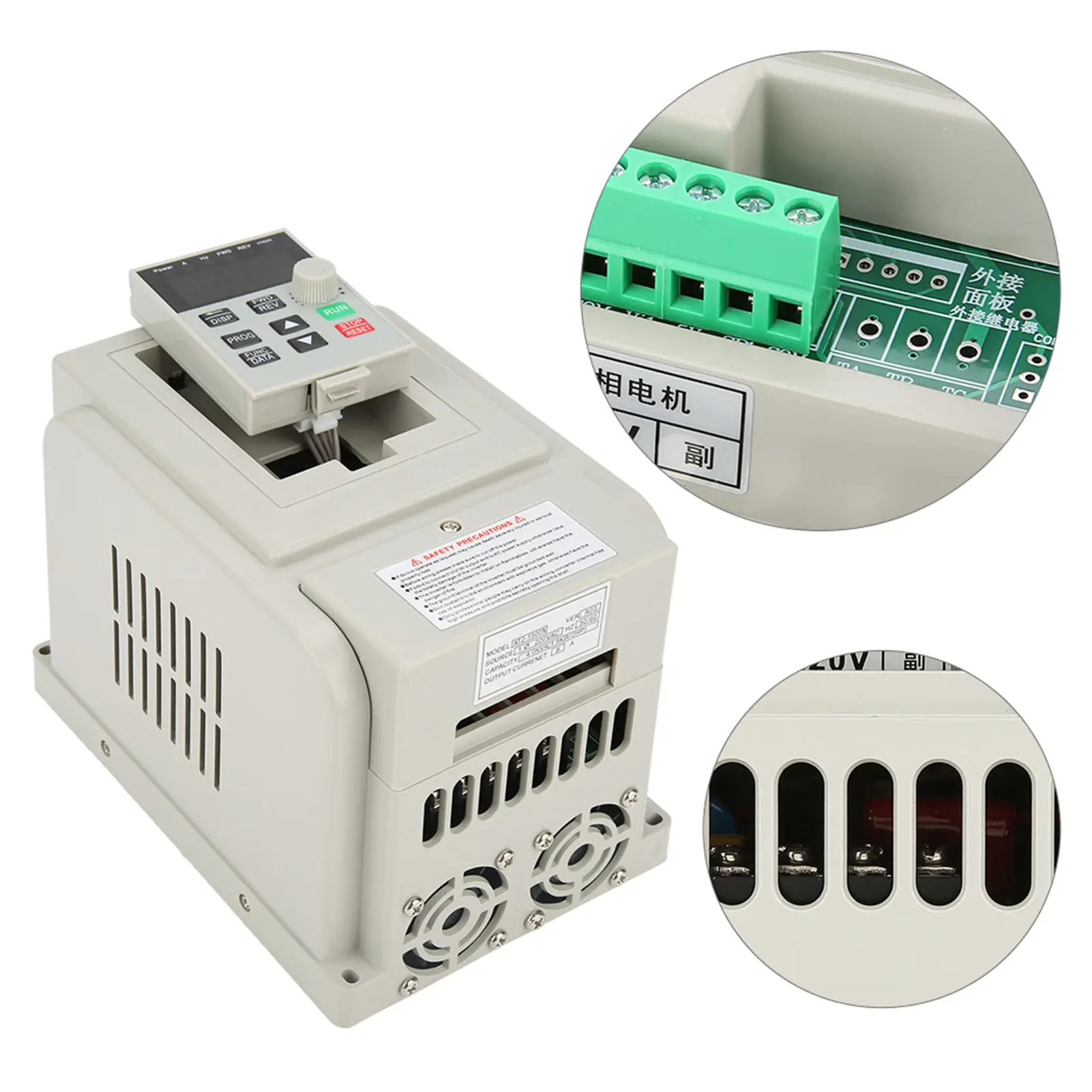

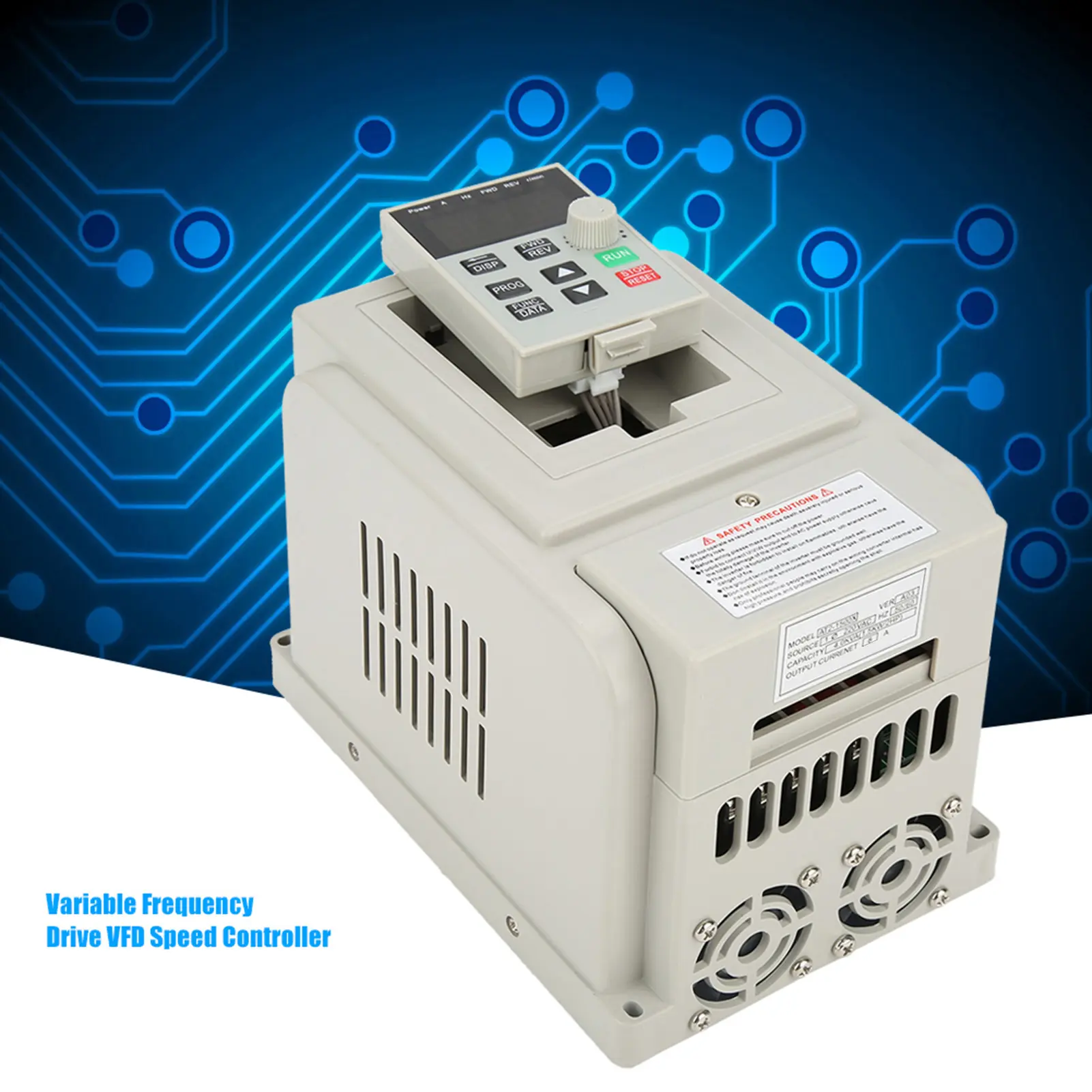

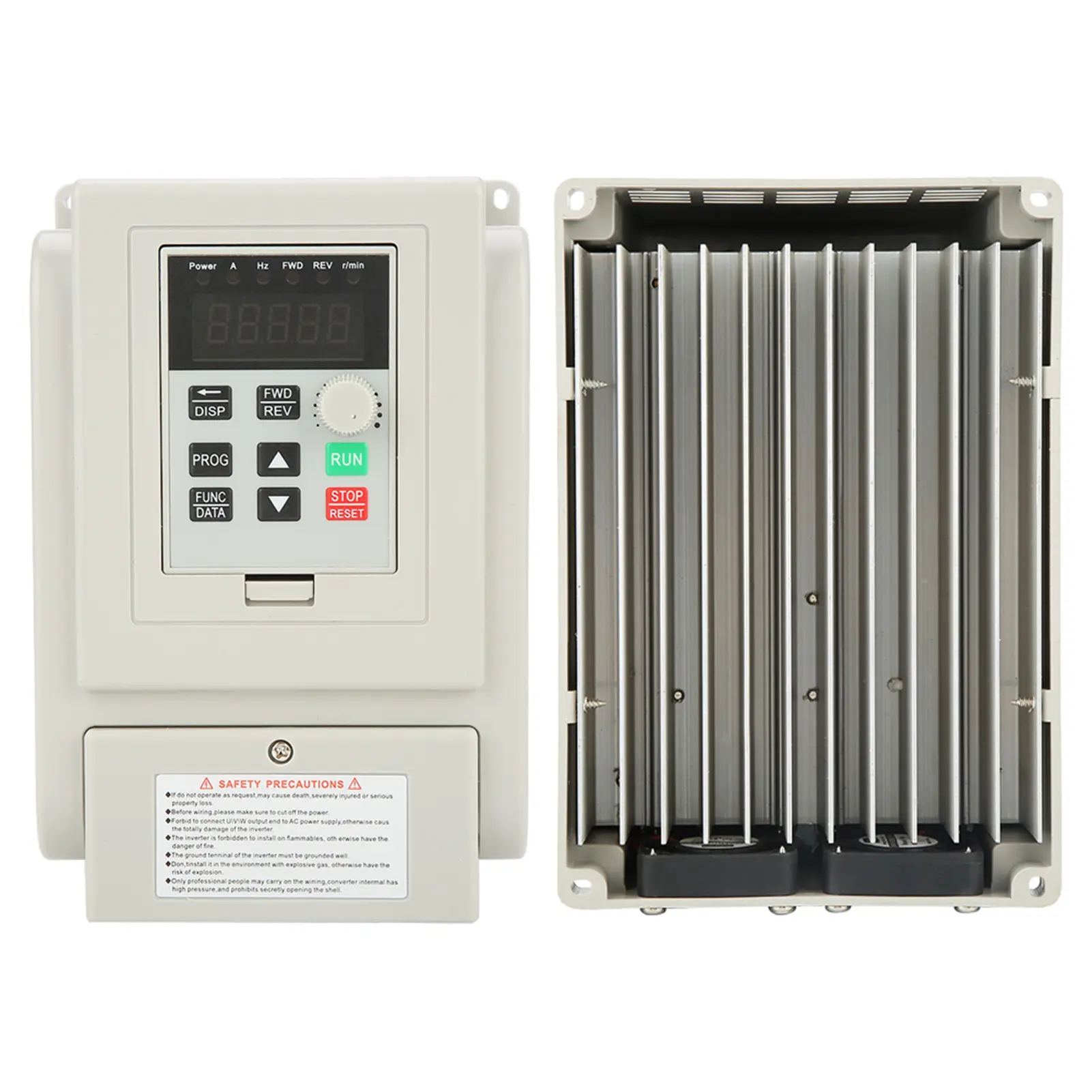

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p data-we-empty-p="" style="text-align:center;"><b>220VAC Variable Frequency Drive Speed Controller for Single Phase 1.5kW AC Motor</b></p><div style="font:Arial;font-size:16px;">Features: <br/>This Variable Frequency Drive uses unique control method to realize high moment of force, high accuracy and wide speed regulating range driving, with high performance. <br/>It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability. <br/>By optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference. <br/>Simple to operate and wire, connect to wires by screw terminals which are more convenient.<br/>Designed with large heat sink for better heat dissipation.<br/><br/></div><div style="font:Arial;font-size:16px;">Specifications: <br/>Model: AT2-1500X <br/>Application range: single phase asynchronous motor<br/>Power supply phrase: Single phrase<br/>Rated current: 8A<br/>Rated voltage: AC 220V(single phrase)<br/>Power supply voltage: Low voltage<br/>Suitable motor power: 1.5kW<br/>Filter: No<br/>DC power supply: Current type<br/>Control method: V/F open-loop<br/>Output voltage adjustable method: PWM control<br/>Size: Approx. 12.5 x 12.5 x 18cm/4.9 x 4.9 x 7.1in<br/>Quantity: 1pc <br/>Weight: 1.2kg(approx.)<br/><br/></div><div style="font:Arial;font-size:16px;">Note: <br/>When adjusting parameter, the Variable Frequency Drive must stop working, otherwise it will not be able to save parameter setting. <br/>Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.<br/><br/></div><div style="font:Arial;font-size:16px;">Package Includes: <br/>1 x Variable Frequency Drive<br/><br/></div><div style="font:Arial;font-size:16px;">Note:<br/>Please note that the product is not suitable for single-phase motors with capacitors.<br/>The product is a single input single output inverter, which can only be connected to a single <br/>phase asynchronous motor, and cannot be connected to other motors.<br/><p><br/></p></div><br/><p><br/><br/><br/><br/><br/><br/><br/><br/><br/></p></div></div></div>
