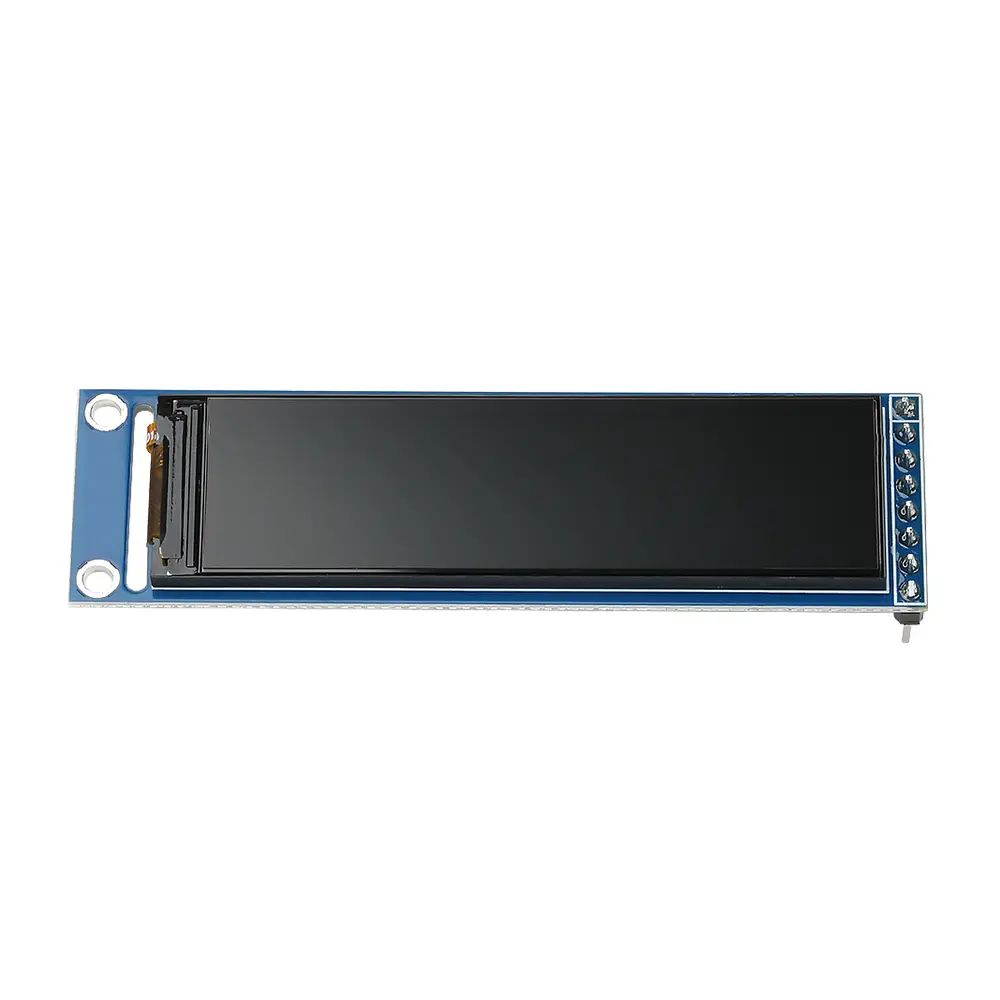

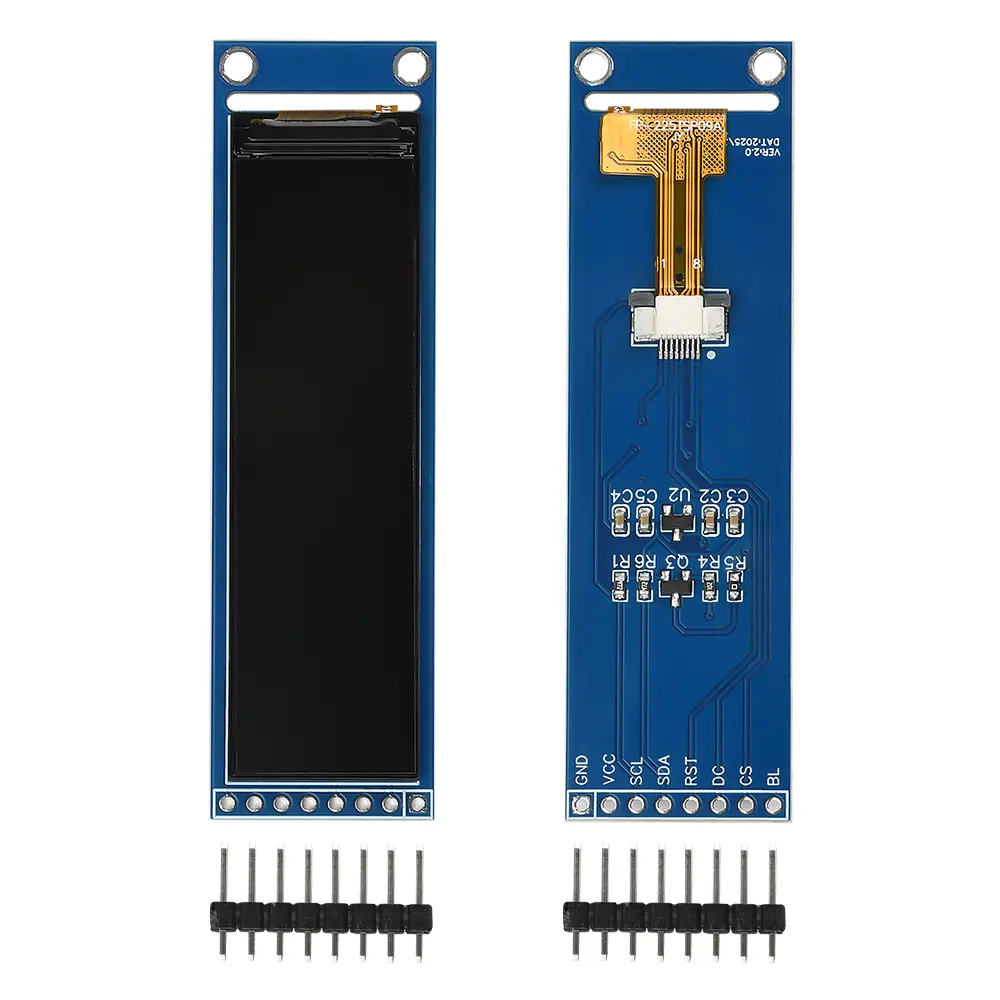

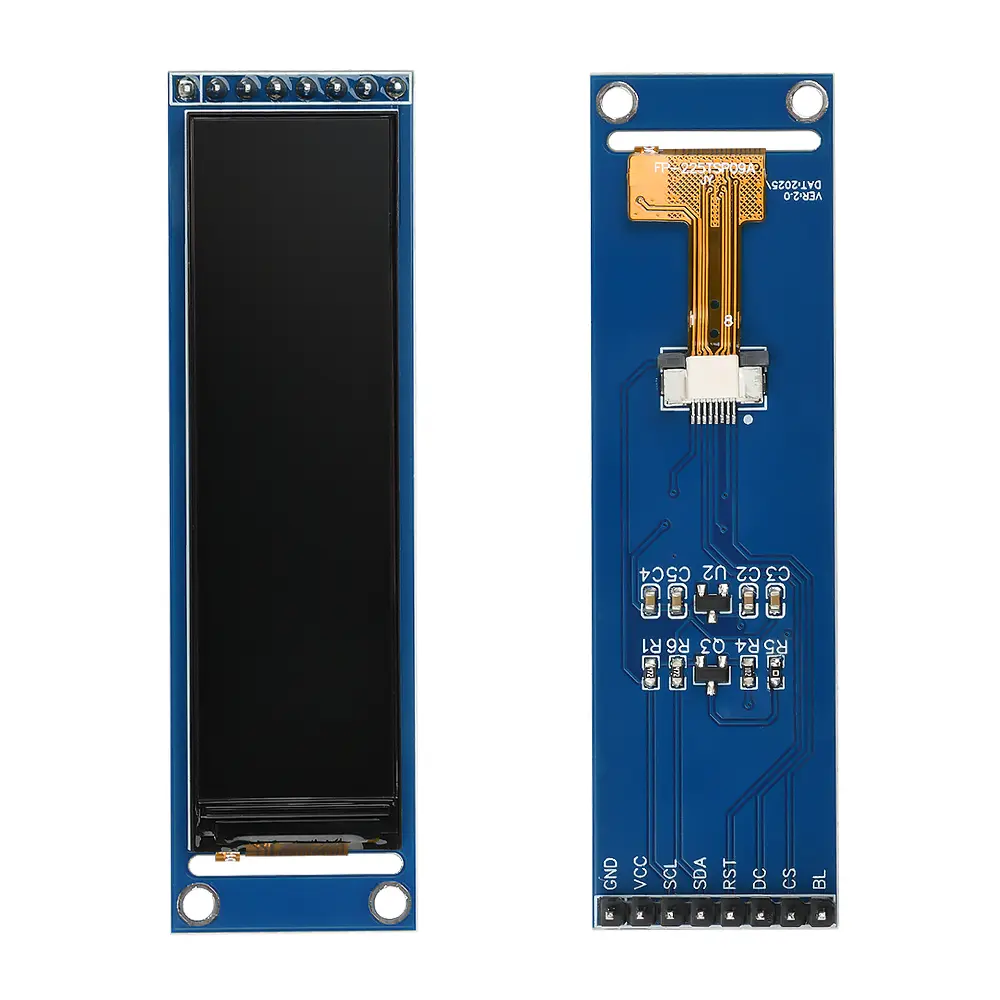

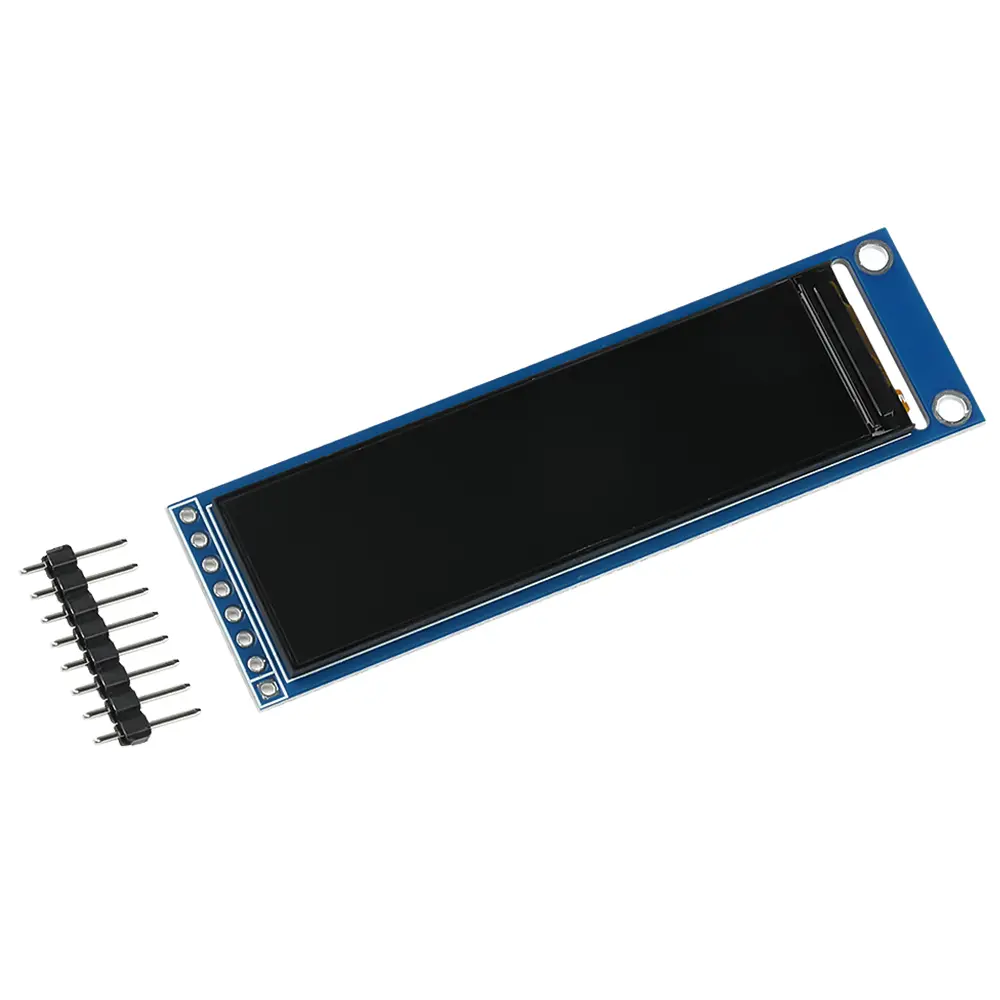

2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen
2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen
2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen
2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen
2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen
2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen
2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen
2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen
2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen
2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen
2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen
2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen

2.25 Inch TFT LCD Screen Module ST7789 Small Screen 76*284 LCD Full View SPI Color Screen

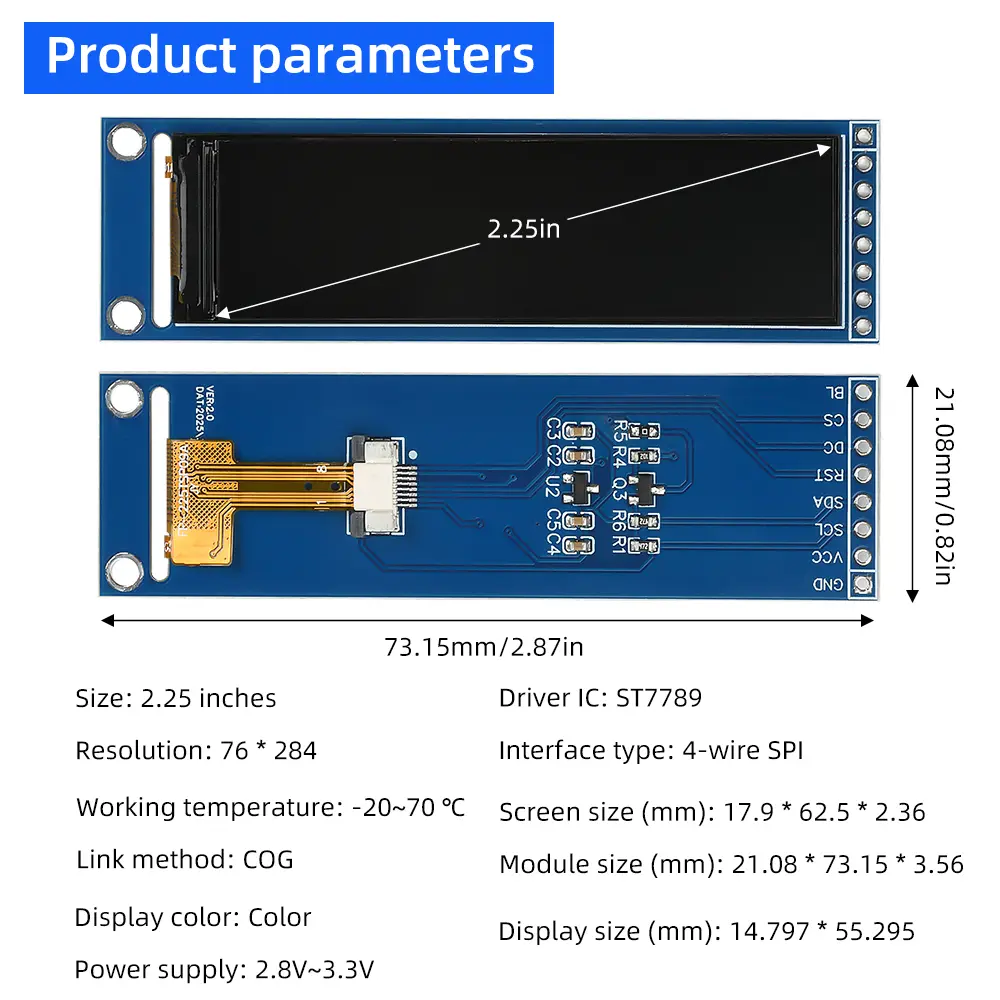

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br />1. Adopting ST7789 driver IC, with stable and efficient performance. <br />2. Supports 4-wire SPI interface for fast and convenient communication. <br />3. Resolution of 76 * 284, clear and delicate display. <br />4. Color full view LCD screen with high color reproduction. <br />5. Wide working temperature range, adaptable to various environmental requirements.</p> <p>Parameter: <br />Power supply: 2.8V-3.3V <br />Driver IC: ST7789 <br />Interface type: 4-wire SPI <br />Display screen: 2.25 inches <br />Resolution: 76 * 284 <br />Display color: Color <br />Link method: COG <br />Screen size: 62.5 * 17.9 * 2.36mm <br />Module size: 73.15 * 21.08 * 3.56mm <br />Display size: 14.797 * 55.295mm <br />Working temperature: -20 ℃~70 ℃</p> <p>Package Include: <br />1X display screen <br />1X pin headers (optional for unwelded/welded needle arrangement)<br /></p></div></div>
$9.995
$5.435

Colors

Sizes

-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br />1. Adopting ST7789 driver IC, with stable and efficient performance. <br />2. Supports 4-wire SPI interface for fast and convenient communication. <br />3. Resolution of 76 * 284, clear and delicate display. <br />4. Color full view LCD screen with high color reproduction. <br />5. Wide working temperature range, adaptable to various environmental requirements.</p> <p>Parameter: <br />Power supply: 2.8V-3.3V <br />Driver IC: ST7789 <br />Interface type: 4-wire SPI <br />Display screen: 2.25 inches <br />Resolution: 76 * 284 <br />Display color: Color <br />Link method: COG <br />Screen size: 62.5 * 17.9 * 2.36mm <br />Module size: 73.15 * 21.08 * 3.56mm <br />Display size: 14.797 * 55.295mm <br />Working temperature: -20 ℃~70 ℃</p> <p>Package Include: <br />1X display screen <br />1X pin headers (optional for unwelded/welded needle arrangement)<br /></p></div></div>
