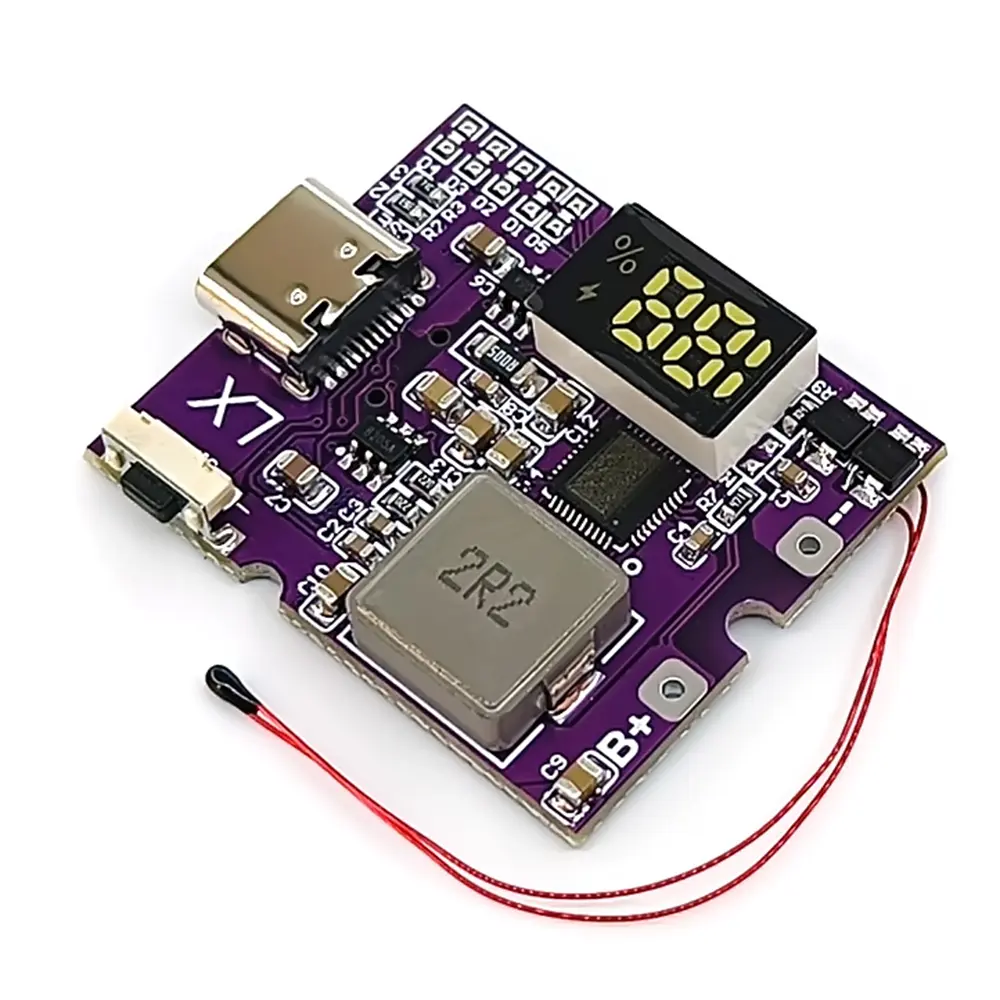

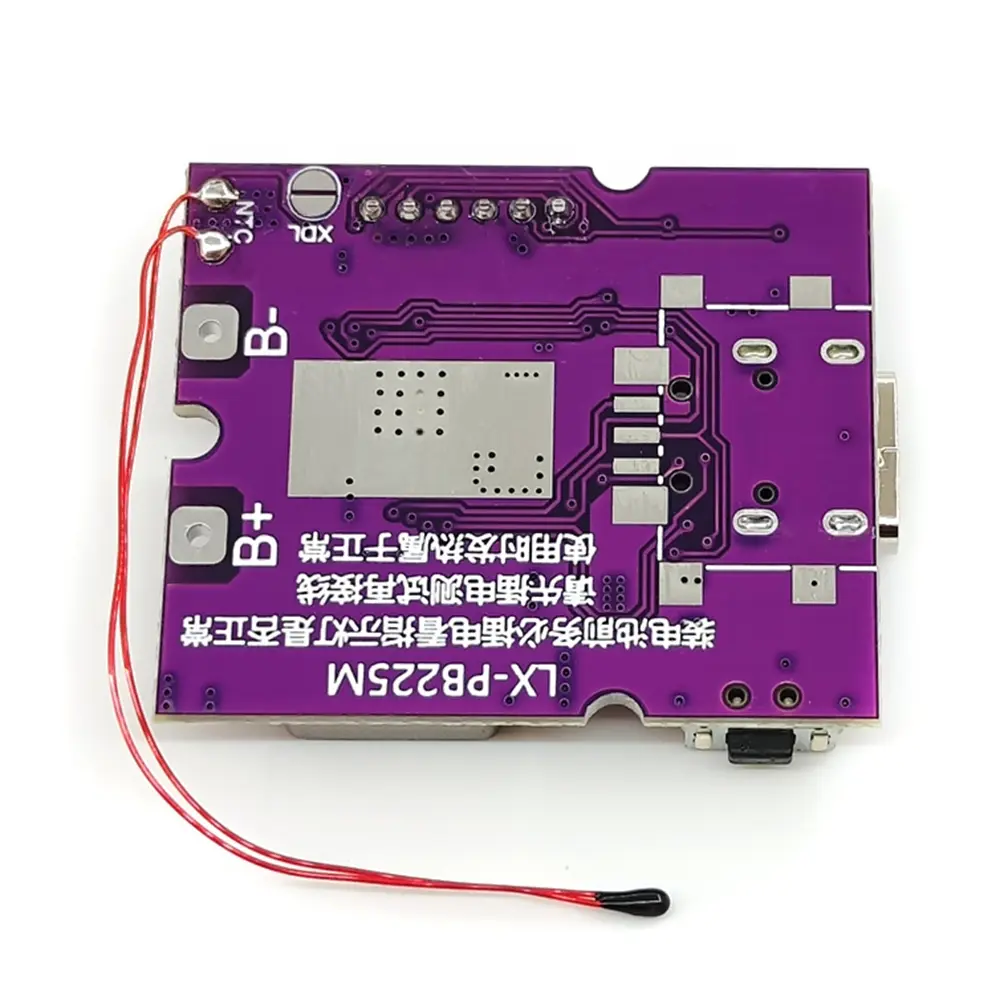

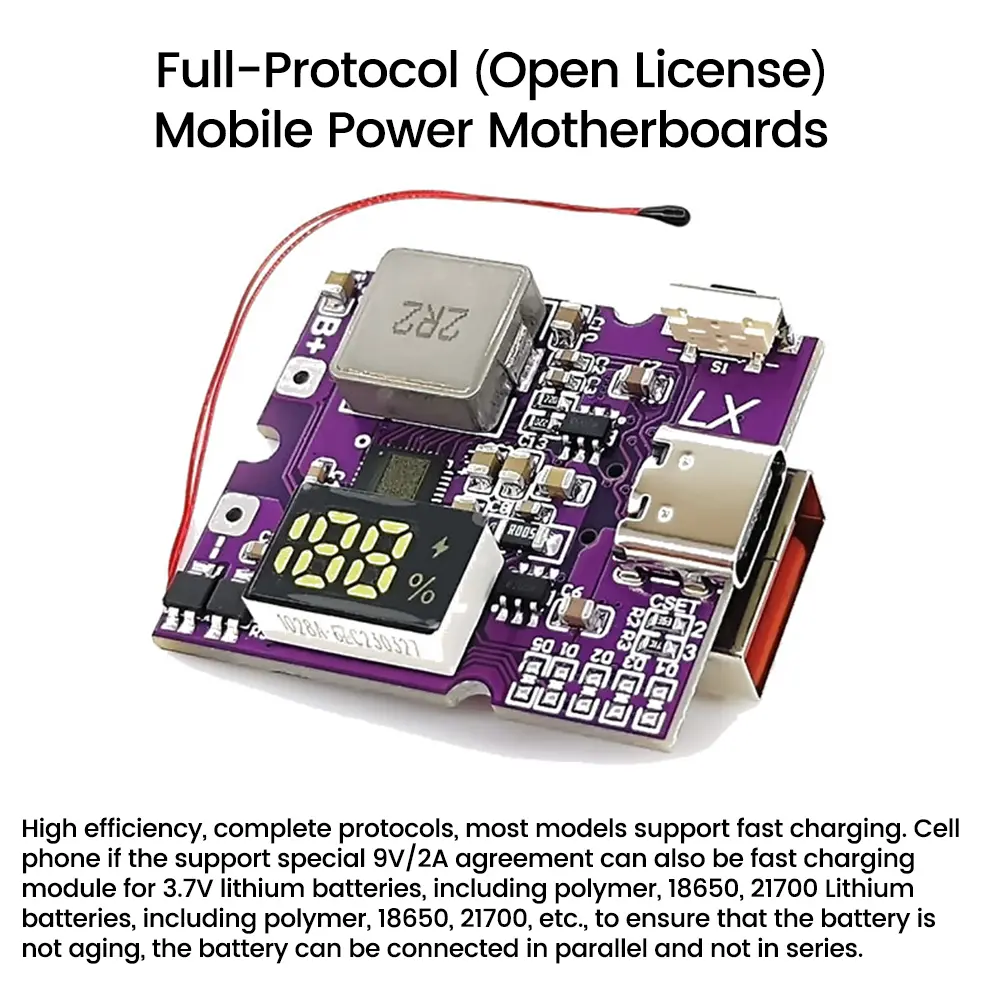

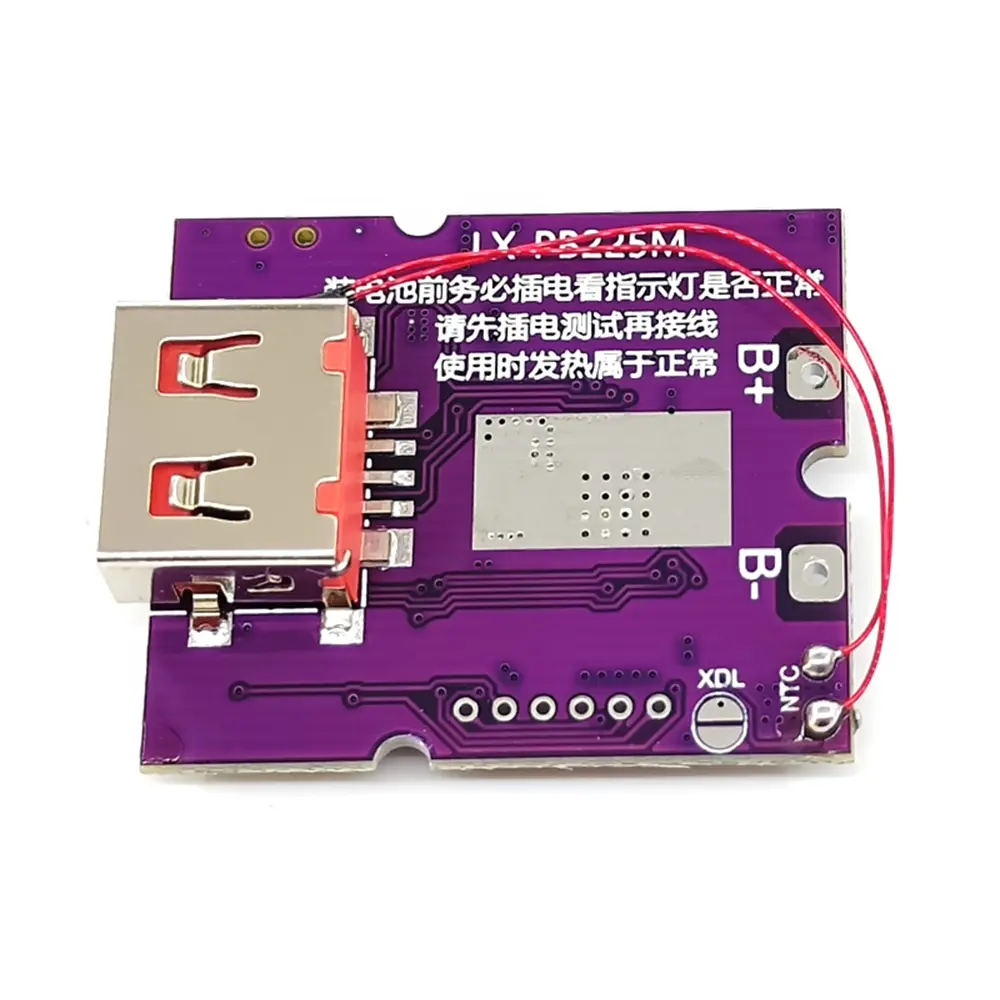

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;"></div></div> <div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000000542054" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"></span><br /><br /><span style="font-family: arial, helvetica, sans-serif;"><strong><span style="font-size: 16px;">22.5W High Power Bank Bidirectional Fast Charging Mobile Power Module Circuit Board With LED Display Type-C USB Interface</span></strong></span><br /><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;"><span style="font-size: 18px; color: #ff0000;"><strong data-spm-anchor-id="a2g0o.detail.1000023.i0.45cb4d0bwR3Oda">Description:<br /></strong></span>1. Use of high-quality materials, product quality is guaranteed</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">2. Small volume, high power, high efficiency, complete protocols, mainstream open protocols are basically supported</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">3.Module for 3.7V lithium batteries, including polymer, 18650, 21700 lithium batteries; to ensure that the battery is not aging, the battery can be connected in parallel can not be connected in series</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">4. Module volume is relatively small, the heat dissipation area is limited, high-power output heat is a normal phenomenon</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">5. Wide range of product applications, suitable for a variety of industrial DIY occasions</span></p> <p><span style="color: #ff0000;"><strong><span style="font-size: 18px; font-family: arial, helvetica, sans-serif;">Parameter:</span></strong></span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">full protocol, the mainstream open protocol basically support the charging current up to 5A, efficiency up to 96% output power up to 22.5W, efficiency up to 95%.</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Automatic load detection / light load detection</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">High-current USB output interface</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Support small current mode</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Support digital tube display and LED power indicator</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Output overcurrent/short circuit protection</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Charge timeout/over-voltage protection</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Support PPS/PD3.0/PD2.0</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Support QC4+/QC4/QC3.0/QC2.0</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Support FCP, SCP (5V4.5A or 4.5V/5A)</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Support FCP, SCP, HSCP</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Support SFCP to charge battery</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Support PD3.0/PD2.0, AFCFCP, SCP , PE1.1</span></p> <p><span style="color: #ff0000;"><strong><span style="font-size: 18px; font-family: arial, helvetica, sans-serif;">Precautions for use:</span></strong></span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">1. Battery and motherboard cable can not be too thin, try to be thicker. Fast charging board requirements can pass 10A current non-fast charging board should also be able to pass 7A current. Can not be too long, the interface needs to be welded.</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">2. Batteries can only be connected in parallel (parallel number is not limited), not in series, series must burn the motherboard.</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">3. Normal application, the battery must be welded, (wire twisting will be insufficient power supply), the battery reverse motherboard must burn. Never pay attention. Line as thick and short.</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">4. Access to the battery to determine access to the 3.7V battery, not other batteries. Ensure that the battery is not connected in series, otherwise the battery terminal access voltage higher than 4.5V may burn the board.</span></p> <p><span style="color: #ff0000;"><strong><span style="font-size: 18px; font-family: arial, helvetica, sans-serif;">Package include: </span></strong></span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Mini fast charging module *1<br /><br /><br /></span></p></div></div>
