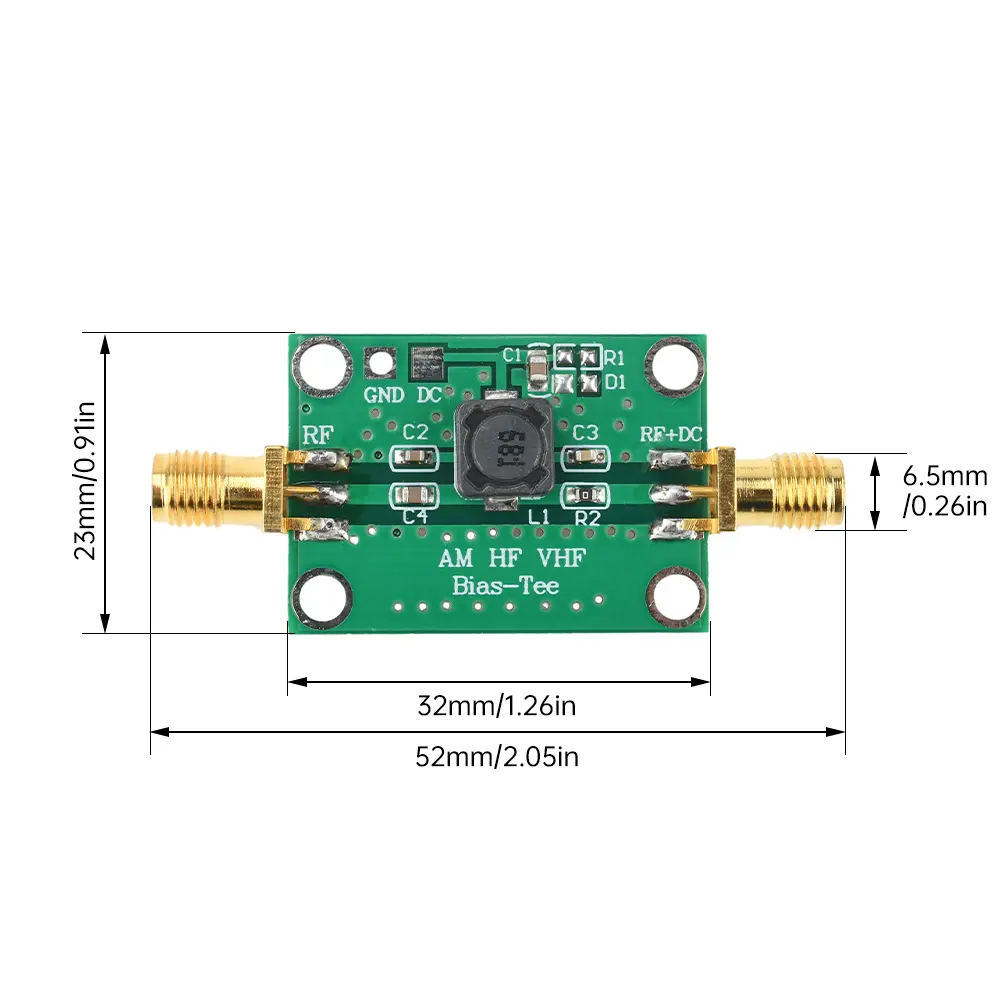

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Broadband amplifier feeder circuit, high-frequency by parasitic capacitance parameters, the performance of a sharp decline, so the feeder needs to use BiasTee<br/>2. BiasTee consists of an ultra-wideband, near-idealized, high-frequency inductance and capacitance with no resonance point.<br/>3. Straightening capacitors: DC isolation, preventing DC voltage leakage to subsequent circuits or test instruments.<br/>4. High-frequency inductors: isolate AC information and prevent high-frequency signals from leaking into the power supply system.<br/>5. Driving current required by the laser diode is injected through the DC side of the bias; communication data is injected through the RF side.</p><p>Parameter:<br/>Operating frequency: 25k-100MHz<br/>Insertion loss: &lt;1dB<br/>Working voltage: DC1-50V<br/>Maximum working current: &lt;0.6A<br/>Product size: 52*23*6.5mm</p><p>Package include:<br/>Module*1<br/><br/></p></div></div><p><br/></p>
