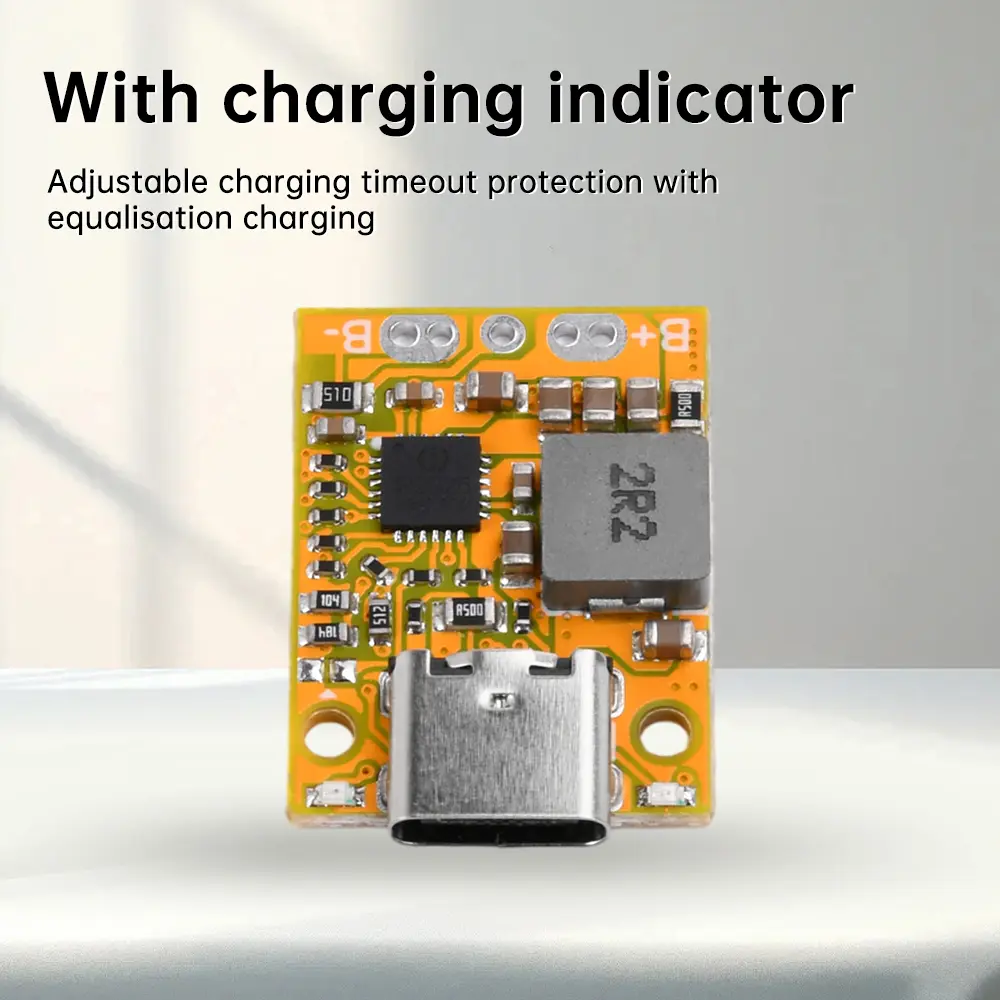

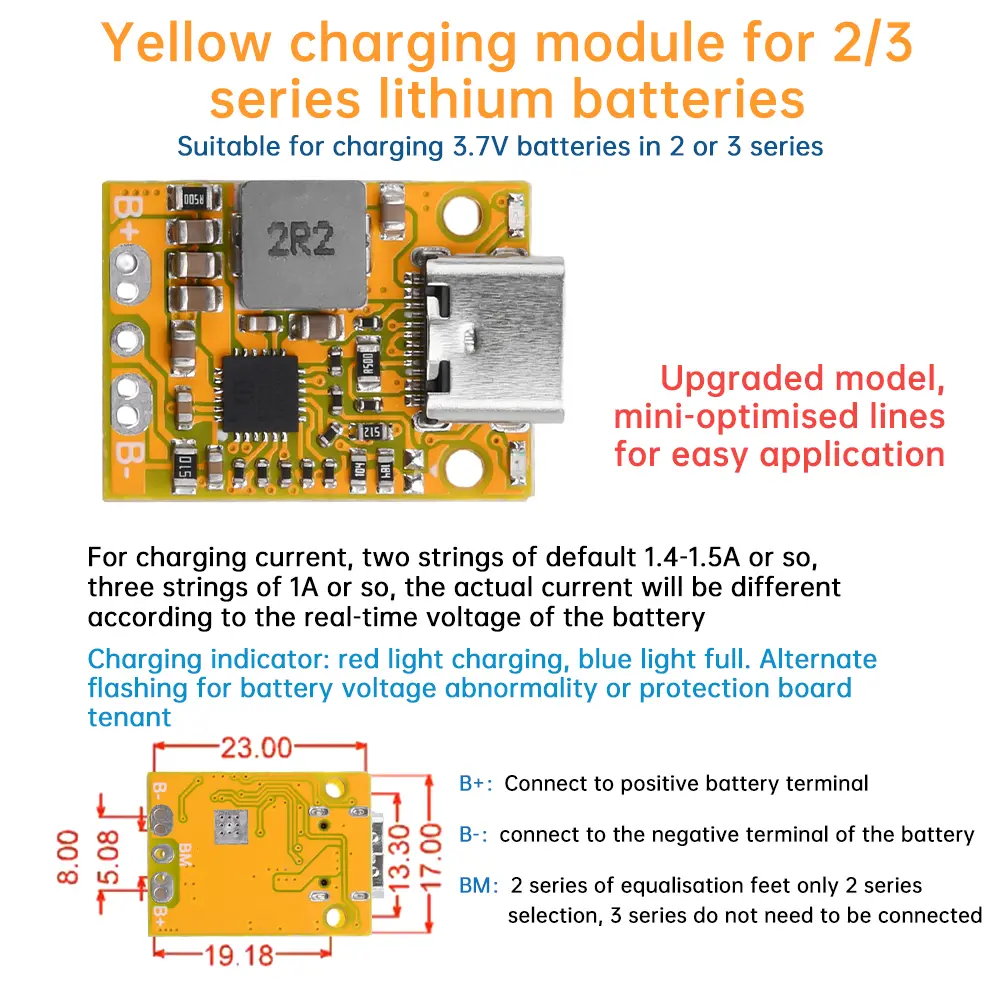

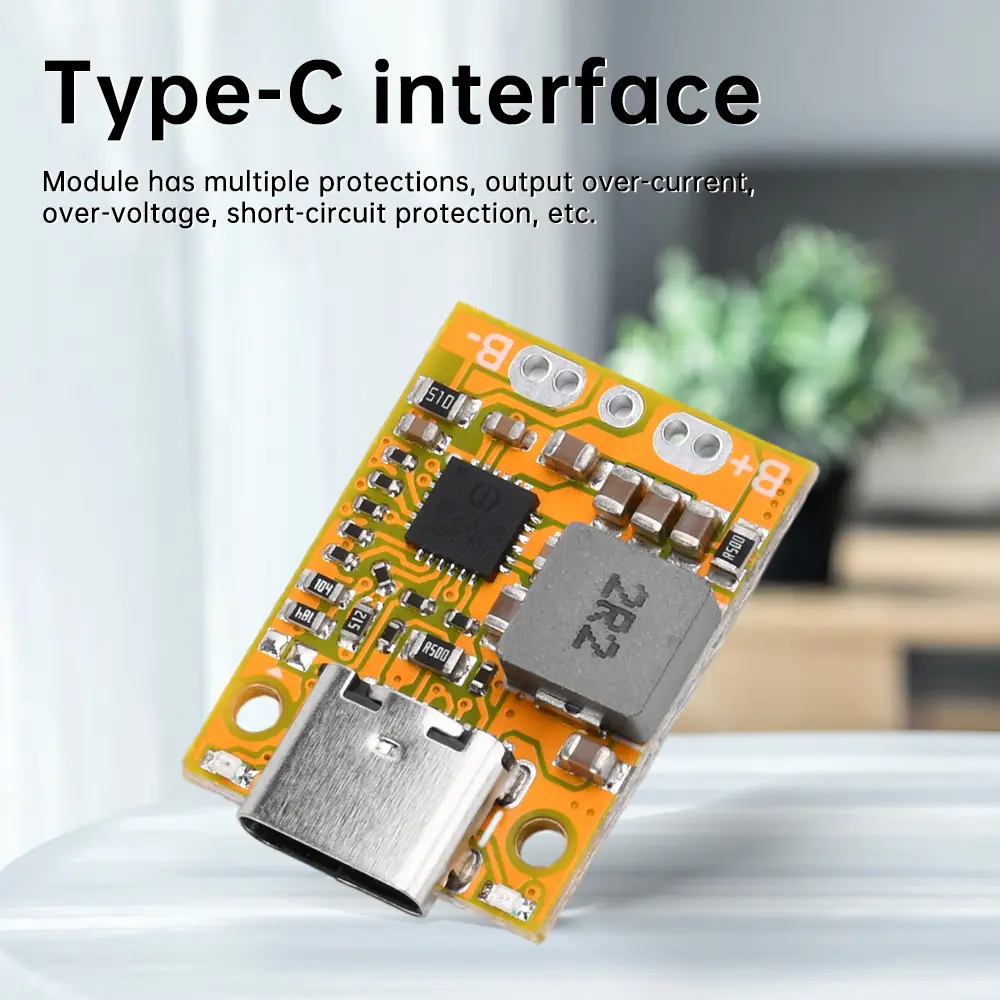

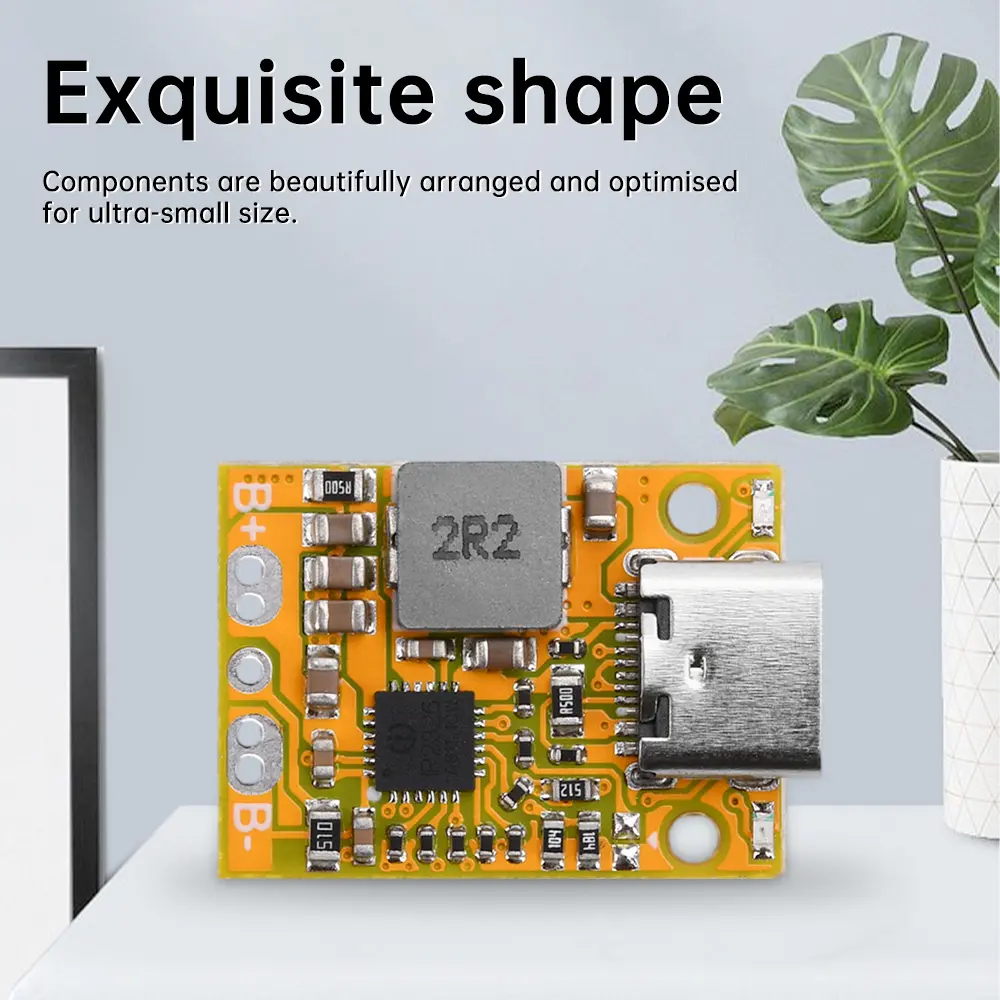

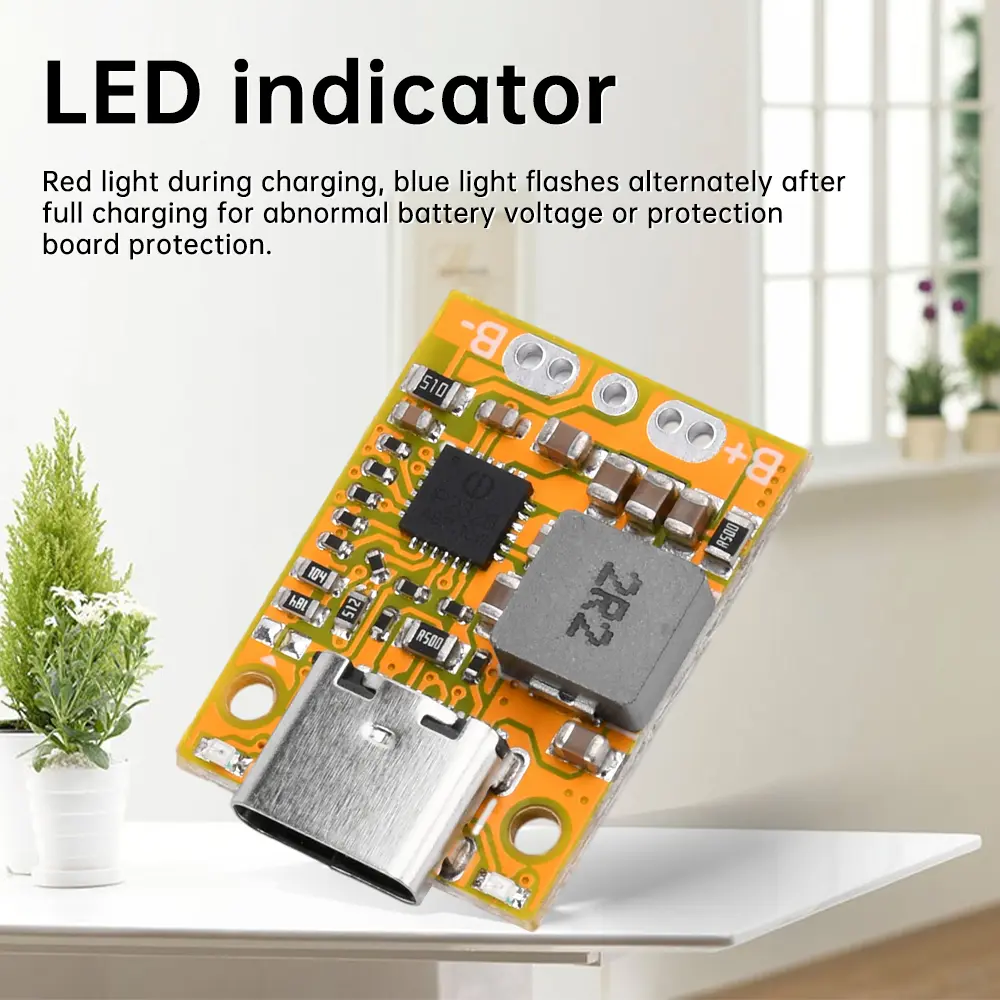

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004384065" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1. Made of high quality materials, durable and practical<br/>2. Exquisite appearance, beautiful arrangement of components, optimized line ultra-small volume<br/>3. Charging efficiency up to 94%, stable performance<br/>4. Adjustable charging timeout protection, with equalization charging<br/>5. The module has multiple protection, output over-current, over-voltage, short-circuit protection and so on.</div><div><br/></div><p>Module interface:<br/>Type-c interface: input to connect the cell phone charging head and other power supply to the board power supply<br/>B+: connected to the positive end of the series battery (protection board is generally identified as P +)<br/>B-: connect to the negative end of the series battery (the protection board is generally identified as P-)<br/>BM: the interface is only used for 2S batteries, connected to the middle of the 2S battery to do equalization, 3S do not need to be connected<br/>LED indicator: red light during the charging process, charging full blue light, alternately flashing for abnormal battery voltage or protection plate protection</p><p>Package include:<br/>Mini fast charging module * 1<br/></p></div></div><p><br/></p>
