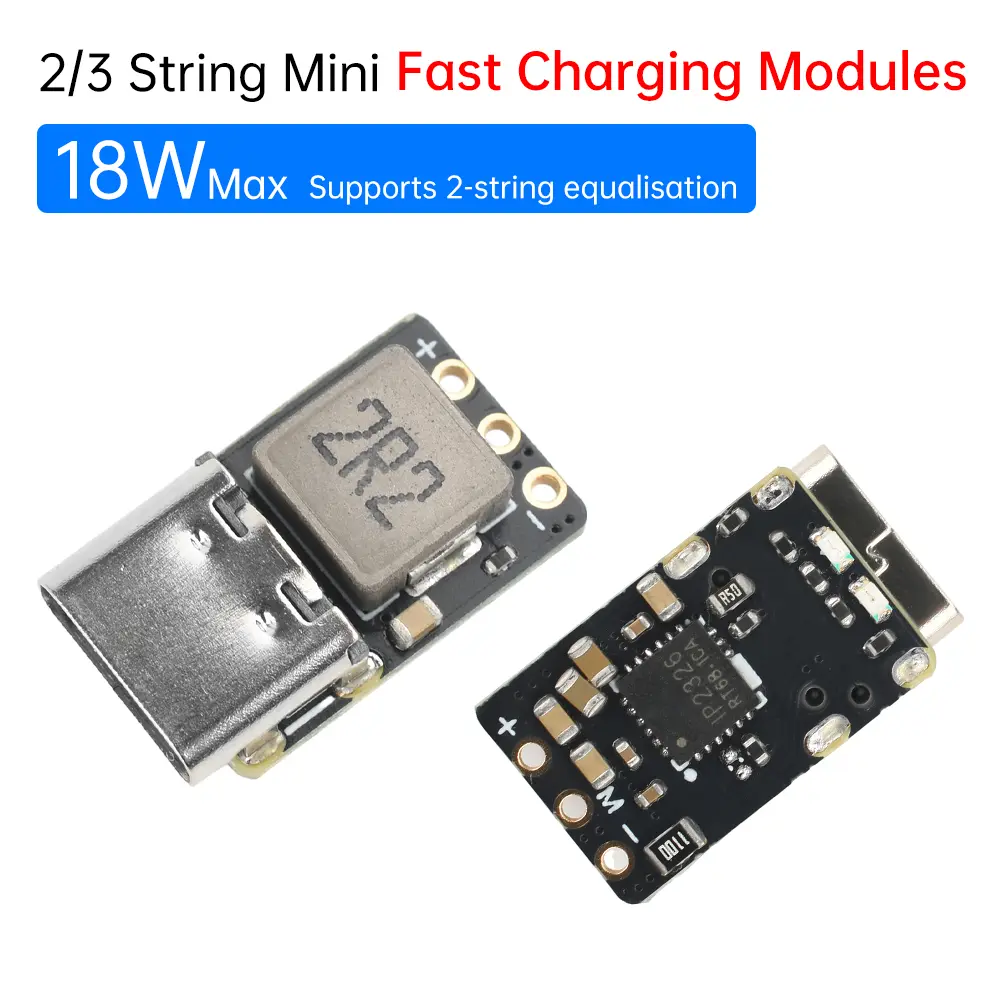

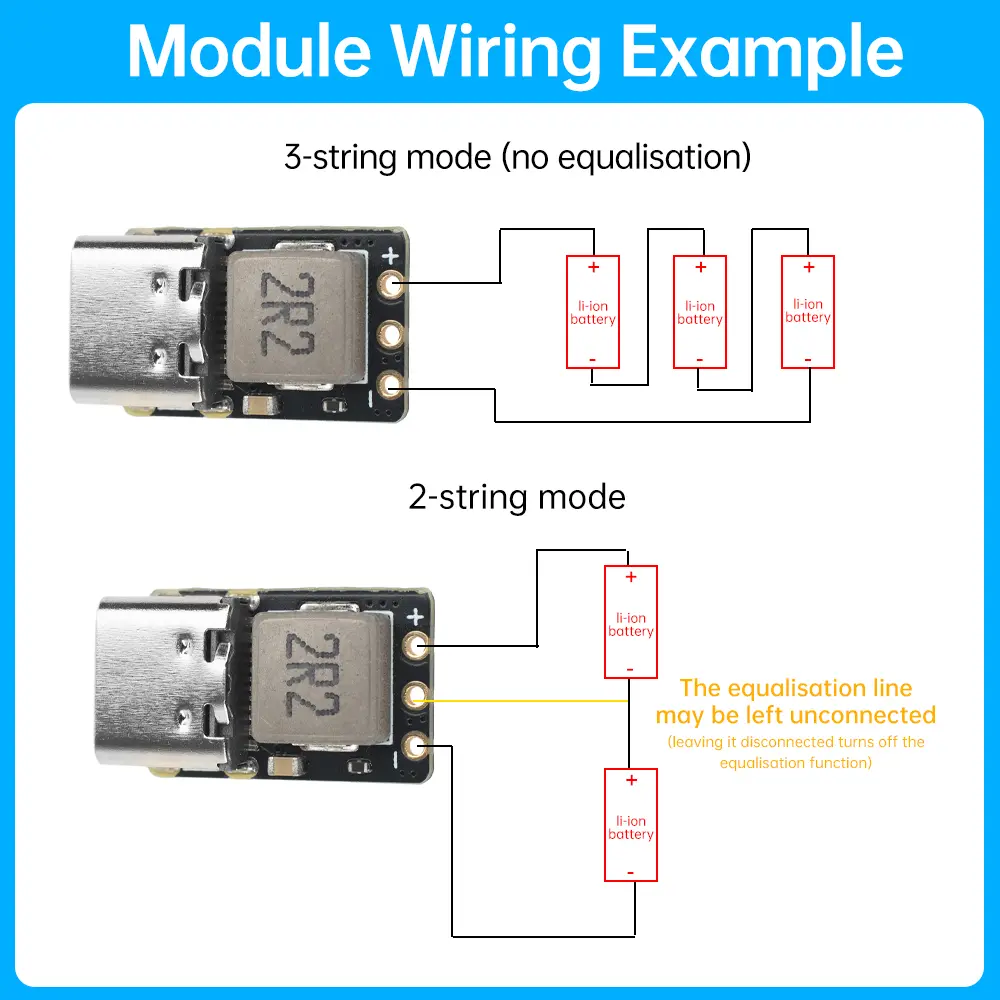

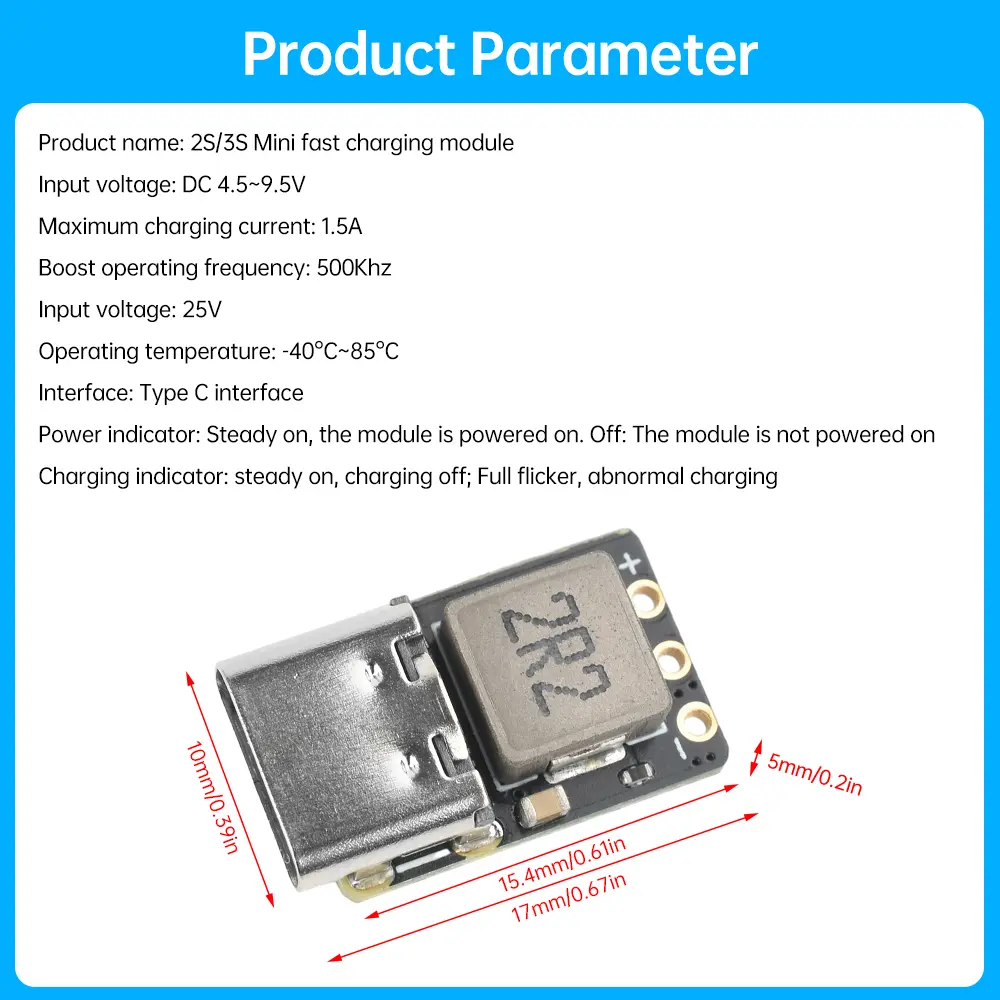

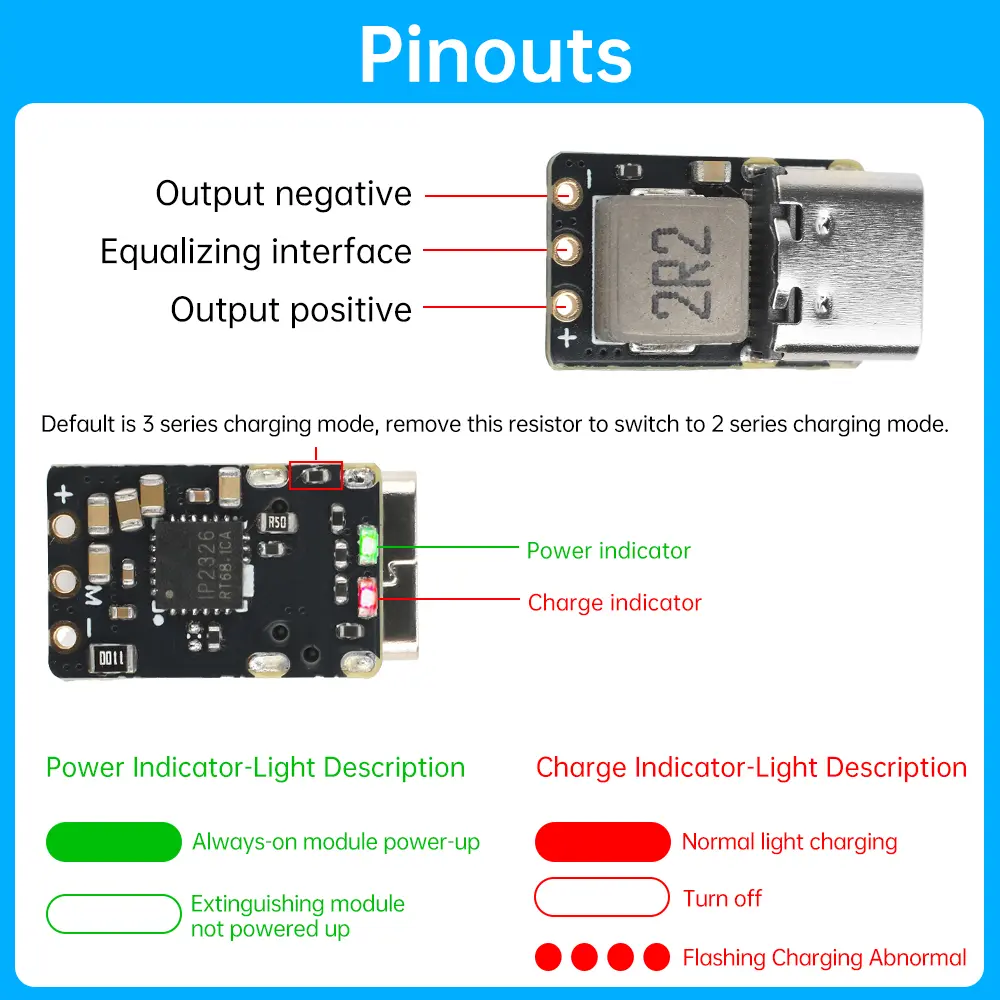

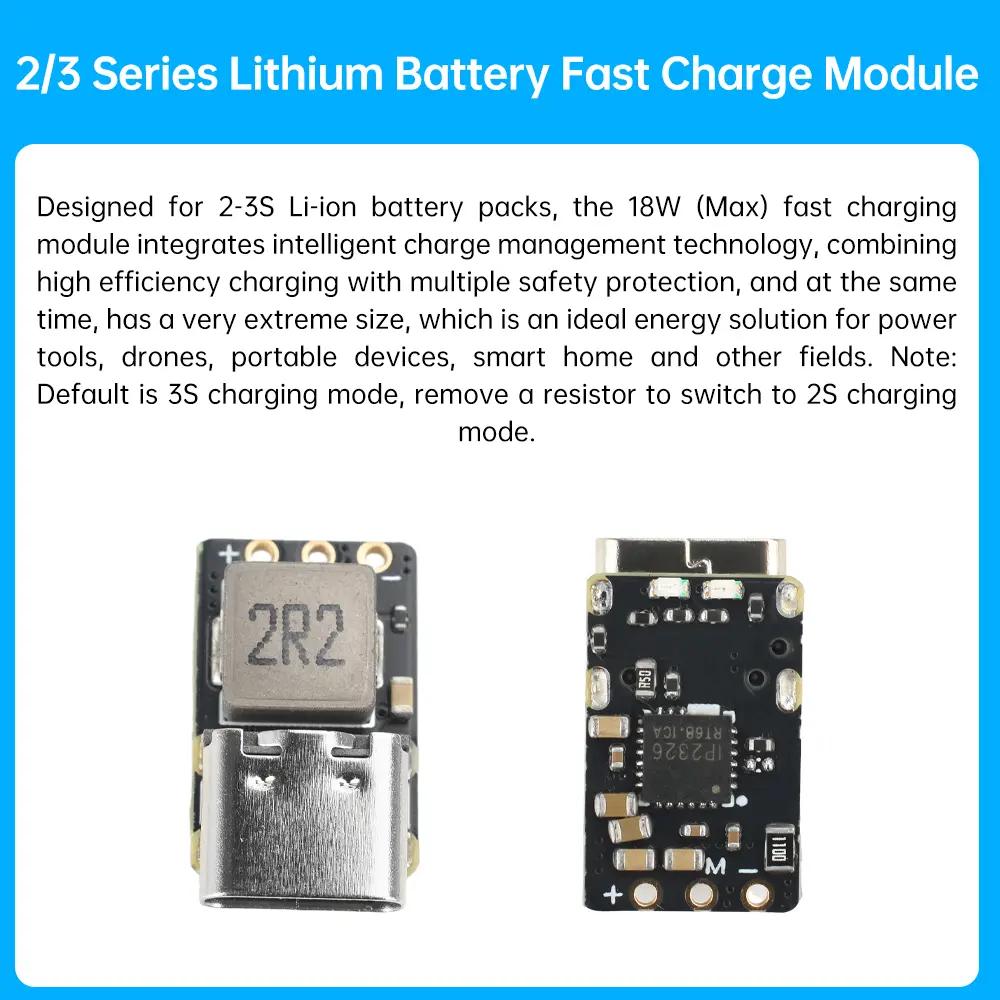

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><br/>Features:<br/>1.High-efficiency 18W fast charging: supports up to 18W fast charging, significantly shortening charging time<br/>2.Intelligent voltage adjustment: automatically apply the fast charging voltage according to the battery voltage to ensure that it is always charged with the highest efficiency<br/>3.Multiple safety protection: perfect protection mechanism to ensure the safety and reliability of the charging process<br/>4.Ultra-small size design: extremely small size, easy to integrate into drones, power tools and other equipment<br/>5.Flexible mode switching: default 3S mode, remove the resistor can be easily switched to 2S charging mode</p><p>Parameter:<br/>Product name: 2S/3S mini fast charging module<br/>Input voltage: DC 4.5-9.5V<br/>Maximum charging current: 1.5A<br/>Boost frequency: 500Khz<br/>Input voltage: 25V<br/>Operating temperature: -40°C~85°C<br/>Interface: Type C interface<br/>Size: 16.5x9.5x5mm<br/>Features: Compact size, 18W charging, automatic application of fast charging perfect protection mechanism, automatic adjustment of charging voltage indicator light<br/>Power indicator light:<br/>Always on, the module is powered on<br/>Off, the module is not powered<br/>Charging indicator light:<br/>Always on, charging<br/>Off, fully charged<br/>Blinking, abnormal charging</p><p>Description:<br/>Designed for 2 to 3S Li-ion battery packs, the 18W (Max) fast charging module integrates intelligent charging management technology, taking into account high efficiency charging and multiple safety protection, and at the same time has a very extreme volume, which is an ideal energy solution for power tools, drones, portable devices, smart home and other fields.<br/>Note: Default is 3S charging mode, remove a resistor to switch to 2S charging mode</p><p>Package include:<br/>Module x1<br/><br/></p></div></div><br/>
