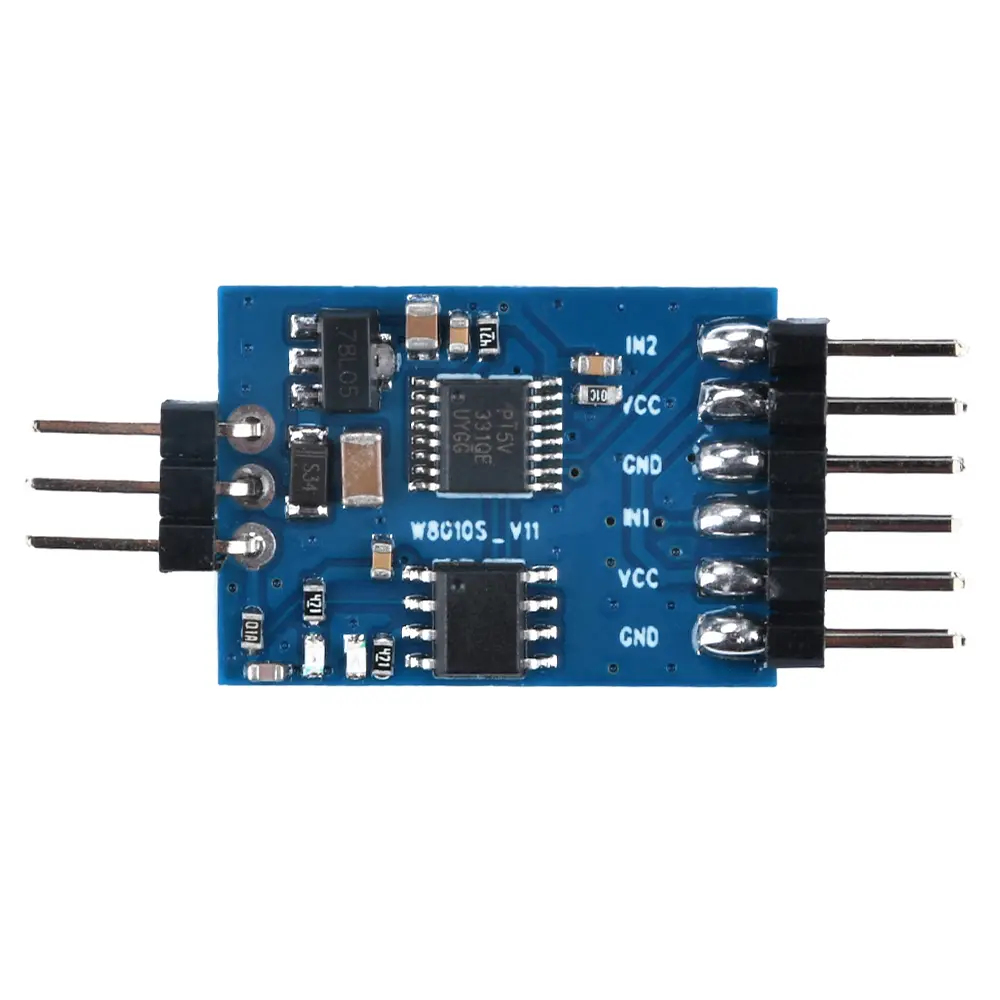

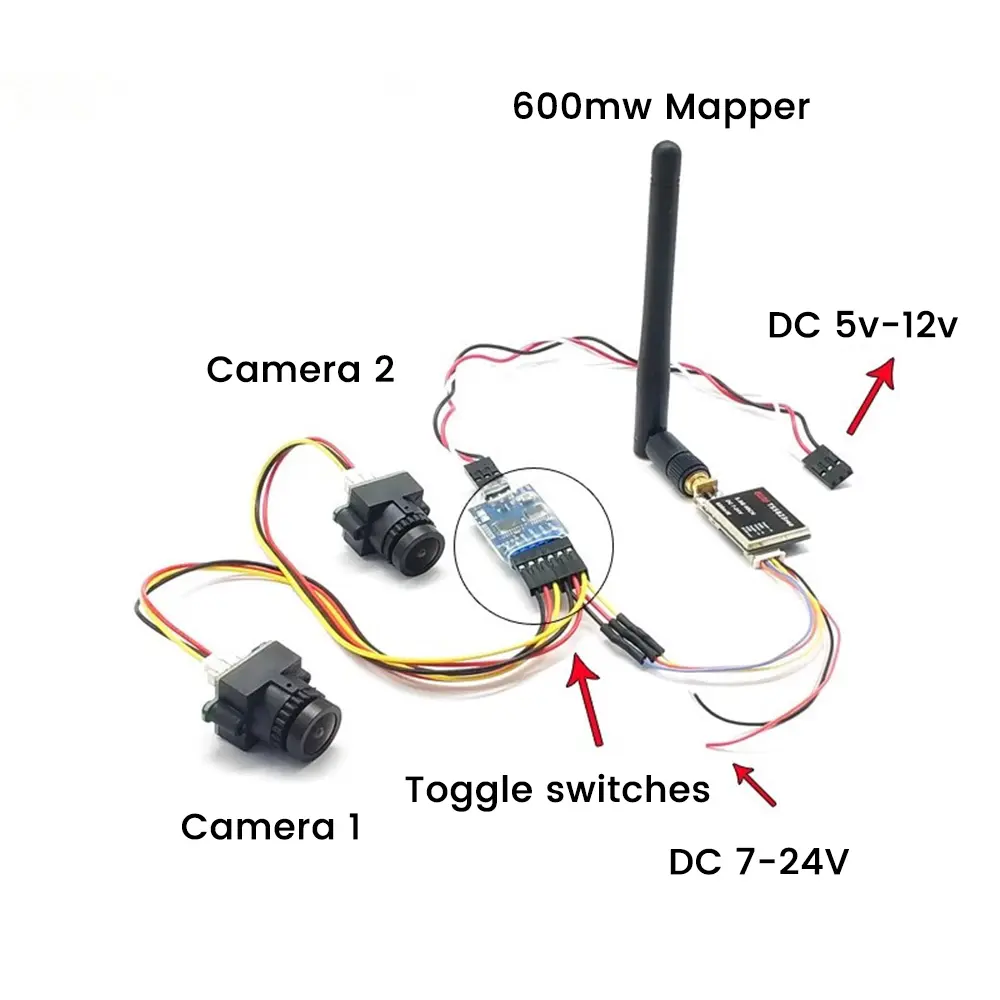

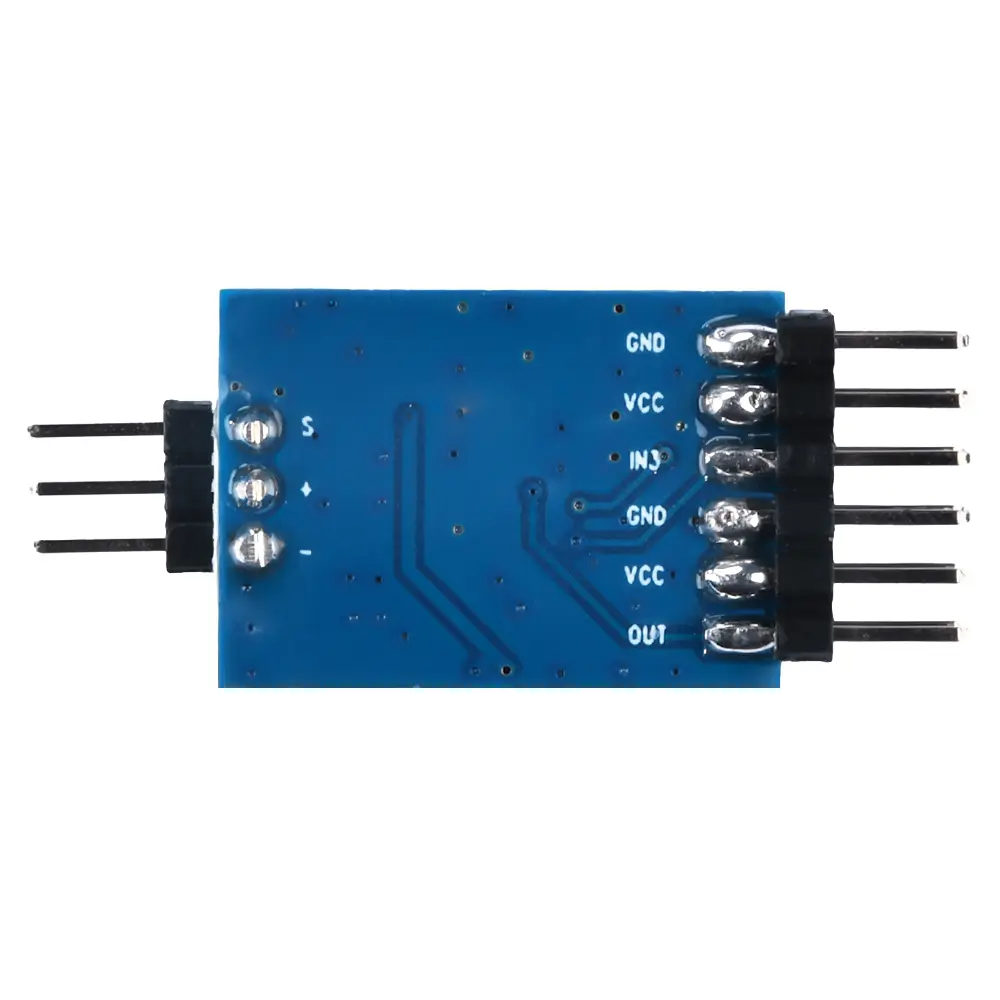

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;"></div></div> <div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004378858" title="" type="custom"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"></span><br /><br /><span style="font-family: arial, helvetica, sans-serif;"><strong><span style="font-size: 16px;">3 channel Video Switcher Module 3 way Video Switch Unit FPV Camera for Multicopter Drones 5.8G FPV transmitter and camera</span></strong></span><br /><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;"><span style="font-size: 18px; color: #ff0000;"><strong data-spm-anchor-id="a2g0o.detail.1000023.i0.196aXgP7XgP7Dj">Description:<br /></strong></span>1. The product uses high-quality PCB material with guaranteed quality</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">2. The product is shipped in static bag packaging, with welded pins. The product is lightweight, compact, and easy to use</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">3. This product can connect three video sources and switch between different video sources. If you have multiple cameras on your plane, this is the multi view switching product you need</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">4. Support 5-12V power supply, control signal adopts PWM signal, stable performance</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">5. Adopting a high-speed video switching chip to effectively reduce the vibration of video images</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;"><br /><span style="color: #ff0000;"><strong><span style="font-size: 18px;">Parameters:</span></strong></span></span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Name: 3-channel video switcher module</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Color: Blue</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Input channel: 3</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Voltage: DC5-12V</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Video signal impedance: 75 &Omega;</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Control signal: PWM</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">IN1:1000us &plusmn; 200</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">IN2: 1500us &plusmn; 200</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">IN3: 2000us &plusmn; 200</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;"><br /><span style="color: #ff0000;"><strong>Product Description:</strong></span></span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">This module can connect three video sources, and you can switch between different video sources through a three position switch. If you have multiple cameras on your aircraft, this is the product you need.</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">The control channel can be any proportional channel or a 3-bit switching channel, and the 2-bit switching channel can only switch between two video input signals.</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;">Port "in" represents the video signal input, IN1, IN2, IN3, and OUT represent the video signal output, "-" represents the negative pole, "+" represents pause, and "S" represents the received video signal.</span><br /><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;"><br /></span><span style="font-size: 16px; font-family: arial, helvetica, sans-serif;"><span style="font-size: 18px; color: #ff0000;"><strong>Package include:</strong></span><br />Switch module X1<br /><br /><br /></span></p></div></div>
