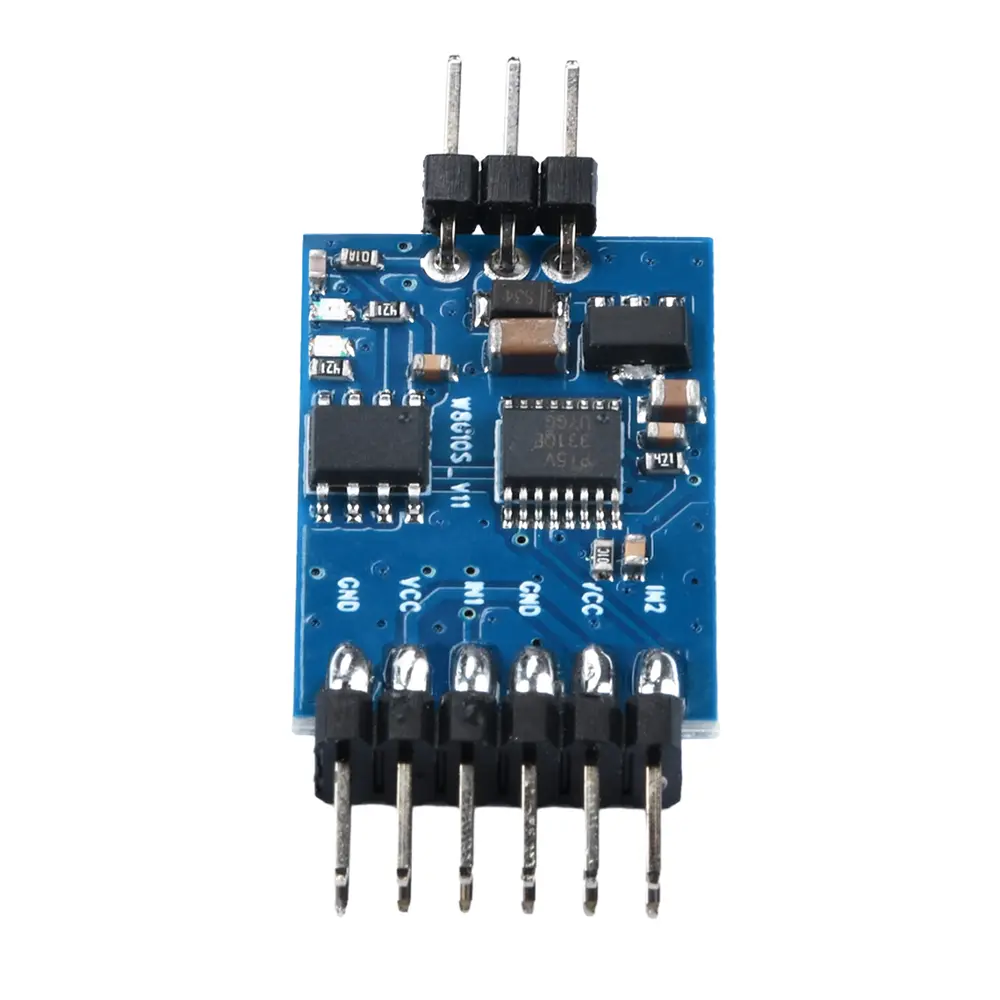

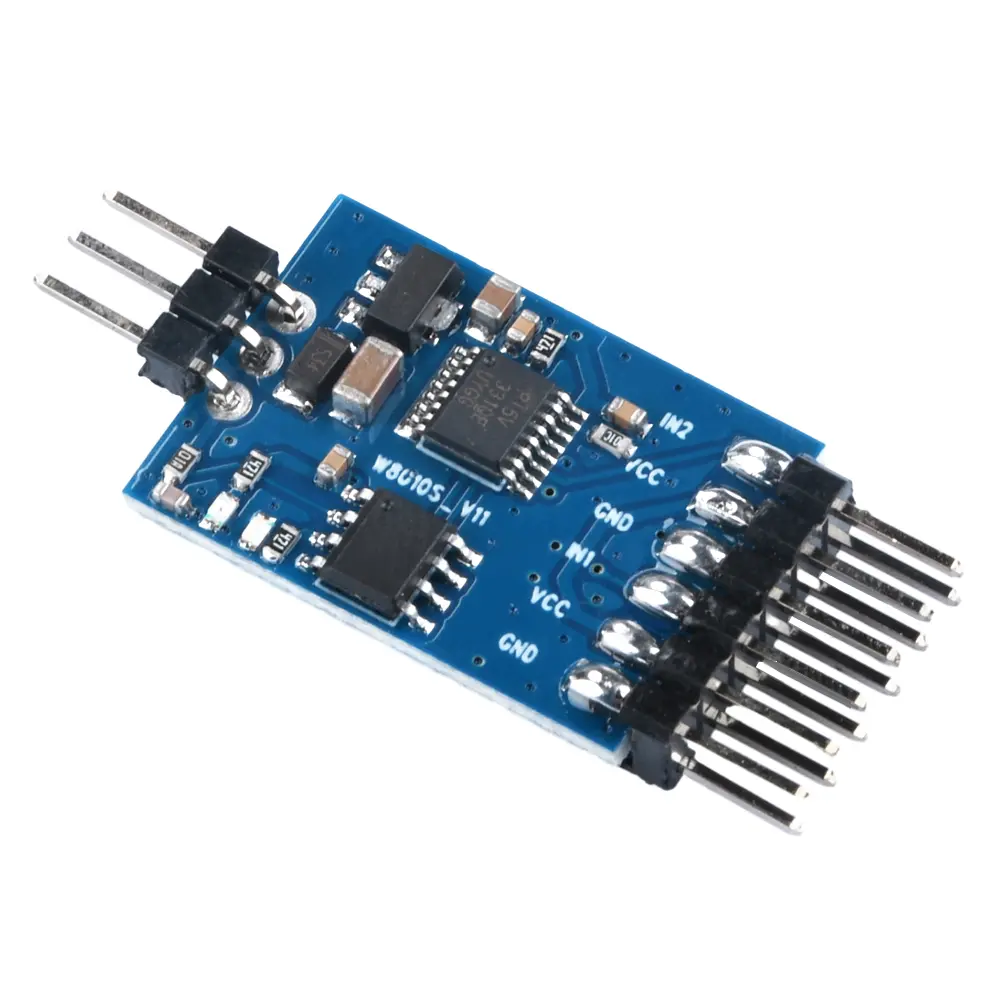

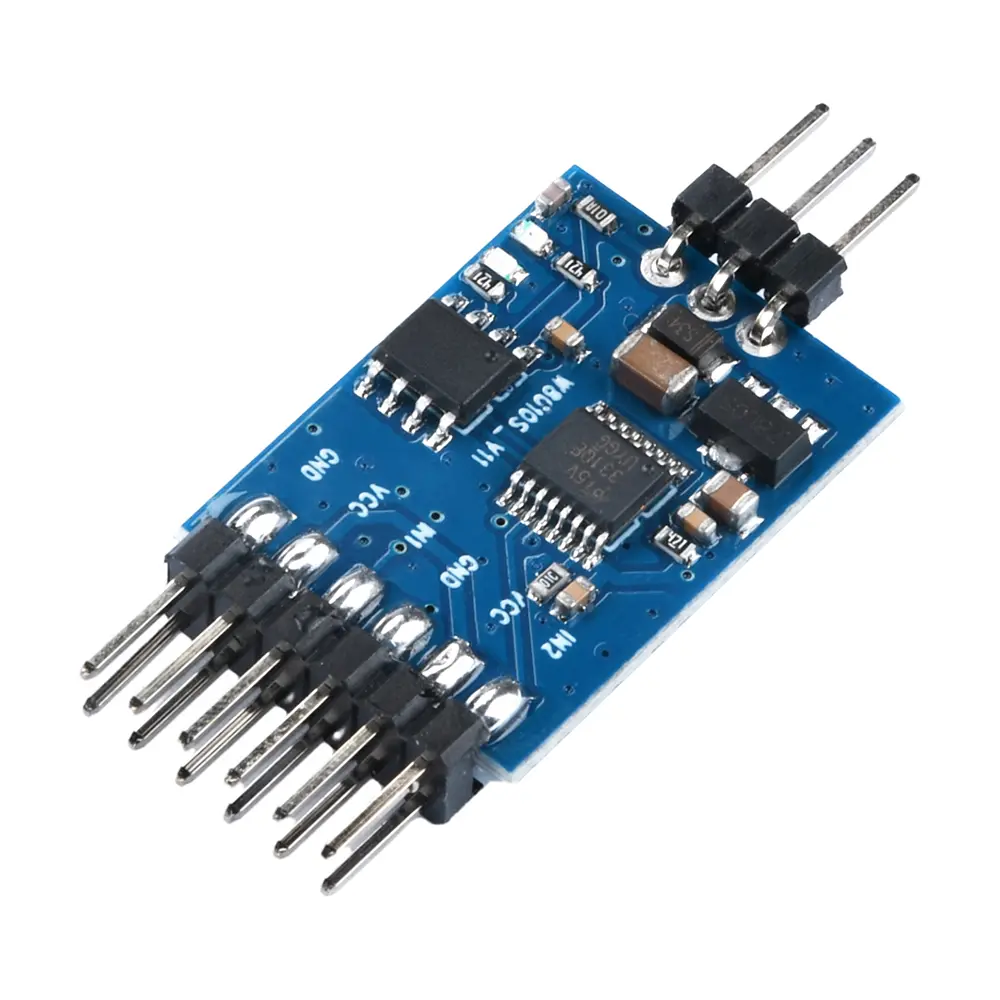

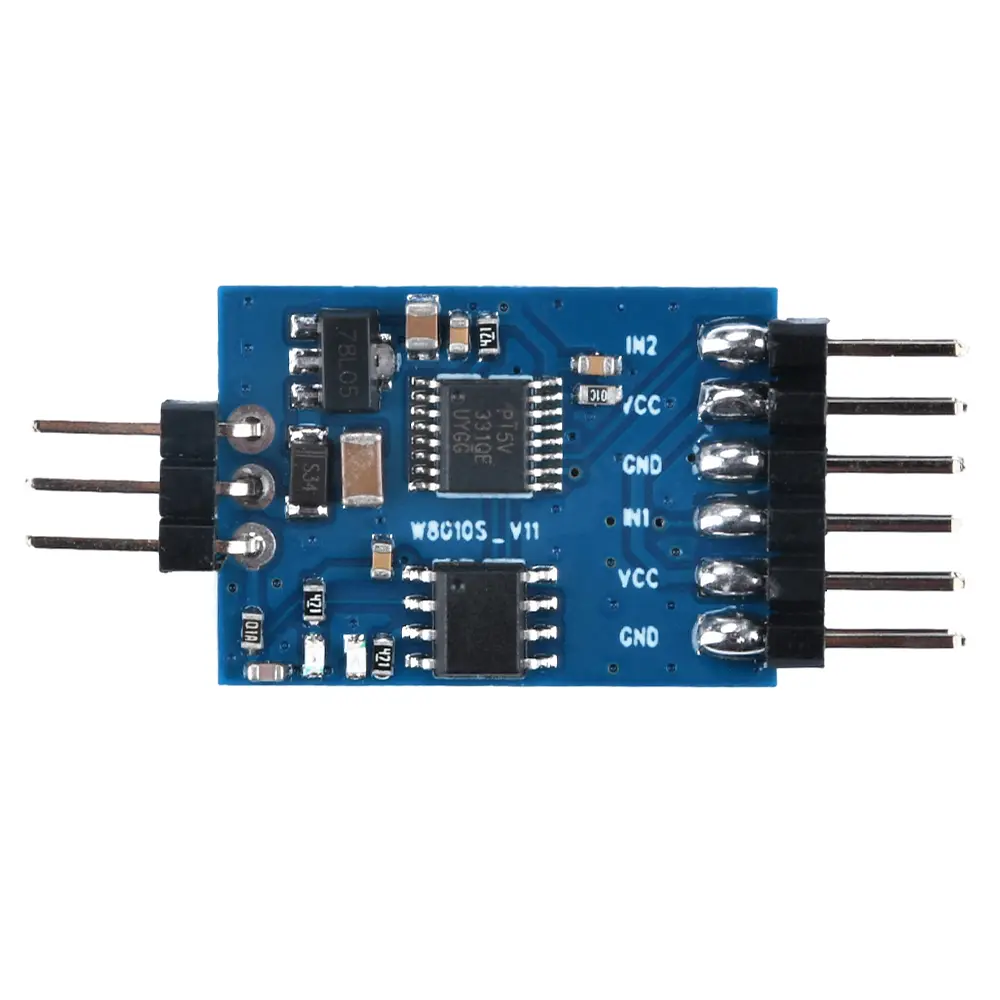

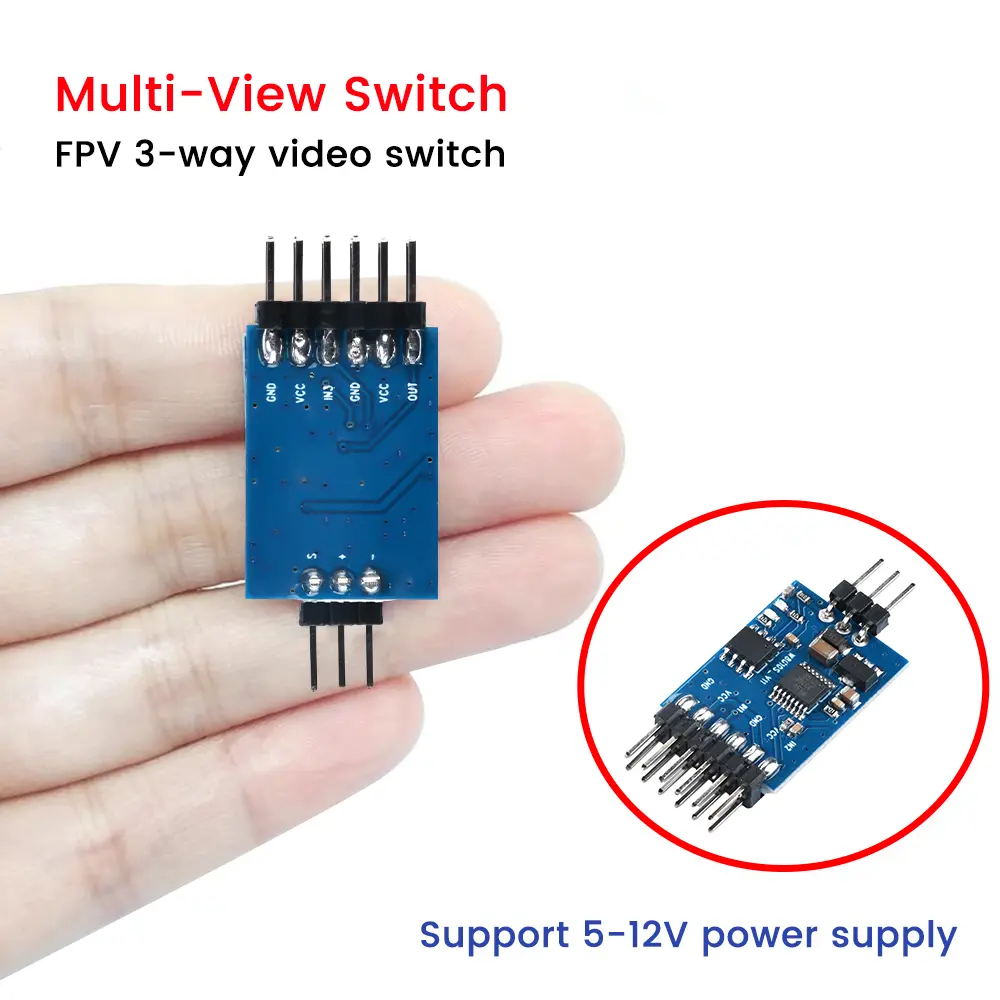

3 Channel Video Switcher Module FPV 3 Way Video Switch For Camera Multicopter Drones 5.8G FPV transmitter DC 5-12V
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004422459" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br/><strong><span style="font-size:20px">Product features:</span></strong><br/><br/>1. The product uses high-quality PCB material with guaranteed quality<br/><br/>2. The product is shipped in static bag packaging, with welded pins. The product is lightweight, compact, and easy to use<br/><br/>3. This product can connect three video sources and switch between different video sources. If you have multiple cameras on your plane, this is the multi view switching product you need<br/><br/>4. Support 5-12V power supply, control signal adopts PWM signal, stable performance<br/><br/>5. Adopting a high-speed video switching chip to effectively reduce the vibration of video images<br/><br/><strong><span style="font-size:20px">Parameters:</span></strong><br/><br/>Name: 3-channel video switcher module<br/><br/>Color: Blue<br/><br/>Input channel: 3<br/><br/>Voltage: DC5-12V<br/><br/>Video signal impedance: 75 Ω<br/><br/>Control signal: PWM<br/><br/>IN1:1000us ± 200<br/><br/>IN2: 1500us ± 200<br/><br/>IN3: 2000us ± 200<br/><br/><strong><span style="font-size:20px">Product Description:</span></strong><br/><br/>This module can connect three video sources, and you can switch between different video sources through a three position switch. If you have multiple cameras on your aircraft, this is the product you need.<br/><br/>The control channel can be any proportional channel or a 3-bit switching channel, and the 2-bit switching channel can only switch between two video input signals.<br/><br/>Port "in" represents the video signal input, IN1, IN2, IN3, and OUT represent the video signal output, "-" represents the negative pole, "+" represents pause, and "S" represents the received video signal.<br/><br/><strong><span style="font-size:20px">Shipping list:</span></strong><br/><br/>Switch module X1<br/></div></div><p><br/></p>
$9.875
$5.39
- Category : Consumer Electronics
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
