30-248V Output LED Backlight Screen Drive Board 300-1100HA Constant Current DC300-380V/AC110-220V Input for 42-70 Inch LCD TV

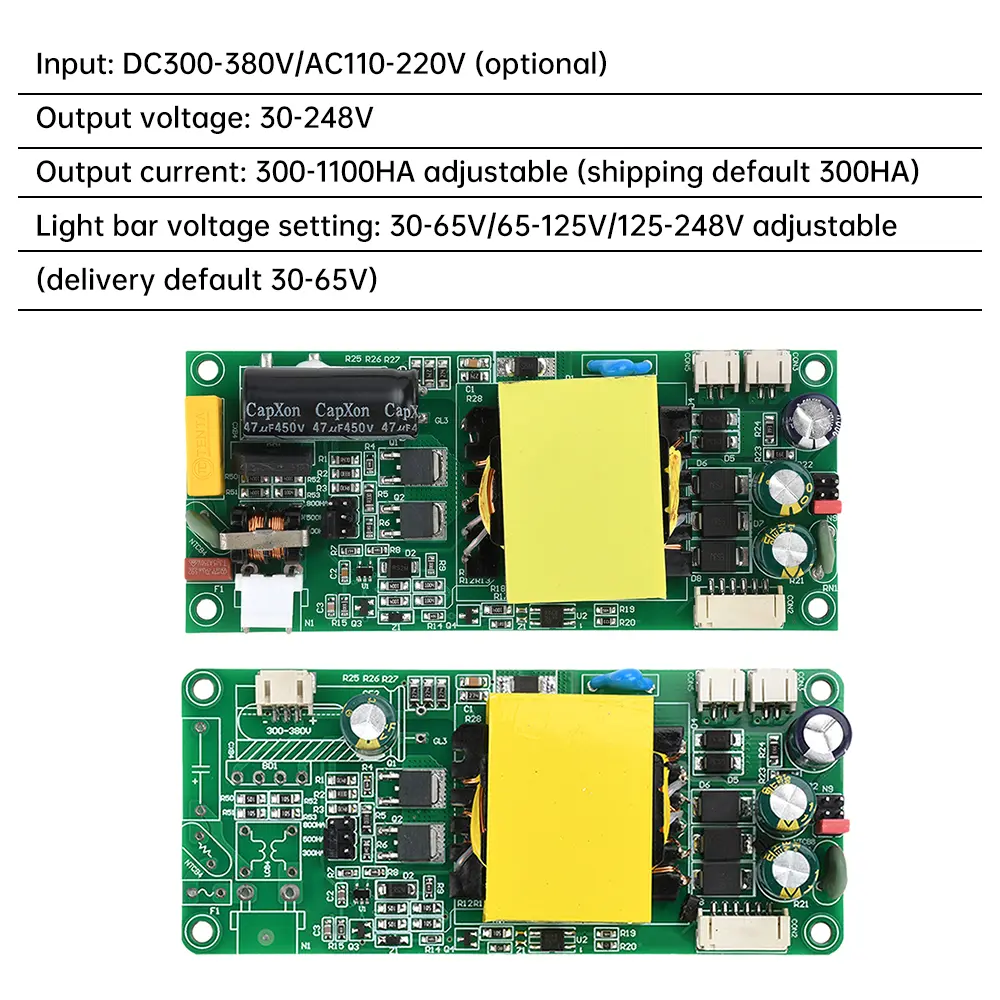

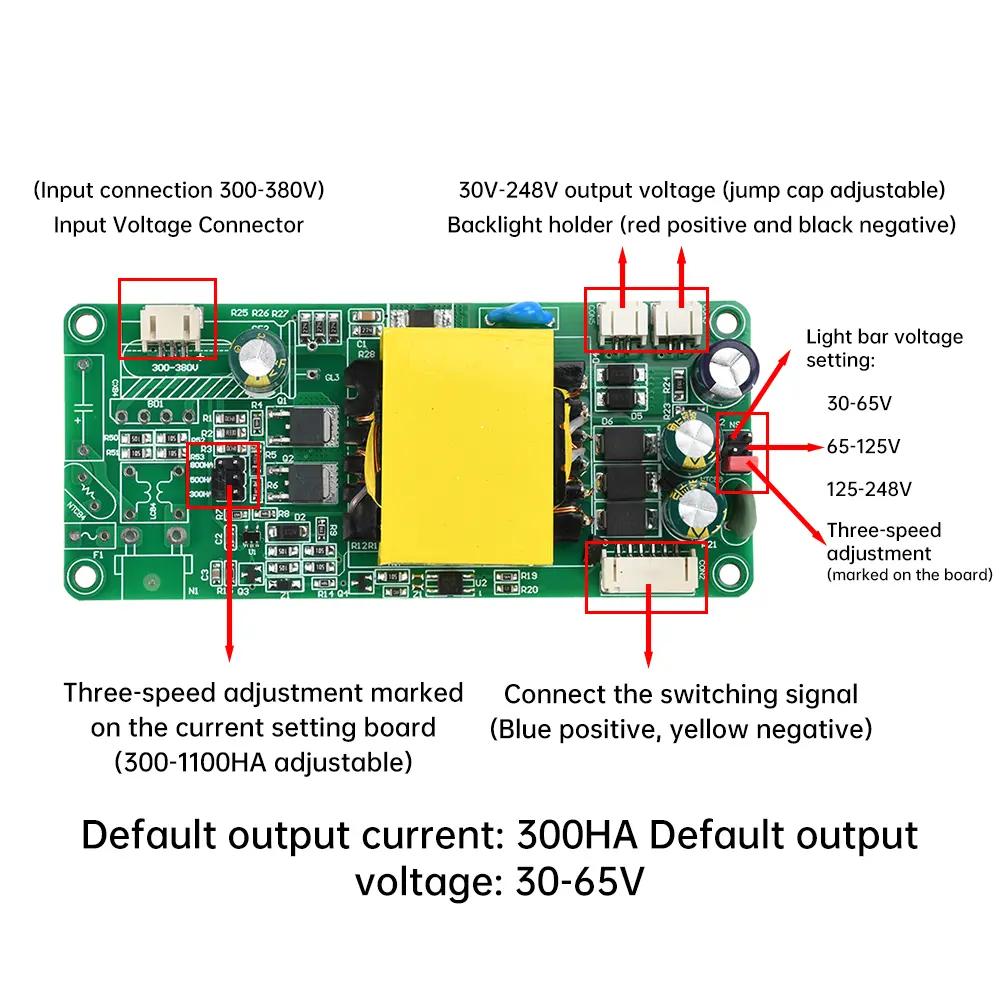

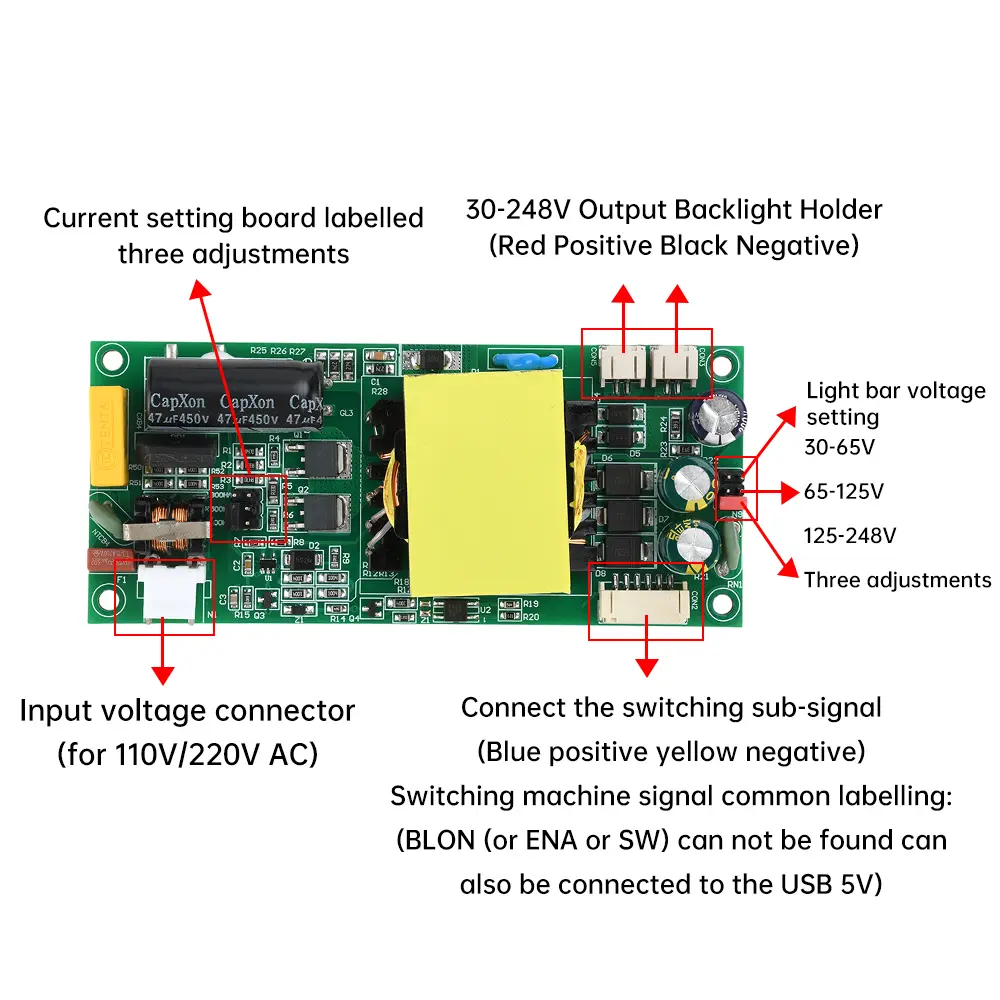

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000000542054" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1.Provide AC110V-220V and DC300-380V input for customer's choice.<br/>2. Suitable for 42-70 inch LCD TVs, to meet the needs of different models of LED backlit displays<br/>3. Advanced constant current technology ensures stable LED current and prolongs the service life of the load.<br/>4. Optimized circuit design and efficient heat dissipation mechanism to ensure long time low temperature operation.<br/>5. Selection of high-quality materials, product quality is guaranteed and performance is more stable.</div><br/><p>Parameter:<br/>Input: DC300-380V/AC110-220V (optional)<br/>Output voltage: 30-248V<br/>Output current: 300-1100HA adjustable (shipping default 300HA)<br/>Light bar voltage setting: 30-65V/65-125V/125-248V adjustable (shipping default 30-65V)</p><p>Wiring instructions:<br/>Switching signal: blue line positive, yellow line negative<br/>Backlight seat: red line positive, black line negative</p><p>Note: Try not to overload the use, so as not to be durable</p><p>Package include:<br/>Driver board *1<br/>Line *3<br/></p></div></div><br/>
$14.795
$14.795
- Category : Lights & Lighting
- Brand : z_industry_store Z Industry Store
Colors
Sizes
-
+
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000000542054" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1.Provide AC110V-220V and DC300-380V input for customer's choice.<br/>2. Suitable for 42-70 inch LCD TVs, to meet the needs of different models of LED backlit displays<br/>3. Advanced constant current technology ensures stable LED current and prolongs the service life of the load.<br/>4. Optimized circuit design and efficient heat dissipation mechanism to ensure long time low temperature operation.<br/>5. Selection of high-quality materials, product quality is guaranteed and performance is more stable.</div><br/><p>Parameter:<br/>Input: DC300-380V/AC110-220V (optional)<br/>Output voltage: 30-248V<br/>Output current: 300-1100HA adjustable (shipping default 300HA)<br/>Light bar voltage setting: 30-65V/65-125V/125-248V adjustable (shipping default 30-65V)</p><p>Wiring instructions:<br/>Switching signal: blue line positive, yellow line negative<br/>Backlight seat: red line positive, black line negative</p><p>Note: Try not to overload the use, so as not to be durable</p><p>Package include:<br/>Driver board *1<br/>Line *3<br/></p></div></div><br/>
