3D3RxM2 3.3G RF Video Receiver Module FPV VRX Module 16-CH FPV Analog Wireless Audio Video Receiver Module SPI Switch Control

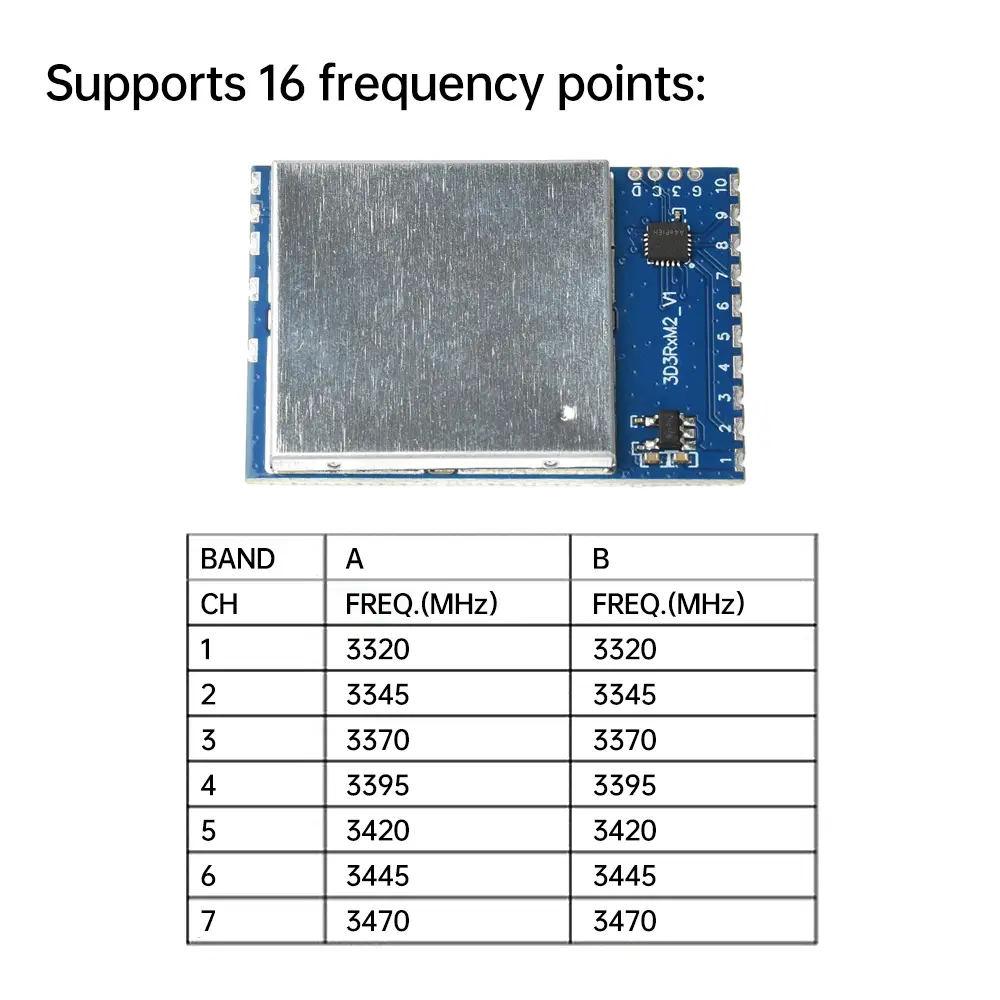

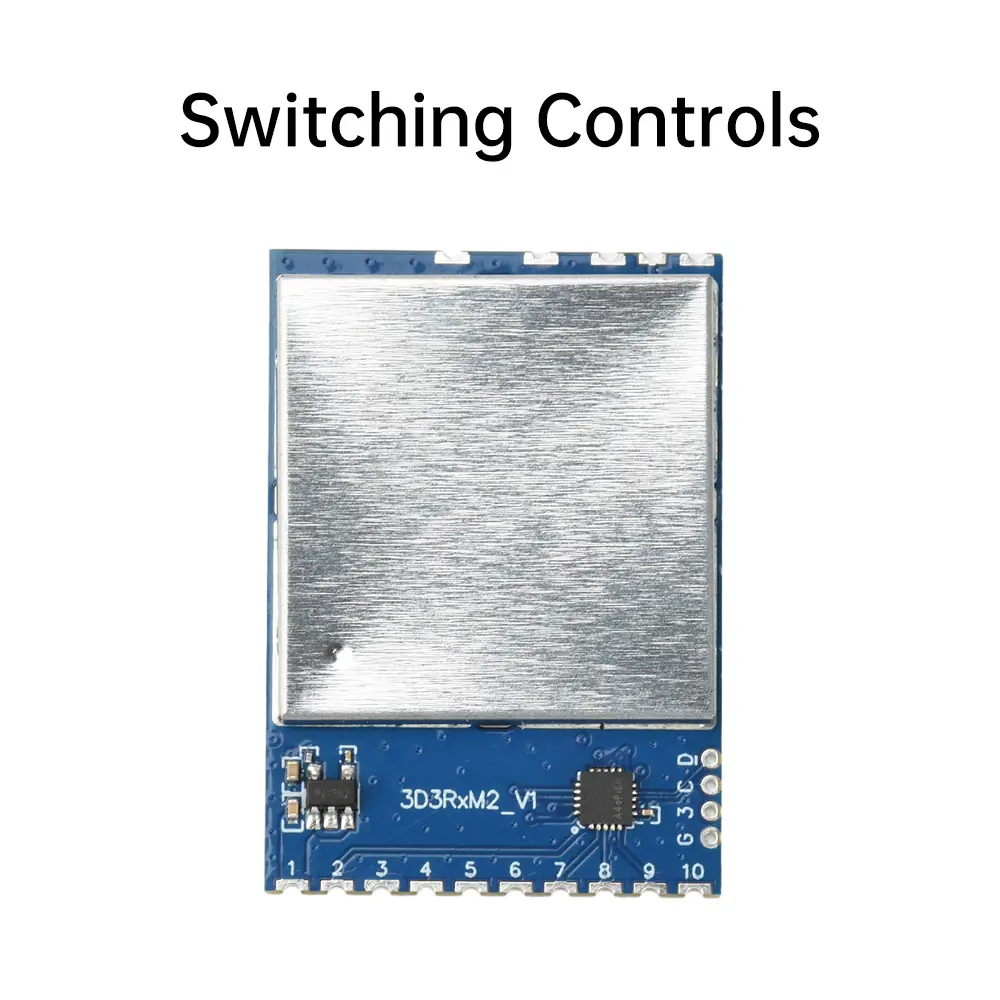

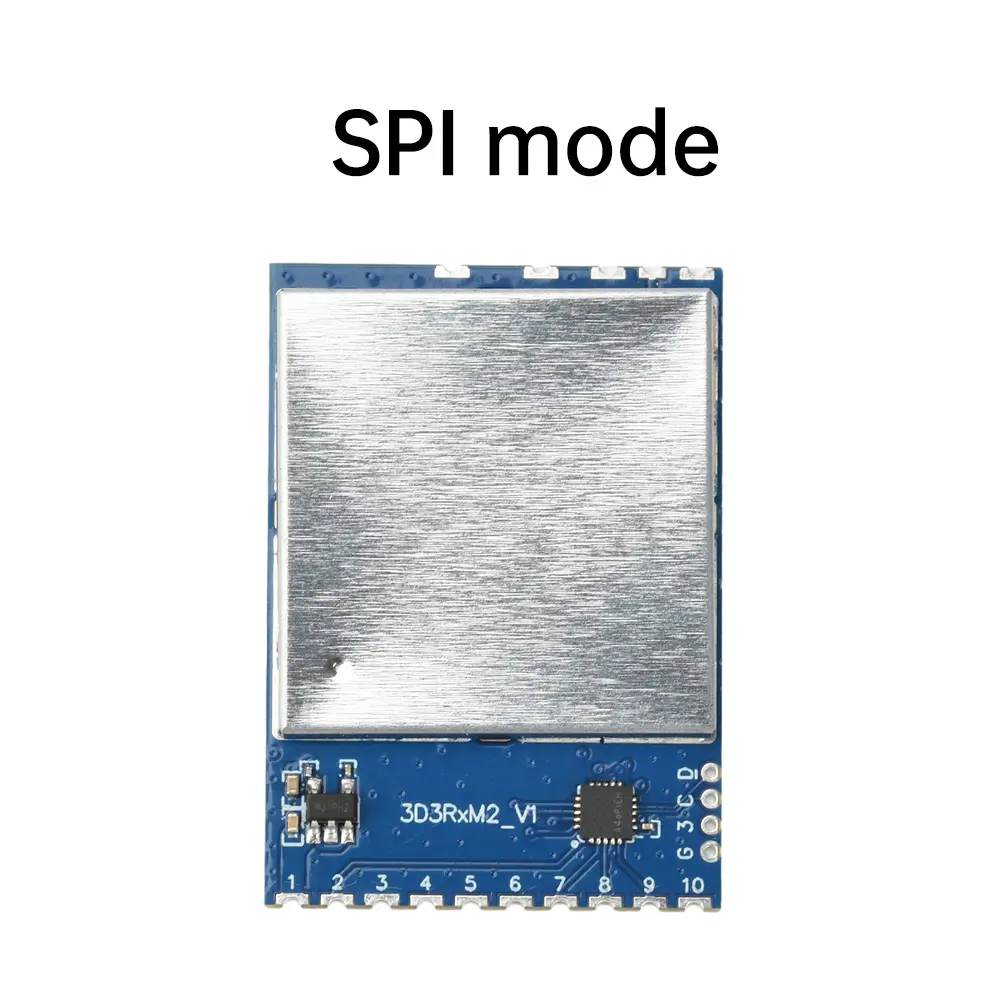

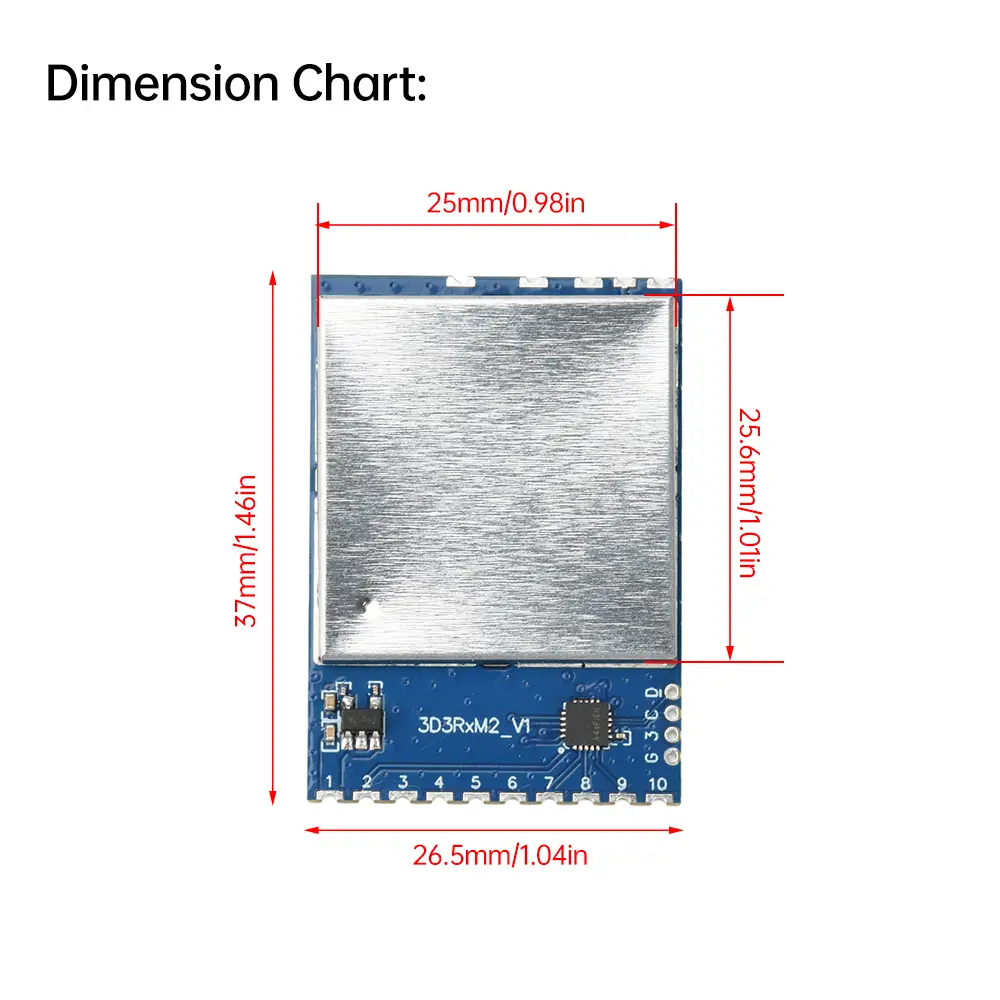

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. 3.3GHz band video reception, support 16 frequency points, to meet the needs of multi-scene FPV<br/>2. High sensitivity -95dBm, ensuring clear and stable video transmission under weak signal<br/>3. 75Ω video output impedance, 1Vp-p standard level, compatible with mainstream display devices<br/>4. DIP switch or SPI mode two control modes, flexible operation, to meet the needs of different users<br/>5. Low power consumption design, the maximum current is only 300mA, effectively extend the life of the device</p><p>Parameter:<br/>Product name: 3.3GHz video receiver module<br/>Supply voltage: DC 5V<br/>Current consumption: 300mA Max<br/>Operating Temperature: -10~+65°C<br/>Storage Temperature：-30~+85℃<br/>Operating Humidity: 85%RH<br/>Control channel mode: DIP switch control or SPI mode control<br/>Size: 3.7*2.6*0.35cm</p><p>Radio Frequency (RF)<br/>Receiving frequency range: 3310-3495MHz<br/>Frequency points: support 16 frequency points (16 Channels)<br/>Transmitter VSWR: 2:1<br/>Demodulation mode: FM/PLL<br/>Receiving sensitivity: -95dBm</p><p>Video:<br/>Video Output Impedance: 75Ω, Typ.<br/>Video Output Level: 1Vp-p, Typ.<br/>Video Polarity: Negative (NEGATIVE)<br/>Video Frequency Response: ±5 dB,Max.50Hz-6MHz<br/>Differential Gain: ±5 %,Max<br/>Differential Phase: ±5 Deg.,Max<br/>3dB IF bandwidth: 16.5MHz<br/>Signal-to-Noise Ratio S/N: 38dB,Min<br/>RSSI Output Voltage: 1.3-0.7V</p><p>Package include:<br/>Module x1<br/></p></div></div><p><br/></p>
$109.4
$50.33
- Category : Consumer Electronics
- Brand : diy_electronics_module_999_store DIY Electronics Module 999 Store
Colors
Sizes
-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. 3.3GHz band video reception, support 16 frequency points, to meet the needs of multi-scene FPV<br/>2. High sensitivity -95dBm, ensuring clear and stable video transmission under weak signal<br/>3. 75Ω video output impedance, 1Vp-p standard level, compatible with mainstream display devices<br/>4. DIP switch or SPI mode two control modes, flexible operation, to meet the needs of different users<br/>5. Low power consumption design, the maximum current is only 300mA, effectively extend the life of the device</p><p>Parameter:<br/>Product name: 3.3GHz video receiver module<br/>Supply voltage: DC 5V<br/>Current consumption: 300mA Max<br/>Operating Temperature: -10~+65°C<br/>Storage Temperature：-30~+85℃<br/>Operating Humidity: 85%RH<br/>Control channel mode: DIP switch control or SPI mode control<br/>Size: 3.7*2.6*0.35cm</p><p>Radio Frequency (RF)<br/>Receiving frequency range: 3310-3495MHz<br/>Frequency points: support 16 frequency points (16 Channels)<br/>Transmitter VSWR: 2:1<br/>Demodulation mode: FM/PLL<br/>Receiving sensitivity: -95dBm</p><p>Video:<br/>Video Output Impedance: 75Ω, Typ.<br/>Video Output Level: 1Vp-p, Typ.<br/>Video Polarity: Negative (NEGATIVE)<br/>Video Frequency Response: ±5 dB,Max.50Hz-6MHz<br/>Differential Gain: ±5 %,Max<br/>Differential Phase: ±5 Deg.,Max<br/>3dB IF bandwidth: 16.5MHz<br/>Signal-to-Noise Ratio S/N: 38dB,Min<br/>RSSI Output Voltage: 1.3-0.7V</p><p>Package include:<br/>Module x1<br/></p></div></div><p><br/></p>
