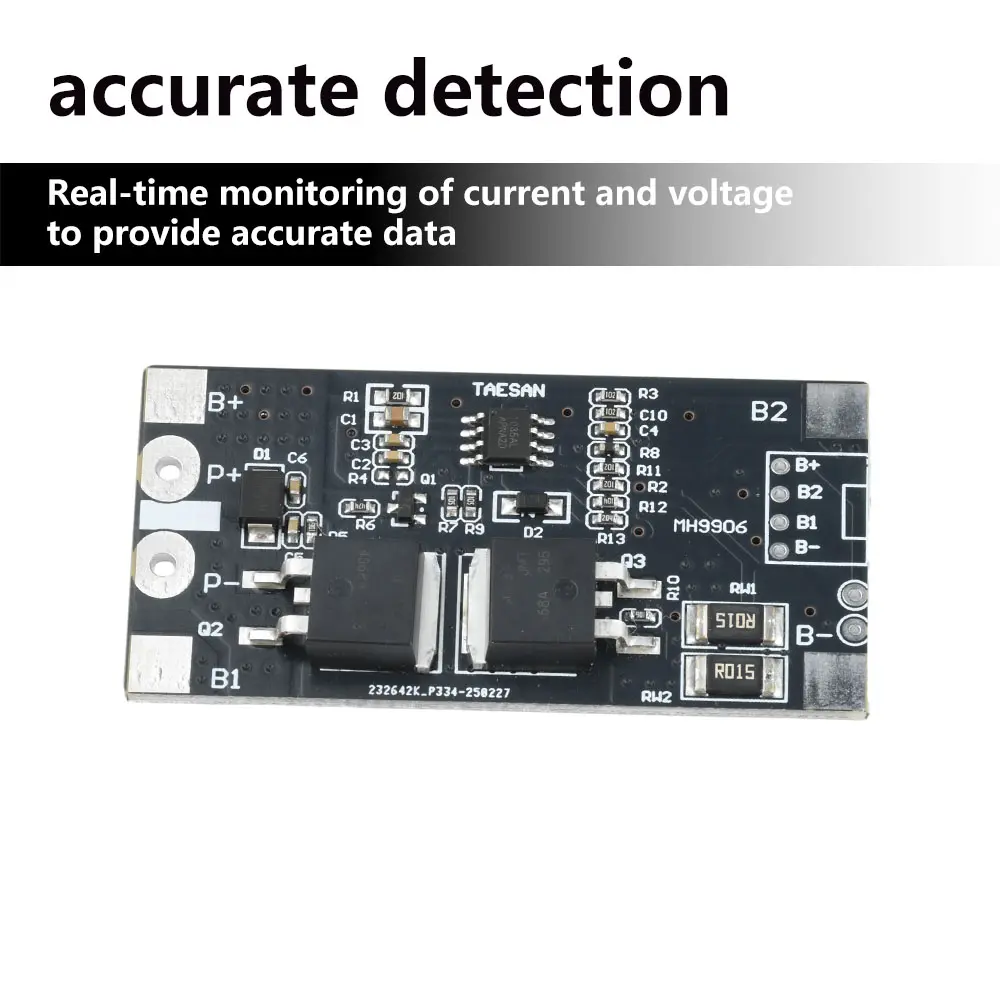

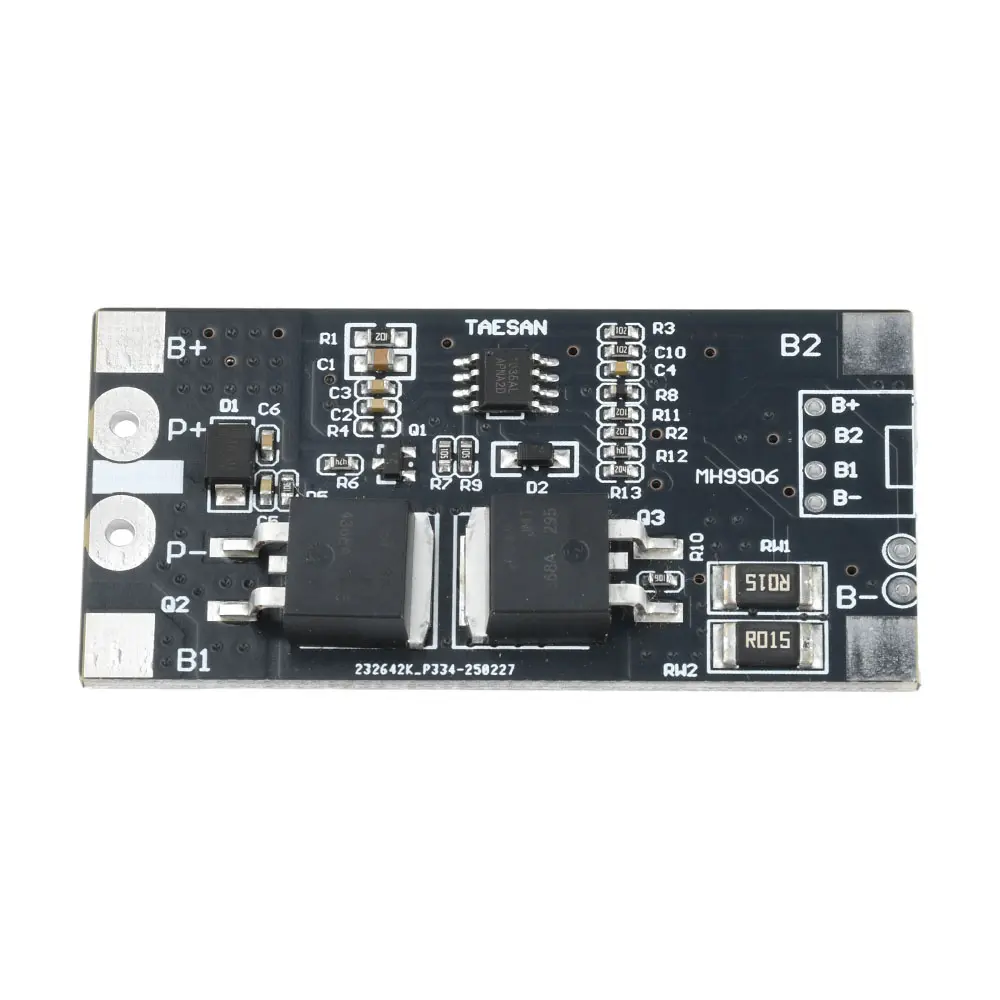

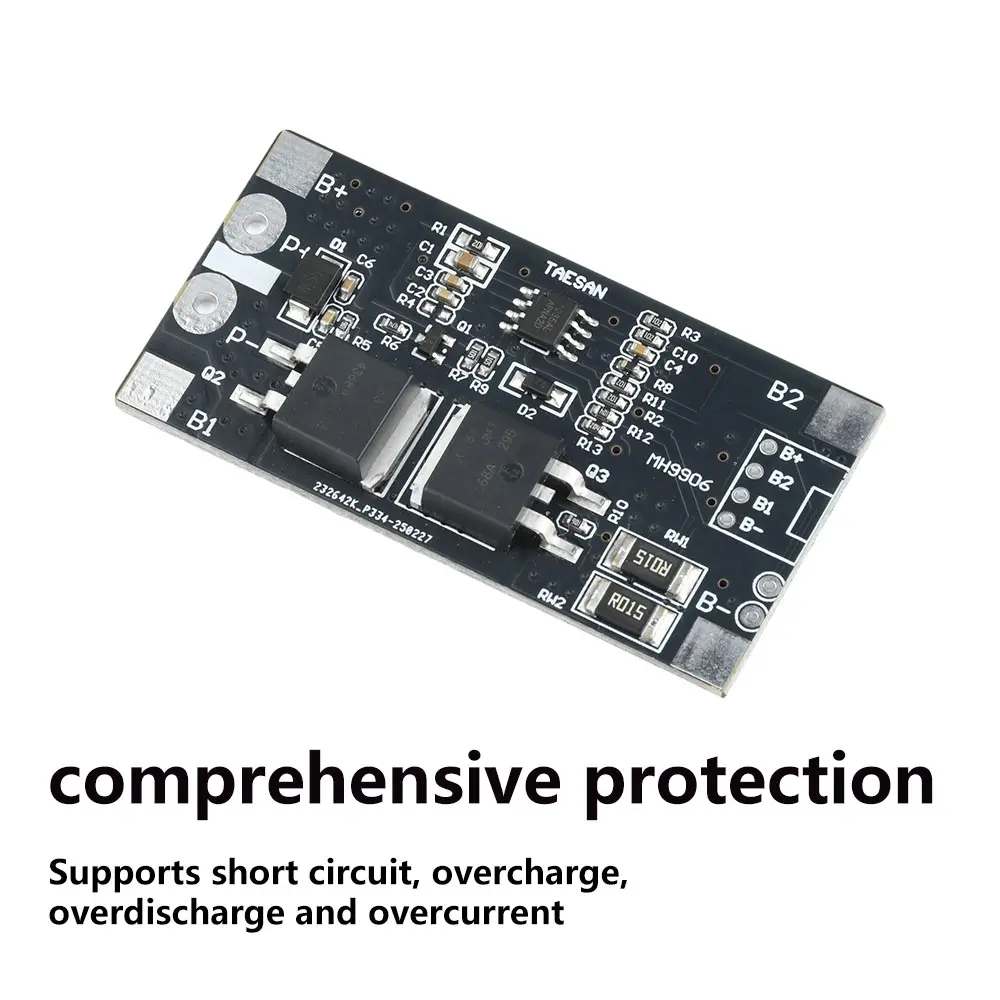

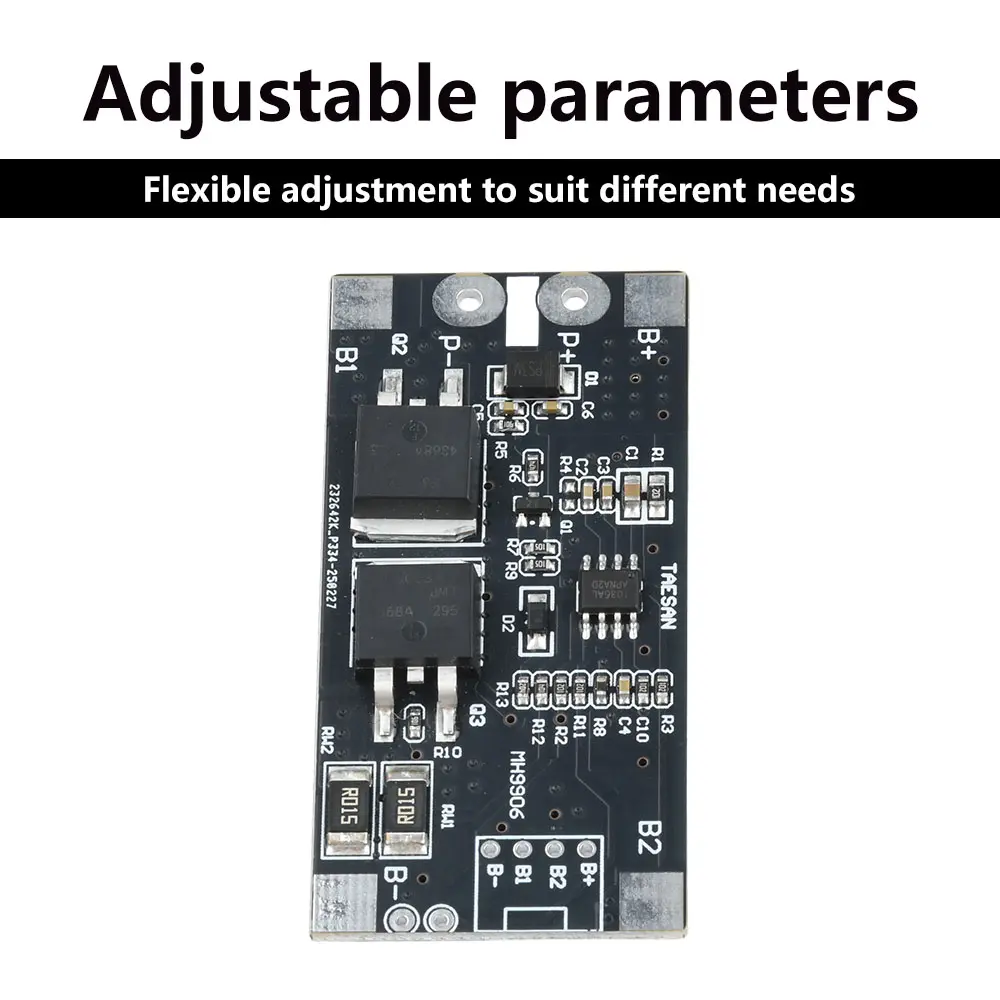

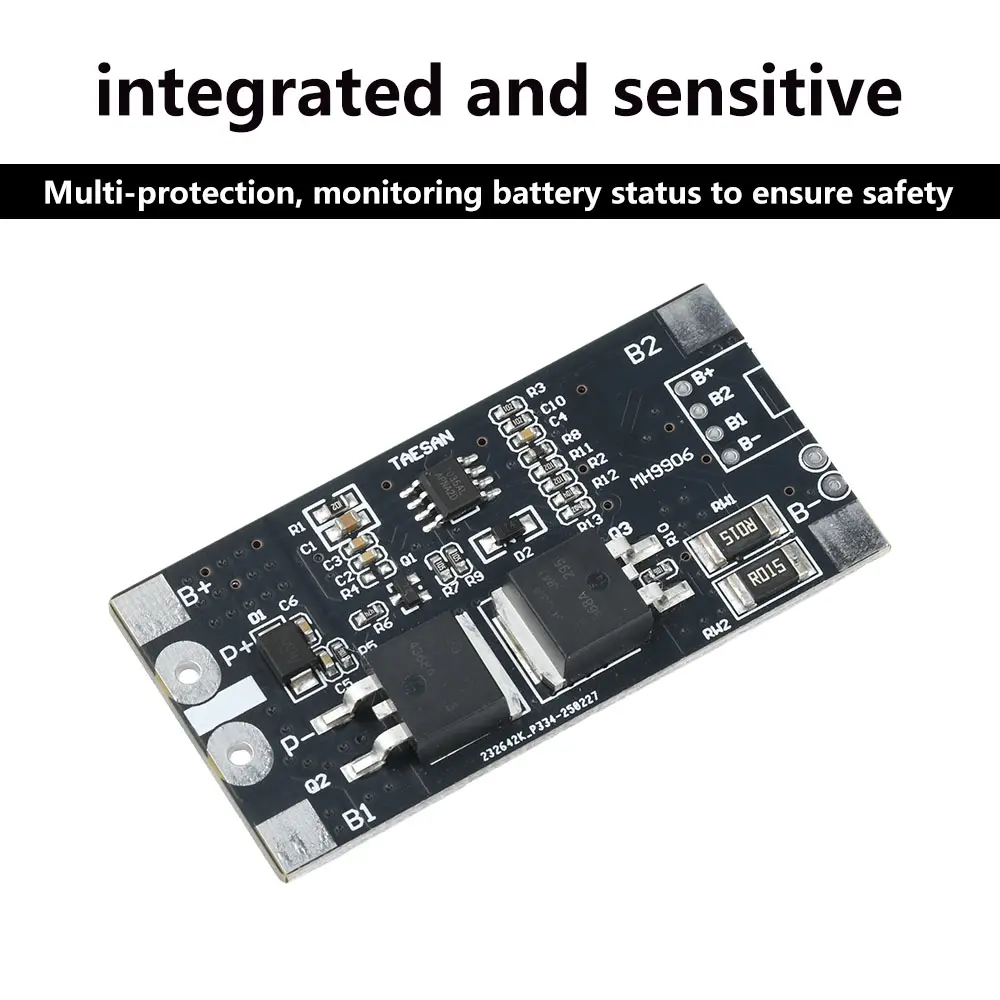

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:</p><p>1. Compact and easy to install: compact design, easy to install, space-saving, stable performance, smooth operation and other features<br/>2. High integration and sensitivity: integrates multiple protection functions, sensitively monitors the battery status to ensure safe and stable operation.<br/>3. Accurate detection: real-time detection of the charge and discharge current and voltage of each battery, providing accurate data support.<br/>4. Comprehensive protection: short circuit, overcharge, overdischarge and overcurrent protection, effectively prolonging battery life.<br/>5. Widely used: Designed for drill battery packs with 3 cells of 18650 lithium batteries, with excellent performance and wide applicability.</p><p>Parameter:<br/>Charging Voltage: 12.6V <br/>Single Section Charging Voltage: 4.225V <br/>Current: 0-7A <br/>Overcharge Single Section Detection Voltage: 4.2±0.05V <br/>Overcharge Protection Delay: 1S <br/>Overcharge Single Section Recovery Voltage: 4.0V <br/>Overcharge Protection Disengagement Delay: 20mS <br/>Overdischarge Single Section Detection Voltage: 2.7V <br/>Overdischarge Protection Delay: 1S <br/>Overdischarge Single Section Recovery Voltage: 3.0V <br/>Overdischarge Protection Disengagement Delay: 20mS <br/>Overcurrent detection voltage: 0.1V <br/>Overcurrent detection current: 18±3A <br/>Overcurrent detection delay: 10mS<br/>Recovery state: automatic recovery <br/>Short-circuit protection: Yes <br/>Short-circuit detection delay: 280uS <br/>Short-circuit detection voltage: 0.5V <br/>Recovery state: automatic recovery after disconnecting the load <br/>Power consumption: <br/>Working state: 20uA (25℃) <br/>Sleeping state: 6uA (25℃) <br/>Discharge circuit internal resistance: ≤50±5mΩ <br/>Size: 59.5*30*1.6mm</p><p>Package include:<br/>Module*1<br/><br/></p></div></div><br/>
