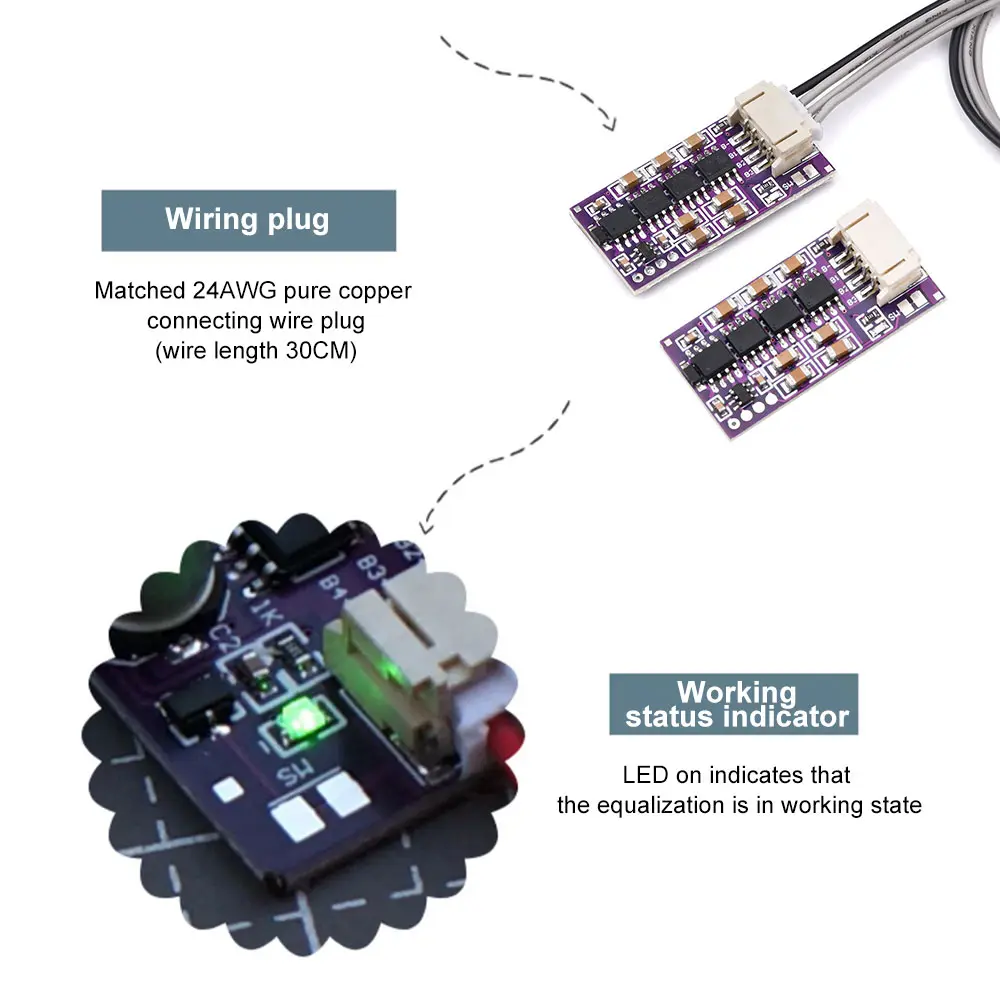

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="detailmodule_dynamic"></div></div></div><div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004119628" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"></div><div><br/><span style="font-size:20px"><strong>Product features.</strong></span></div><p>Up to 1.5A balanced current, efficient balanced and low consumption stable mature and reliable circuit structure to eliminate the risk of similar failures (balanced current varies with the difference in voltage between batteries)</p><p>Low resistance high-frequency ceramic capacitors are selected to facilitate the performance and reliability of high quality components (the appearance of the capacitor package and parameters may vary depending on the batch)</p><p>Low heat generation, high reliability and high precision, suitable for internal battery pack work or for battery maintenance external equalization, equalization precision up to 3mV</p><p>Wiring plug, matching 24AWG pure copper connection plug (wire length 30CM)</p><p>Capacitive lithium battery active equalization module is used for voltage equalization between lithium battery packs, and the independent operation between the protection board does not affect each other. Suitable for battery pack PACK, maintenance, and DIY battery pack use.</p><p><span style="font-size:20px"><strong>Product parameters.</strong></span></p><p>Product Specifications:3S 4S 5S 6S 7S 8S 14S 17S 21S</p><p>Equilibrium current: maximum 1.5A (with differential pressure, internal resistance, line resistance, etc. vary)</p><p>Equalization accuracy:3mV</p><p>Suitable for battery: lithium iron phosphate, ternary lithium universal</p><p>Matching wire: 22AWG about 30CM</p><p><span style="color:rgb(255, 0, 0)"><strong>Note: In addition to 8s can not drop the string use, other specifications can drop a string use</strong></span></p><p><span style="font-size:20px"><strong>Product list.</strong></span></p><p>1X module circuit body</p><p>1X connection wire 22AWG about 30CM</p><p><span style="font-size:20px"><strong>Frequently Asked Questions</strong></span></p><p>Q1:Difference between similar products</p><p>A1: resistive passive equalization (advantages: cheap, small size, stable, disadvantages: low efficiency, heat generation)</p><p>Inductive active equalization (advantages: cheap, small size, disadvantages: poor stability, easy to bad, general accuracy)</p><p>Transformer type active equalization (advantages: high precision, high stability, disadvantages: the volume is relatively large, the price is relatively high)</p><p>Capacitive active equalization (advantages: affordable, high stability, small heat, high precision, high efficiency, disadvantages: the circuit thickness is relatively high)</p><p>Q2: Wiring rules</p><p>A2: from 0V (total negative) to start wiring in the direction, any state of 0V (total negative) overhang can easily lead to burn board, be sure to confirm the line sequence, the wrong sequence burn board!</p><p>Q3: the consequences of connecting the wrong line</p><p>A3: the result is basically a burn board, &quot;teacher&quot; too confident is also easy to capsize, so careful operation as the best policy</p><p>Q4: the principle of wire use</p><p>A4: supporting wire specifications for 22AWG (0.3 square) length is sufficient for the principle, the shorter the better.</p><p>Q5:What is the power consumption of the module?</p><p>A5:Module power consumption as low as 1.5mA, suitable for long working hours without shutdown, the light is always on, when the battery monomer voltage is lower than 2.5V, the module enters hibernation protection mode to prevent excessive battery discharge (hibernation mode power consumption as low as 5uA)</p><p>Q6:Equalization current</p><p>A6: equalization module can withstand the limit of current for 2A, the pressure difference is small or battery resistance or connection line resistance, the current is not so large; 2A board equivalent internal resistance of 480 milliohms, {total equalization current = pressure difference / (battery resistance + connection line resistance + equalization board equivalent resistance)}.</p><p>Q7:Operating temperature</p><p>A7:The circuit efficiency is very high, the heat generation is relatively low, the general temperature is about 30-45 degrees Celsius</p><p>Q8:The life of the equalizer board</p><p>A8:The product is shipped after rigorous testing, non-human caused damage (such as moisture, water, reverse misorder, overpressure static electricity, etc.), capacitor life 3-5 years (found bulging capacitors can be replaced), chips, resistors, transistors are generally longer than the human life.</p><div><br/><br/><br/></div><p></p><p></p><p></p></div><p><br/></p>
