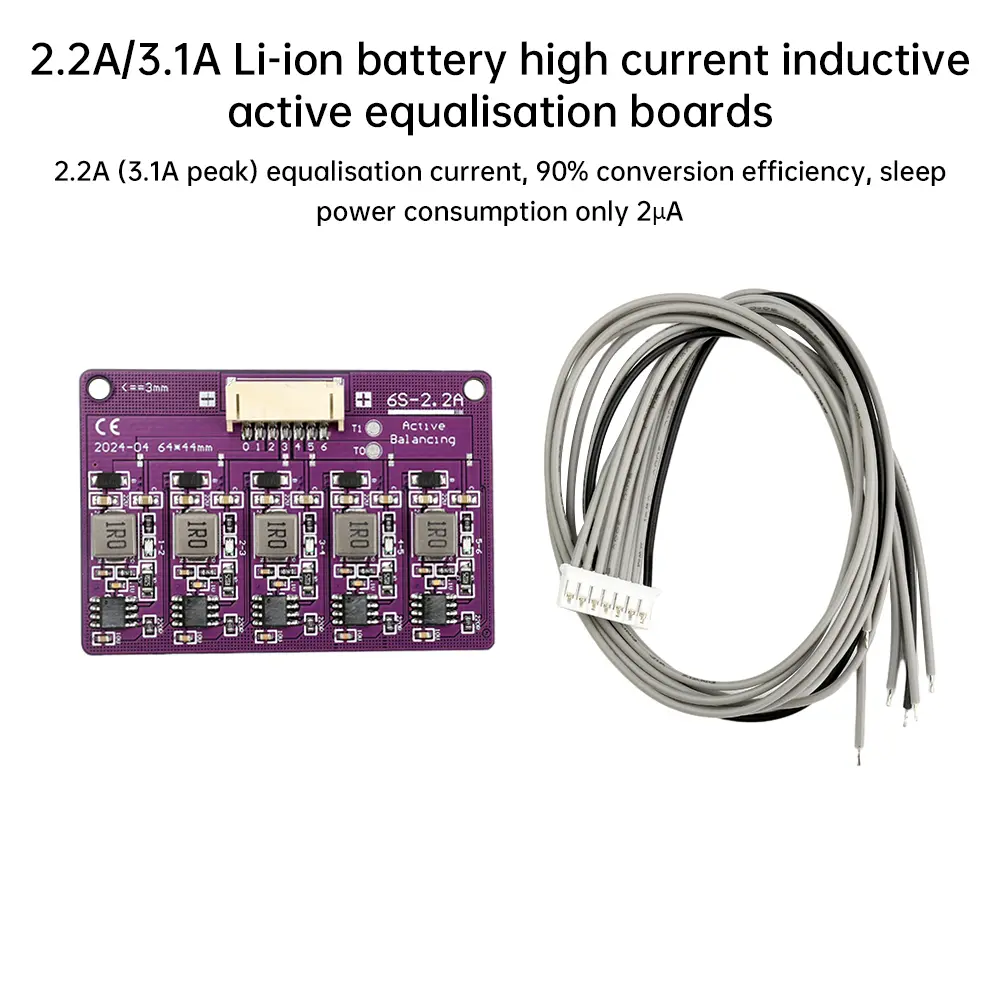

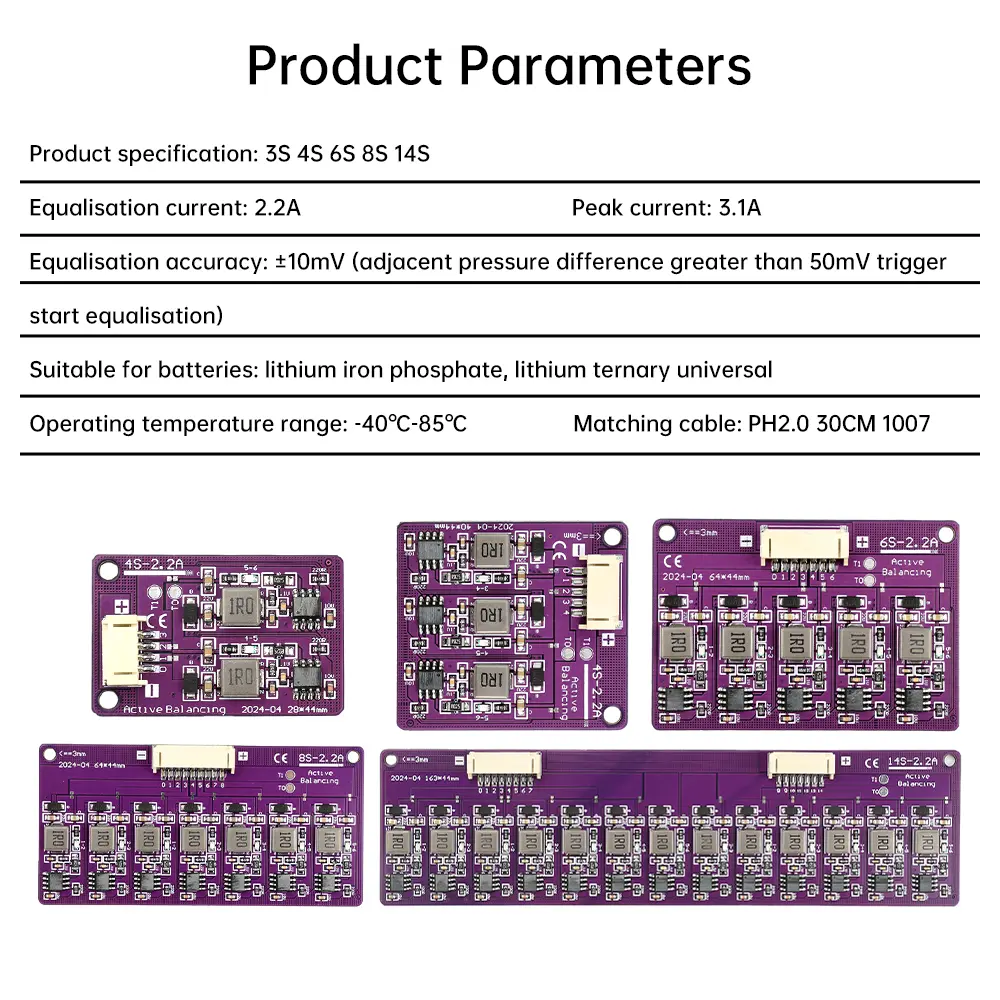

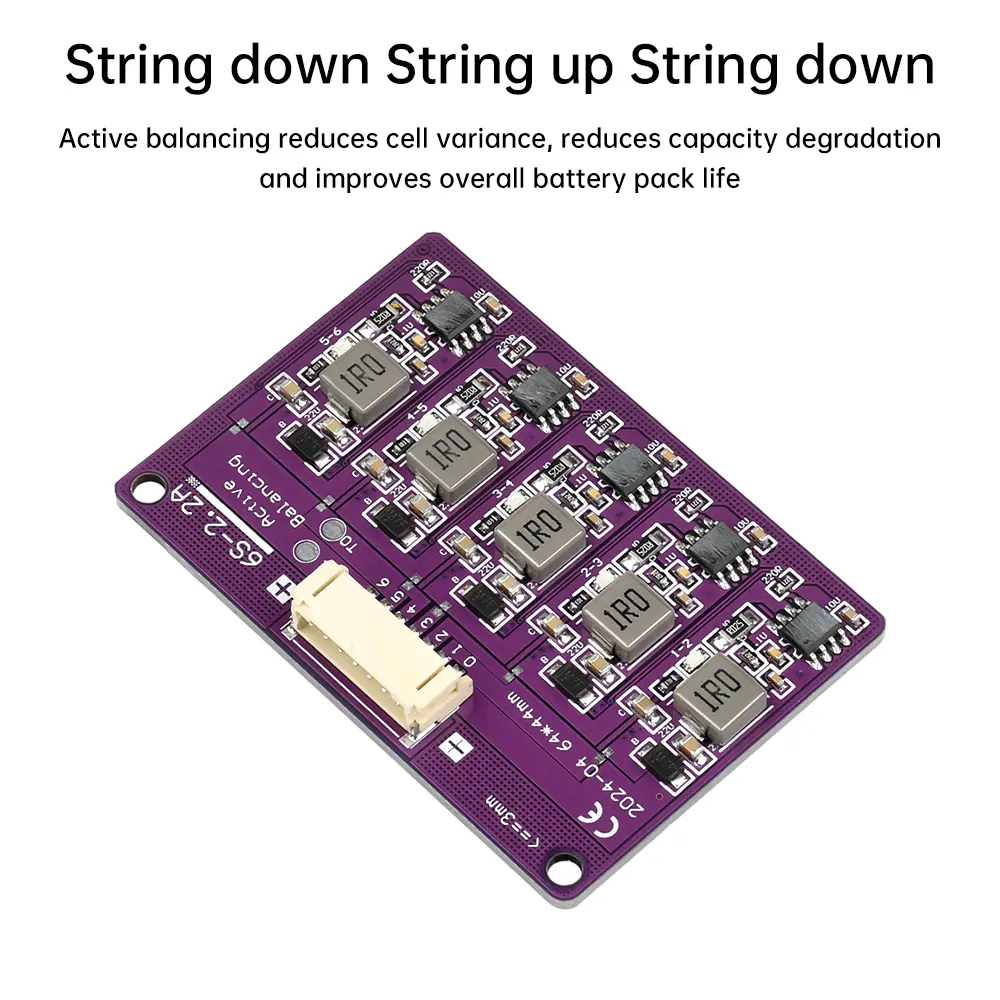

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features: <br/>1.Inductive equalizer chip, ±10mV precision, voltage difference &gt;50mV automatic trigger, fast balancing cell voltage <br/>2.2S-14S a total of six specifications, support for lowering the string or cascade expanding the string, to meet the needs of all types of battery packs 3.2.2A (peak 3.1A) equalization current, 90% conversion efficiency, sleep power consumption of only 2μA4. 2.2A (peak 3.1A) equalization current, 90% conversion efficiency, sleep power consumption of only 2μA <br/>4. -40℃~85℃ wide temperature operation, single 2.5V low voltage sleep, 5V over-voltage shutdown protection, etc. <br/>5. Active equalization reduces the difference of battery cells, reduces the capacity degradation, and improves the overall life of battery packs.</p><p>Parameter: <br/>Specifications: 3S 4S 6S 8S 14S <br/>Equalization Current: 2.2A <br/>Peak Current: 3.1A <br/>Equalization Precision: ±10mV (Equalization is triggered by adjacent voltage difference greater than 50mV) <br/>Suitable for Battery: Lithium Iron Phosphate, Lithium Ternary Universal <br/>Operating Temperature Range: -40℃-85℃ <br/>Supporting Wire: PH2.0 30CM 1007</p><p>Use for lowering and expanding the battery string: <br/>When using lowering the battery string, just suspend the idle line (pay attention to the insulation to avoid short-circuit damage), e.g. 4S can be used for battery packs of 2S-4S, and 14S for battery packs of 2S-14S. For example, 4S can be used for 2S-4S battery pack, 14S can be used for 2S-14S battery pack. When expanding the string because the front plate and rear plate will be connected to a series of batteries, so the actual number of strings used for N + (N-1), that is, such as 4S + 8S = 4 + (8-1) = 13S, 4S + 8S + 8S = 4 + (8-1 + 8-1) = 28S, and so on.</p><p>Note: <br/>Applicable to all types of battery packs with cell voltage of 2.8V-5V, must be sure that the wiring sequence of misaligned, high-voltage static electricity before installation, Pulse high-voltage, etc. may cause irreversible physical damage</p><p>Package include: <br/>Active Equalizer Board*1 <br/>Cable*1<br/><br/></p><div><br/></div></div></div><p><br/></p>
