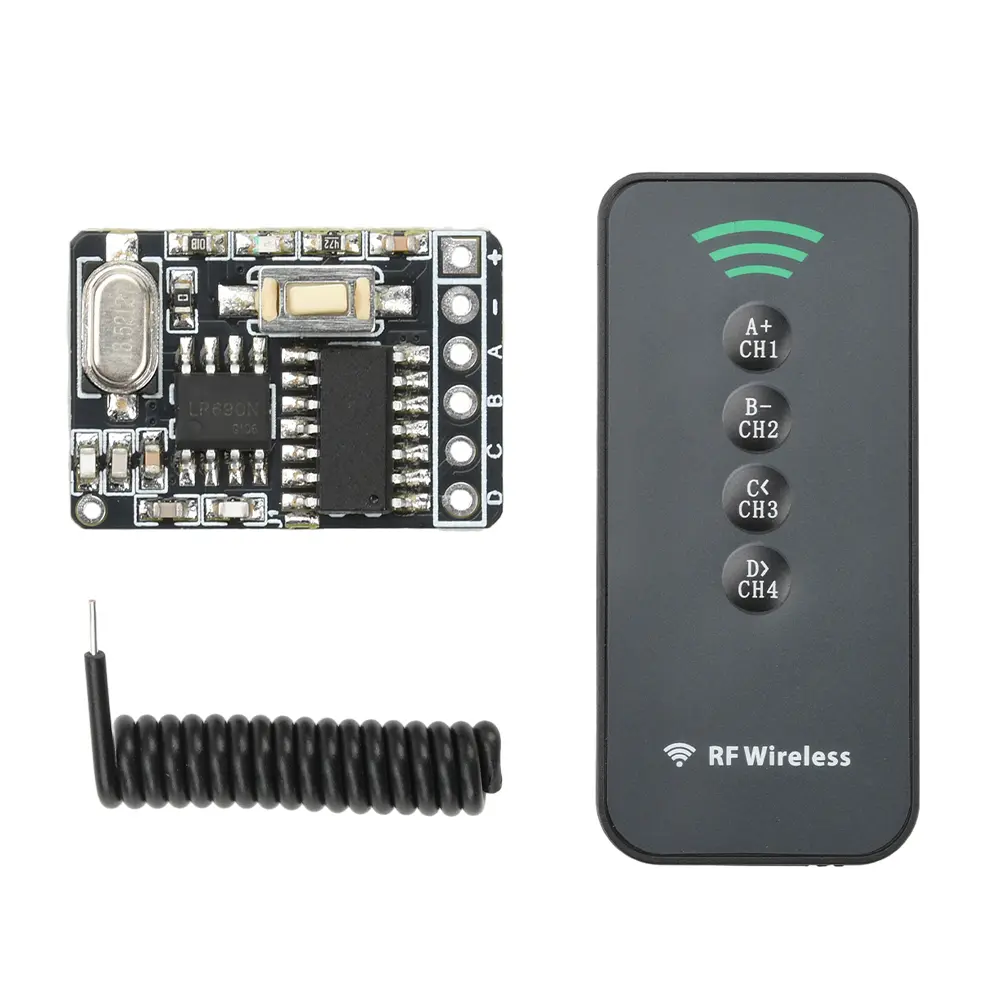

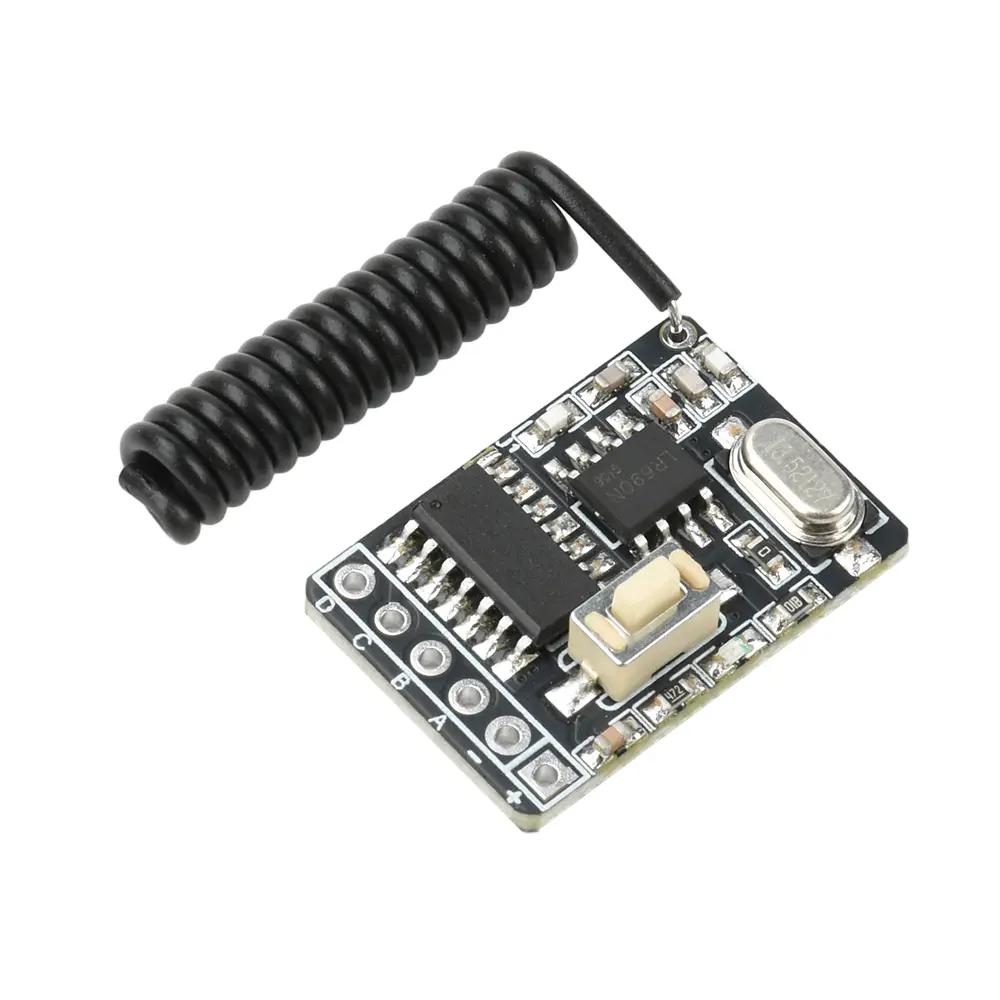

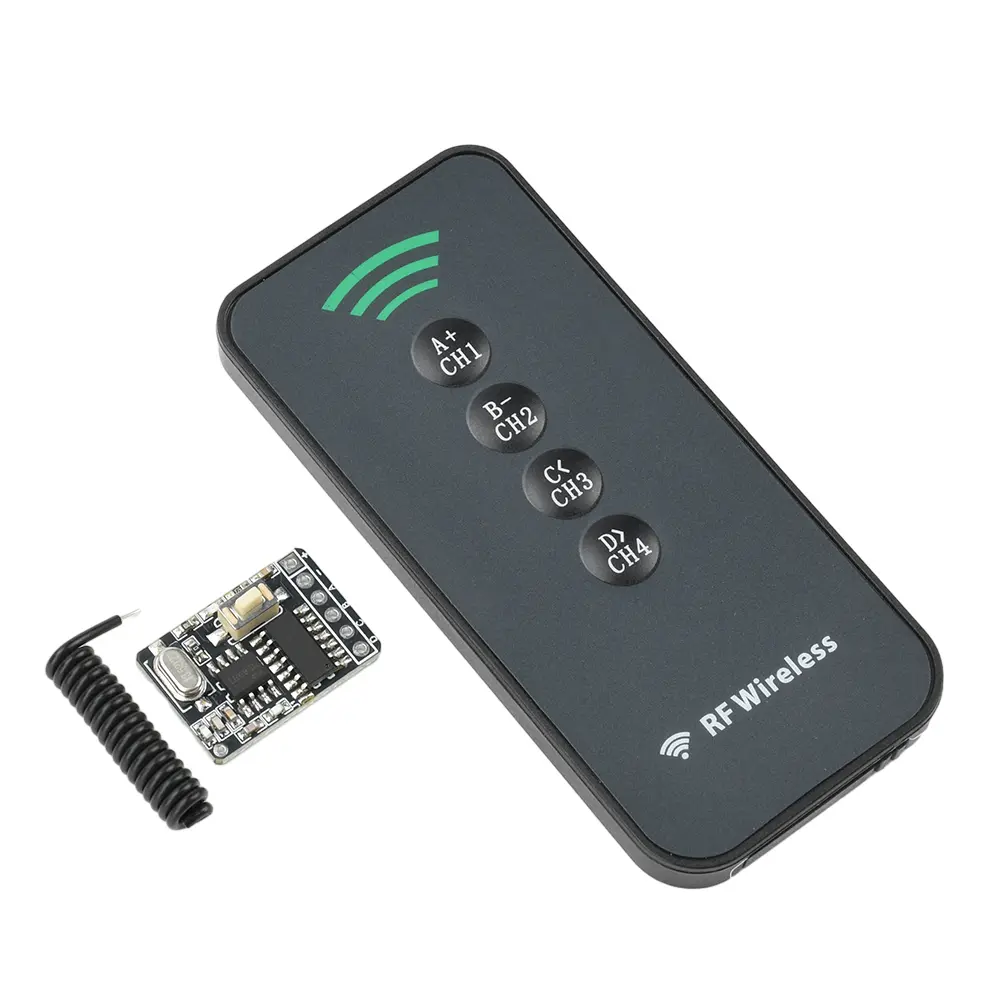

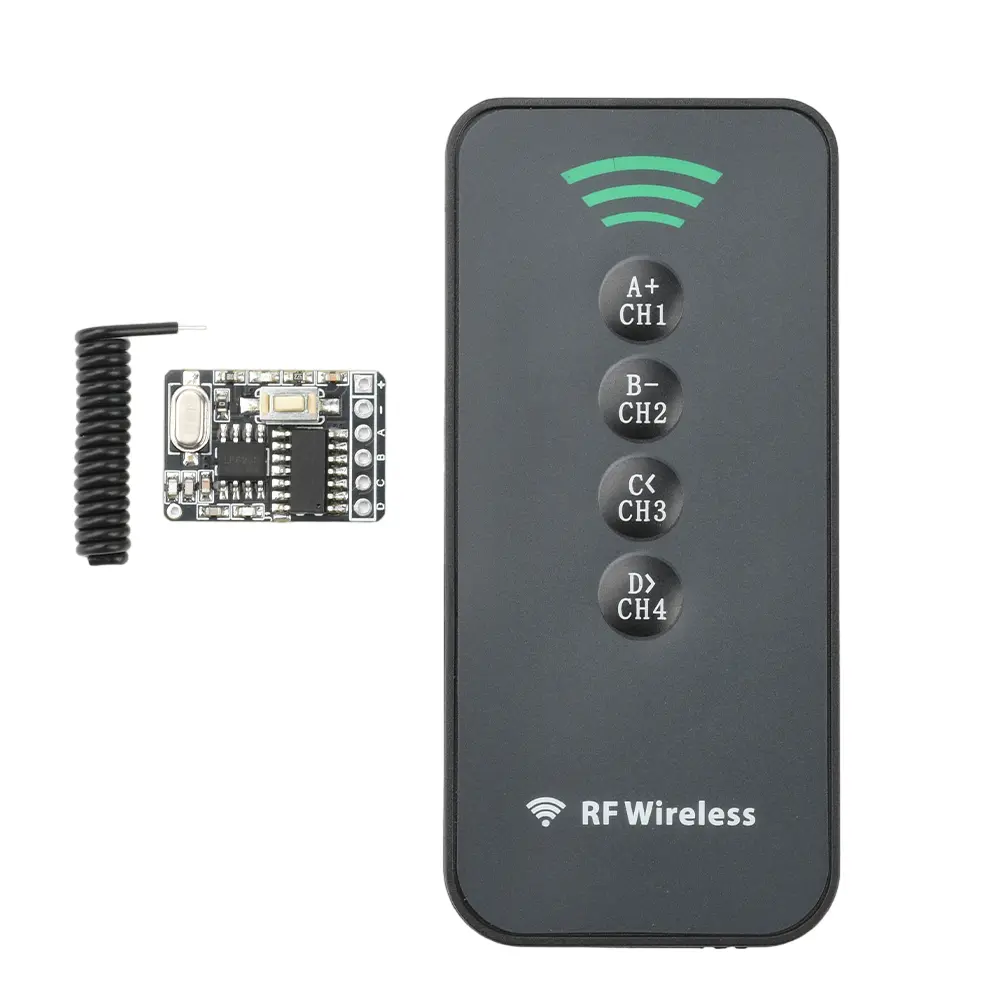

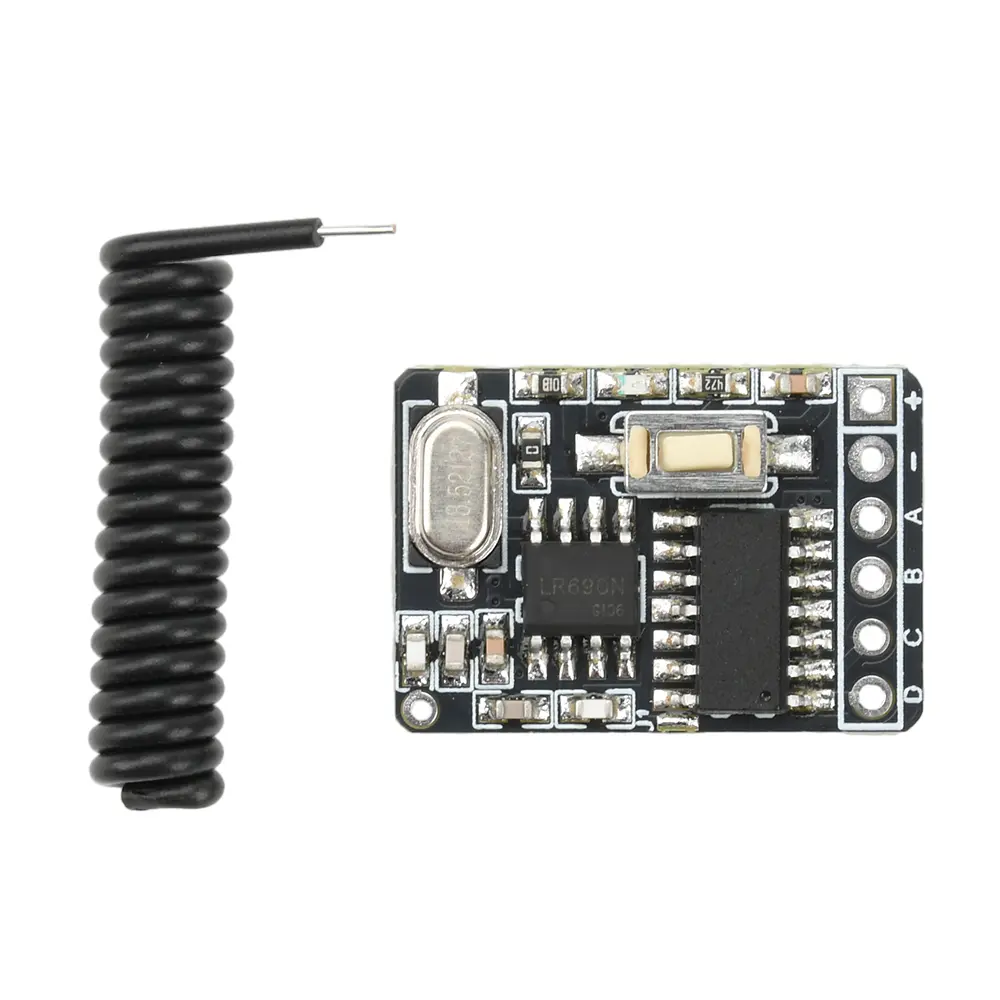

<div class="detailmodule_dynamic"><kse:widget data-widget-type="relatedProduct" id="1005000004088425" title="" type="relation"></kse:widget></div> <div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br />Features:<br />1. 433MHz wireless reception: support learning mode, compatible with a variety of remote control signals<br />2. Three working modes: pointing, self-locking, interlocking optional, to meet the needs of different scenarios<br />3. High sensitivity reception: remote control distance up to 15-25 meters, strong performance through the wall, signal stability<br />4. Multi-channel independent control: support 4 independent outputs, flexible configuration to meet diversified needs<br />5. Simple learning pairing: indicator light prompts pairing status, quickly complete the remote control binding</p> <p>Parameter:<br />Product name: 4-way wireless learning module remote control<br />Working voltage: DC 3-5V<br />Operating frequency: 433MHz (learning)<br />Remote control distance: 15-25 meters (through the wall)<br />Module size: 16*23mm<br />Wiring mode: (+) connected to the positive pole of the power supply (-) connected to the negative pole of the power supply; ABCD on behalf of the 1-4 outputs<br />Output mode: module power on 4-way default output is low; when receiving the remote control signal, the output becomes high; (short connect the module above the J1 bit, the module can be set to the default output high level)</p> <p>Function description: (learning mode)<br />1. Press and hold the learning button on top of the module, the learning indicator light will flash 1 time and then release, at this time press the remote control button A which needs to learn, the module indicator light will flash 3 times and then do not flash, release the remote control button, the first way A and the remote control A key pairing is completed.<br />2. Press and hold the learning button on the top of the module, the learning indicator light will flash 2 times and then release, at this time, press the remote control button B which needs to learn, the module indicator light will flash 3 times and then not flash, release the remote control button, the pairing of the second channel B and the remote control key is completed.<br />3. Press and hold the learning button on top of the module, the learning indicator light will flash 3 times and then release, at this time, press the remote control button C which needs to learn, the module indicator light will flash 3 times and then not flash, release the remote control button, the third way C and the remote control key pairing is completed.<br />4. Press and hold the learning button on top of the module, the learning indicator light will flash 4 times and then release, at this time, press the remote control button D which needs to learn, the module indicator light will flash 3 times and then not flash, release the remote control button, the fourth way D and remote control D key pairing is completed.<br />5. Press and hold the learning button on top of the module, the learning indicator light will flash 5 times and then release, at this time, press the remote control button E that needs to be learned, the module indicator light will flash 3 times and then not flash, release the remote control button, the total control key and the remote control E pairing is completed (the total control key means that: 1 button can control 4 ways at the same time)</p> <p>Working mode setting:<br />First press and hold the button, then power on, the module above the indicator light flash 1 to release, set for self-locking; flash 2 and then release, set for point action, flash 3 and then release, set for interlocking</p> <p>Package include:<br />Module x1<br />Remote control x1<br />Antenna x1<br /></p></div></div>
