433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller
433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller
433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller
433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller
433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller
433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller
433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller
433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller
433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller
433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller
433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller
433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller

433 Mhz RF Remote Control Receiver and 433mhz RF Relay Receiver Switch Module DC3.3V-5V Jog Self-locking Interlock Controller

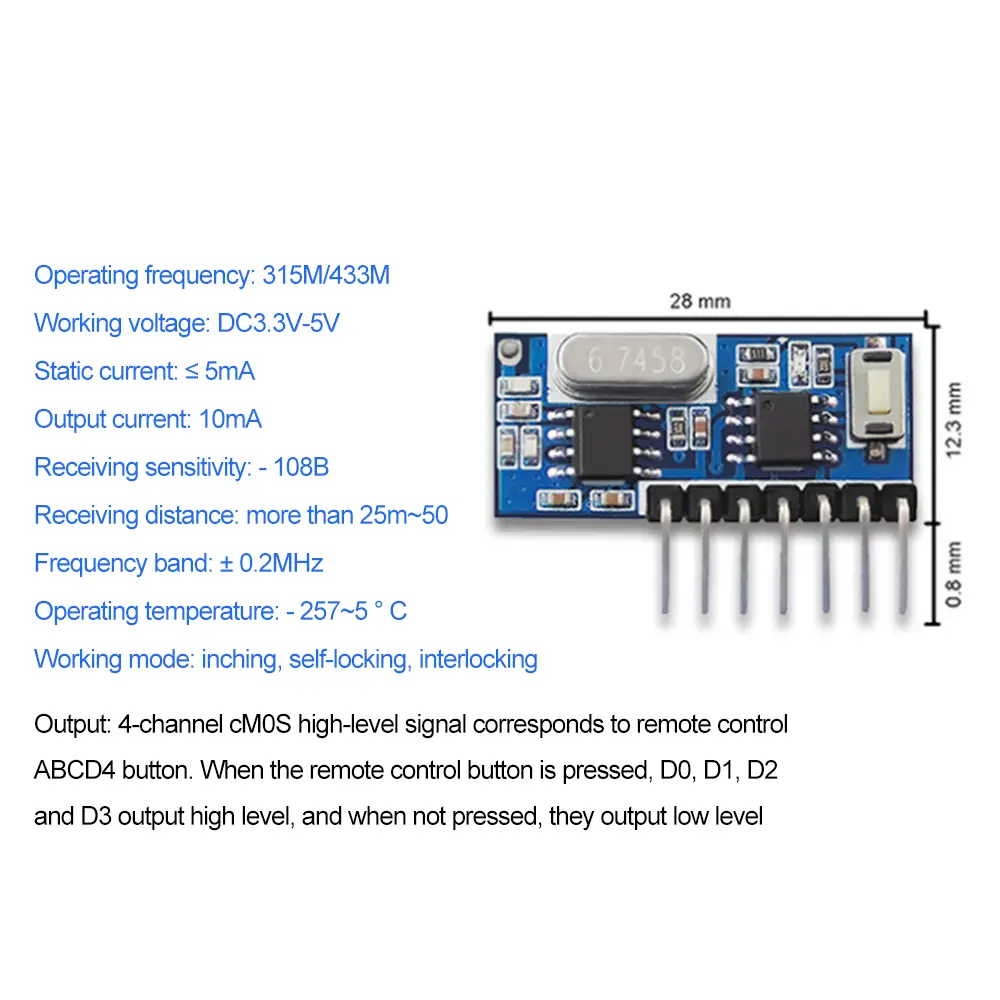

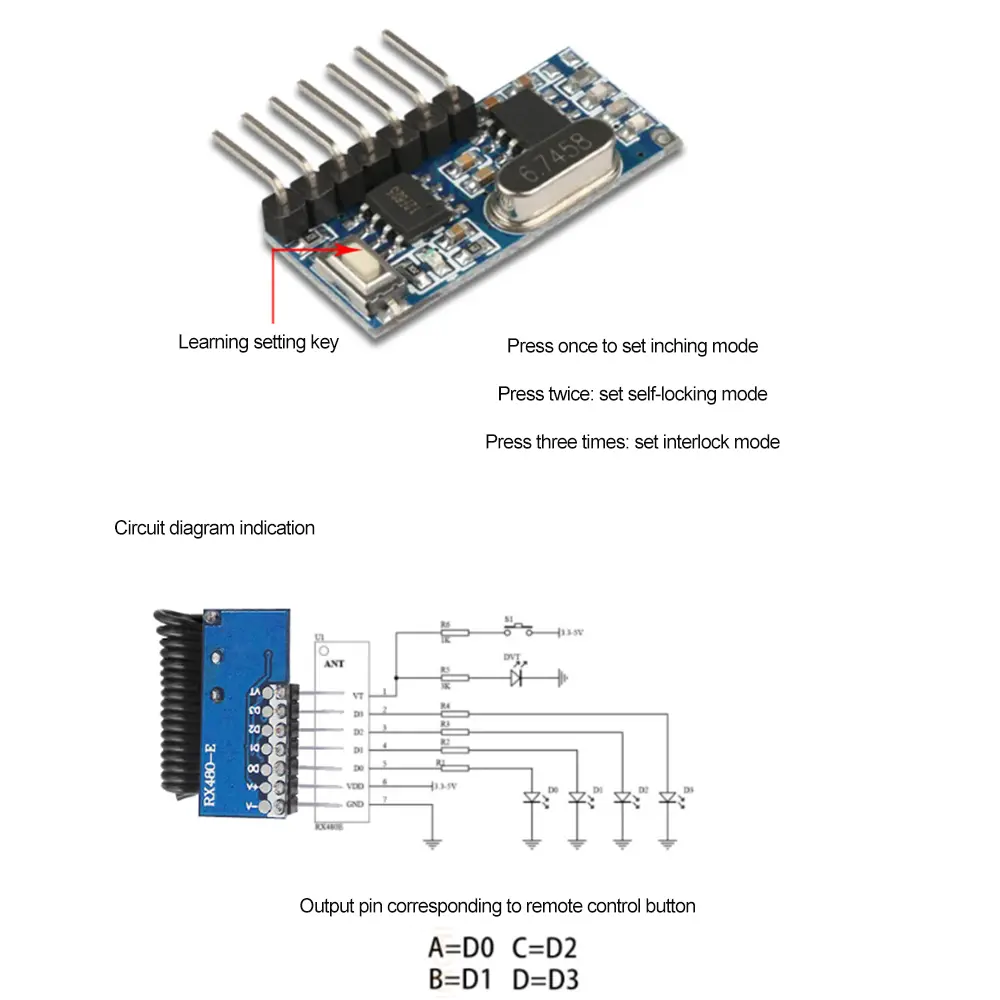

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004088425" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br/><span style="font-size:20px"><strong>Features:</strong></span><br/>1.Use high-quality materials, durable<br/>2.The receiving module includes a decoding chip, which can support EV1527, PT2262, etc<br/>3.The remote controller adopts the learning EV1527 encoding mode, and each remote controller<br/>There are independent address codes to prevent serial codes and mutual interference<br/>4.The receiving module has three function options: inching self-locking interlock<br/>5.The receiving module adopts the key selection mode. There is no need to select the mode manually such as welding and jumper, saving time and labor costs<br/>6.Wide range of use<br/><br/><span style="font-size:20px"><strong>Parameters:</strong></span><br/>Operating frequency: 315M/433M<br/>Working voltage: DC3. 3V - 5V<br/>Static current: ≤ 5mA<br/>Output current: 10 mA<br/>Receiving sensitivity: - 108dB<br/>Receiving distance: more than 25m~50<br/>Frequency band: ± 0.2 MHz<br/>Operating temperature: - 25~75 ° C<br/>Working mode: inching, self-locking, interlocking<br/>Output: 4-channel CMOS high level signal corresponds to remote control ABCD 4 button.<br/>When the remote control button is pressed, D0, D1, D2 and D3 output high level,<br/>Low level when not pressed<br/><br/><span style="font-size:20px"><strong>Package include：</strong></span><br/>Receiving module * 1<br/><br/></div></div><p><br/></p>
$5.21
$4.97

Colors

Sizes

-
+
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004088425" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><br/><span style="font-size:20px"><strong>Features:</strong></span><br/>1.Use high-quality materials, durable<br/>2.The receiving module includes a decoding chip, which can support EV1527, PT2262, etc<br/>3.The remote controller adopts the learning EV1527 encoding mode, and each remote controller<br/>There are independent address codes to prevent serial codes and mutual interference<br/>4.The receiving module has three function options: inching self-locking interlock<br/>5.The receiving module adopts the key selection mode. There is no need to select the mode manually such as welding and jumper, saving time and labor costs<br/>6.Wide range of use<br/><br/><span style="font-size:20px"><strong>Parameters:</strong></span><br/>Operating frequency: 315M/433M<br/>Working voltage: DC3. 3V - 5V<br/>Static current: ≤ 5mA<br/>Output current: 10 mA<br/>Receiving sensitivity: - 108dB<br/>Receiving distance: more than 25m~50<br/>Frequency band: ± 0.2 MHz<br/>Operating temperature: - 25~75 ° C<br/>Working mode: inching, self-locking, interlocking<br/>Output: 4-channel CMOS high level signal corresponds to remote control ABCD 4 button.<br/>When the remote control button is pressed, D0, D1, D2 and D3 output high level,<br/>Low level when not pressed<br/><br/><span style="font-size:20px"><strong>Package include：</strong></span><br/>Receiving module * 1<br/><br/></div></div><p><br/></p>
