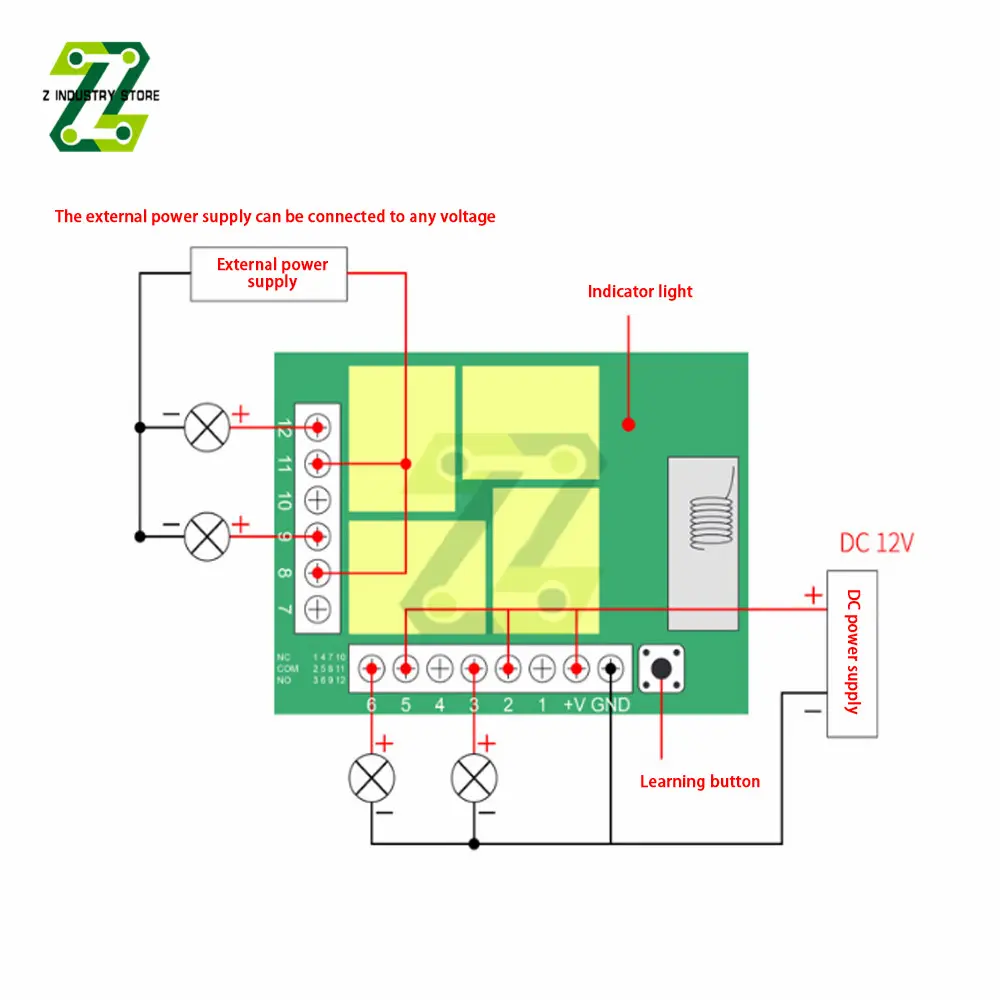

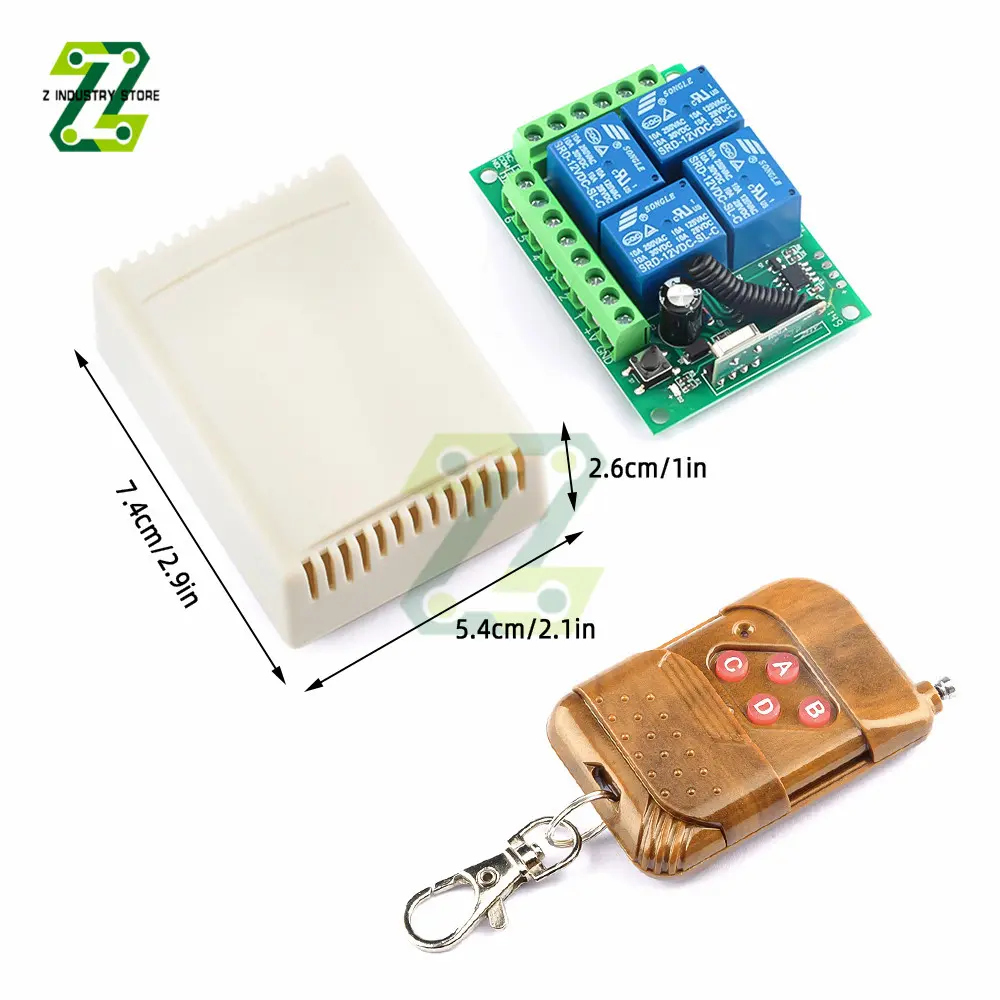

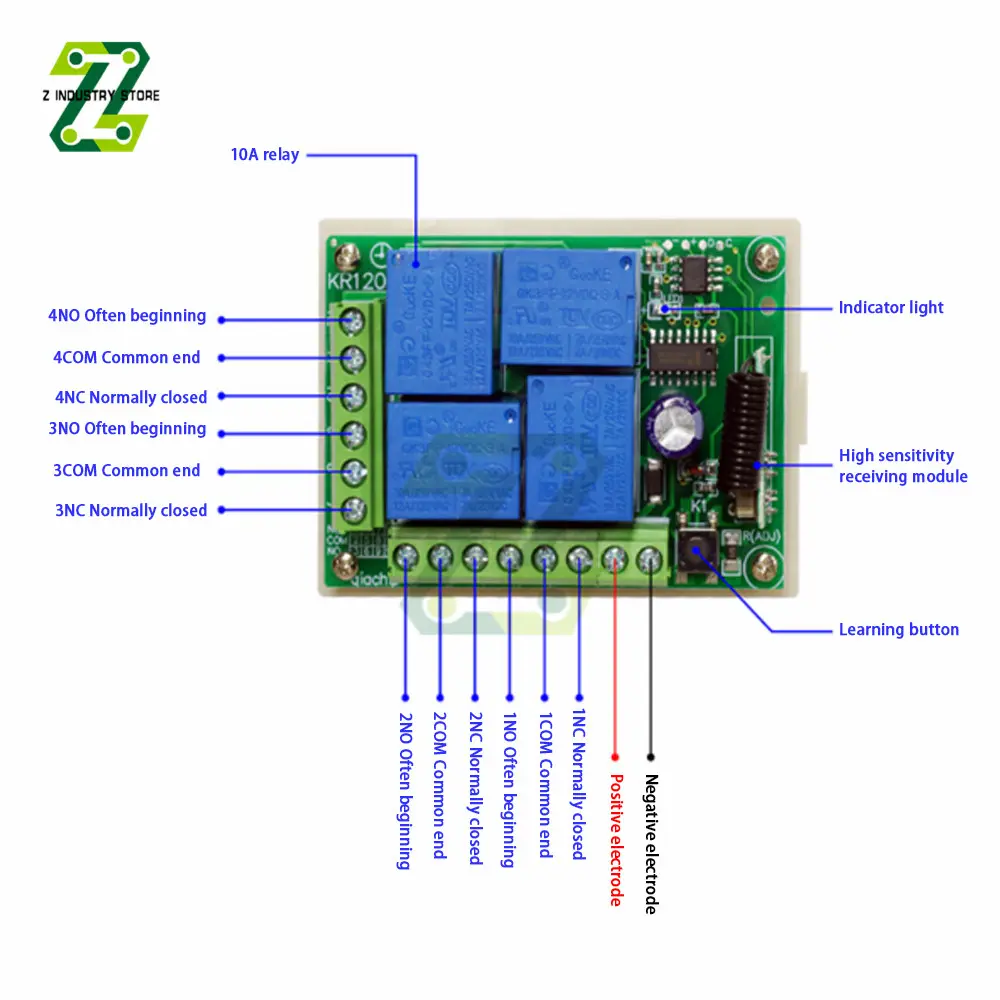

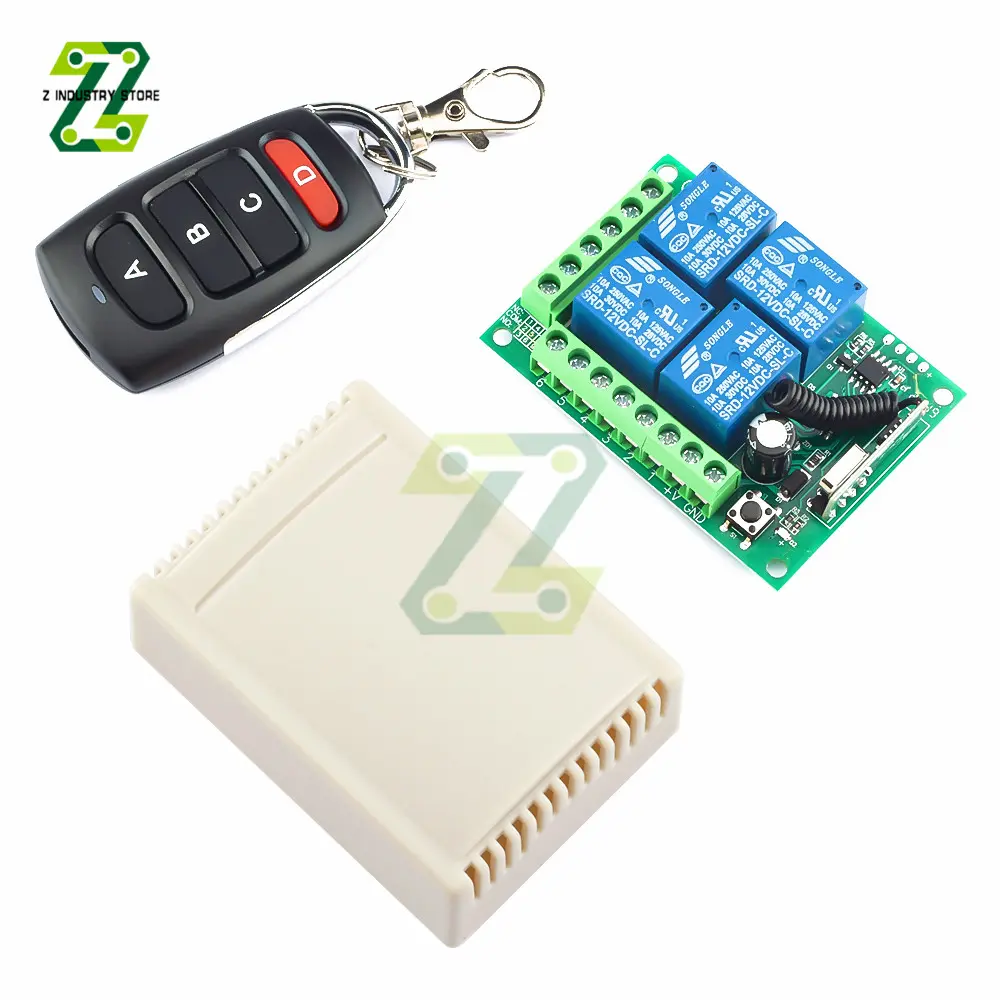

<p><kse:widget data-widget-type="customText" id="1005000000542054" type="relation"></kse:widget></p><p><span style="font-size:20px"><strong>433MHz 315MHz Universal Wireless Remote Control DC 12V 4CH Relay Receiver Module RF Switch For Gate Garage</strong></span></p><p><br/></p><p><span style="font-size:18px"><strong>Product parameters:</strong></span></p><p><span style="font-size:18px">1. Input voltage: DC 12V</span></p><p><span style="font-size:18px">2. Receiving frequency: 433MHz, 315MHz</span></p><p><span style="font-size:18px">3. Receiving sensitivity: -108dbm</span></p><p><span style="font-size:18px">4. Quiescent current: 5mA</span></p><p><br/></p><p><span style="font-size:18px"><strong>Description of receiving terminal:</strong></span></p><p><span style="font-size:18px">+V—Power &quot;positive&quot; input</span></p><p><span style="font-size:18px">GND—power supply &quot;negative&quot; input</span></p><p><span style="font-size:18px">1—KC1 relay &quot;normally closed&quot; terminal</span></p><p><span style="font-size:18px">2—KC1 relay &quot;common&quot; terminal</span></p><p><span style="font-size:18px">3—KC1 relay &quot;normally open&quot; terminal</span></p><p><span style="font-size:18px">4—KC3 relay &quot;normally closed&quot; terminal</span></p><p><span style="font-size:18px">5—KC3 relay &quot;common&quot; terminal</span></p><p><span style="font-size:18px">6—KC3 relay &quot;normally open&quot; terminal</span></p><p><span style="font-size:18px">7—KC2 relay &quot;normally closed&quot; terminal</span></p><p><span style="font-size:18px">8—KC2 relay &quot;common&quot; terminal</span></p><p><span style="font-size:18px">9—KC2 relay &quot;normally open&quot; terminal</span></p><p><span style="font-size:18px">10—KC4 relay &quot;normally closed&quot; terminal</span></p><p><span style="font-size:18px">11—KC4 relay &quot;common&quot; terminal</span></p><p><span style="font-size:18px">12—KC4 relay &quot;normally open&quot; terminal</span></p><p><br/></p><p><span style="font-size:18px"><strong>Operating instructions and product selling points:</strong></span></p><p><span style="font-size:18px"><strong>1. Jog function:</strong></span></p><p><span style="font-size:18px">Press the code pairing button on the control board once, and the LED indicator flashes once. After the LED indicator lights up, press the remote control button that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.</span></p><p><br/></p><p><span style="font-size:18px"><strong>2. Self-locking function:</strong></span></p><p><span style="font-size:18px">Press the code pairing button on the control panel twice in a row, the LED indicator flashes 2 times, and when the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.</span></p><p><br/></p><p><span style="font-size:18px"><strong>3. Interlock function:</strong></span></p><p><span style="font-size:18px">Press the code pairing button on the control panel 3 times in a row, the LED indicator flashes 3 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.</span></p><p><br/></p><p><span style="font-size:18px"><strong>4. Two-way jog and two-way self-locking:</strong></span></p><p><span style="font-size:18px">Press the code pairing button on the control panel 4 times in a row, the LED indicator flashes 4 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.</span></p><p><br/></p><p><span style="font-size:18px"><strong>5. Two-way jog and two-way interlock:</strong></span></p><p><span style="font-size:18px">Press the control panel code pairing button 5 times in a row, the LED indicator flashes 5 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the control panel LED indicator flashes 3 times in succession.</span></p><p><br/></p><p><span style="font-size:18px"><strong>6. Two-way self-locking and two-way interlocking:</strong></span></p><p><span style="font-size:18px">Press the code pairing button on the control panel 6 times continuously, the LED indicator flashes 6 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.</span></p><p><br/></p><p><span style="font-size:18px"><strong>7. Two-way interlock and two-way interlock:</strong></span></p><p><span style="font-size:18px">Press the code pairing button on the control panel 7 times continuously, the LED indicator flashes 7 times, and when the LED indicator lights up, press the remote control button that needs to be paired, and the LED indicator on the control panel flashes 3 times in succession.</span></p><p><br/></p><p><span style="font-size:18px"><strong>8. Code clearing function:</strong></span></p><p><span style="font-size:18px">Press the control panel code pairing button 8 times continuously, the LED indicator will flash 8 times, then the LED indicator will automatically flash 8 times continuously, then the code clearing is completed, and all the previously learned remote control key codes will be cleared.</span></p><p><br/></p><p><span style="font-size:18px"><strong>Precautions:</strong></span></p><p><span style="font-size:18px">1. Do not operate with power on, the power should be turned off to operate, and the power should be turned on after the test is confirmed.</span></p><p><span style="font-size:18px">2. When the voltage of the remote control is insufficient, please replace the battery in time (when the voltage of the remote control battery is insufficient, the general remote control distance becomes closer).</span></p><p><span style="font-size:18px">3. When using wireless electronic products, you should avoid metal masks, large electronic equipment, strong sources of interference such as electromagnetic fields, etc., to avoid the remote control and the receiving distance being short or unable to work normally.</span></p><p><span style="font-size:18px">4. Do not use this electronic product abnormally. Abnormal use will reduce the performance and life of the product, and in severe cases, it will damage the product and bring hidden dangers to your safety.</span></p><p><br/></p><p><span style="font-size:18px"><strong>List:</strong></span></p><p><span style="font-size:18px">Type A: 12V 433MHz 4-way with shell*1+mahogany 4-key ABCD*1*1</span></p><p><span style="font-size:18px">Type B: 12V 433MHz 4-way with shell*1+red d4 key ABCD*1*1</span></p><p><span style="font-size:18px">Type C: 12V 433MHz 4-way with shell*1+metal 4-key ABCD*1*1</span></p><p><span style="font-size:18px">Type D: 12V 315MHz 4-way with shell*1+mahogany 4-key ABCD*1*1</span></p><p><span style="font-size:18px">Type E: 12V 315MHz 4-way with shell*1+red d4 key ABCD*1*1</span></p><p><span style="font-size:18px">Type F: 12V 315MHz 4-way with shell*1+metal 4-key ABCD*1*1</span></p><p><span style="font-size:18px">Type G: 12V 315MHz 4-way 4-way intelligent wireless control module relay with shell*1</span></p><p><span style="font-size:18px">Type H: 12V 413MHz 4-way 4-way intelligent wireless control module relay with shell*1</span></p><p></p>
