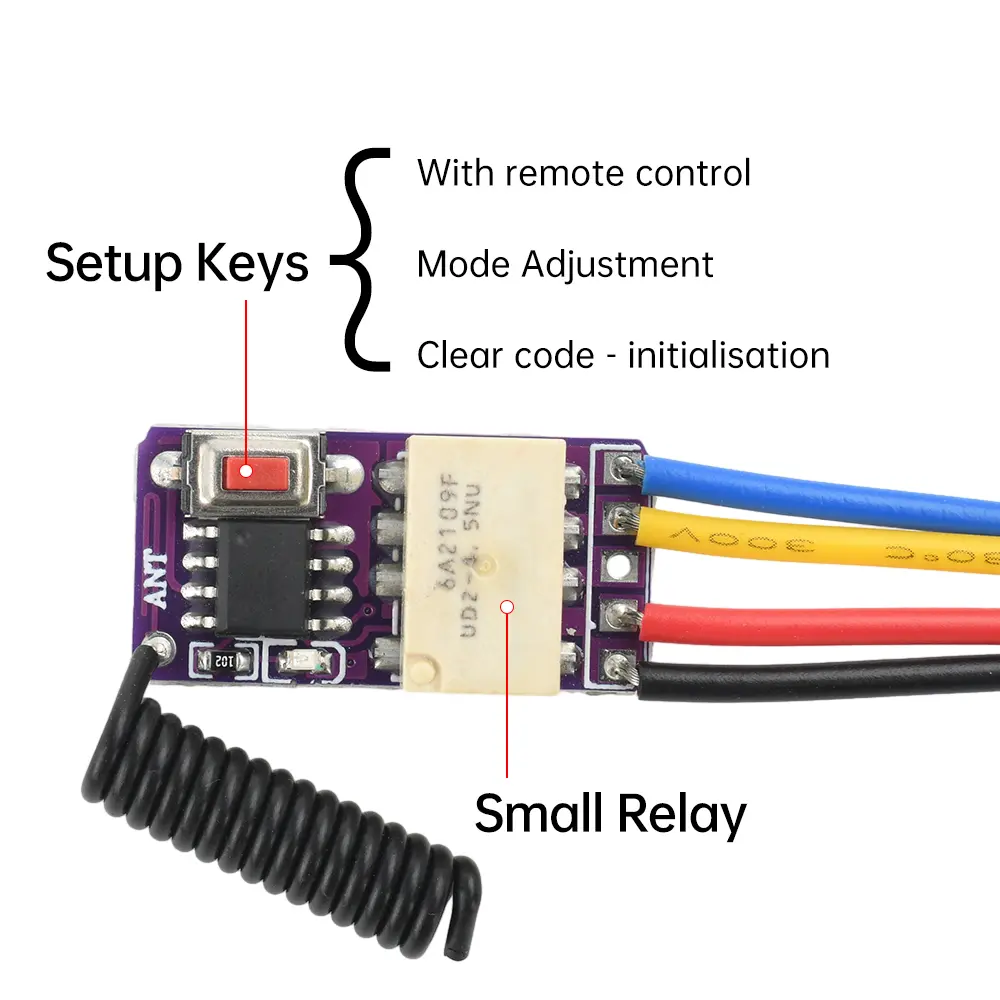

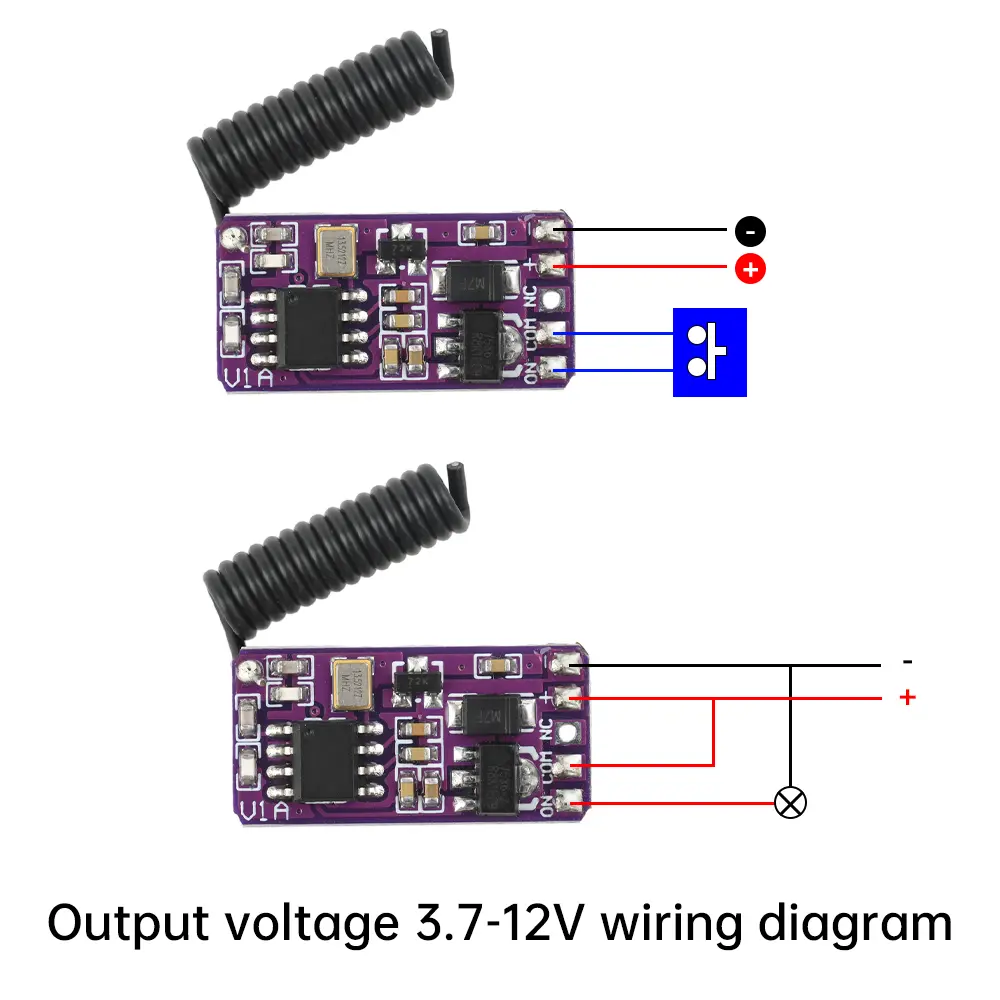

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features： <br/>1. Multiple working modes: support jog, interlock, self-locking, and multi speed delayed closing to meet different scene requirements. <br/>2. Low power design: The static working current is only 0.5mA, and the receiver intermittently sleeps in energy-saving mode, extending its service life. <br/>3. Relay output: Passive relay switch signal, maximum load current up to 1A, strong control capability. <br/>4. Simple configuration method: switchable mode, supports one click deletion of remote control pairing information. <br/>5. Stable wireless transmission: With a working frequency of 433MHz and strong anti-interference ability, it is suitable for use in complex environments.</p><p>Parameter: <br/>Product Model: V1A Purple <br/>Working voltage: DC3.7V-12V (DC) <br/>Working frequency: 433MHz <br/>Static working current: 0.5mA (energy-saving mode, receiver intermittent sleep) <br/>Working current: approximately 30mA <br/>Output method: Relay output switch signal (passive output) <br/>Maximum load current: 1A <br/>Working mode: jog/interlock/self-locking/delay 10 seconds, 30 seconds, 60 seconds, 300 seconds <br/>Size: 22 * 11 * 8 (millimeters) <br/>Remote control: <br/>Working voltage: DC6V (2 CR2016 button batteries) <br/>Working current: 16mA <br/>Static current: 0mA <br/>Operating frequency: 433MHz <br/>Chip type: Learning code (EV1527, etc.) <br/>Oscillatory resistance: 270K <br/>Launch distance: 10-100m (open environment) <br/>Modulation method: ASK amplitude modulation <br/>Size: 6cm in length, 3cm in width, and 1.3cm in thickness</p><p>Package Include: <br/>Package 1: <br/>1X module</p><p>Package 2: <br/>1X module <br/>1X remote control</p><p>Product precautions: <br/>The working voltage cannot exceed the working voltage. <br/>In environments with high wireless interference, reception is more stable and the distance is longer. <br/>Keep out of reach of children. <br/>Do not use in damp environments, as it may cause damage to the receiver.<br/><br/></p></div></div><p><br/></p>
