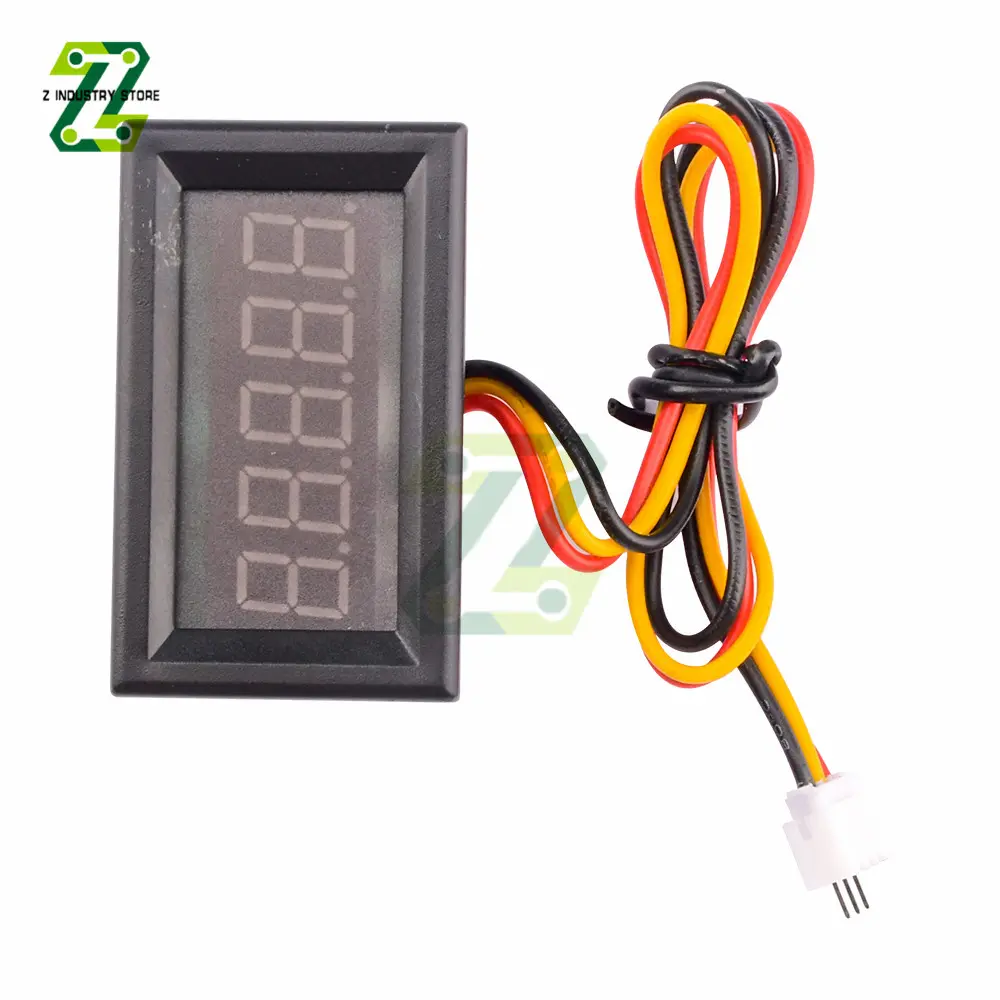

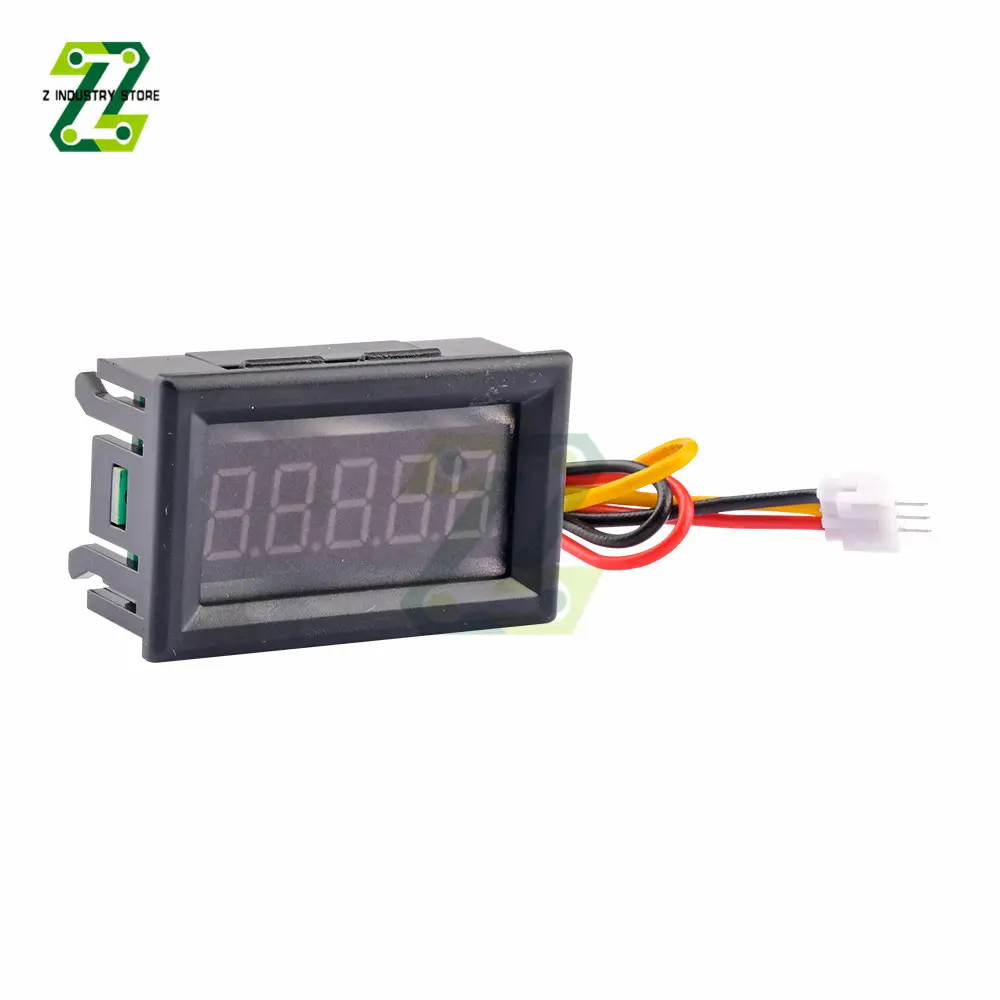

<p><kse:widget data-widget-type="customText" id="1005000000567623" type="relation"></kse:widget></p><p><span style="font-size:20px"><strong>5 Digital LED Red Tachometer Gauge RPM Speed Meter Speed Sensor Digital Frequency Meter Speedometer for Brushless Motor </strong></span></p><p><br/></p><p><span style="font-size:18px"><strong>Features:</strong></span></p><p><span style="font-size:18px">1: Adopt industrial-grade high-speed MCU, strong anti-interference</span></p><p><span style="font-size:18px">2: Stable and reliable</span></p><p><span style="font-size:18px">3: Features of wide measurement range and high measurement accuracy</span></p><p><span style="font-size:18px">4: Small appearance</span></p><p><span style="font-size:18px">5: Widely used</span></p><p><br/></p><p><span style="font-size:18px">Newly developed, tailor-made three-phase DC brushless drive products supporting tachometer, using industrial-grade high-speed MCU, strong anti-interference, stable and reliable, wide measurement range and high measurement accuracy, the software adopts the leading fully synchronous cycle measurement method, the measurement range And the measurement accuracy is a more qualitative leap, applicable to all three-phase DC brushless drive boards and drive modules with rotational speed signal output on the market, and the three-phase brushless drive products independently developed by our store have reserved interfaces for plug-and-play.</span></p><p><br/></p><p><span style="font-size:18px">Two setting buttons on the back and interface line definition</span></p><p><br/></p><p><span style="font-size:18px"> Note that this product has reverse connection protection. The default power supply voltage is DC 3.3-5V, and the measured signal amplitude is 3-30V. If this parameter is exceeded, it may be permanently damaged.</span></p><p><br/></p><p><span style="font-size:18px"><strong>Features</strong></span></p><p><span style="font-size:18px">1. High frequency measurement accuracy, up to 0.01‰ at 25 degrees Celsius, and resolution up to 0.001HZ.</span></p><p><span style="font-size:18px">2. The frequency measurement range is wide, 0.15HZ-100KHZ. It can also be customized for ultra-low frequency measurement 0.01HZ-100HZ3. The range is automatically switched from 00.000Hz (R/M to 000.00KHz (KR/M).</span></p><p><span style="font-size:18px">4. The working mode can be switched by pressing the button, including two working modes of frequency and speed, and the working mode is saved when power off.</span></p><p><span style="font-size:18px">5. The frequency division value can be set by pressing the key. The frequency division value can be 1-99999 and 0.0001-9.9999. The frequency division value is saved after power-off.</span></p><p><span style="font-size:18px">6. Beautiful appearance, sophisticated craftsmanship and easy to use.</span></p><p><br/></p><p><span style="font-size:18px"><strong>Parameter:</strong></span></p><p><span style="font-size:18px">Display digits: 5-digit LED digital tube (0.36’).</span></p><p><span style="font-size:18px">Display refresh rate: signal frequency&gt; 3HZ: 3 times/sec: signal frequency ≤ 3HZ: approximately equal to the signal frequency. .</span></p><p><span style="font-size:18px">Overflow display: &quot;-----&quot;</span></p><p><span style="font-size:18px">Measurement accuracy: 0.1%±1digit or 0.01‰ at 25℃.</span></p><p><span style="font-size:18px">Measuring range: 0.15HZ—100KHZ. 9r-999.99Kr/m</span></p><p><span style="font-size:18px">Input signal: Type: dry contact, PNP, NPN, pulse Amplitude: 3-30V</span></p><p><span style="font-size:18px">Measurement method: fully synchronized period measurement method.</span></p><p><span style="font-size:18px">Input resistance: 100KΩ/resistive.</span></p><p><span style="font-size:18px">Power supply: default DC3.3-5V, other voltages are needed, large quantities can be customized</span></p><p><span style="font-size:18px">Withstand voltage: AC2000V 1min between the external terminal and the shell.</span></p><p><span style="font-size:18px">Use environment (temperature and humidity): temperature-10℃-＋70℃ relative humidity 25-85% (no condensation),</span></p><p><span style="font-size:18px">Storage temperature: -20℃-+80℃ (no condensation)</span></p><p><span style="font-size:18px">Dimensions (mm): 48*29*18.5 length X width X height)·</span></p><p><span style="font-size:18px">Opening size (mm): 45*26</span></p><p><br/><br/></p><p><span style="font-size:18px"><strong>Instructions:</strong></span></p><p><span style="font-size:18px"> 1. There are three wires on the meter head, the red is the 3.3-5V positive power supply, the black is the ground wire, and the yellow is the signal pulse input wire, which are connected to the equipment under test respectively.</span></p><p><br/></p><p><span style="font-size:18px"> 2. Switch between speed measurement and frequency measurement mode</span></p><p><br/></p><p><span style="font-size:18px">There are two buttons &quot;M mode&quot; and &quot;S selection&quot; on the back. When the power is on, press the M key once to enter the mode selection interface, and then select 0 frequency plus filter wave test by continuously short pressing the S key, and select 1 speed plus filter wave test. Choose 2 frequency without filter wave test, choose 3 speed without filter wave test, wait 4 seconds without operation, automatically save and return to the just set mode and wait for the measurement state.</span></p><p><br/></p><p><span style="font-size:18px">2. Frequency division value setting</span></p><p><br/></p><p><span style="font-size:18px">In the power-on state, first press the S key once to enter the frequency division setting interface. At this time, the S key is the shift function of the 5-digit 8-character on the display screen, and the M key is the value increase. Use the S key to select the 8-character to change the value, and then press M Key to change the value, the frequency division value must be within 1-99999 or within 0.0001-9.9999, other values are invalid (short press the S key to move to the rightmost decimal point when it lights up, then short press the M key to open or close the leftmost decimal point , Realize the decimal point setting) After setting the frequency division value, wait for 7 seconds without operation and automatically save and return to the just set frequency division value and wait for the measurement state.</span></p><p><br/></p><p><span style="font-size:18px"> Explanation of the concept of frequency division value: the number of pulse signals taken when the turntable or gear rotates one revolution during speed measurement. For example, when an external sensor is used, the turntable or gear rotates one revolution to take 1 pulse signal, and the frequency division value is set to 1. If the brushless drive of our shop cooperates with speed measurement, if the motor has 2 pole pairs, then the frequency division value is set (2*3=6) 6.</span></p><p><br/></p><p><span style="font-size:18px"><strong>Precautions:</strong></span></p><p><br/></p><p><span style="font-size:18px"> 1. It should be used within the parameters of this instrument and in a normal environment.</span></p><p><br/></p><p><span style="font-size:18px"> 2. Set the mode correctly according to actual usage requirements. Set the frequency division value correctly.</span></p><p><br/></p><p><span style="font-size:18px"> 3. When connecting a high-voltage signal, please don&#x27;t touch the chips and parts on the board with your hands.</span></p><p><br/></p><p><span style="font-size:18px"><strong>List:</strong></span></p><p><span style="font-size:18px">1*Speedometer</span></p><p></p>
