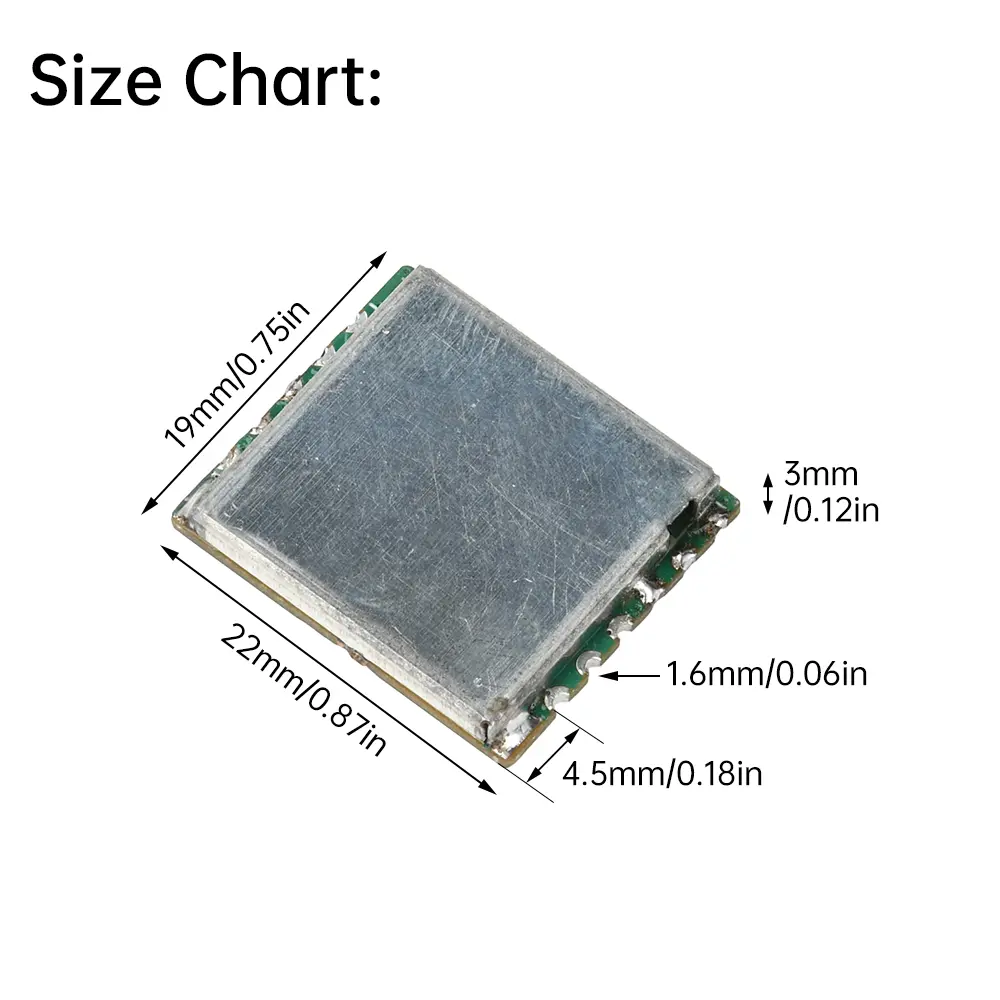

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004103227" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features: <br/>1. High efficiency performance: Low power consumption of 5V/290mA, transmission power of 19dBm to 21dBm, with both power consumption and performance. <br/>2. High frequency transmission: Operating in the 5645-5945MHz ISM frequency band, supporting FM audio and video synchronous transmission, with clear and stable signals. <br/>3. Compact design: The surface mount package is only 19x22x3mm, with a small size, suitable for embedded applications to save space. <br/>4. Flexible multi-channel switching: Supports 8-channel transmission, compatible with SPI control mode, and meets diverse application scenarios. <br/>5. Wide applicability: Suitable for various fields such as FPV models, baby monitors, wireless security, and medical equipment.</div><div><br/></div><p>Product Overview: <br/>This transmission module is an FM audio and video transmission module that operates in the 5645-5945MHz ISM frequency band (or uses SPI mode to control the frequency band through an external microcontroller). The module adopts a single-chip design, which integrates VCO PLL、 Broadband FM video modulation and FM audio modulation make the module small in size, low in power consumption, and high in sensitivity; The module adopts a patch packaging form, occupying very little machine space; The application of this module only requires simple connection of power supply, audio cable, video cable, and antenna to transmit sound and image signals.</p><p>Parameter: <br/>5.8G broadband FM synchronous audio and video transmission <br/>Low power consumption: 5V 290mA <br/>Transmission power: 19dBm to 21dBm <br/>Directly input analog audio and video signals <br/>Channel 8 transmission <br/>SPI control mode/switch control mode (optional) <br/>Additional RF amplifier can modulate 3W-10W power <br/>Size: 19 * 22 * 3mm <br/>Application: <br/>FPV model aircraft audio and video wireless transmission: <br/>Baby monitor; <br/>Image monitoring of construction sites; <br/>Wireless camera security system; <br/>Wireless imaging medical equipment <br/>Wireless visual reversing camera transmission <br/>Wireless video toys <br/>Wireless Doorbell</p><p>Package Include: <br/>1X module</p><p>difference: <br/>SPI control mode: SPI is a custom channel that supports multiple frequency points. <br/>Switch mode: The switch module is a fixed channel with a fixed frequency point.<br/></p></div></div><p><br/></p>
