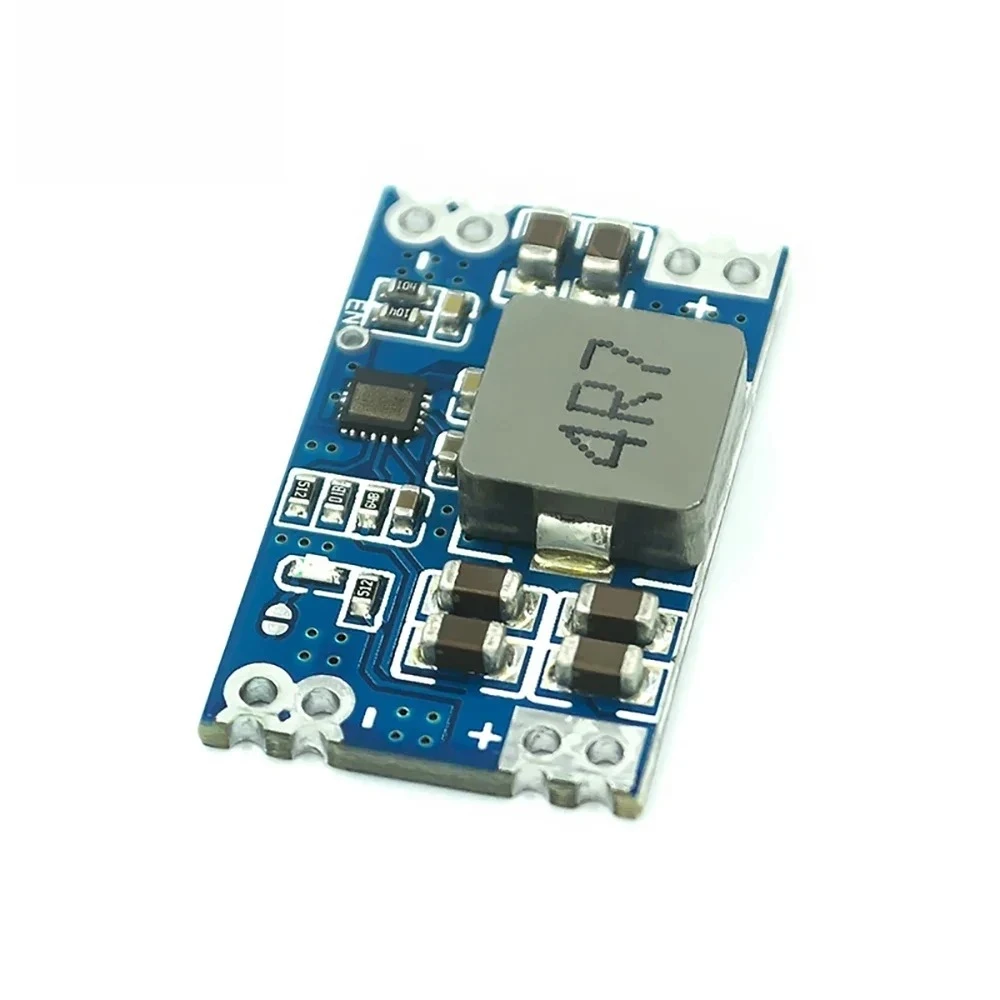

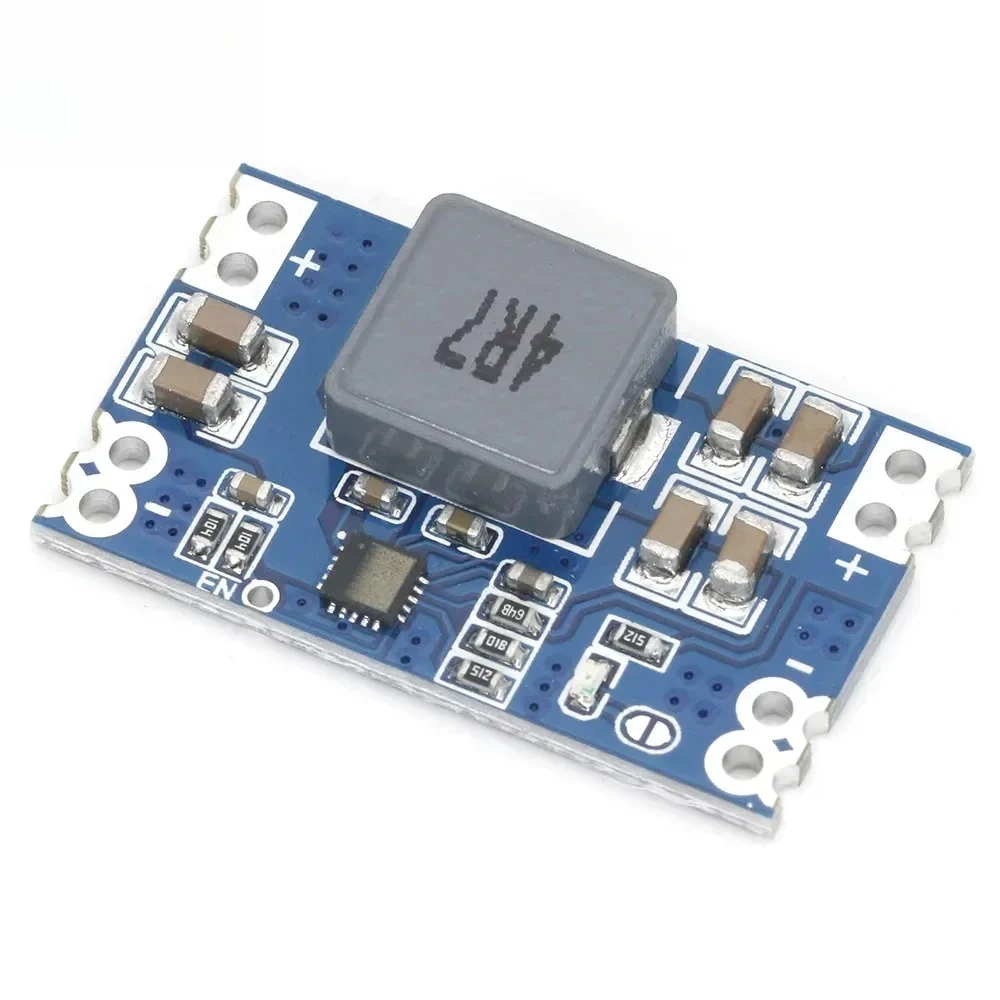

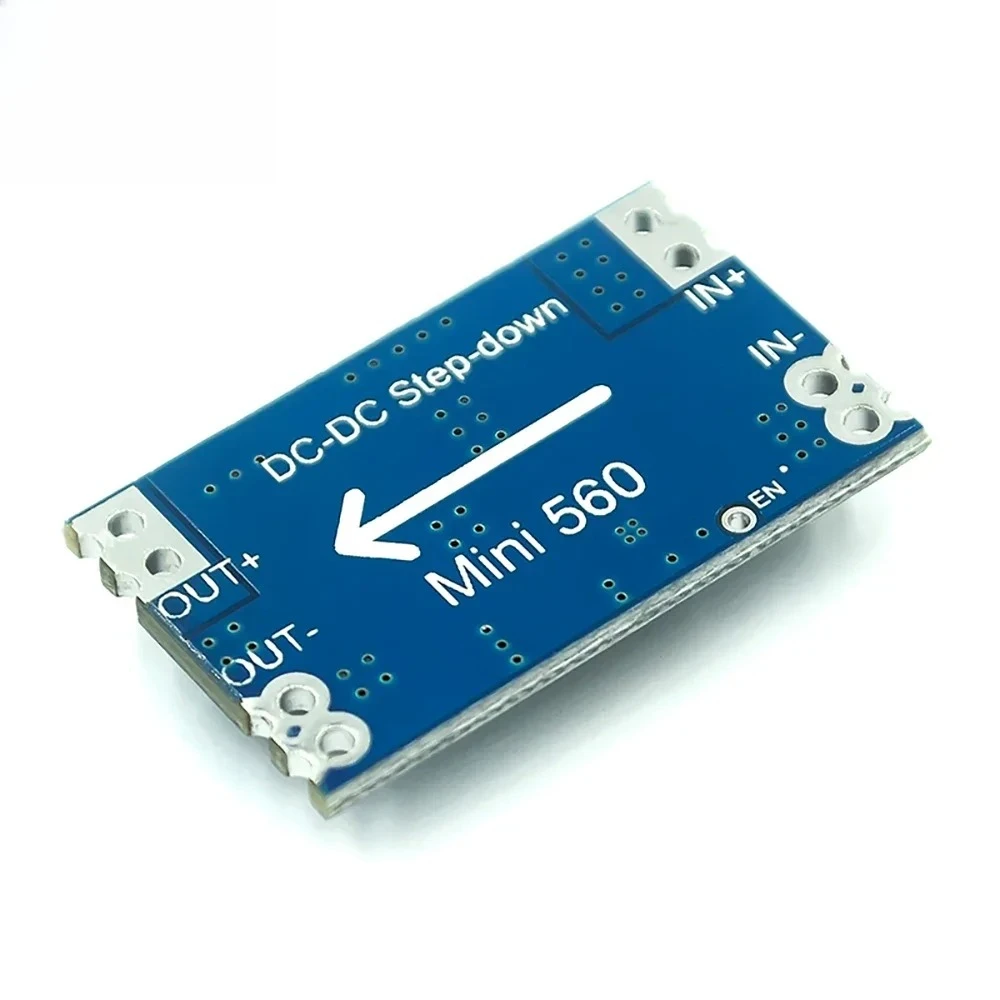

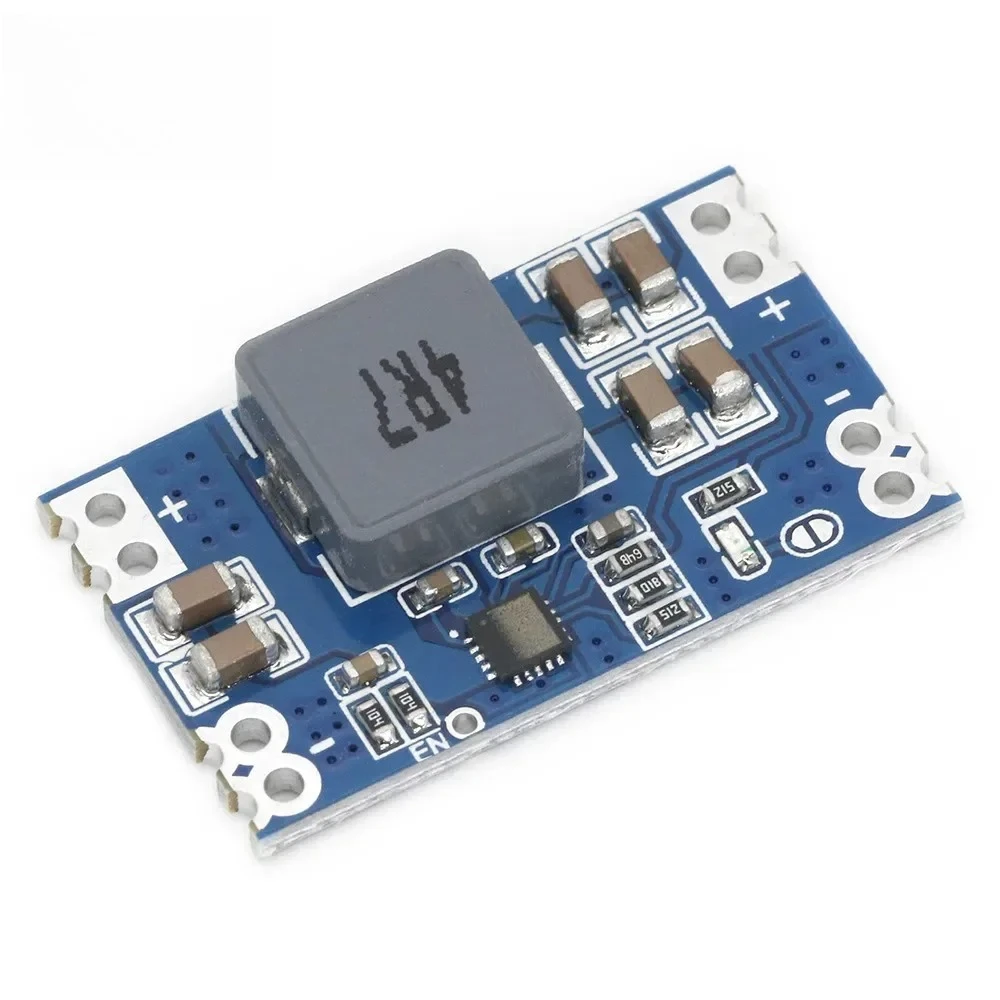

5A Mini560 Buck DC - DC Converter High - Efficiency Voltage Regulator Power Module Adjustable 3.3V 5V 9V 12V Output
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><span style="font-size:22px"><span style="font-family:Arial, Helvetica, sans-serif"><strong><br />
Product Description:</strong></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br />
<br />
Model Name: Mini560<br />
Output voltage: 3.3V/5V/9V/12V<br />
Input voltage: 5.5V-20V (minimum voltage difference of 2V)<br />
Output current:<5A/4A, long-distance running over 4A/3A requires heat dissipation<br />
Switching frequency: 500KHz<br />
Conversion efficiency: 99% (highest)<br />
Working temperature: 40 ° C to+85 ° C<br />

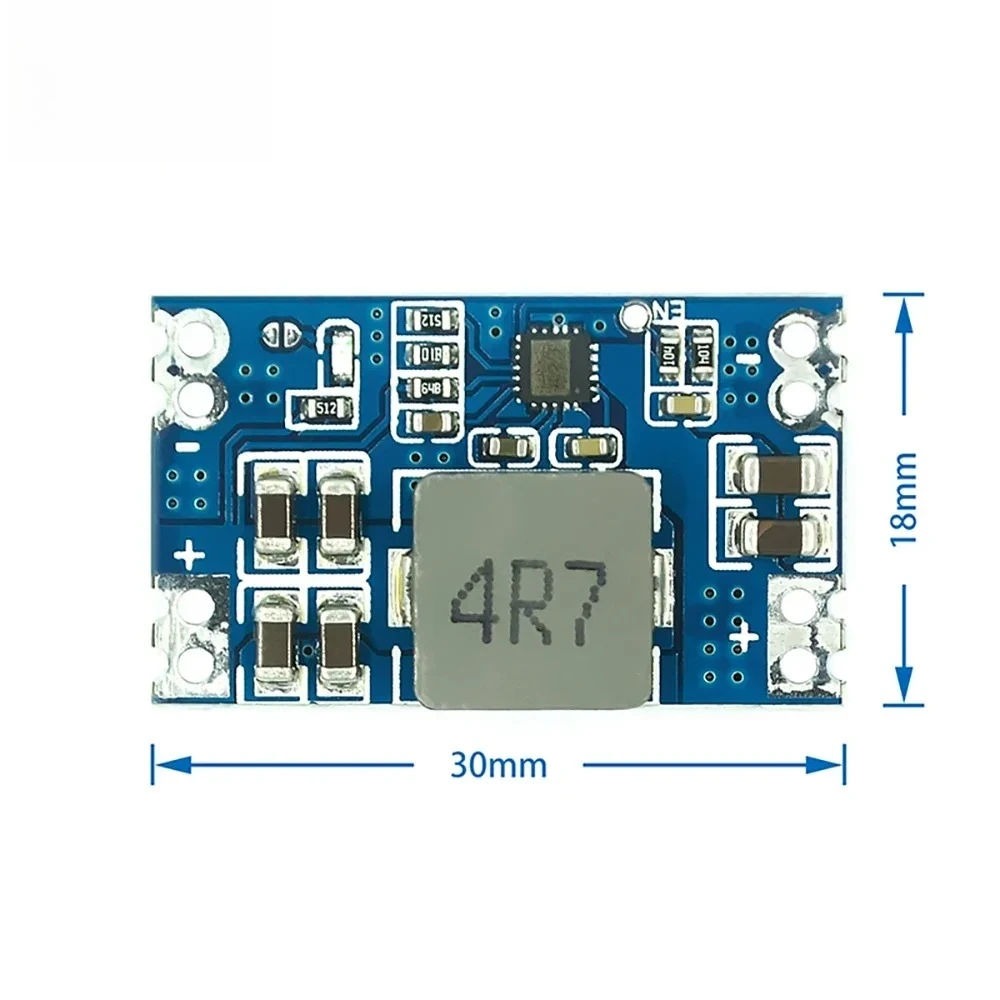

Peripheral dimensions: 29 * 18 * 5.4 (length * width * height) (mm)<br />
Module nature: Non isolated voltage reduction<br />
Rectification method: synchronous rectification</span></span><br />
<br />
<span style="font-size:22px"><span style="font-family:Arial, Helvetica, sans-serif"><strong><br />
Product parameters:</strong></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br />
<br />
1. Output 3.3V<br />
Output voltage: 3.3V<br />
Input voltage: 5V-20V<br />
Output current:<5A (heat dissipation is required for long-distance running exceeding 4A)<br />
Pressure difference:>1.7V<br />
<br />
2. Output 5V<br />
Output voltage: 5V<br />
Input voltage: 7V-20V<br />
Output current:<5A (heat dissipation is required for long-distance running exceeding 4A)<br />
Pressure difference:>2V<br />
<br />
3. Output 9V<br />
Output voltage: 9V<br />
Input voltage: 11V-20V<br />
Output current:<4A (for long-distance running exceeding 3A, heat dissipation is required)<br />
Pressure difference:>2V<br />
<br />
4. Output 12V<br />
Output voltage: 12V<br />
Input voltage: 14V-20V<br />
Output current:<4A (for long-distance running exceeding 3A, heat dissipation is required)<br />
Pressure difference:>2V</span></span><br />
</div>
<p style="margin:0px;margin-bottom:0px;margin-top:0px;margin-left:0px;margin-right:0px;display:block;width:100%"></p>
</div></div>
$7.145
$4.565
- Category : Electronic Components & Supplies
- Brand : shop1103536869_store Shop1103536869 Store
