5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light
5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light
5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light
5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light
5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light
5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light
5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light
5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light
5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light
5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light
5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light
5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light

5PCS 3.7-4.2V 6.2-8.6V Metering Module 1S 2S Ternary Lithium Battery Capacity Board Level Indicator Power Display Mini LED Light

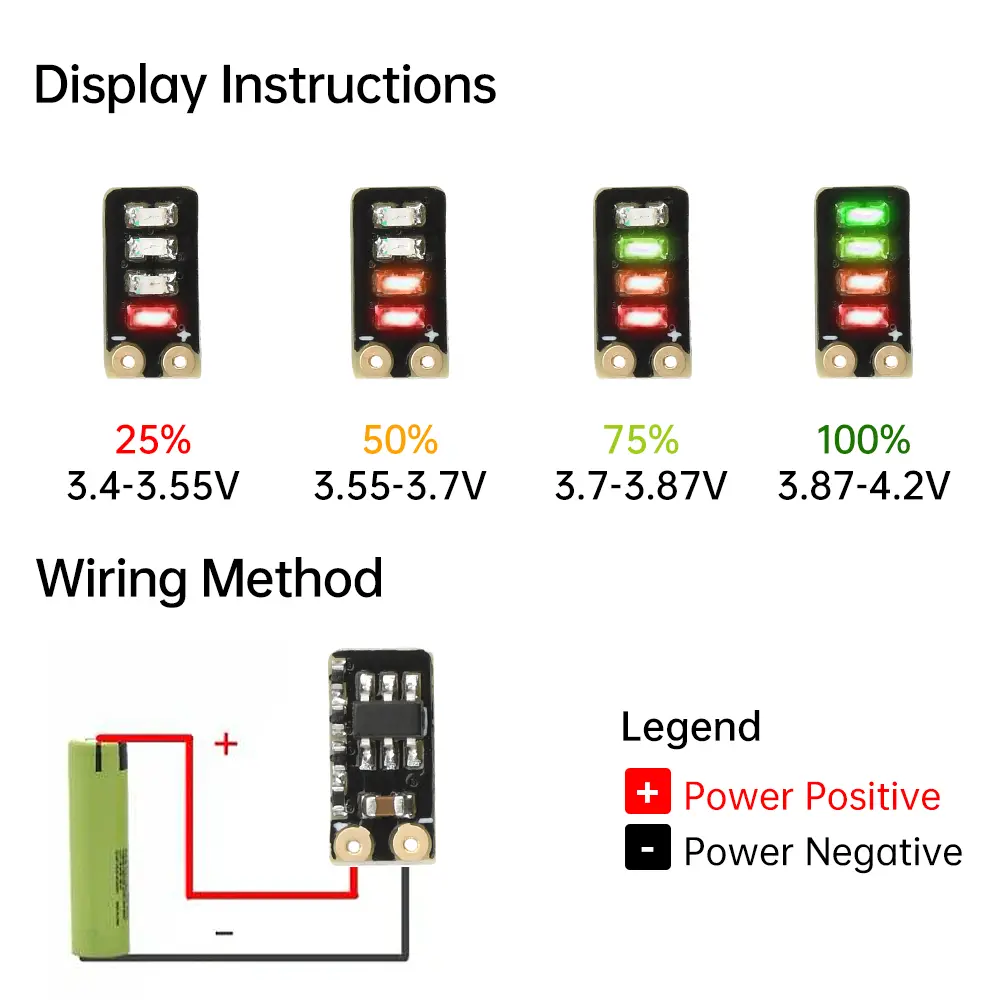

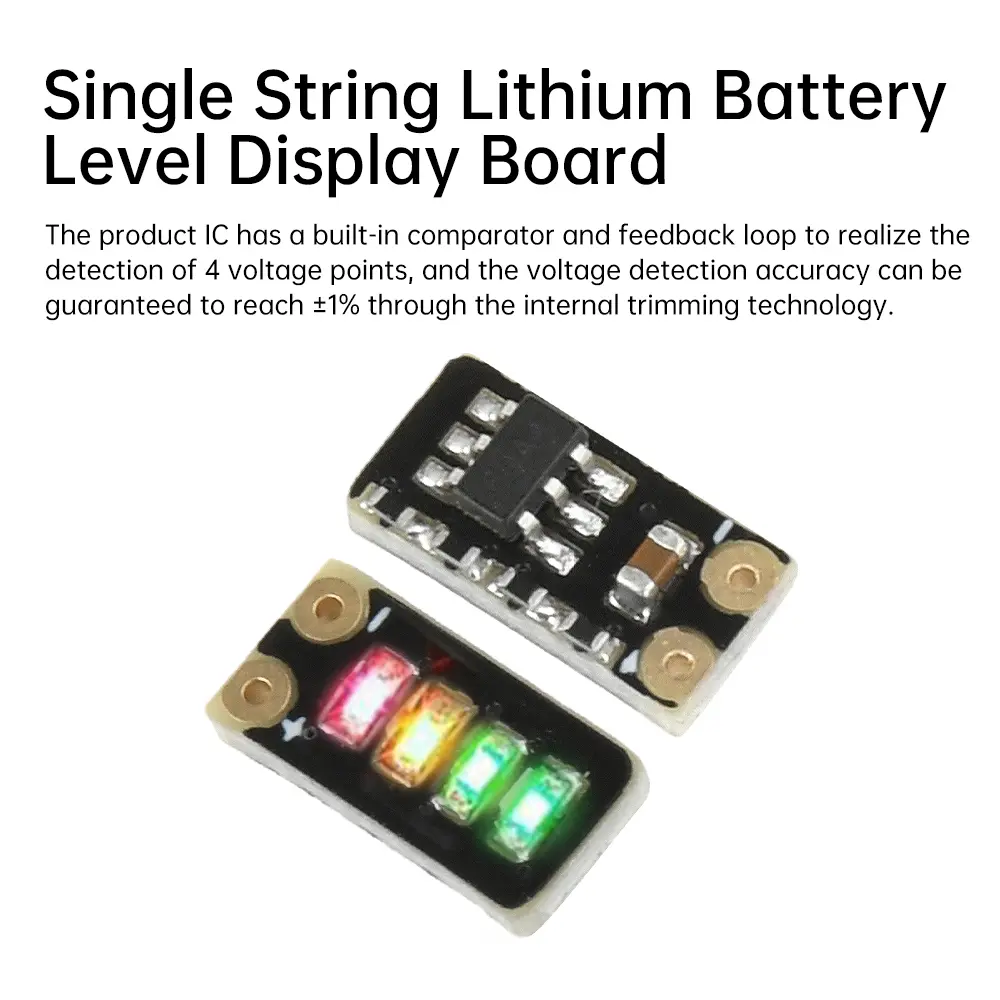

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004112422" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1. Ultra small size, only 5x9.5mm<br/>2.4-channel high-precision comparator and feedback loop built into the product IC<br/>3. Internal comparator with reasonable hysteresis, easy to do charge and discharge instructions<br/>4. High precision voltage detection, ±1% error, supports 4 voltage points detection<br/>5. Adopting green, yellow and red three-color light display to highlight the power status</div><div><br/></div><p>Parameter:<br/>Product Name: Metering Module<br/>Voltage: 3.7~4.2V<br/>Voltage at 25%: 3.4~3.55V<br/>Voltage at 50%: 3.55~3.7V<br/>Voltage at 75%: 3.7~3.87V<br/>Voltage at 100%: 3.874~4.2V<br/>Comparator: 4-way<br/>LED color: Green|Yellow|Red<br/>Size: 5x9.5mm</p><p>Package include:<br/>Module x 5<br/></p></div></div><p><br/></p>
$10.205
$5.525

Colors

Sizes

-
+
<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000004112422" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1. Ultra small size, only 5x9.5mm<br/>2.4-channel high-precision comparator and feedback loop built into the product IC<br/>3. Internal comparator with reasonable hysteresis, easy to do charge and discharge instructions<br/>4. High precision voltage detection, ±1% error, supports 4 voltage points detection<br/>5. Adopting green, yellow and red three-color light display to highlight the power status</div><div><br/></div><p>Parameter:<br/>Product Name: Metering Module<br/>Voltage: 3.7~4.2V<br/>Voltage at 25%: 3.4~3.55V<br/>Voltage at 50%: 3.55~3.7V<br/>Voltage at 75%: 3.7~3.87V<br/>Voltage at 100%: 3.874~4.2V<br/>Comparator: 4-way<br/>LED color: Green|Yellow|Red<br/>Size: 5x9.5mm</p><p>Package include:<br/>Module x 5<br/></p></div></div><p><br/></p>
