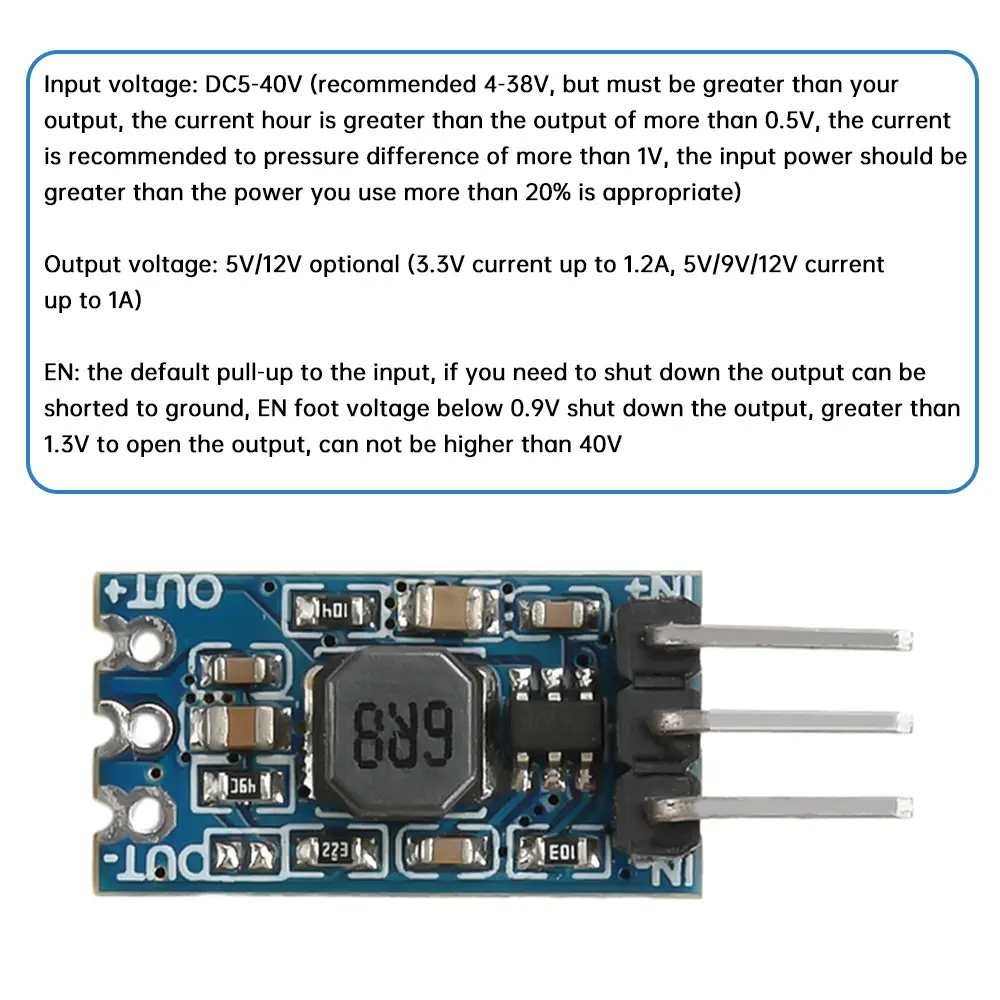

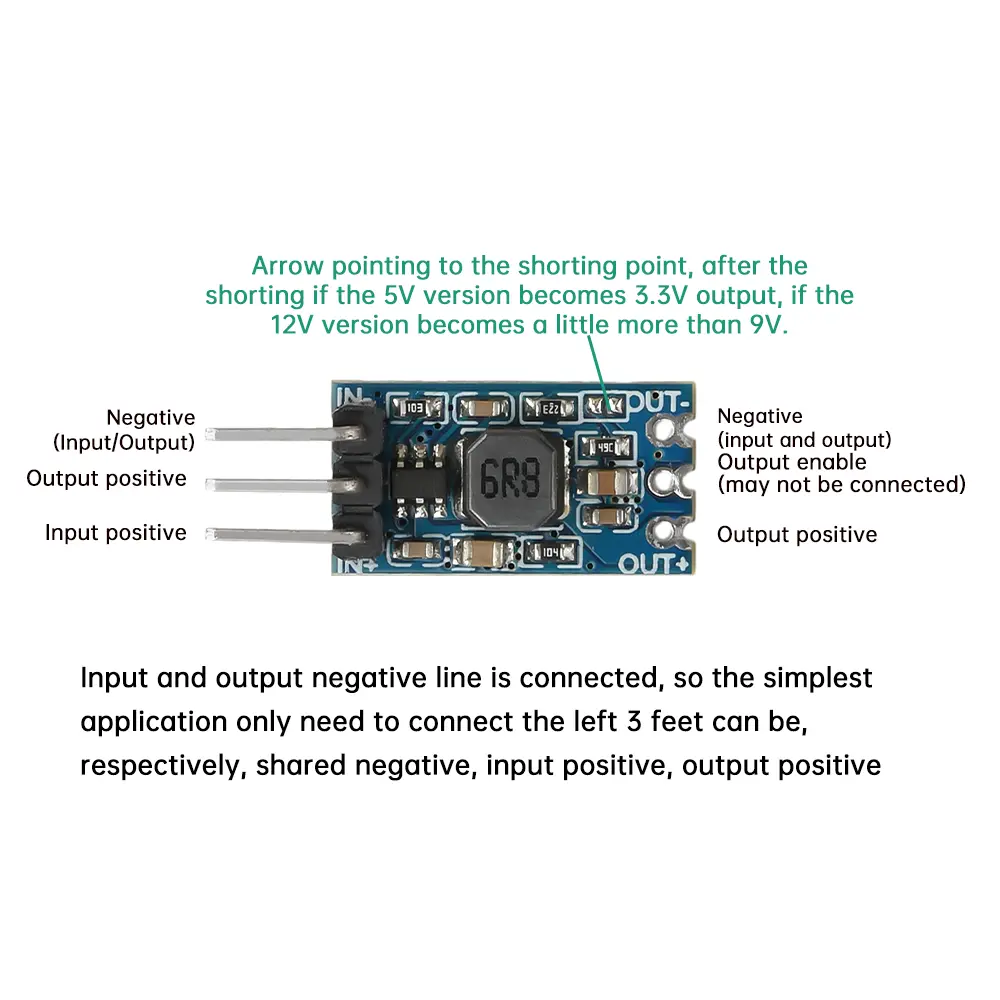

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000013403607" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1.Wide voltage input DC5-40V, adapt to a variety of power supply environment<br/>2. High-efficiency conversion, synchronous buck, reduce energy loss<br/>3. Miniature design, compact size, easy to integrate into a variety of equipment<br/>4. Simple to use, the product provides clear wiring diagrams<br/>5. Selection of high-quality materials, product quality assurance</div><div><br/></div><p>Parameter:<br/>Input voltage: DC5-40V (recommended 4-38V, but must be greater than your output, the current hour is greater than the output of more than 0.5V, the current is recommended to pressure difference of more than 1V, the input power should be greater than the power you use more than 20% appropriate)<br/>Output voltage: 5V/12V optional (3.3V current can reach 1.2A, 5V/9V/12V current up to 1A)<br/>EN: the default pull-up to the input, if you need to shut down the output can be shorted to ground, EN foot voltage below 0.9V shut down the output, greater than 1.3V to open the output, can not be higher than 40V</p><p>Warm tips:<br/>This module is a step-down module, can not be boosted, the use of synchronous buck, the efficiency is much higher than the asynchronous buck (asynchronous with a diode), heat is smaller, so the volume can be done very small, but also has a smaller differential pressure, while the module&#x27;s maximum operating voltage up to 38V, the maximum current of up to 1.2A, measured ripple performance is also very good, the module is our carefully selected materials and design, we choose to use the full power of the more expensive inductors, customers can rest assured that use! Inductors, customers can rest assured that the use.</p><p>Package include:<br/>Buck Module*1<br/></p></div></div><p><br/></p>
