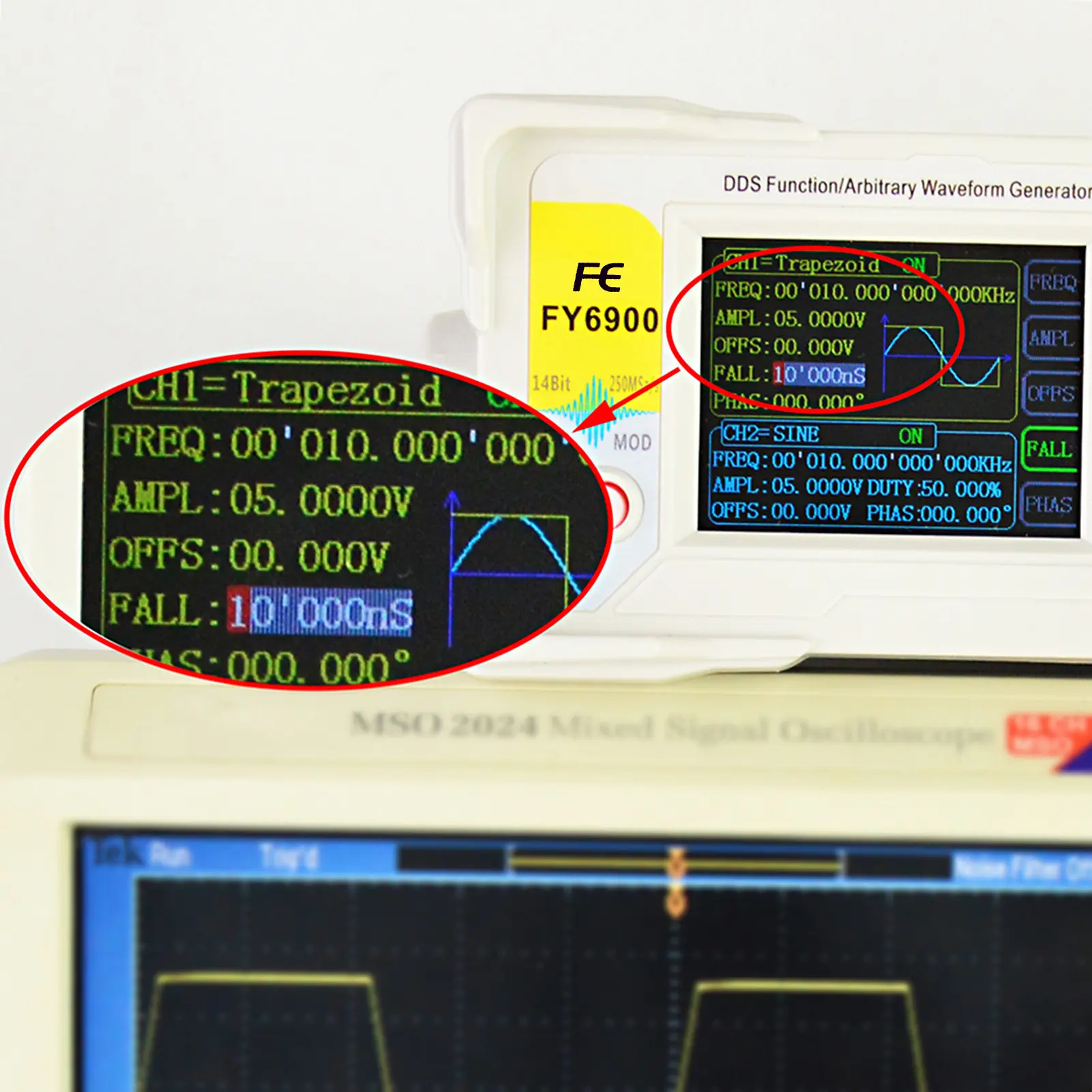

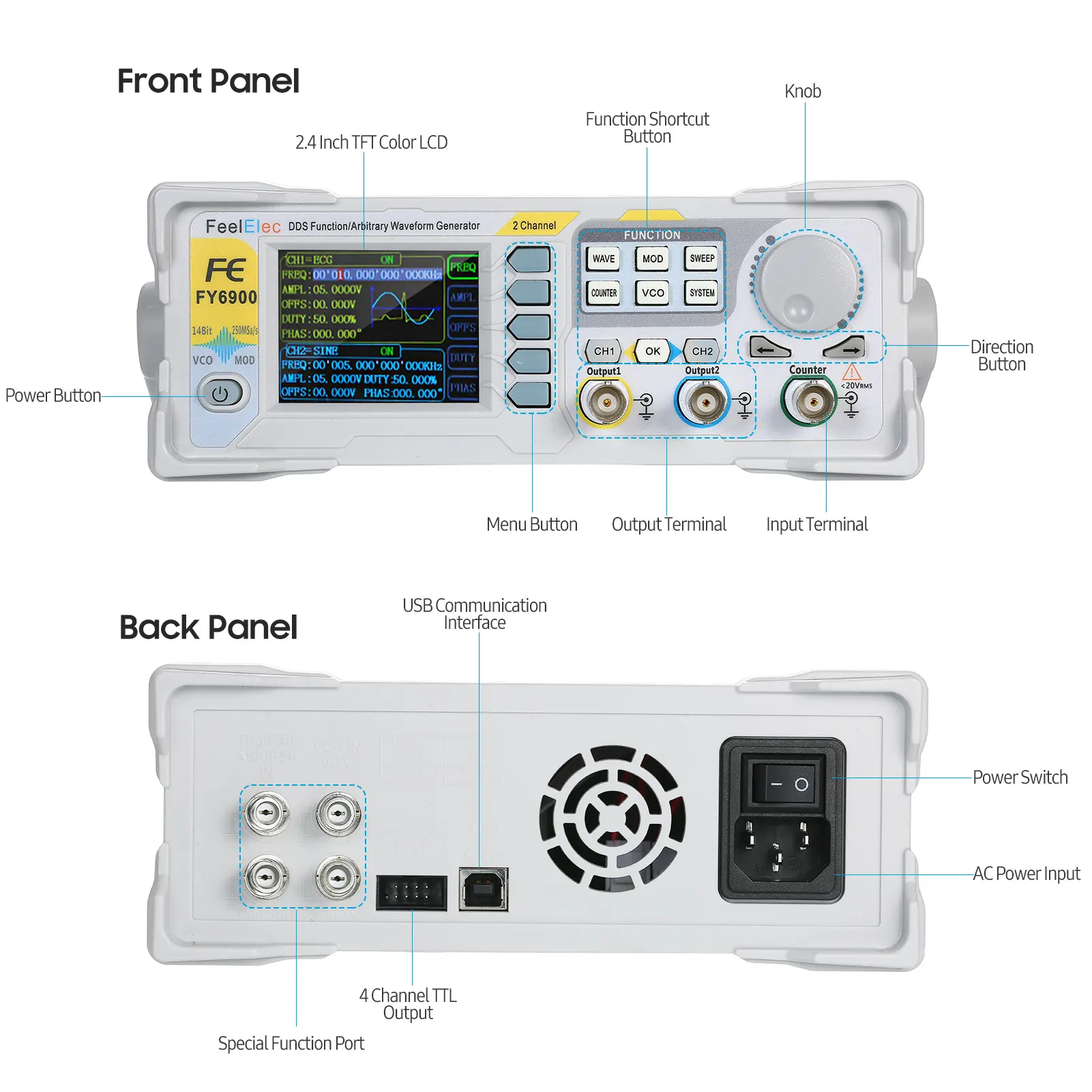

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div class="desc"><p data-we-empty-p="" style="text-align:center;"><b>60MHz Function Signal Generator High Precision Digital DDS Dual-channel Function Signal/Arbitrary Waveform Generator Pulse Signal Source 250MSa/s Frequency Meter VCO Burst AM/PM/FM/ASK/FSK/PSK Modulat</b></p><div style="font:Arial;font-size:16px;">Features:<br/>Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals.<br/>2.4 inch TFT color LCD with 320*240 resolution, simultaneously display parameters and graphics of CH1 and CH2.<br/>Adopt MagicPulse Technology, Low Jitter(RMS)The instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 300MSa/s sample rate, 14bits vertical resolution.<br/>Can output up to 99 groups of functions / arbitrary waveform, contains 35 groups of preset waveforms and 64 groups of user-defined waveforms. Preset waveforms: Sine, Square (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, CMOS(0～12V), Four channels TTL, Exponential Rise, Exponential Fall, Noise, ECG, DC etc.<br/>Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits; (The longer the waveform storage depth, the more detail the waveform is saved, and the signal details can be restored with high precision.)<br/>Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations.<br/>Sweep Function: it can sweep 4 properties of signals including frequency, amplitude, offset and duty cycle; It has Linear and Logarithm two sweep types; 0.01S～999.99S sweep time; Up, Down and roundtrip sweep directions.<br/>VCO Function (Voltage Control Output): can be achieved by an external input signal: voltage controlling frequency, voltage controlling amplitude, voltage controlling offset, voltage controlling duty cycle and PWM modulations.<br/>Burst Output Function: there has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output 1～1048575 pulse trains.<br/>Counter Function: it has 2 coupling measure modes including DC coupling and AC coupling. This design can solve inaccuracy problem of AC coupling.<br/>Standard dual full functional channels which are equivalent to two independent generators.<br/>Channel SYNC Function: support waveform copy and state copy between channels.<br/>Support two or more signal generators connected to achieve multi-channel output, the maximum support 16-channel synchronous output, the phase between each channel can be adjusted.<br/>Precisely adjust the phases of the two channels. Precision can be 0.01°.<br/>Min amplitude resolution can be up to 1mV. Amplitude range is 1mV～25Vpp.<br/>Duty-cycle of each channel can be adjusted independently 0.01%-99.99%, the adjusting resolution is 0.01%.<br/>-12V～+12V DC Offset function. Resolution 0.001V.<br/>Save Function: it can save 20 sets user-set parameters and can be loaded at any time.<br/>Communicating Function: all functions can be controlled by PC program and the communication protocol is open for secondary development.<br/>Output Short-circuit Protection: all channels can work more than 60 seconds when the load is short-circuited.<br/>Provide powerful waveform editing PC software. Users can download arbitrary waveform to this instrument after edit through PC program which is included in user CD.<br/>Adopt ABS plastic shell with table type design. Use 100-240V (AC) wide range voltage power supply.<br/><br/></div><div style="font:Arial;font-size:16px;">Specification:<br/>Plug & Model: EU Plug FY6900-20M / EU Plug FY6900-60M / EU Plug FY6900-100M / US Plug FY6900-20M / US Plug FY6900-60M / US Plug FY6900-100M / AU Plug FY6900-60M (Optional)<br/>Material: ABS<br/>Sine: 0~20MHz(20M), 0~60MHz(60M), 0~100MHz(100M)<br/>Sampling Rate: 250MSa/s(20M,60M), 300MSa/s(100M)<br/>Output Amplitude Range: 1mV～24Vpp(20M,60M), 1mV～25Vpp(100M)<br/>Vertical Resolution: 14 bits<br/>Waveform Length: 8192 points * 14bits<br/>Minimum Pulse Width: 20ns<br/>Modulation Type: AM, FM, PM, ASK, FSK, PSK<br/>Display: 2.4 inch (320*240), TFT color display<br/>Non-Volatile Storage: Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64<br/>Power: AC100V~240V<br/>Item Size: 210 * 195 * 75mm / 8.27 * 7.68 * 2.96in (L*W*H)<br/>Item Weight: 611g / 21.56oz<br/>Package Weight: 1065g / 37.51oz<br/>Package Size: 27 * 21 * 9.5cm / 10.63 * 8.27 * 3.75in<br/><p><br/></p><p><b>Package List:</b></p>1 * DDS Signal Generator<br/> 1 * Power Cable<br/> 1 * USB Data Cable<br/> 1 * BNC-BNC Cable<br/> 2 * BNC-Clip Cable</div><br/><p><br/><br/><br/><br/><br/><br/><br/><br/><br/></p></div></div></div>
