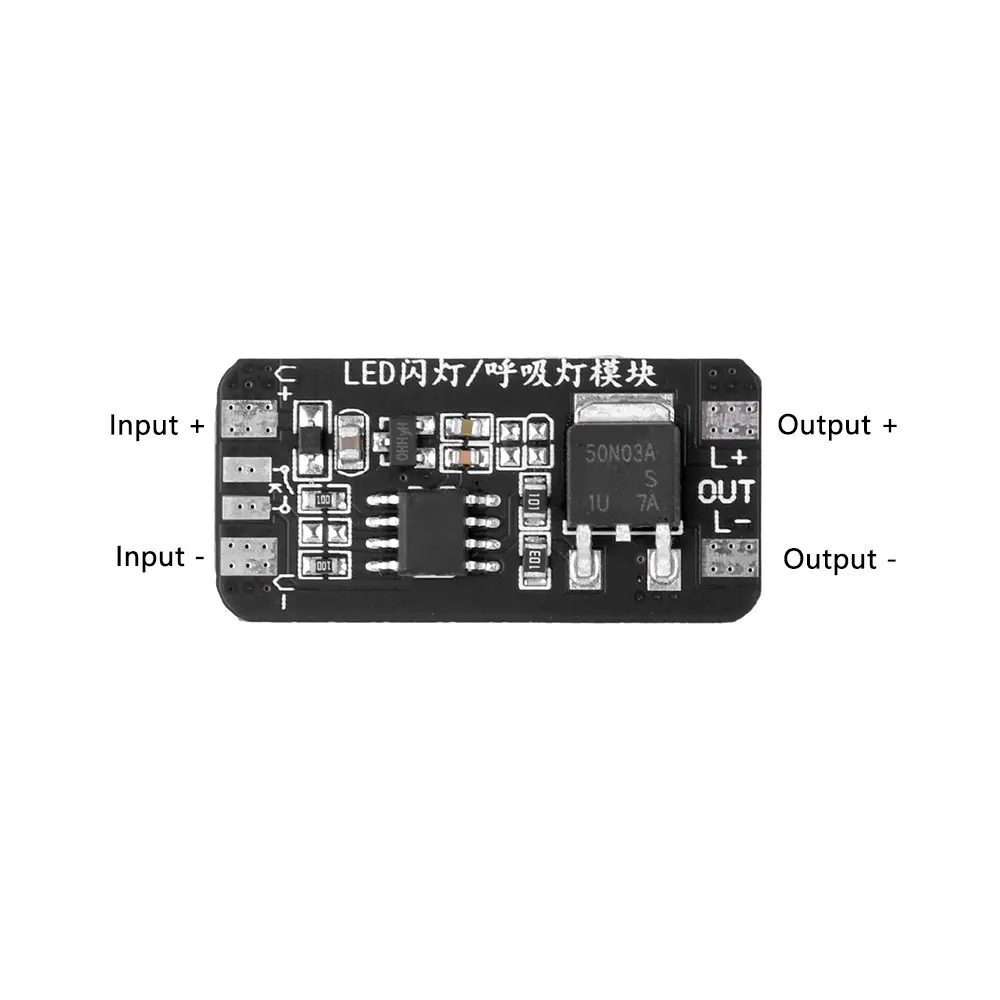

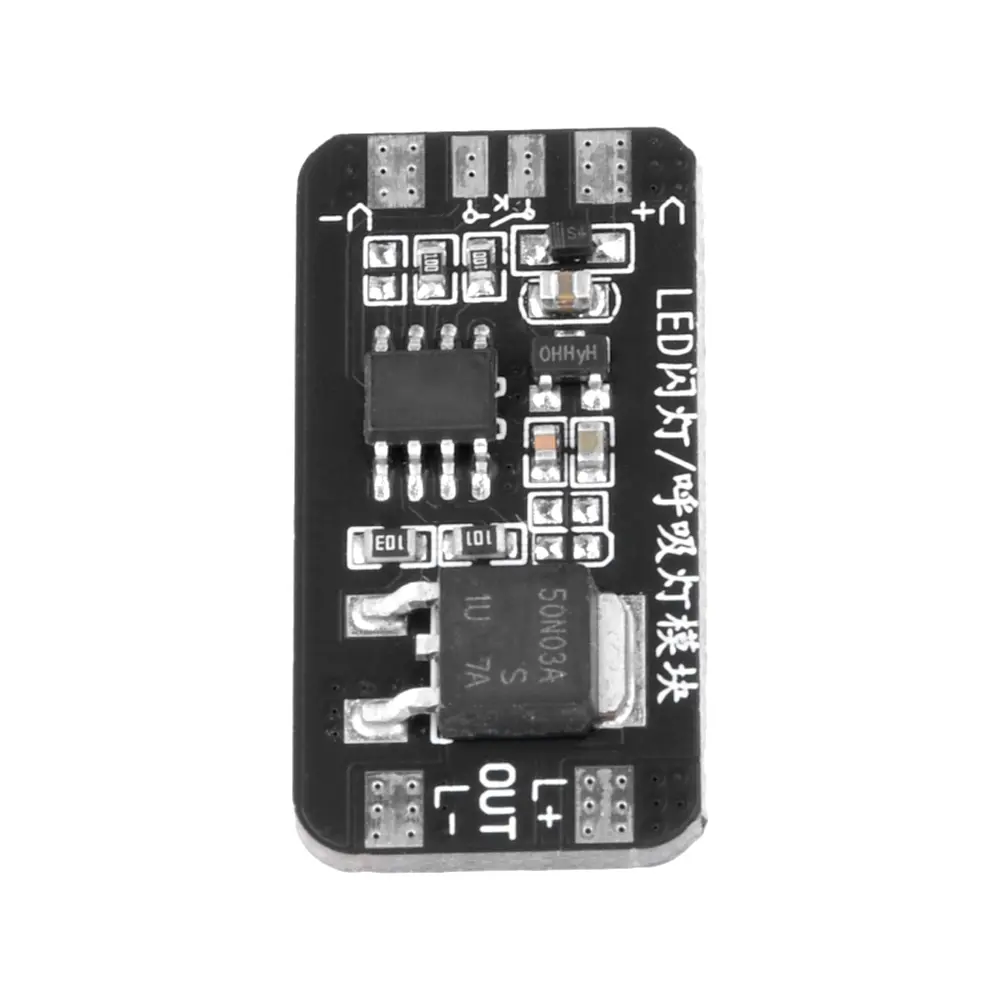

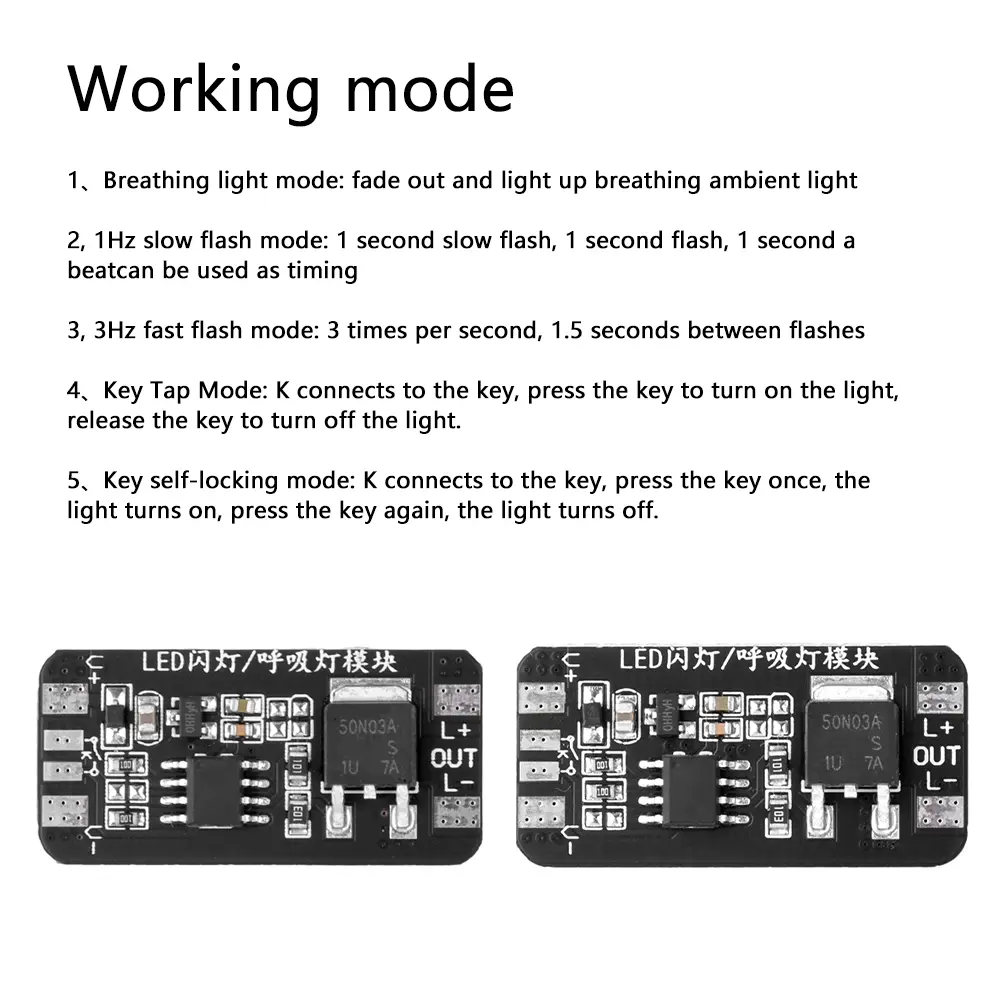

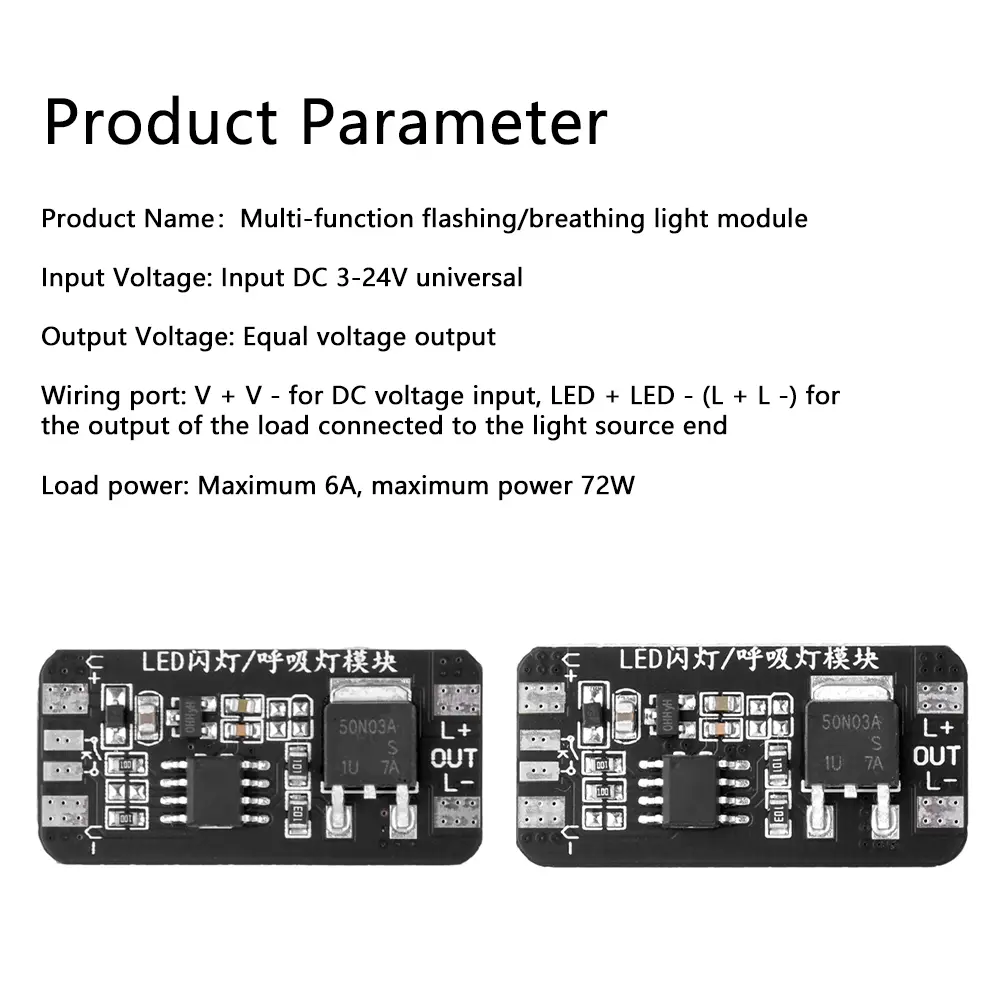

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000000542054" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1.The product is made of high quality PCB material, stable performance, quality assurance<br/>2.Product miniature design, very beautiful, simple and easy to use, power on that is bright<br/>3.Driving constant voltage LED lights, automotive halogen lamps, suitable for installation of various types of LED flashing ambient occasions, festive lights, Christmas lights, Christmas lights, decorations, vehicle tail light warning instructions, car ambient light, road construction and maintenance warning instructions, advertising patterns, flash word plates, chasing the star&#x27;s name plate, and so on The need to use flashing light function of the occasions<br/>4. Diversification of choices, five modes are optional: breathing light mode, 1Hz slow flash mode, 3Hz fast flash mode, push-button mode, push-button self-locking mode.<br/>5. Maximum 6A or less, maximum power 72W.</div><div><br/></div><p>Product Overview:<br/>This is a multi-functional flashing/breathing light module, easy to use, good stability, power on and light up.<br/>All-in-one integration: breathing light mode, 1Hz slow flash mode, 3Hz fast flash mode, key tapping and key self-locking function.<br/>Driving constant voltage LED lights, automotive halogen lamps, suitable for installation of various types of LED flashing ambient occasions, festive lighting string lights, Christmas lights and decorations, vehicle taillight warning instructions, automotive ambient light, road construction and maintenance warning instructions, advertising pattern flash signs, stargazers name plates, and so on need to use the flashing light function of the occasion.</p><p>Parameter:<br/>Product name: Multi-function flashing light/breathing light module<br/>Input voltage: input DC 3-24V universal<br/>Output voltage: equal voltage output<br/>Wiring port: V+V- for DC voltage input, LED+LED- (L+L-) for the output to the load light source end.<br/>Load power: up to 6A, maximum power 72W</p><p>Working mode:<br/>1, breathing light mode: fade out and light up breathing ambient light<br/>2, 1Hz slow flash mode: 1 second slow flash, 1 second flash, 1 second a beat can be used as timing<br/>3, 3Hz fast flash mode: 3 times per second, 1.5 seconds between flashes<br/>4、Key Tap Mode: K connects to the key, press the key to turn on the light, release the key to turn off the light.<br/>5、Key self-locking mode: K connects to the key, press the key once, the light turns on, press the key again, the light turns off.</p><p>Mode selection:<br/>1、Breathing light mode: 3H short or no connection<br/>2, 1Hz slow flash mode: 1H shorted (tin shorted or paste 0-10KR resistor can be)<br/>3, 3Hz slow flash mode: 2H shorted (with a tin short or stick 0-10KR resistor can be)<br/>4, key tapping mode: 1H bit and 2H bit common shorting (with tin shorting or paste 0-10KR resistor can be)<br/>5、Key self-locking mode: 1H position and 3H position common shorting (with tin shorting or paste 0-10KR resistor can)</p><p>Product Notes:<br/>1, the board for DC constant voltage mode of operation, when connected to the LED light source must be strung resistor current limiting, otherwise the input will maximise the output, accelerate the light source light failure.<br/>2, the board with input reverse protection, no output short-circuit protection, pay attention to check the wiring is correct and then powered on the work.</p><p>Package include: <br/>(mode optional) module *1<br/></p></div></div><p><br/></p>
