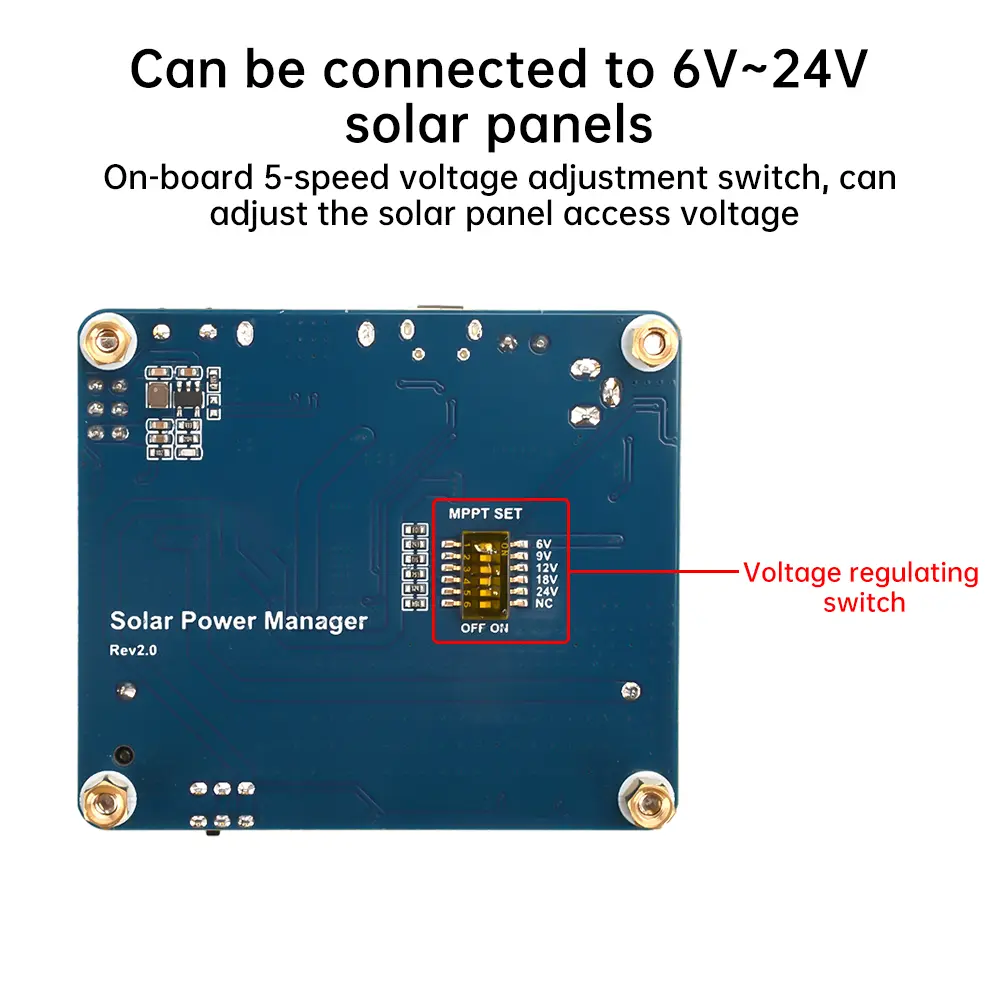

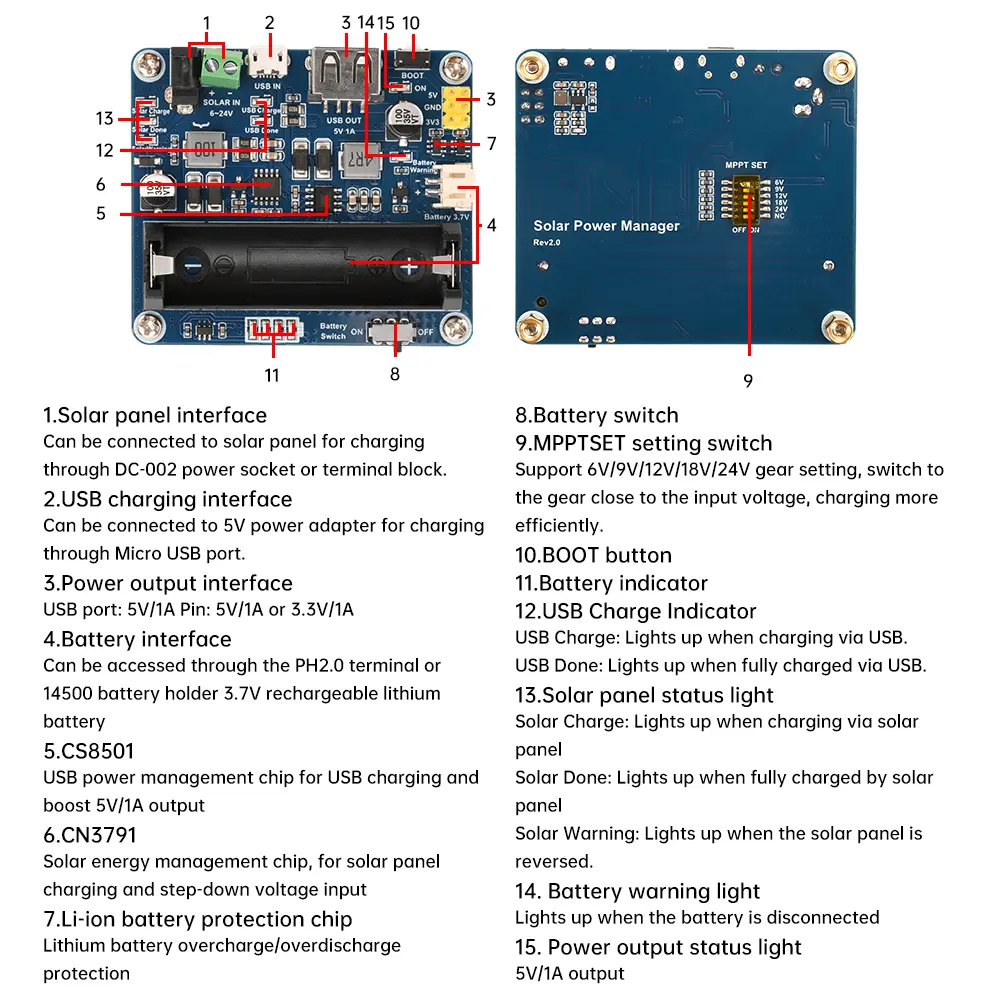

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000013406005" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Features:<br/>1. Support MPPT power point tracking function, can greatly improve the solar energy conversion efficiency<br/>2. Supports solar panel, power adapter or USB charging methods.<br/>3. Suitable for 6V~24V solar panels, which can be accessed through DC-002 power socket or terminal block.<br/>4. On-board MPPT SET setting switch, switch to a gear close to the input voltage, charging efficiency is higher.<br/>5. On-board pin and USB two forms of voltage output interface, USB interface supports 5V output, while the pin interface supports 3.3V or 5V output.<br/>6. On-board high-capacity aluminum electrolytic capacitors and chip ceramic capacitors to reduce ripple and work more stable.<br/>7. 14500 battery holder and PH2.0 battery socket on board, convenient access to a variety of specifications 3.7V rechargeable lithium batteries<br/>8. On-board multiple status indicators, easy to check the solar panel and battery status.<br/>9. On-board anti-overcharge, anti-over-discharge, anti-reverse connection, anti-temperature, anti-current and other protection circuits, stable and safe work.</div><br/><p>Parameter:<br/>Solar panel input voltage: 6-24V (default 6V)<br/>Charging mode: solar panel, power adapter, USB<br/>Lithium battery specifications: 3.7V 850mAh 14500 lithium battery (not included in the shipment)<br/>USB input voltage: 5V (Micro USB interface)<br/>Power output: 5V/1A (USB OUT, row pin) 3.3V/1A (row pin)<br/>Charge Cut-off Protection Voltage: 4.2V ±1%<br/>Over-discharge protection voltage: 2.9V ± 1%<br/>Solar panel charging efficiency: approx. 78<br/>USB Charging Efficiency: Approx. 82<br/>Battery Boost Output Efficiency: Approx. 86<br/>Quiescent current (Max): &lt;2mA<br/>Operating temperature: -40°C-85°C</p><p>Package include:<br/>Power Management Module *1<br/><br/></p></div></div><br/>
