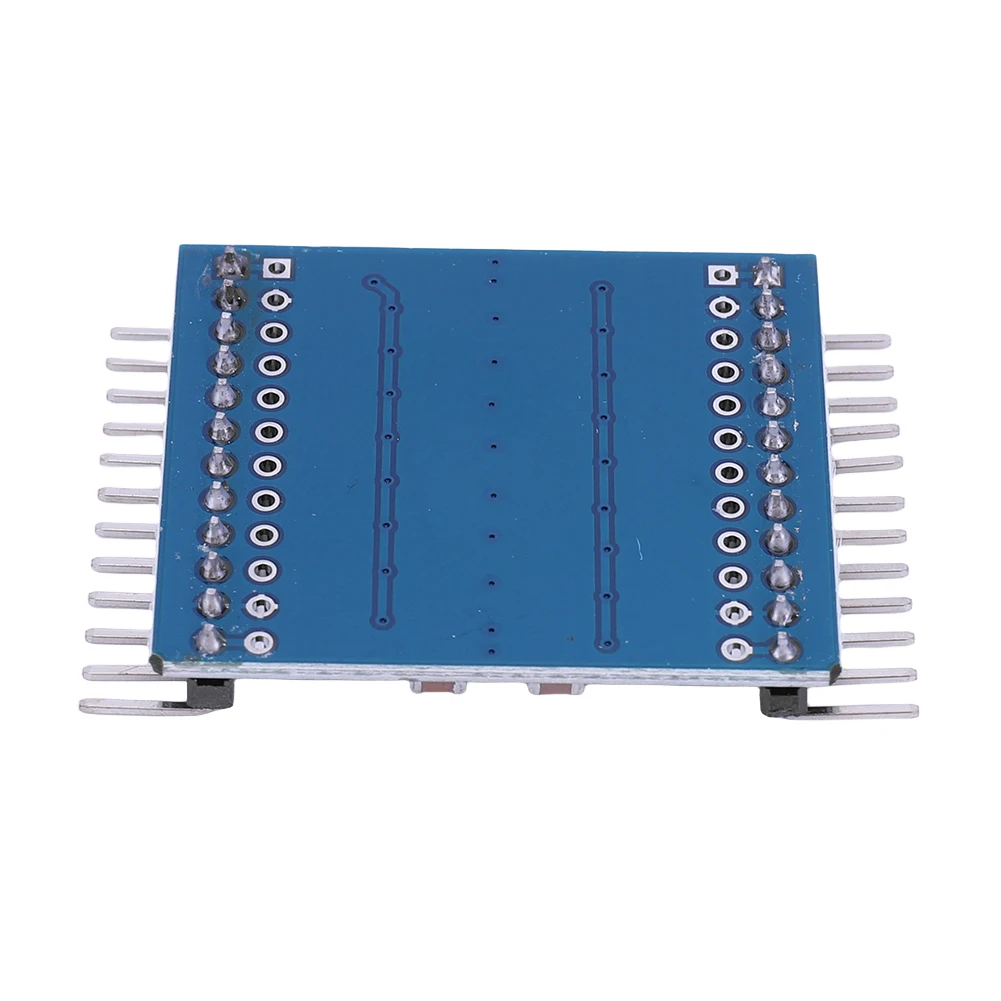

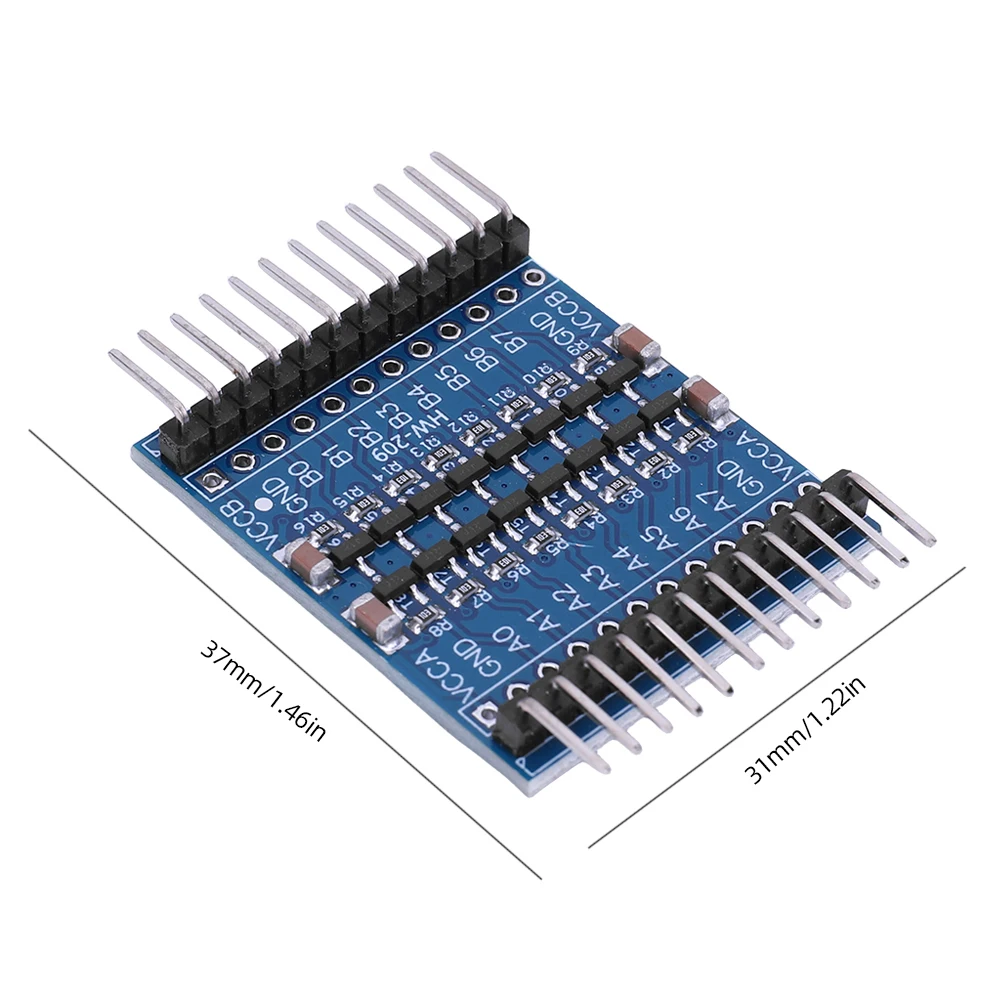

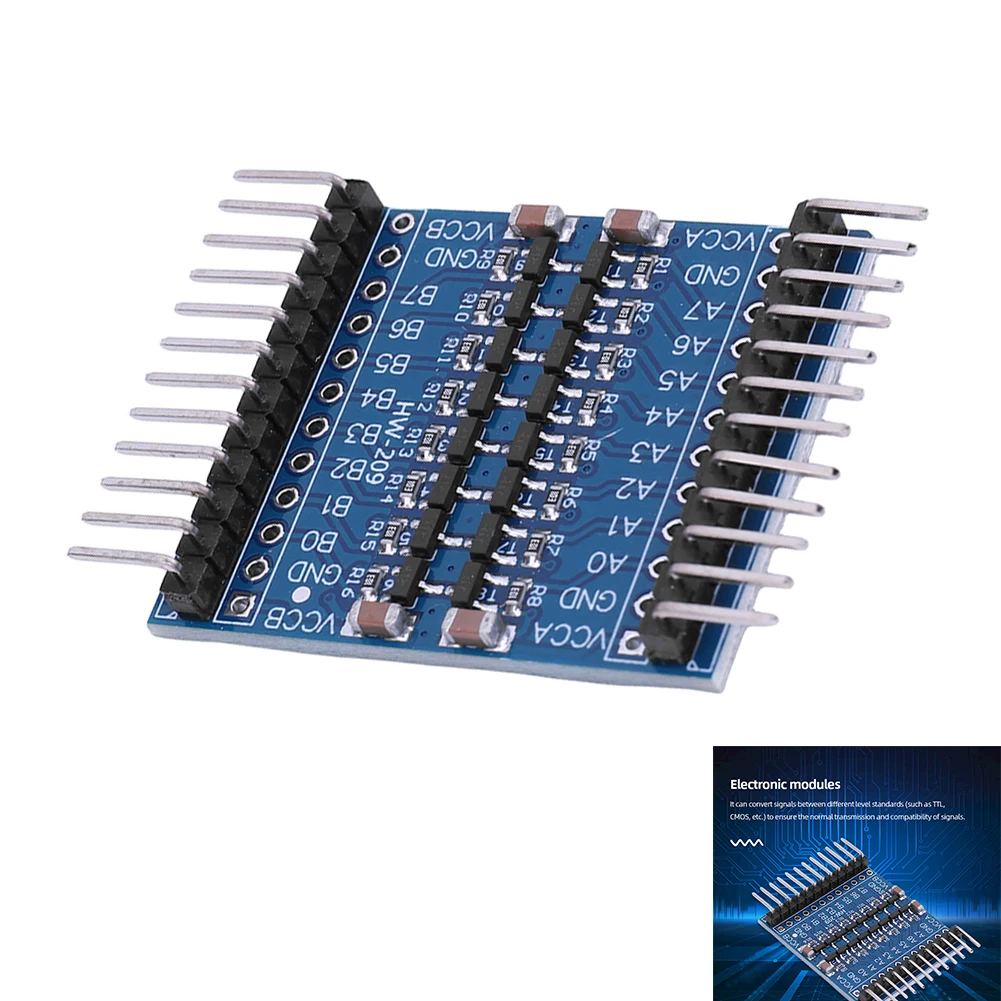

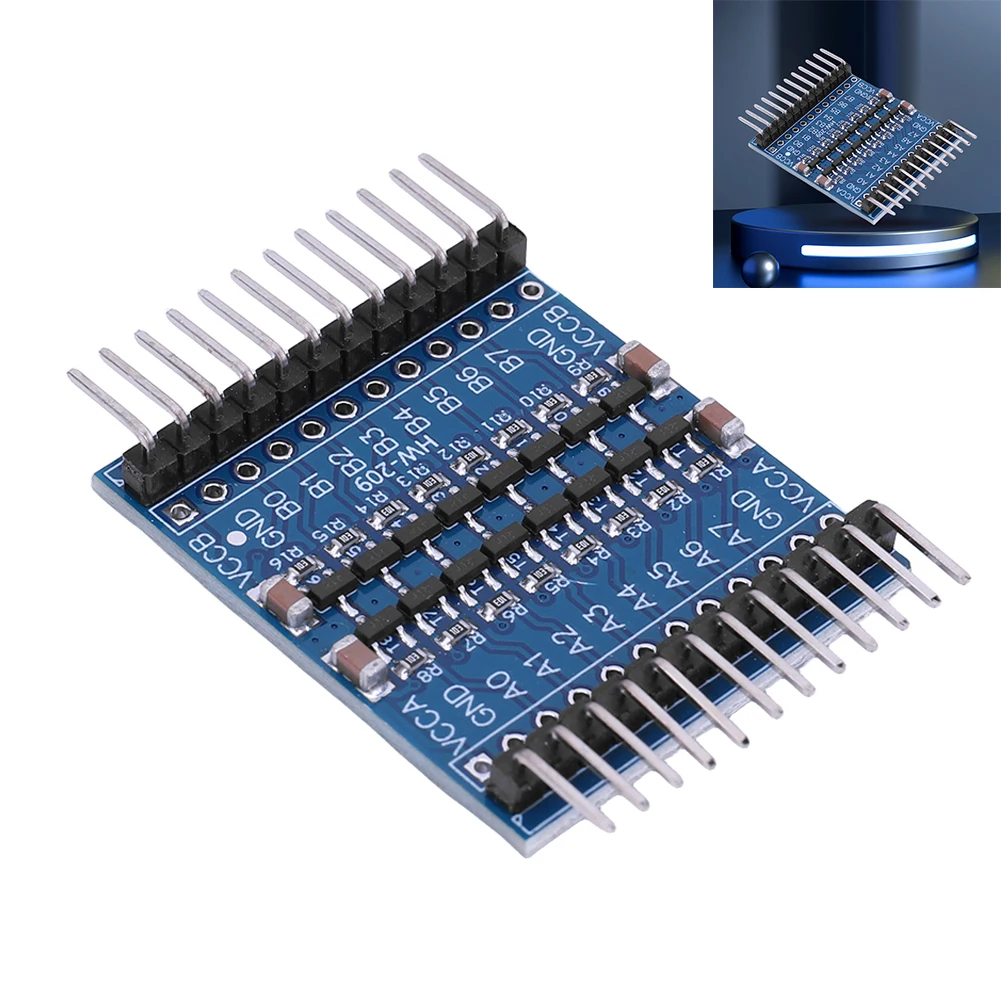

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p> <br /> </p> <p> <br /> </p> <div> <div> <br /> </div> </div> <div style="padding:15px;border:solid 1px #aeaeae;"> <p> <span style="color:black;font-family:inherit;font-size:12px;">8 Channel Logic Level Shifter Bi-Directional Module 5V/3.3V Level Converter IO Bidirectional Mutual Converter for Raspberry Pi<br /> <strong>Features:</strong><br /> <strong>1. Multi-Channel, High-Speed Transmission:</strong> With 8 independent channels, this logic level converter enables simultaneous conversion of multiple signals, enhancing efficiency and convenience. It supports high-speed transmission, capable of handling tasks requiring fast and accurate data transfer at high frequencies.<br /> <strong>2. Logic Level Conversion:</strong> This level conversion module can seamlessly convert signals between different voltage standards (such as TTL, CMOS, etc.), ensuring smooth signal transmission and compatibility.<br /> <strong>3. Bidirectional Conversion:</strong> The bi-directional board module support bidirectional conversion, allowing for level conversion in both directions to meet various signal transmission needs.<br /> <strong>4. Low Power Consumption, Wide Voltage Range:</strong> Designed with low power consumption, this logic level switching shifter saves energy and extends device usage time. It operates within a wide voltage range, adapting to various working environments and power conditions.<br /> <strong>5. Stability and Easy Integration:</strong> Built with stable circuit design and high-quality components, this logic level shifter bi-directional module ensures the stability and reliability of signal conversion. Its compact form factor and user-friendly interface design facilitate easy integration into a variety of electronic systems and devices.<br /> </span> </p><br/><br/><span style="color:black;font-family:inherit;font-size:12px;"><strong>Specification:</strong><br /> Origin: Mainland China<br /> Product Size: 37.00x31.00x5.00mm/1.46x1.22x0.2inch<br /> Product Description:<br /> Since&nbsp;for&nbsp;Raspberry Pi GPIO is 3.3V, it is inconvenient to connect the regular 5V sensor. Therefore, this product realizes 8-channel bi-directional conversion between high voltage logic and low voltage logic, and realizes bi-directional mutual transfer between Ax and Bx.<br /> Conversion Level Range: 1.8V-6V<br /> Instructions for Use: (3.3V, 5V interconversion as an example)<br /> 1. VCCA connects&nbsp;for&nbsp;Raspberry Pi 3.3V power supply.<br /> 2. VCCB connect to 5V power supply (can be external 5V power supply).<br /> 3. GND connects to the negative pole of the power supply, and the two power supplies share the same ground.<br /> 4. Ax input <span>for&nbsp;</span>Raspberry Pi 3.3V TTL level, Bx will output 5V sensor module TTL level.<br /> 5. Bx input 5V electronic module TTL level, Ax will output <span>for&nbsp;</span>Raspberry Pi 3.3V TTL level.<br /> <br /> Note:<br /> Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!<br /> Please allow 1-2cm measuring deviation due to manual measurement.<br /> <br /> </span><br /> <br /> </div> <div> <br /> </div> <div style="padding:15px;border:solid 1px #aeaeae;"> 1*Logic Level Converter <br /> </div> <p> </p> <div style="text-align:center;"> </div> <div> <div> <p> <br /> </p> </div> <div style="padding:15px;border:solid 1px #aeaeae;"> <br /> </div> <p> <br /> </p> </div></div></div>
