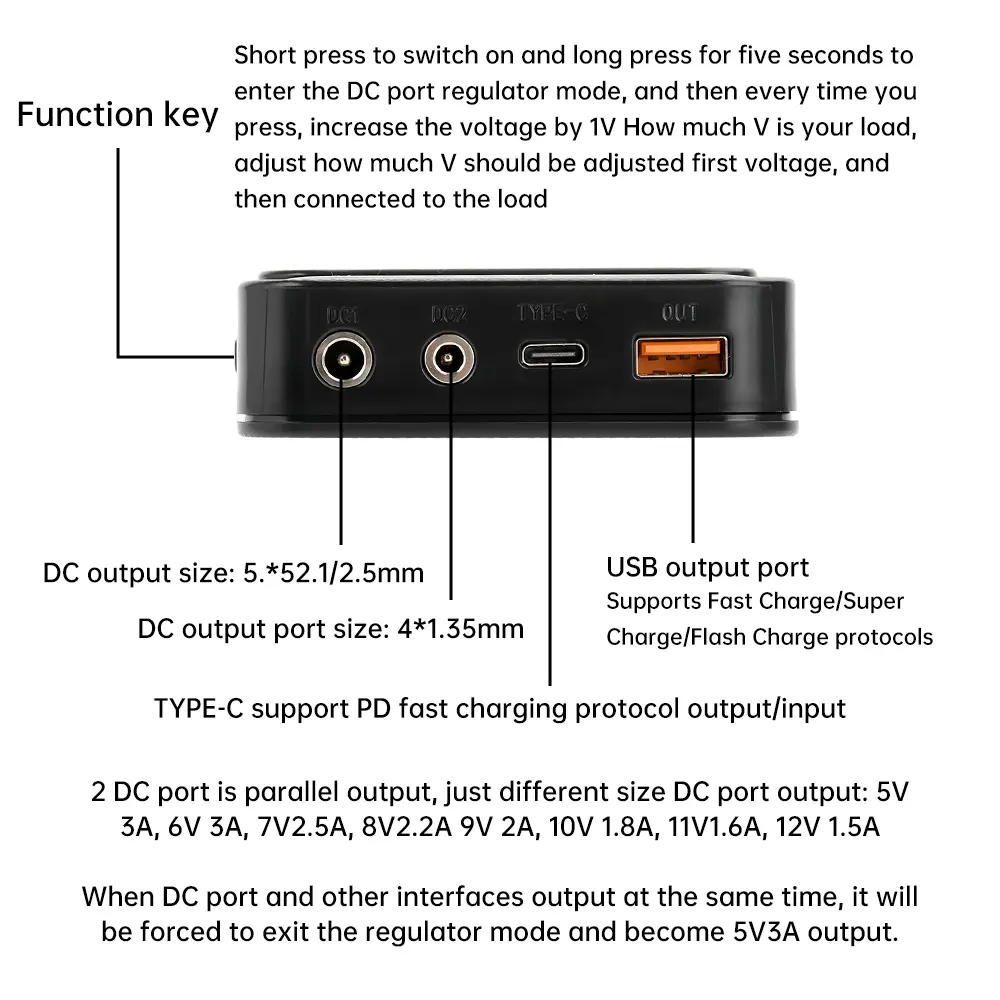

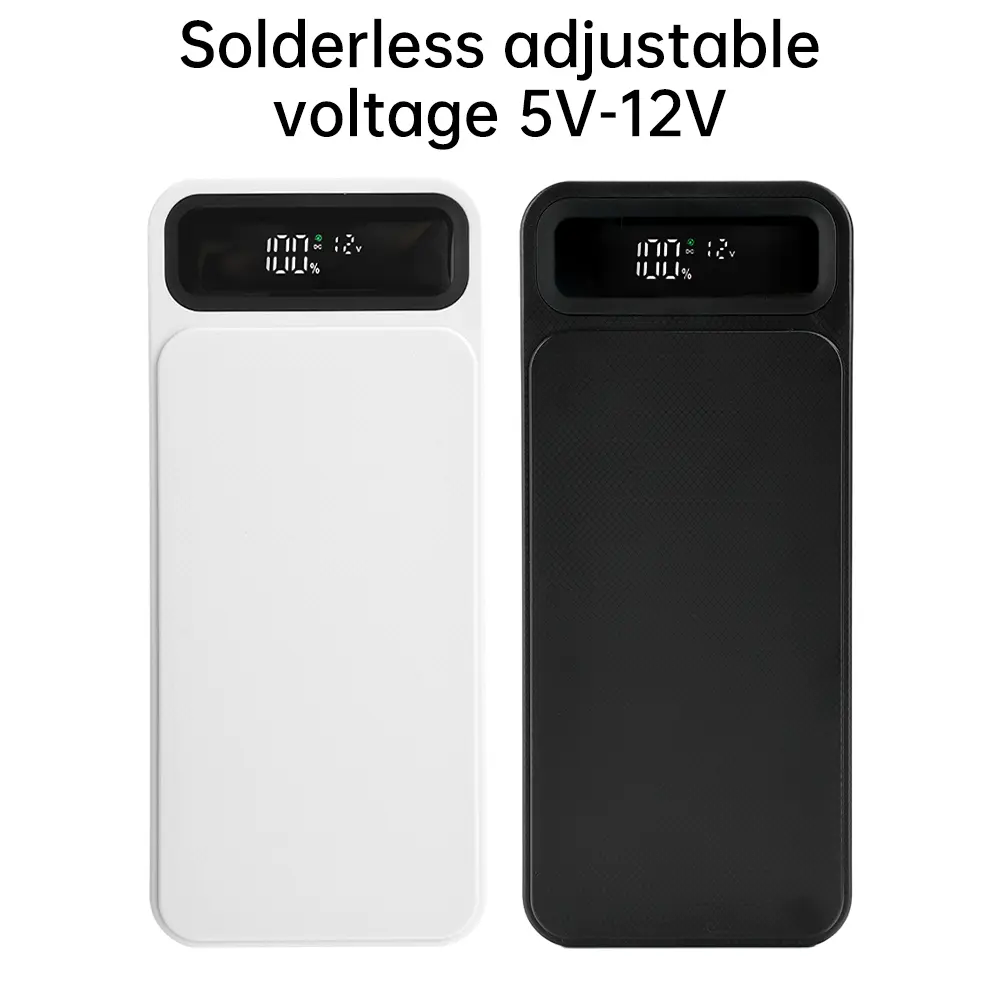

<div class="detailmodule_dynamic"><kse:widget data-widget-type="customText" id="1005000008514401" type="relation"></kse:widget></div><div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div><br/>Product selling points:<br/>1. Support 5-12V multi level output, flexible adaptation to different device needs<br/>2. No need for welding, easy assembly, suitable for DIY enthusiasts to operate easily<br/>3. Support built-in 18650 high-capacity battery, providing long-lasting battery life<br/>4. Equipped with efficient voltage regulation circuit to ensure stable output and protect connected devices<br/>5. Built in multiple protection functions to ensure safety and stability during use<br/>Product parameters:<br/>Output power: 22.5W<br/>USB output: 5V/3A, 9V/2A, 12V/1.5A (supports 5V charging and discharging at the same time)<br/>DC1+DC2 output: 5V/6V/7V/8V/9V/10/11V/12V (3A-1.5A) 18W<br/>Type-C output: 5V/3A, 9V/2A, 12V/1.5A (multi port simultaneous output only 5V)<br/>Type-C input: 5V/3A, 9V/2A, 12V/1.5A<br/>Battery requirements: Flat head unprotected 18650 battery, internal resistance within 40 milliohms, discharge above 1C<br/>Built in input overvoltage and undervoltage protection<br/>Integrated output overcurrent, overvoltage, and short-circuit protection<br/>Comes with battery overcharge, overdischarge, and overcurrent protection<br/>Built in IC over temperature protection<br/>Fast charging specifications (supporting protocols):<br/>Compatible with BC1.2, Apple, Samsung phone fast charging<br/>Integrated SCP 22.5W Super Fast Charging Output Protocol<br/>Integrated 22.5W flash charging output protocol<br/>Integrated QC4.0+/QC4.0/QC3.0/QC2.0 output fast charging protocol<br/>Integrated FCP AFC input/output fast charging protocol<br/>Support PPS, PE2.0, SFCP output fast charging<br/>Supports PD2.0/3.0, PE1.1 input/output protocols<br/>If the private protocol of the phone does not support (USB does not have fast charging), PD charging (TYPE-C output) can be used, and PD public protocol output is more stable<br/>DC Function Operation Instructions:<br/>1. Long press the button to enter DC mode (a prominent &quot;DC&quot; icon lights up in the center of the screen)<br/>2. Default output starts from 5V, DC1 and DC2 are connected in parallel and calibrated together<br/>3. Click the power button to increase the voltage, and it should not be too fast because double clicking (quick press twice) will turn off the output<br/>4. The voltage display sequence is: 5V-6V-7V-8V-9V-10V-11V-12V-12V cyclic output<br/>5. DC mode is continuous output and does not automatically sleep. To exit, double-click or long press the button to switch to USB mode<br/>If the DC mode is restarted after fast charging output, it is necessary to wait for 30 seconds for the DC boost to take effect<br/>7. If supplying power to equipment with a power output greater than 12W for a long time, it is recommended to use a single power battery with a capacity of no less than 2200mAh<br/>8. It is necessary to use a voltage range that meets the equipment requirements, and it is not recommended to choose a voltage that is too high, otherwise there is a risk of burning the machine<br/>9. The product is only suitable for DC devices under 18W, and cannot support devices beyond 18W. If connected to high-power devices, it will burn out the motherboard;<br/>10. Applicable devices: routers, switches, monitors, fish lights, LED lights, small water pumps, air conditioning suits, heating clothes, small speakers, small fans, radios, massage equipment, and other 5V to 12V timely charging devices<br/>Package List:<br/>Mobile power kit * 1 (optional style)<br/>Accessory package * 1<br/></div><br/></div></div><br/>
