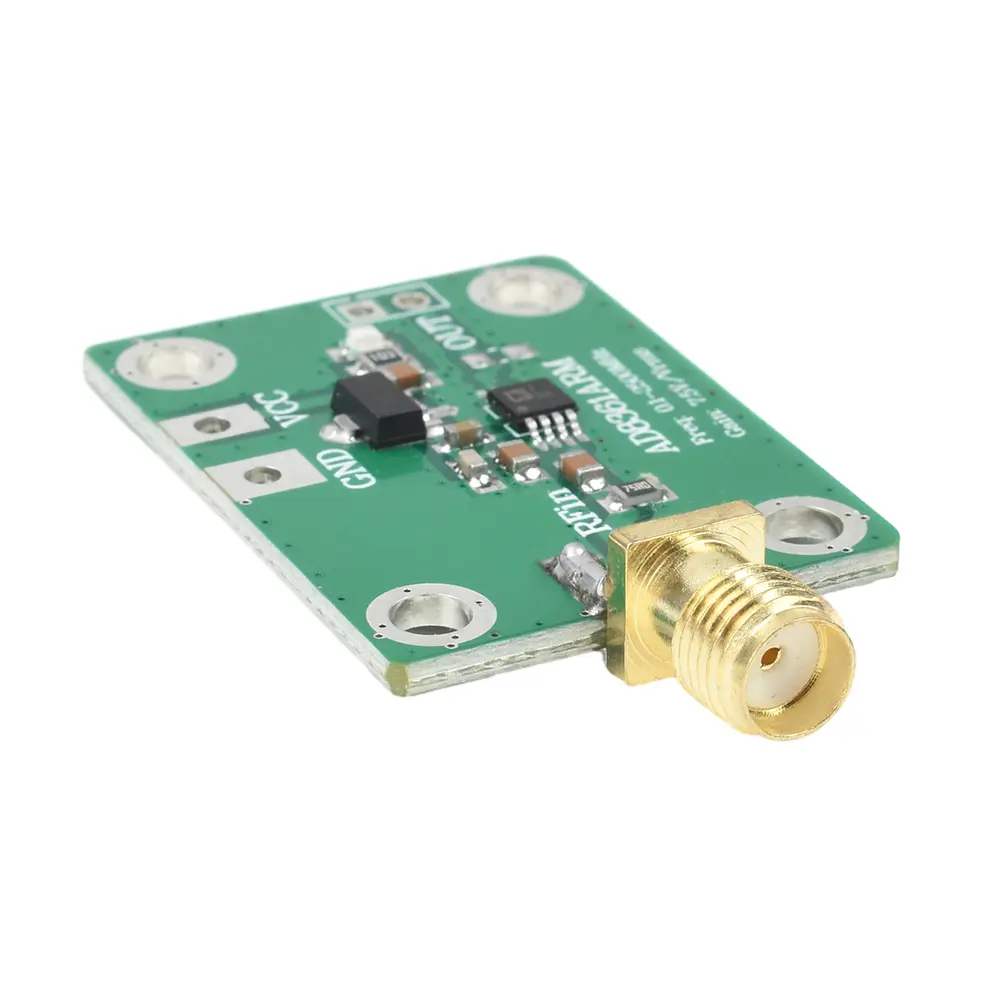

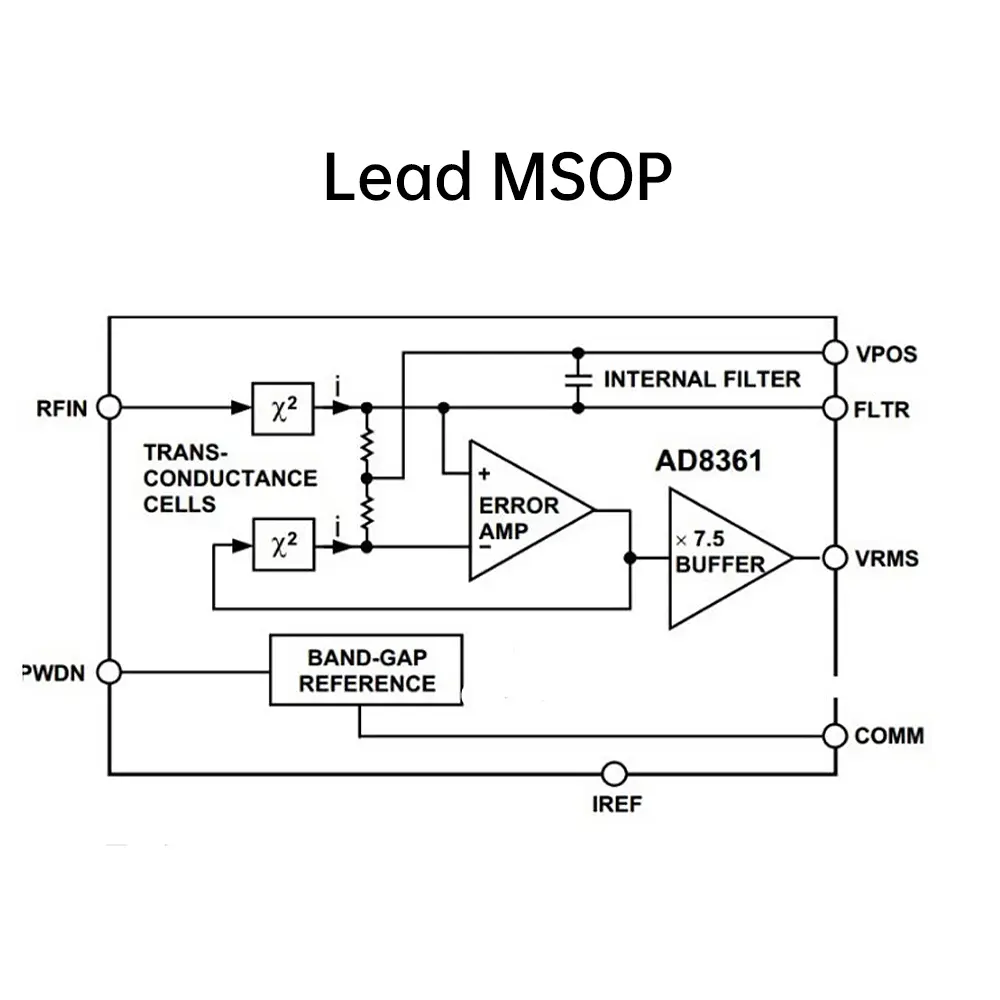

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1. Suitable for high frequency receiver and transmitter signal chains up to 2.5 GHz.<br/>2. An external filter capacitor can be added to improve the averaging time constant.<br/>3. Output is a linear response DC voltage with a conversion gain of 7.5V, V rms.<br/>4. Requires only a single 2.7-5.5 V power supply, power supply decoupling capacitor and input coupling capacitor to operate<br/>5. For simple and complex waveforms of true power measurement, especially suitable for measuring high crest factor (high peak-root-mean-square ratio) signals<br/>6. Three modes of operation: grounded reference voltage source mode, internal reference voltage source mode, and supplied reference voltage source mode.</p><p>Parameter:<br/>Frequency range: 0.1-2.5 GHz<br/>Maximum input: 700 mV rms, 10 dBm (50 Ω resistor)<br/>±0.25 dB linear response (to 2.5 GHz)<br/>Single power supply: DC 2.7-5.5 V<br/>Low power consumption: 3.3 mW (3 V)<br/>Fast shutdown mode: below 1 μA<br/>Product size: 42*24*6.7mm</p><p>The AD8361 has three modes of operation to support a variety of analog-to-digital converter requirements:<br/>1. Reference voltage source ground mode with zero source.<br/>Internal reference voltage source mode, which biases the output to 350 mV above ground level.<br/>3, Supplied reference voltage source mode, which can bias the output to VS/7.5.</p><p>Package include:<br/>Module*1<br/><br/></p></div></div><p><br/></p>
