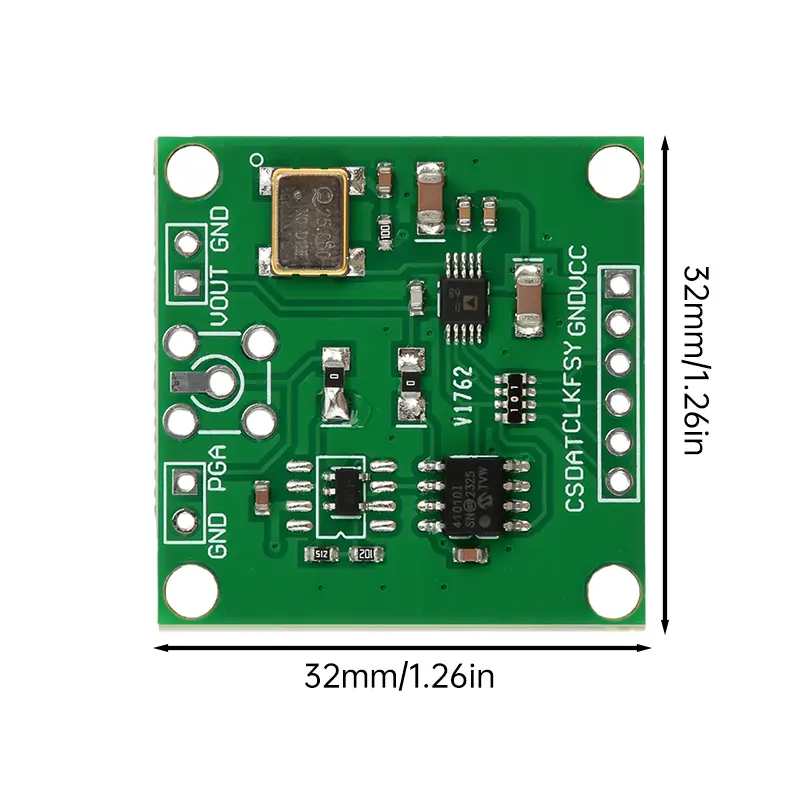

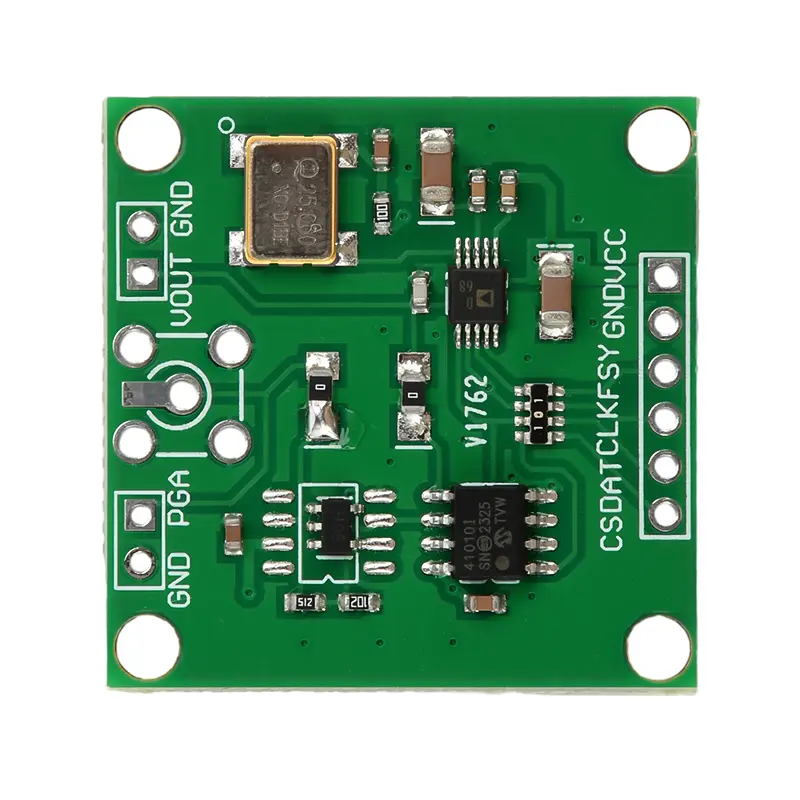

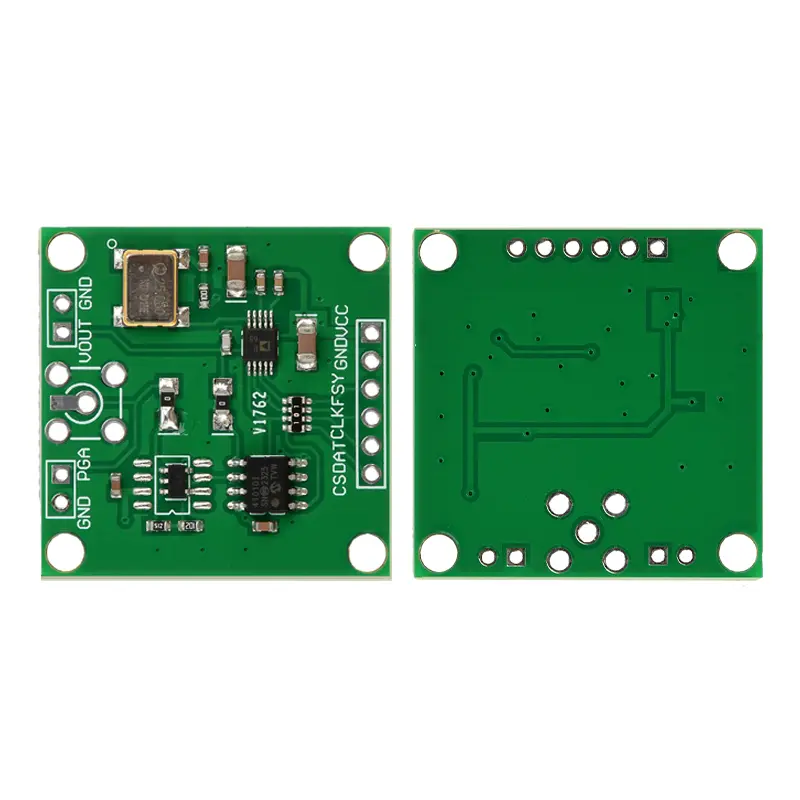

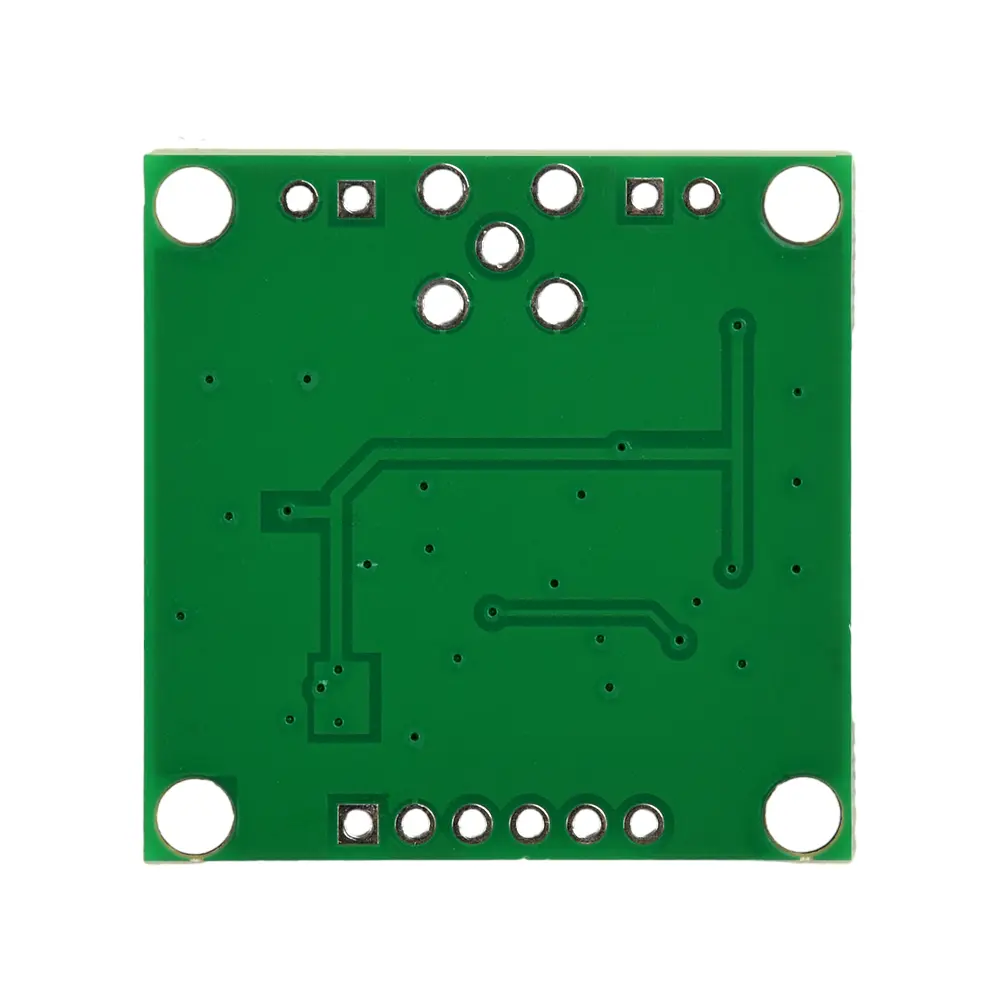

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p>Features:<br/>1.The AD9833 is a low-power, programmable waveform generator capable of producing sine, triangle, and square wave outputs.<br/>2. Waveform generators are required for all types of detection, signal excitation, and time-domain reflection (TDR) applications.<br/>3. Output frequency and phase are programmable via software for simple adjustment. No external components are required.<br/>4. The frequency register is 28-bit: at a clock rate of 25 MHz, a resolution of 0.1 Hz can be realized; while at a clock rate of 1 MHz, a resolution of 0.004 Hz can be realized.<br/>5. The AD9833 writes data through a three-wire serial interface. The serial interface is capable of operating at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards.<br/>6. The device is powered from a 2.3 V to 5.5 V supply. The AD9833 has a power save feature. This feature allows unused portions of the device to be turned off, thereby minimizing power consumption. For example, the DAC can be turned off when generating a clock output.</p><p>Parameter:<br/>Digitally programmable frequency and phase<br/>Power consumption: 12.65 mW (at 3 V)<br/>Output frequency range: 0 MHz to 12.5 MHz<br/>28-bit resolution: 0.1 Hz (25 MHz reference clock)<br/>Sine/triangle/square waveform outputs<br/>2.3V to 5.5V power supply<br/>No external components required<br/>3-wire SPI interface<br/>Extended temperature range: -40°C to +105°C<br/>Power saving options<br/>Update rate: 25MSPS<br/>Maximum Output Voltage: 0.65V<br/>Minimum Output Voltage:38mV</p><p>Package include:<br/>1X module<br/><br/></p></div></div><p><br/></p>
