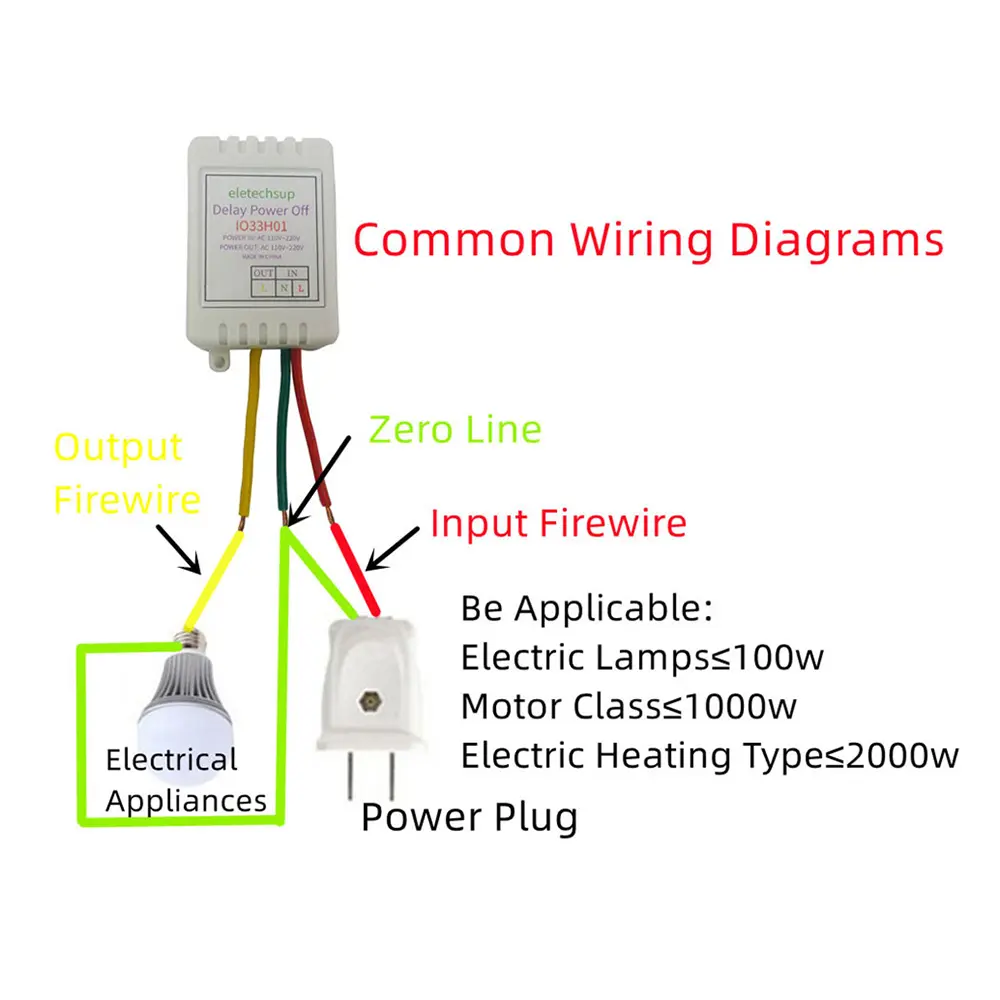

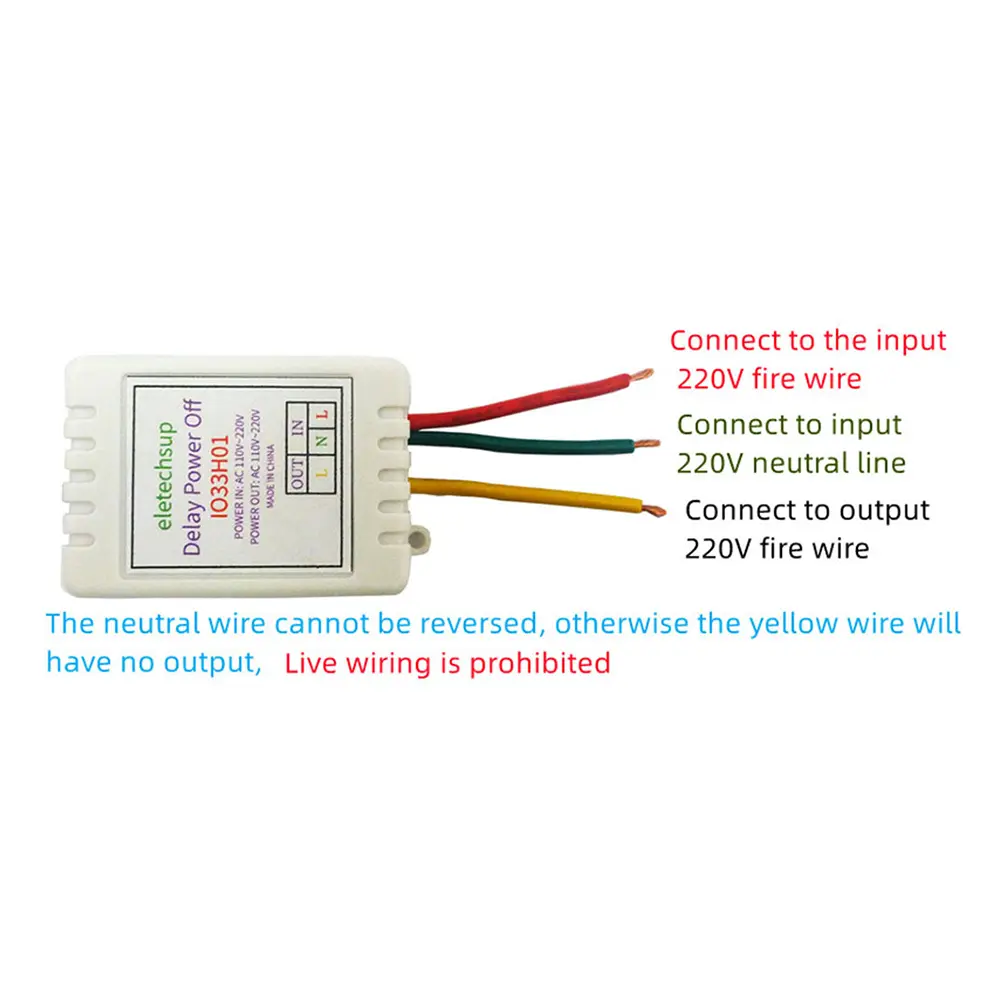

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p style="text-align:center;margin:0px;margin-bottom:0px;margin-top:0px;margin-left:0px;margin-right:0px" align="center"><span style="font-size:20px"><strong>AC 110V 220V 1-480Min Timer Adjustable Disconnect Delay Controller Power-ON Delay OFF Relay AC 220V 7A Voltage Output Switch</strong></span></p><div><br/></div><p><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><u><strong>Features:</strong></u></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>1: Small size<br/>2: Simple to use, wiring according to the detailed diagram<br/>3: stable performance<br/>4: Optional with shell without shell<br/>5: Output voltage: AC110-220V Power supply voltage: AC 110-220V</span></span><br/><br/><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><u><strong>Specifications:</strong></u></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>1. Output current: 7A (MAX 10A)<br/>2. Working power consumption: 43mA<br/>3. Output voltage: AC110-220V<br/>4. Power supply voltage: AC 110-220V<br/>5. Weight with shell: 29 grams<br/>6. Dimensions with shell: 57×35×20mm<br/>7. Weight without shell: 19.1 grams<br/>8. Dimensions without housing: 44×28×16mm<br/>10. Unified line length: 50mm<br/>11. Maximum standby power consumption: 12mA<br/>12. Number of control channels: 1 output<br/>13. Working temperature: -25℃~85℃<br/>14. Working humidity: 5%~95%RH<br/>15. Shell: high quality shell, dustproof and flame retardant<br/>16. Function: Delay for a period of time to stop power supply<br/>17. Control power: 1400W (max) incandescent lamp, energy saving lamp 300W (max)<br/>18. With LED indicator to show the working status (constant light means working, flashing means the delay is over)<br/>19. Applicable scene: living room, kitchen, bathroom, bedroom, corridor, stairs, etc.<br/>20. Wide range of uses: such as exhaust fans, motors, air coolers, cooling fans, germicidal lamps, humidifiers, heaters, etc.<br/>21. 16 delay modes to choose from (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes minutes, 300 minutes, 480 minutes)<br/>22. Module function: This module is a delayed shutdown module. When the set delay time expires, the power supply is stopped.<br/>23. Working status: After power on, the indicator light (PWR) is always on; after the delay is over, the indicator light (PWR) will continue to flash.<br/></span></span><br/><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><u><strong>Instructions:</strong></u></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>①: Set the time that needs to be delayed (live setting is not allowed);<br/>②: After checking that the wiring is correct, power on. After power-on, the module starts to work (the indicator light is always on), and when the time is up, the module stops power supply (the indicator light flashes).<br/>1. If you need to shut down in advance during use, you can directly disconnect the main power supply of the module.<br/>2. Start the second time delay: power on again.<br/></span></span><br/><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><u><strong>Delay Time Selection Method:</strong></u></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>①: Refer to the delay mode table to select the time to be delayed;<br/>②: Toggle the DIP switch (red) according to the delay mode table;<br/>③: After setting, check the wiring, and then power on.<br/>Note: When a new delay mode needs to be set, in order to ensure personal safety, it must be set to power-off mode, and live operation is prohibited.</span></span><br/><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><u><strong><br/>Package Included:</strong></u></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>1*AC110-220V timer adjustable off-delay controller only board/with shell optional</span></span></p><p style="text-align:left;margin:0px;margin-bottom:0px;margin-top:0px;margin-left:0px;margin-right:0px" align="left"></p></div></div><p><br/></p>
$25.94
$25.295

Colors

Sizes

-
+
<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><p style="text-align:center;margin:0px;margin-bottom:0px;margin-top:0px;margin-left:0px;margin-right:0px" align="center"><span style="font-size:20px"><strong>AC 110V 220V 1-480Min Timer Adjustable Disconnect Delay Controller Power-ON Delay OFF Relay AC 220V 7A Voltage Output Switch</strong></span></p><div><br/></div><p><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><u><strong>Features:</strong></u></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>1: Small size<br/>2: Simple to use, wiring according to the detailed diagram<br/>3: stable performance<br/>4: Optional with shell without shell<br/>5: Output voltage: AC110-220V Power supply voltage: AC 110-220V</span></span><br/><br/><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><u><strong>Specifications:</strong></u></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>1. Output current: 7A (MAX 10A)<br/>2. Working power consumption: 43mA<br/>3. Output voltage: AC110-220V<br/>4. Power supply voltage: AC 110-220V<br/>5. Weight with shell: 29 grams<br/>6. Dimensions with shell: 57×35×20mm<br/>7. Weight without shell: 19.1 grams<br/>8. Dimensions without housing: 44×28×16mm<br/>10. Unified line length: 50mm<br/>11. Maximum standby power consumption: 12mA<br/>12. Number of control channels: 1 output<br/>13. Working temperature: -25℃~85℃<br/>14. Working humidity: 5%~95%RH<br/>15. Shell: high quality shell, dustproof and flame retardant<br/>16. Function: Delay for a period of time to stop power supply<br/>17. Control power: 1400W (max) incandescent lamp, energy saving lamp 300W (max)<br/>18. With LED indicator to show the working status (constant light means working, flashing means the delay is over)<br/>19. Applicable scene: living room, kitchen, bathroom, bedroom, corridor, stairs, etc.<br/>20. Wide range of uses: such as exhaust fans, motors, air coolers, cooling fans, germicidal lamps, humidifiers, heaters, etc.<br/>21. 16 delay modes to choose from (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes minutes, 300 minutes, 480 minutes)<br/>22. Module function: This module is a delayed shutdown module. When the set delay time expires, the power supply is stopped.<br/>23. Working status: After power on, the indicator light (PWR) is always on; after the delay is over, the indicator light (PWR) will continue to flash.<br/></span></span><br/><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><u><strong>Instructions:</strong></u></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>①: Set the time that needs to be delayed (live setting is not allowed);<br/>②: After checking that the wiring is correct, power on. After power-on, the module starts to work (the indicator light is always on), and when the time is up, the module stops power supply (the indicator light flashes).<br/>1. If you need to shut down in advance during use, you can directly disconnect the main power supply of the module.<br/>2. Start the second time delay: power on again.<br/></span></span><br/><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><u><strong>Delay Time Selection Method:</strong></u></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>①: Refer to the delay mode table to select the time to be delayed;<br/>②: Toggle the DIP switch (red) according to the delay mode table;<br/>③: After setting, check the wiring, and then power on.<br/>Note: When a new delay mode needs to be set, in order to ensure personal safety, it must be set to power-off mode, and live operation is prohibited.</span></span><br/><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><u><strong><br/>Package Included:</strong></u></span></span> <span style="font-size:18px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>1*AC110-220V timer adjustable off-delay controller only board/with shell optional</span></span></p><p style="text-align:left;margin:0px;margin-bottom:0px;margin-top:0px;margin-left:0px;margin-right:0px" align="left"></p></div></div><p><br/></p>
