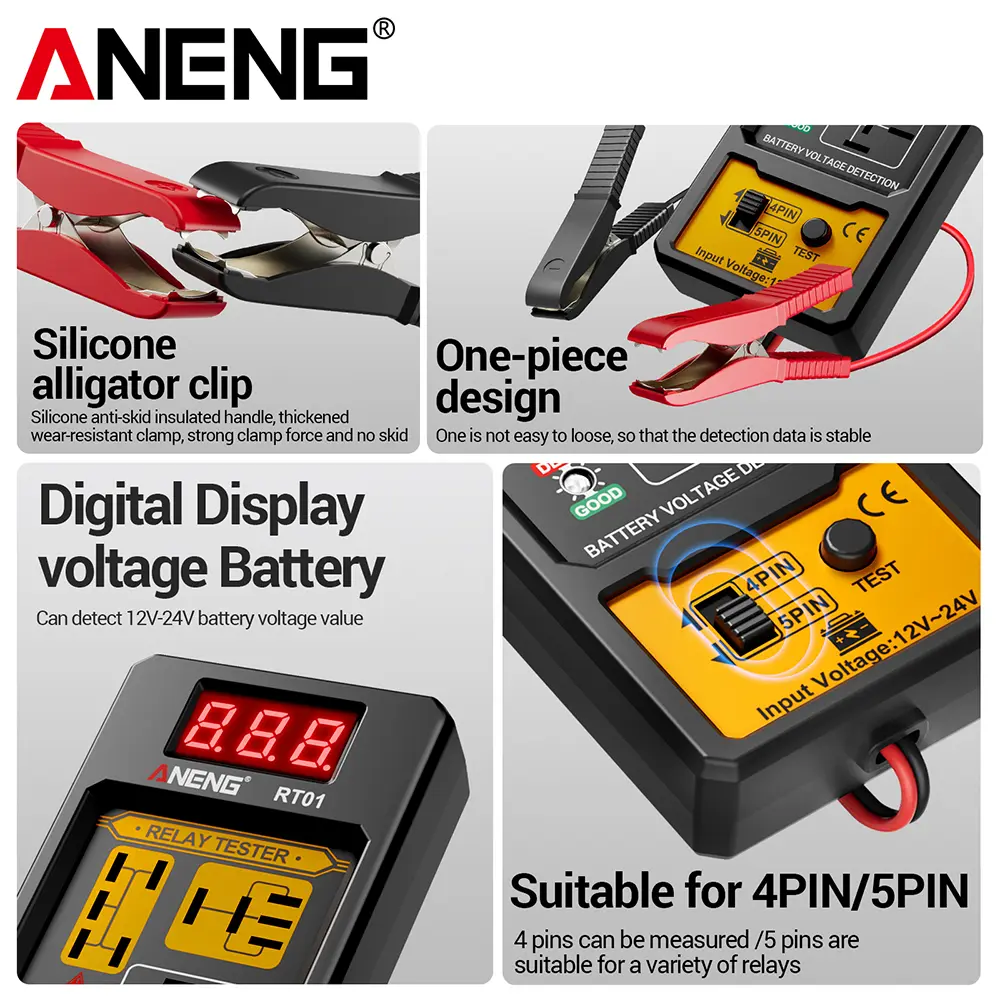

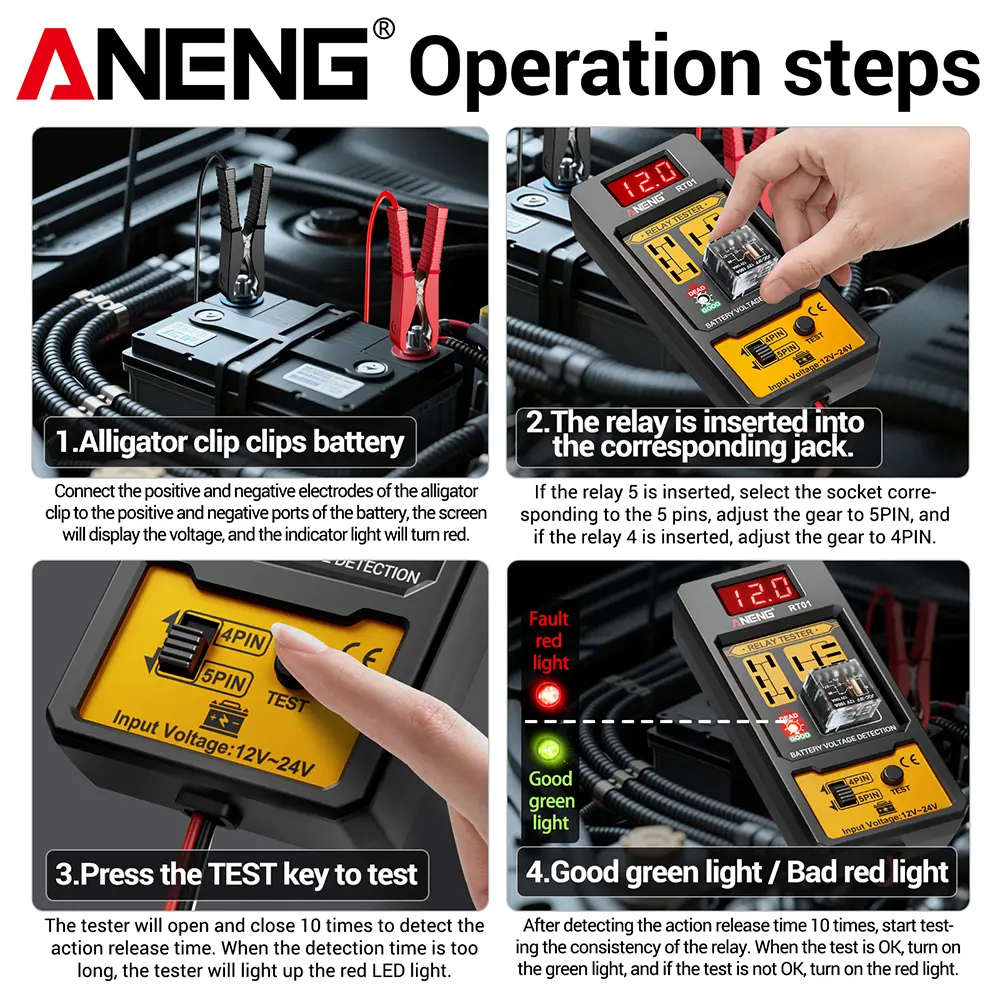

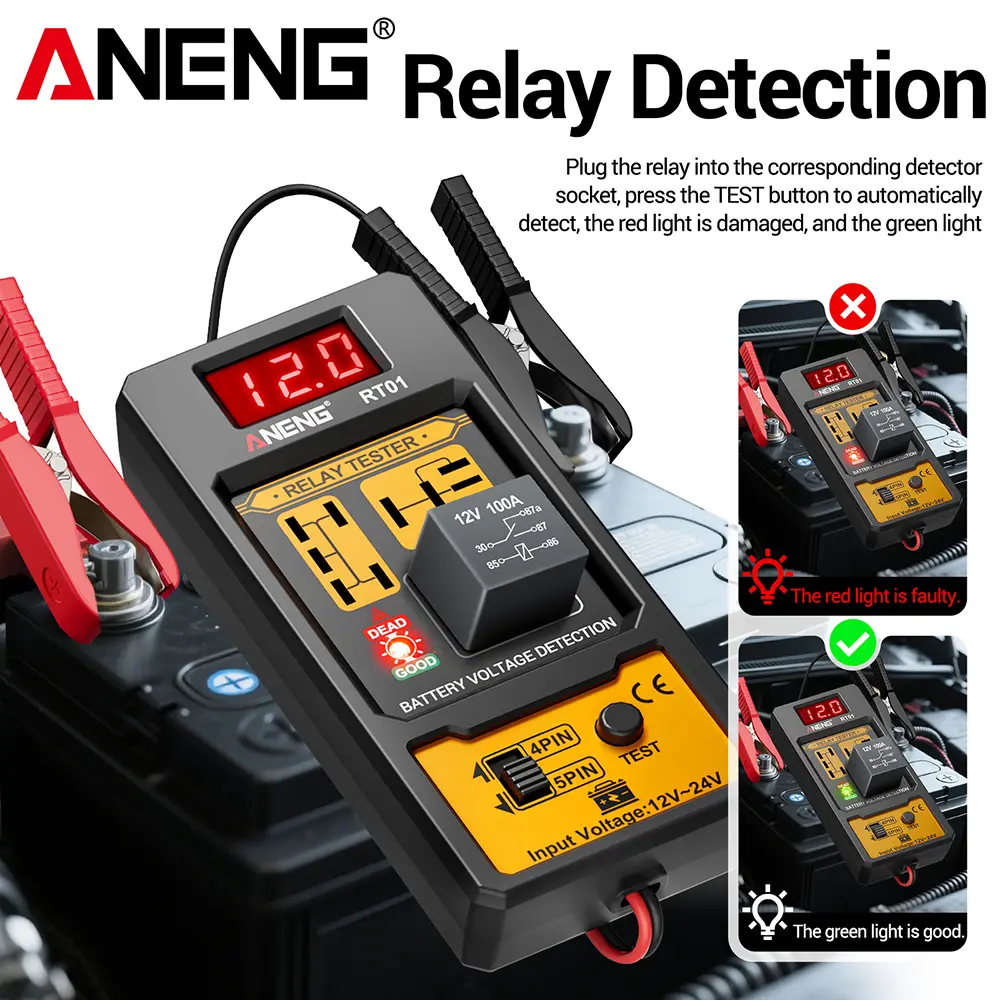

<div class="detailmodule_html"><div class="detail-desc-decorate-richtext"><div style="text-align:center" align="center"><span style="font-size:24px"><span style="color:rgb(231, 76, 60);font-size:24px"><strong><span style="font-size:24px;font-family:Arial, Helvetica, sans-serif">ANENG RT01</span></strong></span></span><span style="color:rgb(0, 0, 0);font-size:24px;font-family:Arial, Helvetica, sans-serif"><strong><span style="color:rgb(0, 0, 0);font-size:24px"> Digital Relay Detector Vehicle Ddetection Battery 11-25V Voltage Repair 4/5 Foot Socket Relay Analysis LED Indicator </span></strong></span></div><div><span style="font-family:Arial, Helvetica, sans-serif"><span style="font-size:20px"><br/></span></span><span style="font-family:Arial, Helvetica, sans-serif"><span style="font-size:20px"><span style="color:rgb(231, 76, 60)"><strong>Introduce:</strong></span></span></span><span style="font-family:Arial, Helvetica, sans-serif"><span style="font-size:20px"><br/>RT01 can quickly detect whether your relay is normal.It is easy to use and suitable for general-purpose automotive relays on the market.Durng testing, it needs to be connected to a 11V-25V battery in the car. The tester will automatically detect the foot position,the time of action release, and the consistency of the relay in each test stage. lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.<br/><br/></span></span><span style="font-family:Arial, Helvetica, sans-serif"><span style="font-size:20px"><strong><span style="color:rgb(231, 76, 60)">Specification:</span></strong></span></span><span style="font-family:Arial, Helvetica, sans-serif"><span style="font-size:20px"><br/>Product Model:RT01 Relay Detector<br/>Applicable pins:5 pins/4 pins<br/>Battery detection:11V~ 25V voltage<br/>Applicable coil resistance:≥20Ω<br/>Use power:Connect car battery power supply<br/>Detection prompt light:lf the tester turns on the green LED light, it means that the relay is normal; if the red LED light is on, it means that the relay is not normal.<br/>Alligator clip opening size:2.1cm/0.82inch<br/>Alligator clip length:42cm/16.54inch<br/>Digital display bright screen:Yes<br/><br/></span></span><span style="font-family:Arial, Helvetica, sans-serif"><span style="font-size:20px"><span style="color:rgb(231, 76, 60)"><strong>Operating instructions:</strong></span></span></span><span style="font-family:Arial, Helvetica, sans-serif"><span style="font-size:20px"><br/>1）Clip the alligator clip of the tester on the car battery the black clip on the negative electrode and the red clip on the positive electrode.<br/>2）When the red LED light is on, it indicates that the tester can start testing.<br/>3）Check the relay before testing.  lf it is 4 feet, choose a 4-foot socket on the tester;  if it is 5 feet, choose a 5-foot socket on the tester.<br/>4）Plug the relay into one of the three sockets<br/>5）Press the &quot;Test&quot; button<br/>6）The tester will automatically detect the pin position of the unknown relay. When the relay is not a universal relay on the market or is damaged, the tester will turn on a red LED light.<br/>7）When the foot position is set correctly, the tester will open and close 10 times to detect the release time of the action. When the detection time is too long, the tester wil light up the red LED light.<br/>8）When the tester has detected the action release time 10 times, start to detect the consistency of the relay. When the test is OK, turn on the green light, and if the test is not OK, turn on the red light.<br/>9）After the test is complete, remove the alligator clip from the battery and remove the relay from the tester.</span></span><br/><br/><br/><span style="font-family:Arial, Helvetica, sans-serif"><span style="font-size:20px"><strong><span style="color:rgb(231, 76, 60)">Package:</span></strong></span></span><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>1*RT01 Relay Detector<br/><br/></span></span><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><strong><span style="color:rgb(231, 76, 60)">Attention:</span></strong></span></span><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><br/>1.The car battery must be a 12V battery, and the voltage of the battery must be between 11V and 25V.<br/>2.The applicable coil resistance should preferably be above 20Ω.<br/></span></span><span style="font-size:20px"><span style="font-family:Arial, Helvetica, sans-serif"><br/></span></span></div></div></div><p><br/></p>
